Bubuka
The Ricokids 760702 Balance Bike is designed to help young children develop essential motor skills, balance, and coordination. This manual provides important information for the safe assembly, operation, and maintenance of the balance bike. Please read it thoroughly before first use and keep it for future reference.
Émbaran Kasalametan
- Always supervise children while they are using the balance bike.
- Ensure the child wears appropriate safety gear, including a helmet, knee pads, and elbow pads.
- The balance bike is intended for use on flat, even surfaces, free from obstacles. Avoid steep inclines, busy roads, or uneven terrain.
- Regularly check all bolts, nuts, and components to ensure they are securely fastened before each use.
- Do not allow more than one child to ride the balance bike at a time.
- The maximum weight capacity for this balance bike is not specified in the product details. Exercise caution and ensure the child's weight is appropriate for the bike's size and construction.
Eusi pakét
Saatos ngabongkar bungkusan, pastikeun sadaya komponén aya sareng henteu ruksak:
- Ricokids 760702 Balance Bike (partially assembled)
- Assembly tools (if included, check packaging)
- Manual pangguna (dokumén ieu)
Image: The Ricokids 760702 Balance Bike in green and black, showing its overall design.
Setup sareng Majelis
The Ricokids 760702 Balance Bike typically arrives partially assembled. Follow these steps to complete the assembly and adjust it for your child.
- Pamasangan Handlebar: Insert the handlebar stem into the fork tube. Ensure the handlebar is aligned straight with the front wheel. Tighten the handlebar clamp bolts securely using the provided tools.
- Seat Post Installation and Adjustment: Insert the seat post into the frame's seat tube. Adjust the seat height so that the child can comfortably place both feet flat on the ground with a slight bend in their knees while seated. The adjustable seat height ranges from 32 cm to 42 cm. Tighten the quick-release lever or bolt securely to fix the seat in position.
- Cék ahir: Before first use, double-check all bolts, nuts, and quick-release mechanisms to ensure they are tight and secure. Ensure the wheels spin freely and are properly attached.
Image: A diagram illustrating the key dimensions of the balance bike, including handlebar width (42.5 cm), handlebar height (53-62 cm), seat height (32-42 cm), seat length (20 cm), wheel diameter (29 cm), and total length (89 cm).
Parentah Operasi
The Ricokids 760702 Balance Bike is designed for intuitive learning and fun.
- dimimitian: Have the child sit on the seat with both feet flat on the ground. Encourage them to push off with their feet to gain momentum.
- Ngalayang: As the child gains confidence, they will naturally lift their feet and glide, learning to balance.
- Setir: Teach the child to steer by gently turning the handlebars in the desired direction.
- ngerem: The primary method of braking on a balance bike is for the child to place their feet firmly on the ground.
- rupa bumi: The EVA foam wheels are designed for smooth and stable riding on various surfaces, including grass, asphalt, and light gravel.
Image: The balance bike's EVA foam wheels are shown on different surfaces like grass, dirt, and gravel, indicating their versatility. An icon indicates no need for an air pump.

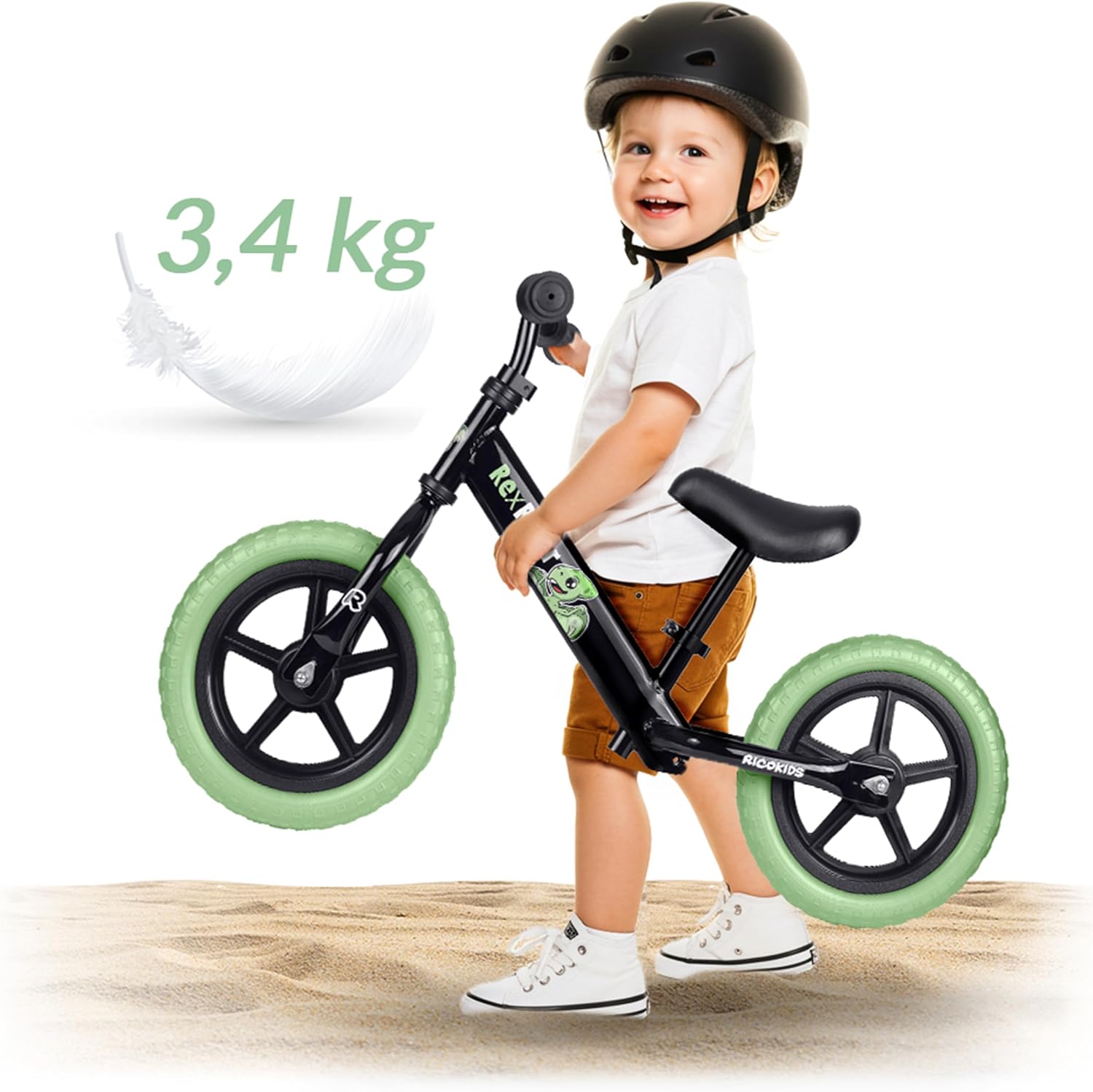

Image: A young child easily holding the Ricokids balance bike, highlighting its lightweight design (3.4 kg).
Pangropéa
Proper maintenance ensures the longevity and safe operation of your Ricokids Balance Bike.
- beberesih: Ngusap pigura sareng komponenana nganggo iklanamp lawon. Hindarkeun bahan kimia anu kasar.
- Pamariksaan: Regularly check all bolts, nuts, and connections for tightness. Ensure the handlebars and seat post are secure.
- Roda: The EVA foam wheels are puncture-proof and require no inflation. Inspect them periodically for wear or damage.
- Panyimpenan: Store the balance bike in a dry place, away from direct sunlight and extreme temperatures, to prevent material degradation.
Pamérésan masalah
If you encounter any issues with your Ricokids Balance Bike, refer to the following common solutions:
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Loose handlebars or seat | Bolts or quick-release not tightened sufficiently. | Tighten all relevant bolts or quick-release levers securely. |
| Sapédah karasa teu stabil | Incorrect seat height; child's feet not flat on the ground. | Adjust the seat height so the child can comfortably place both feet flat on the ground. |
| Gerung-gerung | Loose components or friction between parts. | Inspect all connections. A small amount of lubricant on moving parts (e.g., wheel axles) might help, but avoid getting it on the frame or seat. |
spésifikasi
| Fitur | Rincian |
|---|---|
| Nomer modél | 760702 |
| Tipe | Sapédah Kasaimbangan |
| merek | Ricokids |
| Warna | Héjo / Hideung |
| Bahan Pigura | Baja |
| Bahan kabayang | EVA Foam (Puncture-proof) |
| Diaméter kabayang | 29 cm |
| Bahan Kursi | busa |
| Handlebar Grips Material | karét |
| Total Panjang | 89 cm |
| Jangkungna korsi adjustable | 32 - 42 cm |
| Panjang korsi | 20 cm |
| Handlebar Width | 42.5 cm |
| adjustable Handlebar Jangkungna | 53 - 62 cm |
| Item Beurat | 3.9 kg |
| Ukuran Paket | 71.3 x 31.9 x 14.5 cm |
Gambar: Detil view of the non-slip rubber grips, the RexRider dinosaur logo on the frame, and the 29 cm EVA foam wheel.
Émbaran jaminan
Specific warranty details for the Ricokids 760702 Balance Bike are not provided in the product description. Please refer to the manufacturer's official website or contact your retailer for comprehensive warranty information and terms.
Rojongan Palanggan
For further assistance, technical support, or inquiries regarding your Ricokids 760702 Balance Bike, please visit the official Ricokids websitus atanapi ngahubungan departemén layanan palanggan maranéhna. Inpormasi kontak biasana tiasa dipendakan dina bungkusan produk atanapi produsén websitus.
