Bubuka
Thank you for choosing the VASAGLE BBK504W01 Bathroom Under-Sink Cabinet. This manual provides essential information for the safe assembly, operation, and maintenance of your new furniture. Please read these instructions carefully before beginning assembly and retain them for future reference.

Image: The VASAGLE BBK504W01 under-sink cabinet, white with silver-tone handles, positioned under a white basin in a contemporary bathroom.
Émbaran Kasalametan
- Kit Anti Tip: For safety, ensure this bathroom cabinet is securely fastened to the wall using the included anti-tip kit. This prevents accidental tipping and potential injury.
- Kapasitas beurat: Do not exceed the maximum weight capacity of 36 kg. Distribute weight evenly across shelves and drawers.
- Majelis: Assemble the unit on a soft, clean surface to prevent scratches. Ensure all parts are correctly aligned and fasteners are tightened before use.
- Barudak: Tetep bagian leutik jeung bahan bungkusan jauh ti barudak salila assembly.
- Uap: While the cabinet is wear-resistant and easy to clean, avoid prolonged exposure to excessive moisture. Wipe up spills immediately.

Image: Visual representation of the anti-tip mechanism, the cabinet's water-resistant surface being wiped, and its scratch-resistant property.
spésifikasi
| merek | VASAGLE |
| Ngaran modél | BBK504W01 |
| Nomer modél | UK-VB001 |
| Warna | Awan Bodas |
| Bahan | Kayu direkayasa (MDF) |
| Ukuran produk (D x W x H) | 30 x 70 x 64 cm |
| Item Beurat | 16.9 kg |
| Kamampuh beurat maksimum | 36 kg |
| Jumlah laci | 3 |
| Jumlah Panto | 1 |
| Rak adjustable | 1 (3 posisi jangkungna) |
| Majelis Diperlukeun | Sumuhun |
| Tipe Pamasangan | Freestanding, Floor Mount |

Image: Detailed dimensions of the cabinet, including overall size (30D x 70W x 64H cm), drawer size, and internal space for the sink pedestal.
Setup sareng Majelis
The VASAGLE BBK504W01 cabinet requires assembly. All necessary parts are marked, and illustrated instructions are included to facilitate the process.
Sateuacan Anjeun Ngawitan:
- Pariksa Eusi Paket: Verify that all components listed in the instruction manual are present and undamaged.
- Nyiapkeun Workspace anjeun: Clear a spacious area and lay down a soft cloth or cardboard to protect the furniture parts and your floor during assembly.
- Alat anu diperyogikeun: Typically, a screwdriver (not always included) is needed.
Léngkah-léngkah Majelis:
Follow the step-by-step illustrated instructions provided in the packaging. Each part is labeled with a letter for easy identification.

Image: An exploded diagram illustrating all individual components of the cabinet, labeled with letters, alongside the assembly manual.
Kompatibilitas Wastafel:
This cabinet is designed to accommodate various sink types, including those with or without a pedestal. Pay close attention to the dimensions of the rear opening for the pedestal and the overall cabinet size to ensure a proper fit with your existing sink.
- The distance between the front of your siphon and the wall should be less than 23 cm.
- The width of the siphon should be a maximum of 20 cm.
- Ensure the distance from the bottom of your sink to the floor is between 65-69 cm for optimal fit.

Image: Illustrations demonstrating how the cabinet fits around both pedestal and non-pedestal sinks, with a clear view of the plumbing cut-out.

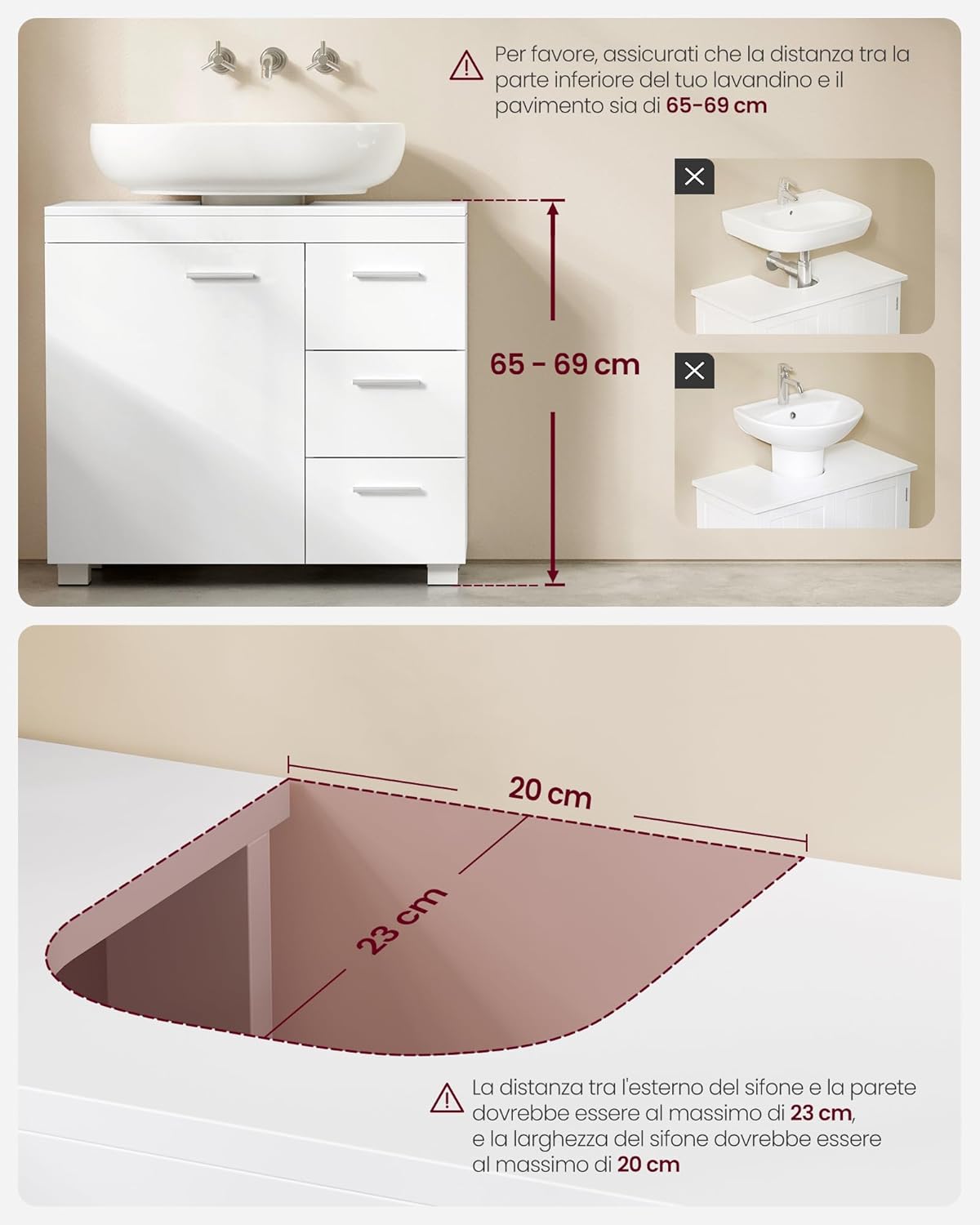

Image: A diagram providing critical measurements for sink and siphon compatibility, including the required distance from the sink bottom to the floor and siphon dimensions.
Parentah Operasi
Once assembled and securely installed, your VASAGLE under-sink cabinet is ready for use.
Organisasi Panyimpenan:
The cabinet features 3 side drawers and 2 compartments behind the door, offering versatile storage for your bathroom essentials.

Image: The cabinet with its door open, revealing two internal shelves and three pull-out drawers, organized with toiletries and towels.
Rak adjustable:
The internal shelf can be adjusted to 3 different height positions. This allows you to customize the storage space to accommodate bottles and items of various sizes.
- Mukakeun panto lomari.
- Kaluarkeun barang-barang naon waé tina rak.
- Carefully lift the shelf and reposition it into the desired set of holes. Ensure it is level and securely seated.

Gambar: A close-up view of the cabinet's interior, highlighting the adjustable shelf with three possible height settings indicated by arrows.
Pangropéa
To ensure the longevity and appearance of your VASAGLE cabinet, follow these maintenance guidelines:
- beberesih: Ngusap permukaan kabinet kalayan lemes, damp lawon. Hindarkeun pembersih abrasive atanapi bahan kimia kasar anu tiasa ngarusak finish.
- Tumpahan: Promptly wipe away any water or liquid spills to prevent moisture damage to the engineered wood.
- Pamariksaan: Périodik pariksa sagala screws na fasteners pikeun mastikeun aranjeunna tetep ketat. Retighten lamun perlu.
- Hindarkeun Overloading: Do not place excessively heavy items on the shelves or in the drawers to prevent structural damage.

Image: A close-up of the cabinet's feet, showing protective pads that help prevent scratches on the floor and provide stability.
Pamérésan masalah
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Kabinet karasa goyah atanapi teu stabil. | Pangiketna leupas; lanténa henteu rata; pakakas anti-tip teu acan dipasang. | Ensure all screws are tightened. Place shims under feet if the floor is uneven. Install the anti-tip kit as per instructions. |
| Laci teu geser mulus. | Incorrect runner installation; debris in runners; drawer overloaded. | Check that drawer runners are installed correctly and aligned. Clean any dust or debris from the runners. Reduce the weight in the drawer. |
| Panto henteu nutup leres. | Hinges misaligned; cabinet not level. | Adjust the hinges as needed. Ensure the cabinet is level on the floor. |
| Cabinet does not fit around the sink. | Incorrect measurements taken before purchase. | Review the sink compatibility dimensions in the 'Setup and Assembly' section. If the dimensions do not match, the cabinet may not be suitable for your sink. |
Garansi sareng Rojongan
For any questions, missing parts, or issues not covered in this manual, please contact VASAGLE customer support. Refer to your purchase documentation for specific warranty details and contact information.
Please have your model number (BBK504W01) and UPC (194343194004) ready when contacting support.
