AIPER Scuba SE Cordless Robotic Pool Cleaner User Manual

1. Bubuka

Thank you for choosing the AIPER Scuba SE Cordless Robotic Pool Cleaner. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your device. Please read it thoroughly before first use and keep it for future reference.

Important Safety Information: Always ensure the device is turned off and disconnected from the charger before handling or performing maintenance. Do not operate the cleaner with people or pets in the pool. Only use the provided charger.

2. Produk Langkungview

The AIPER Scuba SE is a cordless robotic pool cleaner designed for above-ground pools up to 860 sq. ft. It features powerful suction, a long-lasting battery, and smart auto-parking for convenient use.

Figure 1: AIPER Scuba SE Cordless Robotic Pool Cleaner

Fitur konci:

• Ngabersihan jero anu kuat: Effectively removes dirt, leaves, and debris.
• 95-Menit Runtime: Nyadiakeun ample cleaning time for most above-ground pools.
• Smart Auto-Parking: Automatically returns to the poolside when the battery is low for easy retrieval.
• True Cordless Freedom: Eliminates cords and tangles for hassle-free operation.
• Quick Drain System: Drains 90% of water in 15 seconds, making it lightweight for lifting and storage.

3. Setélan

3.1 Ngecas Alat

Before initial use, fully charge your AIPER Scuba SE. A full charge typically takes 3-4 hours and provides up to 95 minutes of runtime.

1. Panggihan port ngecas dina alat.
2. Connect the provided charger to the device and a power outlet.
3. The LED indicator will show red during charging and turn green when fully charged.

Figure 2: The device charging with a red indicator light, turning green when fully charged.

3.2 Majelis

The AIPER Scuba SE comes pre-assembled for immediate use. Ensure the brushes are securely snapped into place on the underside of the unit.

Figure 3: Underside of the Aiper Scuba SE showing the brushes correctly installed.

4. Parentah Operasi

4.1 Ngamimitian Siklus Beberesih

1. Pastikeun alat geus dicas pinuh.
2. Press the one-click activation button located on the top of the device.
3. Gently lower the cleaner into your above-ground pool. It will sink to the bottom and begin its cleaning cycle automatically.

Figure 4: Location of the one-click activation button on the Aiper Scuba SE.

4.2 Smart Auto-Parking

When the battery level is low, the AIPER Scuba SE will automatically navigate to the nearest poolside wall and stop. This feature simplifies retrieval, ensuring you don't have to chase the cleaner across the pool.

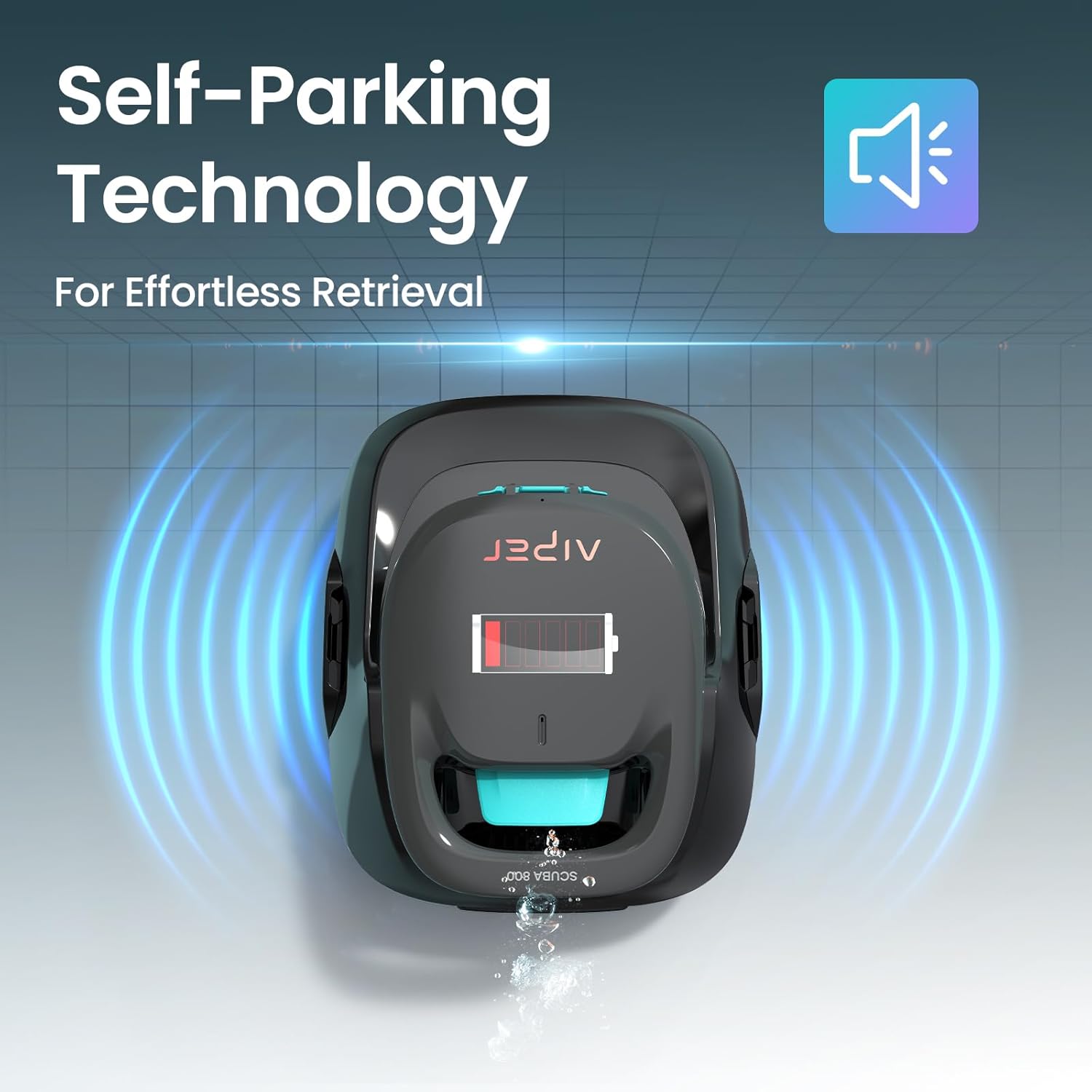

Figure 5: The Aiper Scuba SE using its smart auto-parking feature to return to the pool edge.

4.3 Pamulihan

Use the provided retrieval hook (or a standard pool pole with a hook attachment) to easily lift the cleaner out of the water. Allow excess water to drain before removing it completely from the pool area.

Figure 6: Retrieving the Aiper Scuba SE from the pool using a hook, demonstrating its quick drain system.

5. Pangropéa

5.1 Ngabersihan Filter

Regularly clean the filter tray to maintain optimal cleaning performance.

1. Open the cleaner's cover by releasing kancing-kancingna.
2. Cabut baki saringan.
3. Rinse the filter tray thoroughly with a hose to remove collected debris.
4. Pasangkeun deui baki saringan anu bersih teras tutup deui panutupna kalayan pageuh.

Figure 7: The filter tray being rinsed with a hose to remove debris, illustrating the ease of maintenance.

5.2 Panyimpenan

After each use, ensure the cleaner is clean and dry before storing it in a cool, dry place away from direct sunlight and extreme temperatures.

6. Cara ngungkulan

• Device not moving: Ensure the battery is fully charged and the activation button has been pressed. Check for any obstructions in the wheels or suction inlet.
• Kinerja beberesih goréng: Clean the filter tray. Ensure the pool water chemistry is balanced.
• Alat teu ngecas: Verify the charger is correctly connected to both the device and the power outlet. Check the charging indicator light.

7. Spésifikasi

8. Jaminan & Dukungan

The AIPER Scuba SE comes with a 1-year warranty. For warranty claims, technical support, or any inquiries, please contact AIPER customer service through their official websitus atanapi inpormasi kontak anu disayogikeun dina bungkusan produk anjeun.

Visit the official AIPER Store for more information: Toko AIPER
