1. Bubuka
Thank you for choosing the YNAADYH DJKL12 Electric Hot and Cold Water Dispenser. This compact and efficient appliance is designed to provide convenient access to hot and cold drinking water in various environments, including offices, homes, kitchens, and student residences. Its top-loading design accommodates water bottles from 4.5 to 18.9 liters, ensuring a steady supply of hydration.
This manual provides essential information for the safe and effective use, installation, operation, and maintenance of your water dispenser. Please read it thoroughly before first use and retain it for future reference.

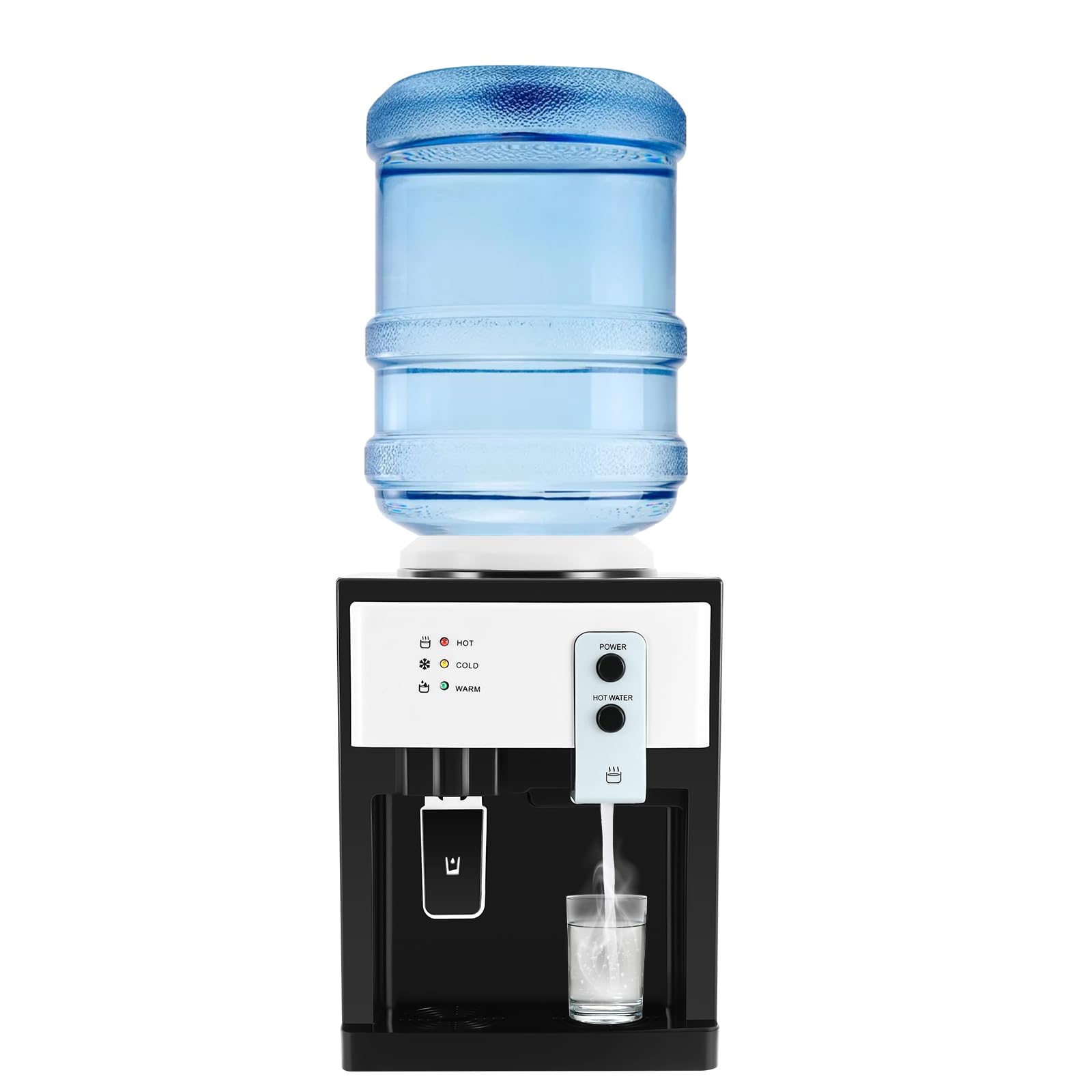

Image 1: YNAADYH DJKL12 Electric Hot and Cold Water Dispenser with a 5-gallon water bottle on top.
2. Parentah Kasalametan
Pikeun mastikeun operasi anu aman sareng nyegah tatu atanapi karusakan, mangga perhatoskeun tindakan pencegahan kaamanan ieu:
- Baca sadaya parentah sateuacan nganggo alat.
- Alat ieu ngan ukur pikeun panggunaan jero rohangan. Entong nganggo ker.
- Place the dispenser on a firm, level surface away from direct sunlight and heat sources. Ensure adequate ventilation around the unit.
- Ulah neuleumkeun alat, ari, atawa nyolok kana cai atawa cairan séjén.
- Keep children away from the hot water faucet. The hot water can reach temperatures of 85-100°C and can cause severe burns.
- Always unplug the dispenser before cleaning or performing any maintenance.
- Do not operate the dispenser with a damaged cord or plug. Contact customer support for repairs.
- Ensure the water bottle is properly seated before operating the dispenser.
- Do not turn on the heating function if the water bottle is empty or not properly installed, as this may damage the heating element.
- Anggo ngan ukur cai anu tiasa diinum sareng dispenser ieu.
3. Produk Langkungview
The YNAADYH DJKL12 water dispenser features a compact design, durable construction, and user-friendly controls to provide instant hot and cold water.
Fitur konci:
- Hot and Cold Water: Provides water heated to over 90°C and chilled to below 15°C.
- Énergi Éfisién: Designed for low power consumption, approximately 1 kWh per 24 hours.
- Ukuran kompak: Dimensions of approximately 27cm (W) x 24cm (D) x 36cm (H) make it suitable for various spaces.
- Bahan awét: Constructed with a shock-resistant PP casing and a heat-resistant, corrosion-resistant, and rust-proof stainless steel inner tank.
- Kasaluyuan Universal: Compatible with standard water bottles ranging from 4.5 to 18.9 liters.
- Operasi gampang: Simple one-button control for power and separate switches for heating and cooling functions.
Gambar 2: Deukeut view of the YNAADYH DJKL12 water dispenser, highlighting the control panel and dispensing area.
Image 3: Internal design and components of the water dispenser, illustrating efficient heating and cooling mechanisms.
4. Setélan
Follow these steps to set up your water dispenser:
- Ngabongkar: Carefully remove the dispenser from its packaging. Inspect for any damage.
- panempatan: Place the dispenser on a stable, flat, and dry surface. Ensure there is at least 10 cm (4 inches) of clearance from walls to allow for proper ventilation. Avoid placing it near direct sunlight or heat sources.
- Pasang Botol Cai: Remove the cap from a new 4.5 to 18.9-liter water bottle. Invert the bottle and carefully place it onto the support collar on top of the dispenser. Ensure it is seated firmly and water begins to flow into the dispenser's reservoir.
- Utamana Sistim: Before plugging in the unit, dispense water from both the hot and cold faucets until water flows steadily. This ensures the internal tanks are filled and prevents dry heating.
- Colokkeun: Once the system is primed, plug the power cord into a grounded electrical outlet.
Image 4: The top-loading design of the water dispenser, illustrating compatibility with various bottle sizes (4.5 to 18.9 liters).
5. Parentah Operasi
Your YNAADYH DJKL12 water dispenser is designed for simple operation.
- Daya Hurung: After plugging in the unit and ensuring the water bottle is installed and primed, press the main power switch (if available, typically on the back or side).
- Activate Heating/Cooling: Use the separate switches for hot water (red indicator) and cold water (blue indicator) located on the control panel. The corresponding indicator lights will illuminate when activated.
- Ngaluarkeun Cai: Place a cup under the desired faucet. For cold water, press the blue lever. For hot water, press the red lever. Be cautious with hot water.
- Kontrol Suhu: The dispenser automatically maintains the set hot and cold temperatures. Hot water reaches over 90°C in approximately 6 minutes. Cold water reaches below 15°C in approximately 50 minutes.
Image 5: Water temperature selection options: hot, cold, and ambient.
Image 6: Three distinct temperature modes for various daily needs: 12-15°C (cold), 45-65°C (warm), and 85-100°C (hot).
6. Pangropéa
Regular cleaning and maintenance will ensure the longevity and hygienic operation of your water dispenser.
- Bersihan Luar: Ngusap bagian luar dispenser ku lemes, damp lawon. Ulah make cleaners abrasive atawa pangleyur.
- Ngabersihan Baki Tetes: The drip tray is removable for easy cleaning. Slide it out, empty any collected water, wash with mild soap and water, rinse thoroughly, and dry before reinserting.
- Water Bottle Replacement: When the water bottle is empty, turn off the dispenser, unplug it, and carefully remove the empty bottle. Replace with a new, full bottle as described in the Setup section.
- Internal Cleaning (Descaling): It is recommended to descale the hot water tank every 3-6 months, depending on water hardness. Consult a qualified technician or refer to general descaling instructions for water heaters. Always unplug the unit and drain all water before descaling.
Image 7: User-friendly design with removable drip tray and bottle base for easy cleaning.
7. Cara ngungkulan
If you encounter issues with your water dispenser, refer to the following common problems and solutions:
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Taya dispensing cai | Empty water bottle; Bottle not properly seated; Airlock in system. | Replace bottle; Re-seat bottle; Prime the system by dispensing from both faucets. |
| Water not hot/cold | Heating/Cooling switch off; Unit not plugged in; Insufficient time for heating/cooling. | Turn on respective switch; Check power connection; Allow 6 minutes for hot, 50 minutes for cold. |
| Leak cai | Water bottle cracked or improperly seated; Drip tray full. | Inspect bottle for damage, replace if necessary; Re-seat bottle; Empty drip tray. |
| Sora teu biasa | Compressor operating (normal); Unit not level. | Ensure unit is on a level surface. Compressor noise is normal during cooling cycles. |
Lamun masalah persists sanggeus nyobian solusi ieu, mangga ngahubungan rojongan customer.
8. Spésifikasi
Technical details for the YNAADYH DJKL12 Electric Hot and Cold Water Dispenser:
| Fitur | Rincian |
|---|---|
| Nomer modél | DJKL12 |
| merek | YNAADYH |
| Bahan | Baja Tahan Karat, Polipropiléna (PP) |
| Ukuran (W x D x H) | 27 cm x 24 cm x 36 cm (10.6 inci x 9.4 inci x 14.2 inci) |
| Tipe Pamasangan | Countertop |
| Gaya | Muatan Luhur |
| Compatible Bottle Capacity | 4.5 - 18.9 Liters (1.1 - 5 Gallons) |
| Daya pemanasan | 500 W |
| Suhu Cai Panas | ≥90°C (194°F) |
| Waktu Pemanasan | Approx. 6 minutes to ≥90°C |
| Daya cooling | 75 W |
| Suhu Cai Tiis | ≤15°C (59°F) |
| Waktu tiis | Approx. 50 minutes to ≤15°C |
| Sumber Daya | Kabel Listrik |
| Beurat bersih | 4.8 kg (10 lbs) |
Gambar 8: Spésifikasi téknis di luhurview.
Image 9: Product dimensions for the YNAADYH DJKL12 water dispenser.
9. Garansi jeung Rojongan
YNAADYH products are manufactured to high-quality standards. For warranty information or technical support, please refer to the documentation included with your purchase or contact your retailer. Keep your proof of purchase for any warranty claims.
