Osight C Micro Beureum Dot Sight Pamaké Manual

Bubuka

This manual provides detailed instructions for the proper use, installation, and maintenance of your Osight C Micro Red Dot Sight. Please read this manual thoroughly before operating the device to ensure safe and effective use. The Osight C is designed for enhanced targeting and situational awareness, featuring a large field of view and multi-reticle system.

Figure 1: Osight C Micro Red Dot Sight

Fitur produk

• Widang badag tina View with Multi-Coated Lens: Advanced anti-reflective lens coatings enhance light transmission for clarity and precise targeting. The large window offers a wider sight picture for quicker target acquisition and follow-ups.

Figure 2: Wide Field of View
• Side-Loading Battery: Designed for effortless battery replacement without the need to remove the optic, ensuring hassle-free re-zeroing.


Figure 3: Side-Loading Battery Compartment

• Multi-Reticle System: Easily switch between a 3 MOA dot, 32 MOA circle, or both, allowing you to tailor your aiming solution to various shooting scenarios. The sharp and bright reticle provides a cutting-edge aiming experience.

Figure 4: Multi-Reticle Options
• Industry-Standard Footprint: Adopting the Ruggedized Miniature Reflex (RMR) or 407c/507c footprint, the optic offers versatile compatibility with a wide range of full-size and compact setups.


Figure 5: RMR Footprint Compatibility

• Fungsi sensor gerak: The motion sensor activates the optic at the slightest movement and powers down after 3 minutes of inactivity to conserve battery life.


Figure 6: Motion Sensor Operation

Komponén Kaasup

The Osight C Micro Red Dot Sight package typically includes the following items:

• Osight C Red Dot Sight × 1
• Adjustment Tool × 1
• Battery Compartment Screw × 2
• Pouch × 1
• Kain Pembersih × 1
• Osight Sticker × 1
• Manual pangguna × 1
• Safety Warnings × 1
• READ ME Card × 1

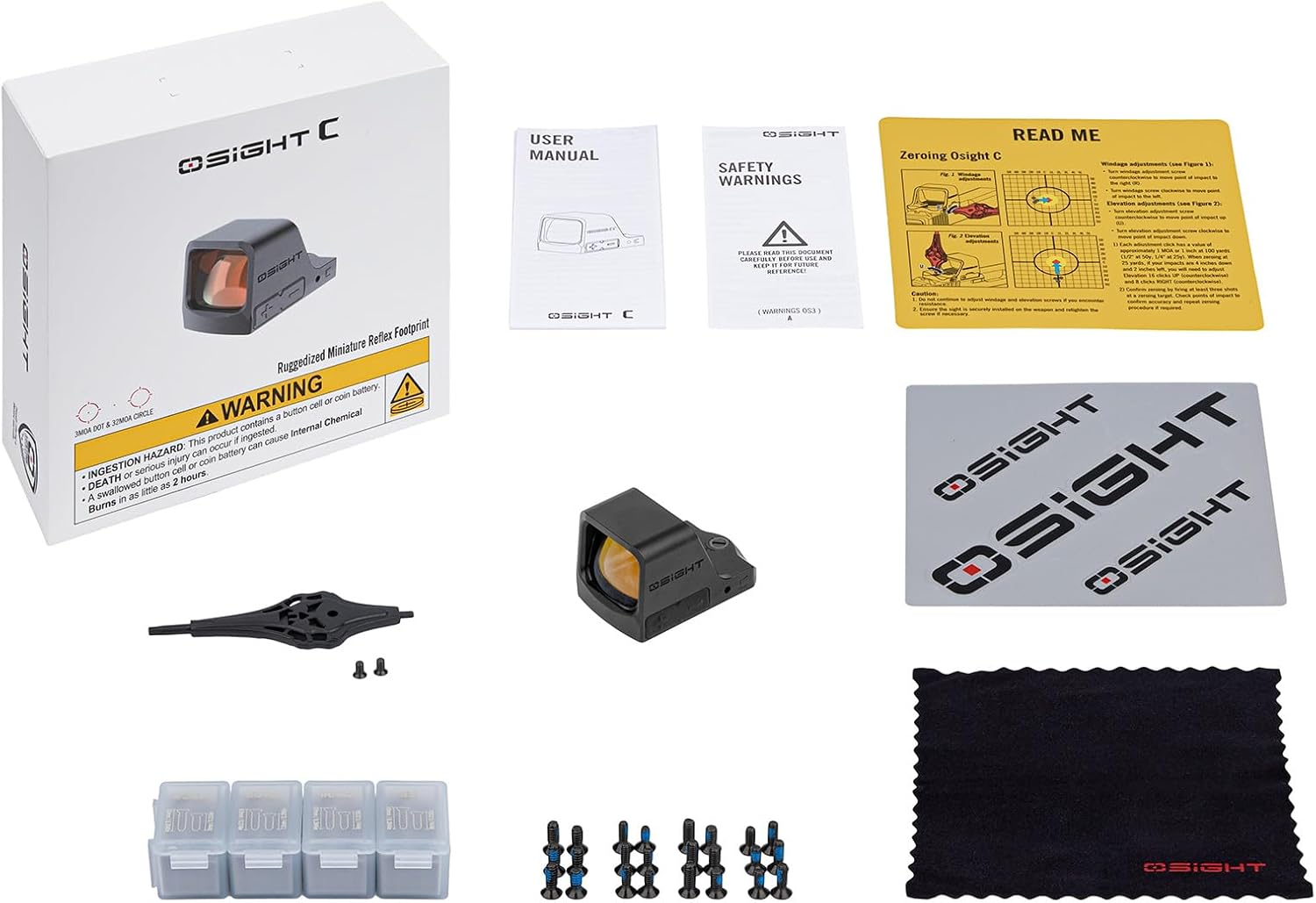

Gambar 7: Eusi pakét

spésifikasi

Disetél

Pamasangan batré

1. Locate the side-loading battery compartment on the Osight C.
2. Using the provided adjustment tool or a suitable small screwdriver, carefully open the battery compartment.
3. Insert the battery (type not specified in provided data, typically CR1632 or similar for red dots) with the positive (+) side facing up.
4. Tutup kompartemen batré anu aman.

Pasang Sight

The Osight C utilizes the industry-standard Ruggedized Miniature Reflex (RMR) or 407c/507c footprint for mounting. Ensure your firearm or mounting plate is compatible with this footprint.

1. Align the Osight C with the compatible mounting plate or slide cut on your firearm.
2. Use the appropriate screws (refer to the compatibility table for screw types) to secure the sight to the mounting surface.
3. Tighten the screws evenly and securely, following the torque specifications recommended by your firearm or mounting plate manufacturer. Avoid over-tightening.

Parentah Operasi

Hurung/Pareum sareng Pangaluyuan Kacaangan

The Osight C features a motion sensor for automatic activation and deactivation. It also has 10 adaptive brightness levels, including 8 daylight and 2 night vision settings.

• To turn on the sight, simply move it slightly. The motion sensor will activate the reticle.
• After 3 minutes of inactivity, the sight will automatically power down to conserve battery.
• To adjust brightness, use the '+' and '-' buttons located on the side of the sight. Press '+' to increase brightness and '-' to decrease brightness.

Figure 8: Brightness Adjustment

Pilihan Reticle

The Osight C offers a multi-reticle system:

• The sight can display a 3 MOA dot, a 32 MOA circle, or both simultaneously.
• Refer to the specific instructions provided with your sight for the exact button combination or sequence to cycle through the reticle options.

Ngaleungitkeun Pandangan

Zeroing is the process of aligning the reticle with your point of impact at a specific distance.

1. Mount the sight securely on your firearm.
2. At a safe shooting range, fire a group of shots at a target at your desired zeroing distance (e.g., 25 yards).
3. Use the windage (horizontal) and elevation (vertical) adjustment screws to move the point of impact. Typically, turning the adjustment screw clockwise moves the point of impact down or right, and counter-clockwise moves it up or left. Consult the markings on your sight for specific directions.
4. Make small adjustments and fire additional groups until your point of aim matches your point of impact.

Pangropéa

beberesih

• Use the provided cleaning cloth or a soft, lint-free cloth to gently wipe the lenses.
• Pikeun smudges nekad, jumlah leutik solusi beberesih lénsa dirancang pikeun élmu optik bisa dilarapkeun ka lawon, teu langsung kana lénsa.
• Keep the sight body clean by wiping it with a damp lawon. Hindarkeun bahan kimia anu kasar atanapi bahan abrasive.

Panyimpenan

• Simpen alat panyungsi di tempat anu tiis sareng garing, jauh tina sinar panonpoé langsung sareng suhu anu ekstrim.
• If storing for an extended period, it is recommended to remove the battery to prevent potential leakage.

Pamérésan masalah

• Reticle Teu Katingali: Check if the battery is properly installed and has sufficient charge. Ensure the sight is not in auto-off mode (move the sight to activate). Adjust brightness settings.
• Indikator batré lemah: Lamun batré voltage drops below 2.2V, the reticle will quickly triple-flash once per minute to indicate that a battery replacement is recommended.


Angka 9: Perhatosan Batré Lemah

• Titik Dampak Anu Teu Akurat: Re-zero the sight according to the operating instructions. Ensure the sight is securely mounted and there is no movement.

Kasaluyuan

The Osight C is designed with the common Ruggedized Miniature Reflex (RMR) or 407c/507c footprint, making it compatible with a wide array of firearms. Below is a reference table for common brands and models, their installation methods, and recommended screw types. This table is for reference only; always verify compatibility with your specific firearm and mounting solution.

Figure 10: Osight C Compatibility Table

Garansi sareng Rojongan

Émbaran jaminan

The Osight C Micro Red Dot Sight comes with a Garansi saumur hirup. For detailed terms and conditions, please refer to the warranty documentation included with your product or contact Osight customer support.

Rojongan Palanggan

For any questions, technical assistance, or warranty claims, please contact Osight customer support through their official websitus atanapi inpormasi kontak anu disayogikeun dina bungkusan produk anjeun.

Anjeun oge bisa ningali ka resmi Manual Pamaké (PDF) pikeun émbaran tambahan.
