Bubuka
This manual provides detailed instructions for the safe and efficient operation of your Xiaomi Portable Electric Air Compressor 2 Pro. Please read this manual thoroughly before using the product and retain it for future reference. This device is designed for inflating tires on cars, motorcycles, bicycles, and balls, offering a convenient and portable solution for maintaining optimal pressure.
Émbaran Kasalametan
Awas: Gagalna nuturkeun parentah kaamanan ieu bisa ngakibatkeun shock listrik, seuneu, atawa tatu serius.
- Jauhkeun alat ti barudak.
- Ulah ngoperasikeun kompresor dina kaayaan baseuh atanapi caket cairan atanapi gas anu gampang kaduruk.
- Ensure the air hose is securely connected to the valve before starting inflation.
- Do not over-inflate items. Always refer to the recommended pressure for the item being inflated. The auto shut-off feature helps prevent over-inflation.
- Ulah dianggo terus-terusan pikeun nyegah panas teuing. Keun alatna tiis upami janten panas.
- Use only the provided charging cable and a compatible 5V/3A power adapter for charging.
- Do not disassemble or modify the device. Contact customer support for repairs.
Eusi pakét
Pastikeun yén sadaya item aya dina bungkusan:
- Kompresor Angin Listrik Portabel Xiaomi 2 Pro
- Fast-connecting air valve
- High-pressure air hose extension
- Needle valve (for balls)
- Presta valve adapter (for some bicycle tires)
- Kabel ngecas Tipe-C
- Kantong neundeun

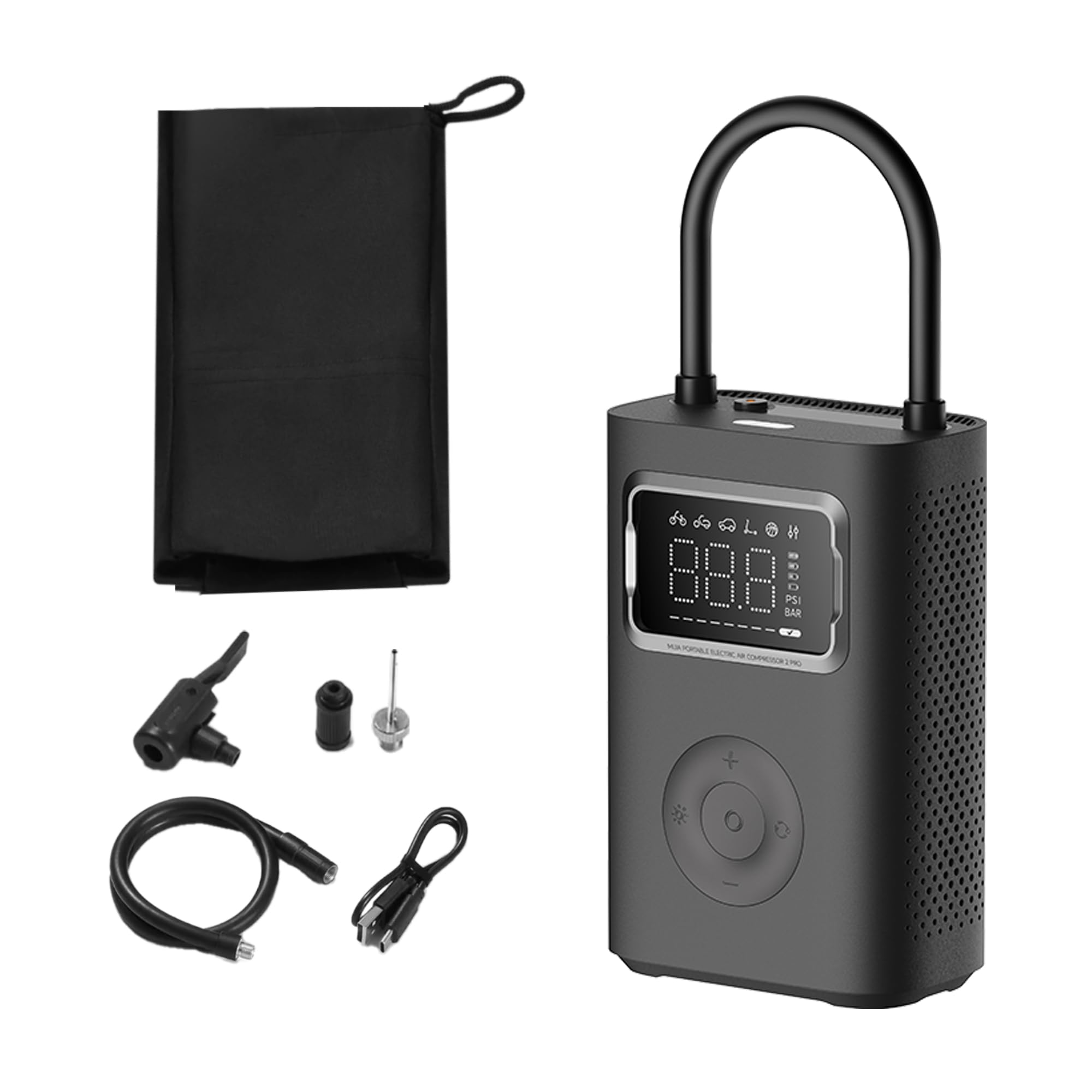

Figure 1: Included accessories with the air compressor.
Produk Leuwihview
The Xiaomi Portable Electric Air Compressor 2 Pro is a compact and powerful inflation device. It features a digital LED display, multiple preset modes, and a long-lasting rechargeable battery for convenient use.
Figure 2: Xiaomi Portable Electric Air Compressor 2 Pro.
Fitur konci:
- Tekanan maksimum: Up to 150 PSI for various inflation needs.
- Tampilan LED Digital: Provides real-time pressure readings and allows for precise pressure setting.
- Pareuman-Pareuman: Automatically stops inflation once the preset pressure is reached, preventing over-inflation.
- Tanpa kabel & Rechargeable: Powered by a 27 Watt-hour battery, offering portability and convenience.
- Sababaraha Modeu Preset: Includes modes for car, motorcycle, bicycle, electric scooter, and ball, along with a custom mode.
- Dual-Purpose LED Light: Features a white light for illumination and a red light for signaling.
- Kompak sareng Ringan: Dirancang pikeun neundeun sareng transportasi anu gampang.
Figure 3: Product details showing 150 PSI capability, battery indicator, and hose lock.
Disetél
1. Ngecas Awal
Before first use, fully charge the air compressor. Connect the provided Type-C charging cable to the charging port on the device and the other end to a 5V/3A USB power adapter (not included). The battery indicator on the display will show charging progress. A full charge typically takes approximately 3.5 hours.
2. Ngalampirkeun Selang Udara
The air hose is stored by being locked into the device. To use, pull the air hose out of its storage slot. This action will automatically power on the device. Connect the appropriate valve adapter (Schrader, Presta, or needle valve) to the end of the air hose, depending on the item you intend to inflate.
Figure 4: Pulling the air hose from its slot to power on the device.
Parentah Operasi
1. Powering on / Pareum
- Daya Hurung: Pull the air hose out of its storage slot. The device will automatically power on and display the current pressure.
- Pareum listrik: Push the air hose back into its storage slot. The device will automatically power off.
2. Ngartos Tampilan
The large LED display shows the current pressure, selected mode, and battery level. You can switch between PSI and Bar units using the unit selection button.
Figure 5: Digital display showing mode icons and pressure.
3. Selecting Inflation Modes
Press the mode button to cycle through the 6 preset inflation modes:
- Modeu Khusus: Default 35 PSI (adjustable 3-150 PSI / 0.2-10.3 Bar)
- Mode sapédah: Default 45 PSI (adjustable 30-65 PSI)
- Motorbike Mode: Default 2.4 Bar (adjustable 1.8-3.0 Bar)
- Mode mobil: Default 2.5 Bar (adjustable 1.8-3.5 Bar)
- Modeu Scooter Listrik: Default 50 PSI (adjustable 45-60 PSI)
- Modeu bal: Default 8 PSI (adjustable 4-16 PSI)
Gambar 6: Leuwihview of multiple preset inflation modes.
4. Adjusting Pressure Settings
After selecting a mode, use the '+' and '-' buttons to adjust the target pressure. The display will show the target pressure blinking. Once set, the value will stabilize.
5. Prosés Inflasi
- Connect the air hose with the appropriate adapter securely to the valve stem of the item to be inflated.
- Layar bakal némbongkeun tekanan ayeuna barang éta.
- Select the desired inflation mode and set the target pressure.
- Press the start button (usually the center button) to begin inflation.
- The compressor will automatically stop once the target pressure is reached.
- Cabut selang hawa tina gagang klep.
Figure 7: Auto pressure detection and inflation for a bicycle tire.
6. Ngagunakeun Lampu LED
Press the light button to activate the LED light. It has two modes: a white light for illumination in dark environments and a red flashing light for emergency signaling.
Figure 8: Dual-purpose lighting system in use (white for task, red for signaling).
Ngecas
The device is equipped with a 27 Watt-hour rechargeable battery. When the battery level is low, the battery indicator on the display will show a low charge. Connect the Type-C charging cable to recharge. The device can reinflate approximately 16 car tires (from 2.0 Bar to 2.5 Bar) on a full charge, or inflate up to 138 size 7 basketballs (from 0 PSI to 8 PSI).
Figure 9: Battery capacity and inflation performance examples.
Pangropéa
- beberesih: Ngusap bagian luar kompresor ku lemes, damp lawon. Ulah make bahan kimia kasar atawa cleaners abrasive.
- Panyimpenan: Store the device in a cool, dry place, away from direct sunlight and extreme temperatures. Ensure the air hose is properly stowed to prevent damage.
- Perawatan batré: Pikeun umur batre anu optimal, ngecas alat sahenteuna tilu bulan sakali upami henteu dianggo rutin.
Pamérésan masalah
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Alat teu hurung. | Battery is depleted; Air hose not fully pulled out. | Charge the device; Ensure the air hose is fully extended from its slot. |
| Inflasi slow atanapi teu epektip. | Low battery; Air hose not securely connected; Incorrect pressure setting. | Recharge the device; Check all connections for leaks; Verify the target pressure. |
| Alat eureun teu disangka-sangka. | Target pressure reached (auto shut-off); Overheating; Low battery. | This is normal if target pressure is met; Allow device to cool down; Recharge the device. |
| bacaan tekanan teu akurat. | Loose connection; Sensor error. | Ensure the air hose is tightly connected to the valve; If problem persists, contact support. |
spésifikasi
| Fitur | Rincian |
|---|---|
| Nomer modél | XM-MJCQB06QW-03 |
| Diménsi | 10.5 x 8 x 25.5 cm |
| Beurat | 1.1 kg |
| Bahan | palastik |
| Sumber Daya | Batré Powered |
| Voltage | 10.8 volt |
| Wattage | 27 Watt-jam |
| Amperage Kamampuh | 3 Amps |
| Tekanan Maksimum | 150 PSI |
| Panjang selang | 200 mm |
| Fitur husus | Automatic Shut-Off, Digital Display, LED Light, Lightweight |
| Dianjurkeun Mangpaat | Tire Inflation (Car, Bike, Motorcycle, Electric Scooter), Ball Inflation, Toy Inflation |
Video Produk Resmi
Video 1: General product overview and demonstration of key features.
Video 2: Demonstration of the compressor's portability and ease of use.
Video 3: Detailed look at the inflation process and digital display functionality.
Garansi sareng Rojongan
For warranty information or technical support, please refer to the warranty card included with your product or contact the manufacturer directly through their official website. Ensure you have your product model number (XM-MJCQB06QW-03) and purchase details available when seeking support.
