LAXIHUB W2 2K 3MP Wireless Rechargeable Security Camera User Manual

1. Bubuka

This manual provides detailed instructions for the installation, operation, and maintenance of your LAXIHUB W2 2K 3MP Wireless Rechargeable Security Camera. Please read this manual thoroughly before using the product to ensure proper functionality and safety. The LAXIHUB W2 is designed for outdoor use, offering high-resolution surveillance, night vision, two-way audio, and smart home integration.

2. Eusi Paket

Verify that all items listed below are present in your package. If any items are missing or damaged, please contact customer support.

• LAXIHUB W2 2K 3MP Wireless Security Camera
• Tembok Gunung Bracket
• Pemasangan Screws sareng Jangkar Tembok
• Kabel Ngecas USB
• Manual pangguna (dokumén ieu)

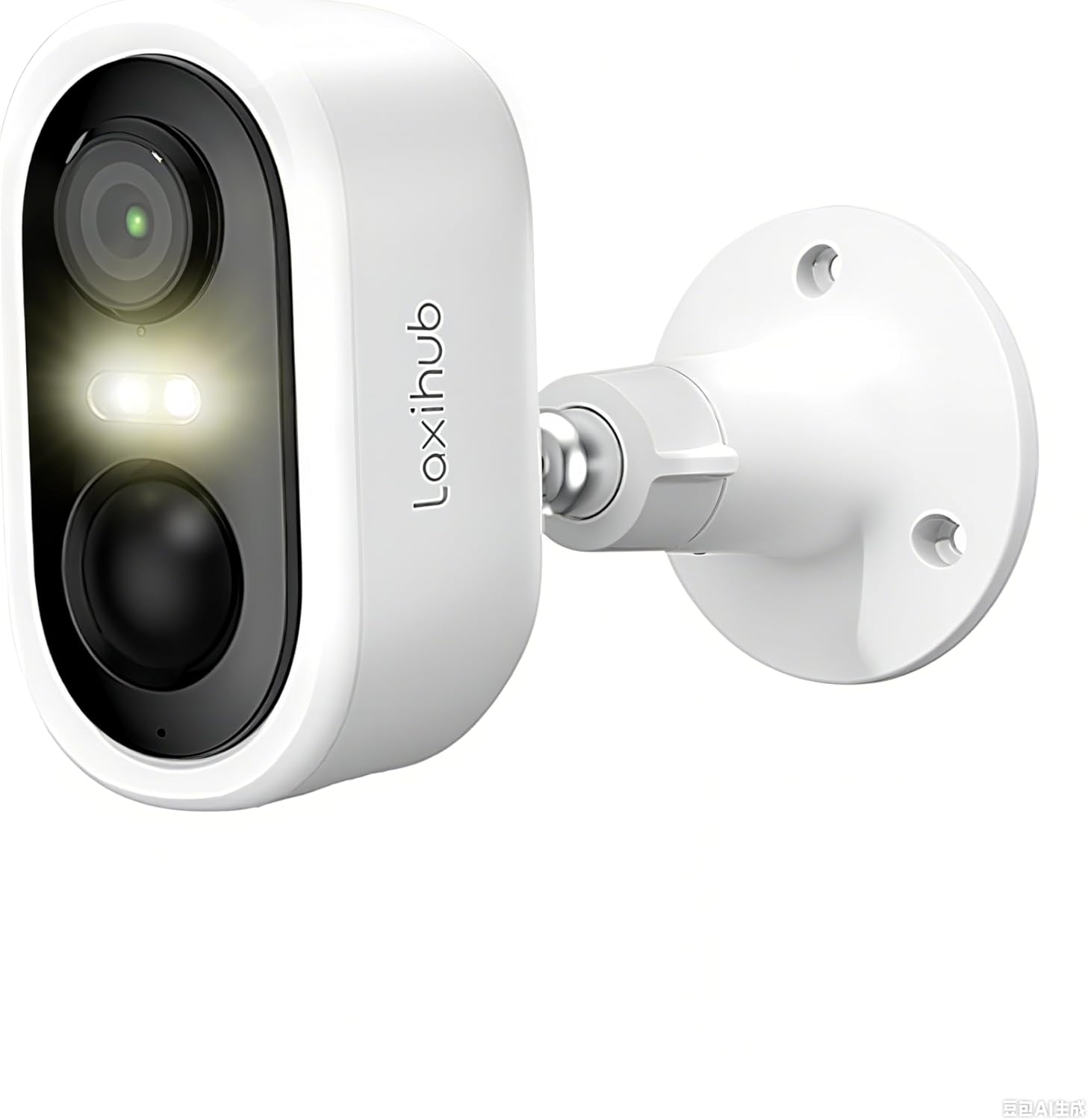

Image: The LAXIHUB W2 camera shown with its wall mount bracket, illustrating the main components included in the package.

3. Produk Langkungview

The LAXIHUB W2 camera is a versatile security solution with advanced features:

• Résolusi 2K 3MP: Captures clear and detailed video at 2304 x 1296 pixels.
• 100% Wireless & Rechargeable: Operates on a high-capacity rechargeable battery, providing 1-2 months of use per charge depending on activity.
• IP65 Tahan Cuaca: Designed to withstand outdoor conditions, including dust and rain.
• Dual Night Vision: Offers both full-color and infrared night vision modes, with a range of up to 10 meters.
• Deteksi Gerak PIR: Advanced passive infrared sensor detects human movement, triggering recordings and alerts.
• Audio Dua Arah: Diwangun-di mikropon jeung spiker ngamungkinkeun pikeun komunikasi real-time.
• Tanda instan: Receive push notifications, activate a siren, or flash a white light upon detection.
• Pilihan Panyimpenan Ganda: Supports local storage via Micro SD card (up to 128GB, not included) and cloud storage (subscription may apply).
• Integrasi Smart Home: Cocog sareng Amazon Alexa sareng Google Assistant pikeun kontrol sora sareng live view aksés.
• Konektipitas Wi-Fi: Operates exclusively on 2.4 GHz Wi-Fi networks. 5 GHz networks are not supported.

Image: An illustration highlighting key features of the LAXIHUB W2 camera, including 2K resolution, two-way audio, push notifications, TF card/cloud storage, 5200mAh rechargeable battery, Alexa/Google Assistant compatibility, and PIR human detection.

4. Setélan

4.1 Ngecas kaméra

Before initial use, fully charge the camera using the provided USB cable. Connect the USB cable to the camera's charging port and a standard 5V/1A USB power adapter (not included). The indicator light will show charging status.

4.2 Downloading the Arenti App

The LAXIHUB W2 camera operates with the Arenti mobile application. Download the Arenti app from the App Store (iOS) or Google Play Store (Android).

1. Milarian pikeun "Arenti" in your device's app store.
2. Unduh sareng pasang aplikasina.
3. Ngadaptarkeun akun anyar atanapi log in upami anjeun parantos gaduh.

4.3 Ngapasangkeun Kaméra sareng Aplikasi

Follow these steps to add your camera to the Arenti app:

1. Open the Arenti app and tap the "+" icon to add a new device.
2. Pilih modél kaméra anjeun tina daptar.
3. Power on the camera. Ensure the indicator light is flashing, indicating it's ready for pairing.
4. Connect your smartphone to a 2.4 GHz Wi-Fi network. The camera does not support 5 GHz Wi-Fi.
5. Follow the on-screen instructions in the app to connect the camera to your Wi-Fi network. This usually involves scanning a QR code displayed on your phone with the camera.
6. Sakali disambungkeun, ngaran kaméra anjeun sarta ngalengkepan prosés setelan.

4.4 Masang kaméra

The LAXIHUB W2 is designed for easy installation. Choose a location that provides the desired viewing angle and is within range of your 2.4 GHz Wi-Fi network.

1. Pilih hiji Lokasi: Identify a suitable outdoor location, such as a wall or eave, that offers a clear view sareng dijaga tina dampak langsung.
2. Tandaan liang bor: Use the wall mount bracket as a template to mark the positions for drilling.
3. liang bor: Drill pilot holes at the marked positions. Insert wall anchors if mounting on masonry or drywall.
4. Pasang Bracket: Pasangkeun braket pemasangan témbok kana permukaan nganggo sekrup anu disayogikeun.
5. Pasang kaméra: Screw the camera onto the threaded post of the wall mount bracket.
6. Saluyukeun Sudut: Loosen the adjustment ring on the mount to position the camera for the optimal viewing angle, then tighten to secure.

Image: The LAXIHUB W2 camera mounted on an exterior wall, illustrating its weatherproof design and suitability for outdoor installation.

5. Operasi

5.1 Hirup View

Access the live video feed from your camera through the Arenti app. This allows you to monitor your property in real-time.

• Open the Arenti app.
• Tap on your camera's name to view eupan hirup.

5.2 Audio Dua Arah

The camera's built-in microphone and speaker enable two-way communication.

• Nalika hirup view, tap the microphone icon in the Arenti app to speak through the camera.
• Tap the speaker icon to hear audio from the camera's vicinity.

Image: A visual representation of the two-way audio feature, showing a person speaking through the camera to a child, and another person monitoring via the app.

5.3 Setélan Deteksi Gerak

The LAXIHUB W2 uses PIR (Passive Infrared) motion detection to identify movement. You can customize these settings in the Arenti app.

• Navigate to your camera's settings in the Arenti app.
• Adjust sensitivity levels for motion detection.
• Set detection zones to focus on specific areas and reduce false alerts.
• Enable or disable alerts, siren, and flashing light responses upon detection.

Image: An illustration showing the camera detecting a person and triggering various responses like siren, spotlight, push notification, and two-way audio, along with motion detection recording.

5.4 Modeu Visi Peuting

The camera offers two night vision modes for clear visibility in low-light conditions:

• Full-Color Night Vision: Utilizes built-in spotlights to capture color images in the dark.
• Infrabeureum Night Vision: Uses infrared LEDs for black and white images in complete darkness.

You can switch between these modes or set them to automatic in the Arenti app settings.

Image: A split image demonstrating the difference between color night vision (left) and infrared night vision (right) captured by the LAXIHUB W2 camera, showing a house at night.

5.5 Ngarekam jeung Playback

The camera records video clips when motion is detected. Continuous 24/7 recording is not supported.

• Panyimpenan Kartu Micro SD: Insert a Micro SD card (up to 128GB) into the camera's slot for local storage of recordings.
• Panyimpenan awan: The camera supports cloud storage for recorded events. Check the Arenti app for details on available plans.
• Playback: Access recorded videos from either your Micro SD card or cloud storage through the Arenti app's playback feature.

Image: An illustration showing the camera's dual storage capabilities, with icons for cloud storage and a Micro SD card, and a smartphone displaying recorded events.

5.6 Alexa and Google Assistant Integration

Integrate your LAXIHUB W2 camera with Amazon Alexa or Google Assistant for convenient voice control and live video streaming to compatible smart displays.

1. Ensure your camera is successfully set up in the Arenti app.
2. Buka aplikasi Alexa atanapi Google Home dina smartphone Anjeun.
3. Milarian pikeun and enable the "Arenti" skill/service.
4. Link your Arenti account when prompted.
5. Discover devices. Your LAXIHUB W2 camera should appear.
6. You can now use voice commands like "Alexa, show me the front door camera" or "Hey Google, show me the backyard camera."

Image: A person interacting with a smart display, demonstrating the camera's compatibility with Google Assistant and Amazon Alexa for viewing live video feeds.

6. Pangropéa

6.1 Ngeusi batre

The LAXIHUB W2 camera is powered by a rechargeable battery. Monitor the battery level in the Arenti app and recharge when necessary. Battery life varies based on usage frequency and environmental factors.

• To charge, connect the camera to a 5V/1A USB power adapter using the provided USB cable.
• Avoid placing the camera in high-traffic areas if you wish to maximize battery life, as frequent motion detection events consume more power.

6.2 beberesih

To ensure optimal performance, periodically clean the camera lens and housing.

• Use a soft, dry cloth to wipe the camera lens. Avoid abrasive materials or harsh chemicals.
• Gently clean the camera body to remove dust or dirt.

6.3 Apdet firmware

LAXIHUB may release firmware updates to improve performance, add features, or fix bugs. It is recommended to keep your camera's firmware updated.

• Check for available firmware updates within the Arenti app's camera settings.
• Follow the app's instructions to perform updates. Ensure the camera has sufficient battery power or is connected to a power source during updates.

7. Cara ngungkulan

If you encounter issues with your LAXIHUB W2 camera, refer to the following common solutions:

• Kaméra teu nyambung ka Wi-Fi: Ensure your Wi-Fi network is 2.4 GHz. The camera does not support 5 GHz networks. Verify your Wi-Fi password is correct and the camera is within range of your router.
• Kualitas video goréng: Check your Wi-Fi signal strength in the Arenti app. Move the camera closer to the router or consider a Wi-Fi extender if the signal is weak. Ensure the lens is clean.
• hirup batré pondok: Reduce motion detection sensitivity or frequency of alerts. Avoid placing the camera in areas with constant movement. Ensure the camera is fully charged.
• Henteu aya béwara deteksi gerak: Verify motion detection is enabled in the app settings. Adjust sensitivity. Ensure the camera's field of view geus jelas.
• Audio dua arah teu jalan: Check microphone and speaker permissions for the Arenti app on your smartphone. Ensure volume levels are adequate.
• Kaméra offline: Check your home Wi-Fi network status. Restart your router and the camera. If the issue persists, try re-pairing the camera with the app.

8. Spésifikasi

9. Garansi jeung Rojongan

LAXIHUB products come with a standard manufacturer's warranty. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official LAXIHUB website. If you require technical assistance or have questions not covered in this manual, please contact LAXIHUB customer support through the Arenti app or the official websitus.

• Dukungan Online: Visit the LAXIHUB official websitus pikeun FAQ, pituduh ngungkulan, sareng inpormasi kontak.
• Rojongan In-App: The Arenti app often provides a support section where you can submit inquiries or find help resources.
