1. Bubuka
The OLIGHT ArkPro is an advanced EDC (Everyday Carry) flat flashlight designed for versatility and convenience. It features multiple light sources including a powerful white LED for both floodlight and spotlight, a green beam, and a UV light. Constructed from durable 6061 aluminum alloy, its slim profile and dual charging options make it an ideal companion for various activities.
Figure 1: OLIGHT ArkPro EDC Flat Flashlight highlighting key features.
2. Naon dina Box
- ArkPro Flashlight x 1
- Kabel Ngecas x 1
- Buku Panduan x 1
3. Fitur Produk
- Multiple Light Sources: Equipped with a 1,500-lumen floodlight, an 800-lumen long-range spotlight (205m reach), a powerful UV light, and a green beam.
- Independent Green Beam Control: The green beam can be used independently or combined with other light sources.
- Kompak sareng Portabel: Flat design for comfortable pocket carry, weighing 3.68 ounces.
- Desain ergonomis: Features a textured side surface for secure grip and concave buttons for ease of use.
- Versatile Clip and Magnetic Base: Dual-direction clip for attaching to shirts, pockets, or hats, and a built-in magnetic base for hands-free use.
- Pilihan Dual Charging: Supports both USB-C and Magnetic Dock charging.
- Operasi intuitif: Circular selector for switching between lighting modes and a dedicated green beam button.
- Clear Status Indicators: White indicators for brightness levels, green for battery status, and a lockout indicator.
Figure 2: Rugged unibody construction for enhanced durability.
4. Setup jeung Pamakéan Awal
4.1 Ngecas sareng Aktivasina
Before first use, the ArkPro flashlight must be charged to activate its full functionality. The device offers two convenient charging methods:
- ngecas magnét: Attach the included magnetic charging cable to the tail cap of the flashlight. The magnetic connection will secure the cable in place.
- USB-C ngecas: Open the protective cover on the side of the flashlight to reveal the USB-C port. Connect a standard USB-C cable (not included) to charge.
The green indicator lights around the central button will show the battery status during charging. Once fully charged, the device is activated and ready for use.
Figure 3: Dual charging options for convenience.
5. Parentah Operasi
5.1 Main Light Operation (White LED)
The ArkPro features a central circular selector and a center button for controlling the white LED modes.
- Hurungkeun/Pareuman: Single press the center button to turn the light on or off.
- Change Modes (Floodlight/Spotlight/UV): Rotate the circular selector to choose between Floodlight, Spotlight, and UV modes.
- Robah Caang: When the light is on, press and hold the center button to cycle through brightness levels (Moonlight, Low, Medium, High). Release the button at the desired brightness.
- Modeu Turbo: Double-press the center button quickly to activate Turbo mode (1500 lumens for floodlight, 800 lumens for spotlight).
- Modeu Strobe: Triple-press the center button quickly to activate Strobe mode.
- Mode Lockout: When the light is off, press and hold the center button for 2 seconds to enter lockout mode. The lockout indicator will illuminate. To unlock, press and hold the center button for 1 second.
Figure 4: Controls and indicators for the ArkPro flashlight.
5.2 Operasi Sinar Héjo
The green beam has a dedicated button for activation.
- Activate Green Beam: Press the dedicated green beam button on the side of the flashlight.
- Combine with White/UV Light: The green beam can be activated simultaneously with the white LED (floodlight or spotlight) or the UV light for enhanced functionality.

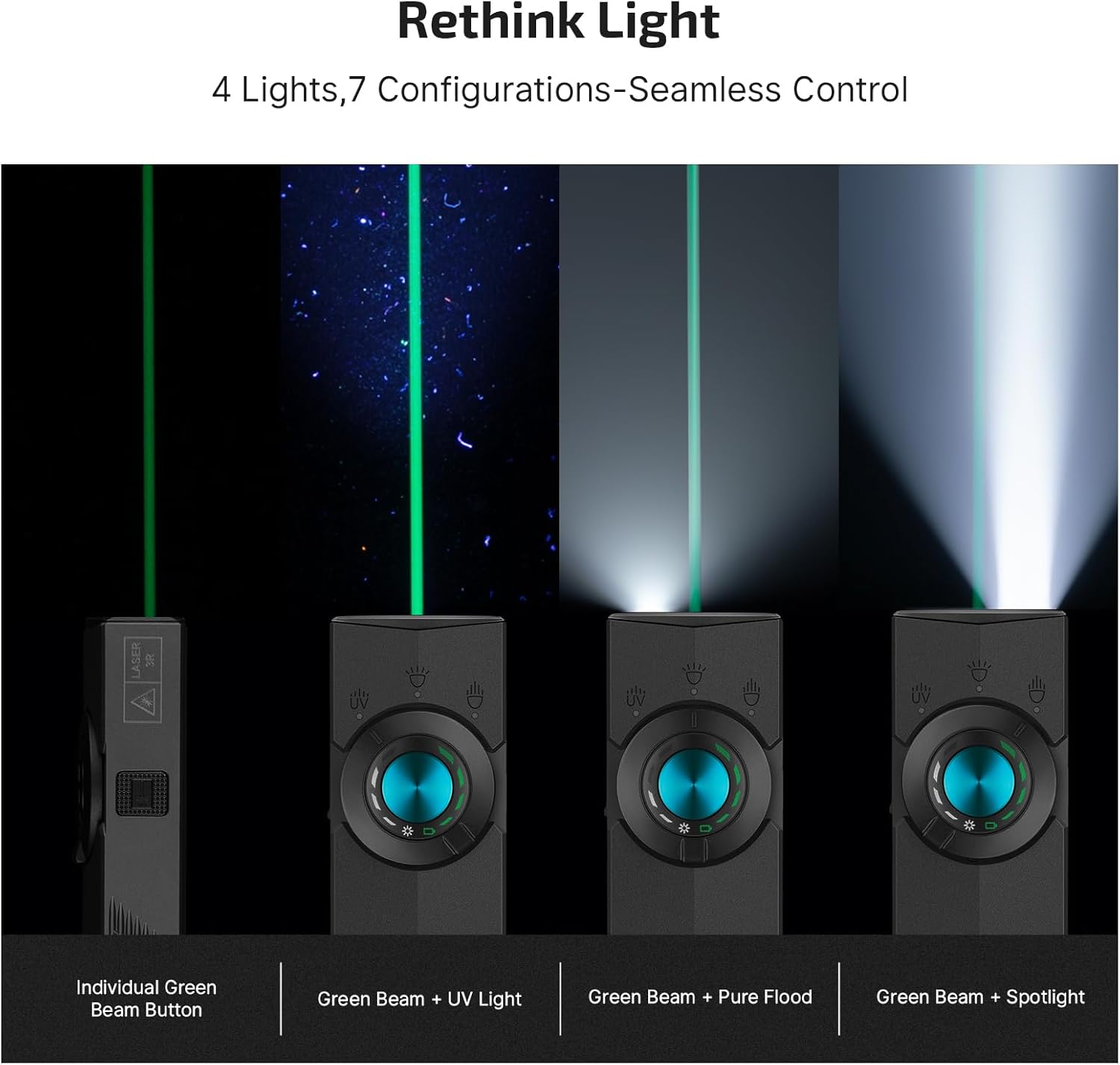

Figure 5: The ArkPro's versatile lighting configurations.
6. Pangropéa
To ensure the longevity and optimal performance of your OLIGHT ArkPro flashlight, follow these maintenance guidelines:
- beberesih: Regularly clean the lens and body of the flashlight with a soft, clean cloth. Avoid using abrasive materials or harsh chemicals.
- Port ngecas: Keep the USB-C charging port free from dust and debris. Ensure the protective cover is closed when not charging to maintain water resistance.
- Panyimpenan: Nyimpen senter di tempat tiis, garing jauh ti sinar panonpoé langsung jeung hawa ekstrim.
7. Cara ngungkulan
- Lampu teu hurung: Ensure the flashlight is not in lockout mode. If it is, unlock it by pressing and holding the center button for 1 second. Check battery level and charge if necessary.
- Masalah ngecas: Verify that the charging cable is securely connected to both the flashlight and a power source. Try a different USB-C cable or power adapter if issues persist.
- Reduced Brightness/Runtime: This may indicate a low battery. Recharge the flashlight fully.
8. Spésifikasi
| Fitur | Rincian |
|---|---|
| Caang Bodas (Max) | 1500 Lumén |
| Tipe Sumber Cahaya | LED, Sinar Héjo, UV |
| Bahan | 6061 Aluminium Galunggung |
| Sumber Daya | Batré Powered (Litium Polimér) |
| Kapasitas batré | 2000 mAh |
| Dimensi produk | 0.63 "D x 1.06" W x 4.88" H |
| Item Beurat | 3.68 ons |
| Tingkat Résistansi Cai | Waterproof (IPX7) |
| Fitur husus | Adjustable Light Modes, Magnetic Base, Portable, Rechargeable, Weatherproof |
| Kaluaran Sinar Héjo | ≤5mW (Kelas 3R) |
Figure 6: Detailed specifications of the ArkPro flashlight.
9. Garansi jeung Rojongan
The OLIGHT ArkPro EDC Flat Flashlight comes with a Garansi saumur hirup, reflecting our commitment to quality and durability. For any product inquiries, technical support, or warranty claims, please contact OLIGHT customer service through our official websitus atanapi pangecér dimana produkna dibeuli.
Pikeun pitulung salajengna, mangga buka: www.olightstore.com
