1. Bubuka
Thank you for choosing the VEVOR Ice Crusher Machine, Model WF-A109-B. This electric ice shaver is designed for efficient and quick ice crushing, suitable for both home and commercial use. With its robust motor and stainless steel blades, it transforms ice cubes into fine snow, perfect for snow cones, cold drinks, and food preservation. Please read this manual thoroughly before operation to ensure safe and optimal performance.
2. Parentah Kasalametan
PERHATOSAN: Gagal nuturkeun parentah kaamanan ieu bisa ngakibatkeun shock listrik, seuneu, atawa tatu serius.
- Always ensure the machine is placed on a stable, level, and dry surface before operation.
- Keep hands and fingers away from the ice inlet and blades during operation. The blades are extremely sharp.
- Do not operate the machine with a damaged cord or plug. If the machine malfunctions or is damaged, discontinue use immediately and contact customer support.
- Cabut colokan mesin tina stop kontak sateuacan beberesih, pangropéa, atanapi nalika teu dianggo.
- Alat ieu henteu dimaksudkeun pikeun dianggo ku jalma (kaasup murangkalih) anu kakurangan kamampuan fisik, indrawi, atanapi mental, atanapi kirang pangalaman sareng pangaweruh, kecuali aranjeunna dipasihan pangawasan atanapi petunjuk ngeunaan panggunaan alat ku jalma anu tanggung jawab kasalametanana. .
- Ulah neuleumkeun perumahan motor dina cai atawa cairan séjén.
- Use only standard ice cubes. Do not use oversized ice or other frozen items.
- Ensure the handle is fully pressed down during operation to activate the safety switch and engage the blades.
3. Produk Langkungview
The VEVOR Ice Crusher Machine is designed for ease of use and durability. Familiarize yourself with its main components:
- Ice Inlet: Where ice cubes are loaded.
- Handle/Pressing Plate: Used to push ice down onto the blades and activate the safety switch.
- Perumahan motor: Ngandung motor 300W anu kuat.
- Saklar kakuatan: On/Off toggle switch.
- Ice Outlet: Where shaved ice is dispensed.
- Shaved Ice Bowl: Collects the crushed ice.
- bilah stainless steel: Four sharp blades for efficient crushing.
Gambar 3.1: Leuwihview of the VEVOR Ice Crusher Machine, highlighting its main parts.
Gambar 3.2: Detil view of the internal crushing mechanism and blades.
4. Setélan
Sateuacan nganggo heula, tuturkeun léngkah-léngkah ieu:
- Ngabongkar: Carefully remove all packaging materials and inspect the machine for any damage. Retain packaging for future storage or transport.
- panempatan: Place the ice crusher on a clean, dry, stable, and level surface. Ensure there is enough space around the machine for proper ventilation and operation.
- Bersihan awal: Before first use, clean all parts that will come into contact with ice. Wipe the exterior with a damp cloth. The stainless steel bowl can be washed with mild soap and water. Ensure all parts are completely dry before assembly and use.
- Sambungan Daya: Pastikeun saklar daya aya dina posisi "OFF" sateuacan nyolokkeun mesin kana stop kontak anu di-ground.
Figure 4.1: The compact design allows for easy placement on countertops.
5. Parentah Operasi
Operating the VEVOR Ice Crusher Machine is simple and efficient:
- Nyiapkeun es: Use standard ice cubes from your freezer. Do not use oversized or irregularly shaped ice that may jam the machine.
- Tempatkeun Mangkok: Position the provided stainless steel bowl (or another suitable container) under the ice outlet to collect the shaved ice.
- Muatan És: Lift the handle and place a desired amount of ice cubes into the ice inlet. Do not overfill.
- Daya Hurung: Ensure the handle is in the upright position, then flip the power switch to the "ON" position. The motor will start.
- Ngaremukkeun És: Firmly push down the handle. This action engages the safety switch and presses the ice against the rotating blades. Continue to apply steady pressure until all ice is crushed.
- Pareum listrik: Once the desired amount of ice is shaved, release the handle and flip the power switch to the "OFF" position.
- ngalayanan: Remove the bowl of freshly shaved ice and serve immediately.

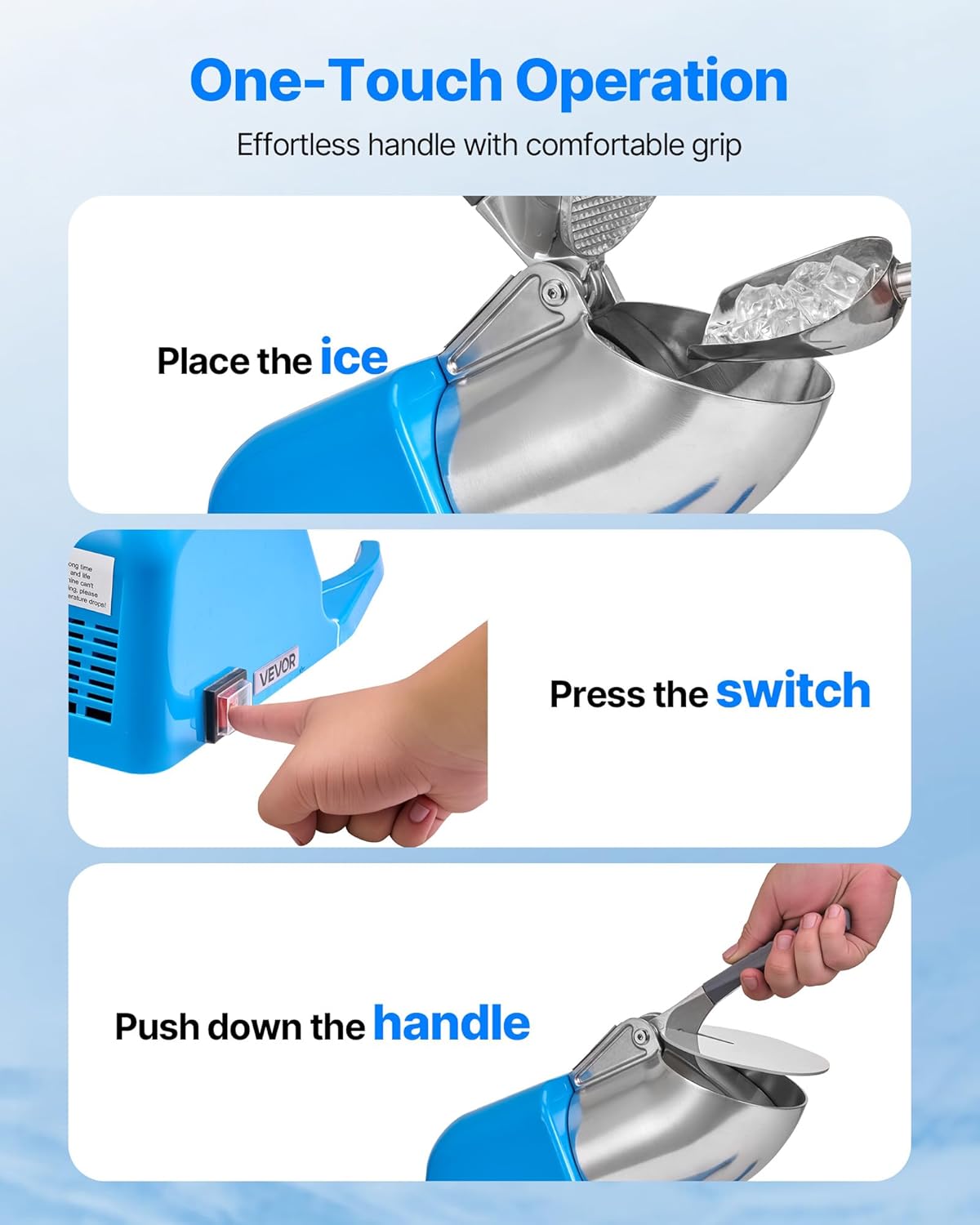

Figure 5.1: Simple one-touch operation for quick ice crushing.
Figure 5.2: User demonstrating the ice crushing process.
6. Pangropéa
Regular cleaning and maintenance will prolong the life of your VEVOR Ice Crusher Machine.
beberesih
- Cabut colokan: Salawasna cabut colokan mesin ti stop kontak listrik saméméh beberesih.
- Cabut Mangkok: Take out the shaved ice collection bowl.
- Ngusap Luar: Ngagunakeun lemes, damp cloth to wipe down the exterior of the machine. Do not use abrasive cleaners or immerse the main unit in water.
- Clean Ice Inlet/Blades: Carefully wipe the inside of the ice inlet and around the blades with a damp cloth. Be extremely cautious of the sharp blades. You may use a small brush to remove any ice residue.
- Keringkeun sacara saksama: Ensure all parts are completely dry before storing or next use to prevent rust and mildew.
Panyimpenan
Store the machine in a cool, dry place, away from direct sunlight and moisture. Ensure it is clean and dry before storage.
Figure 6.1: The stainless steel shell and reinforced base are designed for durability and easy cleaning.
7. Cara ngungkulan
If you encounter issues with your ice crusher, refer to the following common problems and solutions:
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Mesin henteu hurung. | Not plugged in; Power switch off; Safety switch not engaged. | Ensure power cord is securely plugged in. Flip power switch to 'ON'. Press handle down firmly to engage safety switch. |
| Ice is not shaving properly or machine jams. | Too much ice loaded; Ice cubes are too large; Blades are dull or damaged. | Reduce the amount of ice. Use smaller, standard ice cubes. If blades are dull, contact customer support for replacement options. |
| Noise kaleuleuwihan salila operasi. | Loose components; Obstruction in the ice inlet. | Unplug the machine and check for any loose parts or foreign objects. Ensure ice is loaded correctly. |
| Shaved ice is watery. | Ice is melting too quickly. | Use ice directly from the freezer. Operate in a cooler environment if possible. Serve immediately after crushing. |
8. Spésifikasi
Technical specifications for the VEVOR Ice Crusher Machine WF-A109-B:
- Jumlah modél: WF-A109-B
- Daya dipeunteun: 300W
- Ice Crushing Capacity: 286 lbs/h (130 kg/h)
- Beurat produk: 6.61 pon (3 kg)
- Ukuran produk: 12.99 x 6.30 x 9.06 inci (330 x 160 x 230 mm)
- bilah: 4 Wilah Stainless Steel
- Laju Motor: 2000 rpm
- Asesoris kaasup: 1x User Manual, 1x Ice Bowl, 1x Handle Cover

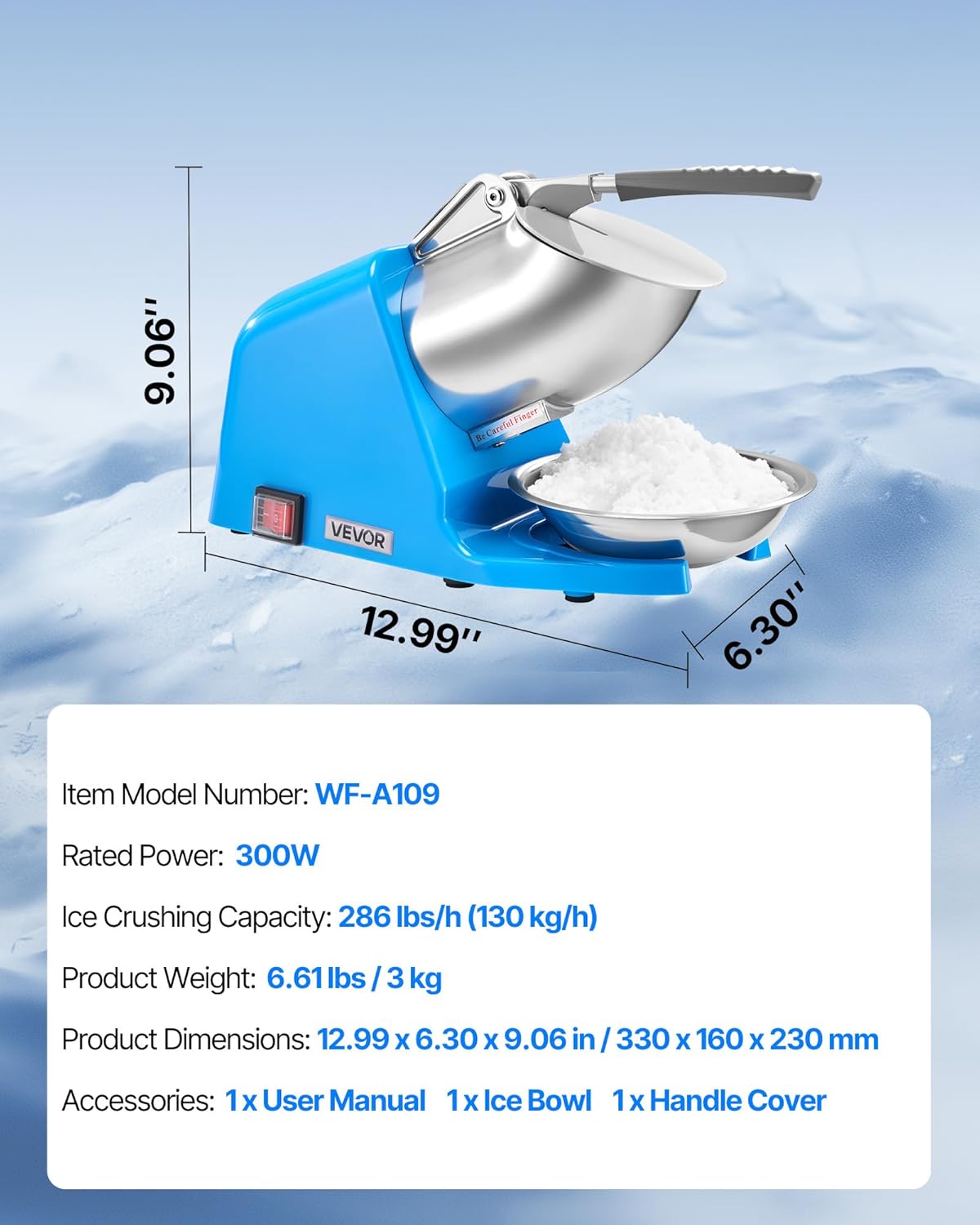

Angka 8.1: Dimensi produk sareng spésifikasi konci.
9. Garansi jeung Rojongan
Kanggo inpormasi garansi, dukungan téknis, atanapi suku cadang, mangga tingal VEVOR resmi websitus atanapi ngahubungan layanan palanggan VEVOR langsung. Simpen resi pameseran anjeun salaku bukti pameseran pikeun klaim garansi.
