TIDRADIO TD-M2 POC Radio Instruction Manual

1. Produk Langkungview

The TIDRADIO TD-M2 is a 4G LTE Push-to-Talk over Cellular (POC) radio designed for unlimited range communication. It offers nationwide coverage, supporting real-time communication across vast distances using cellular networks. This device is ideal for various applications, from outdoor activities to professional team coordination.

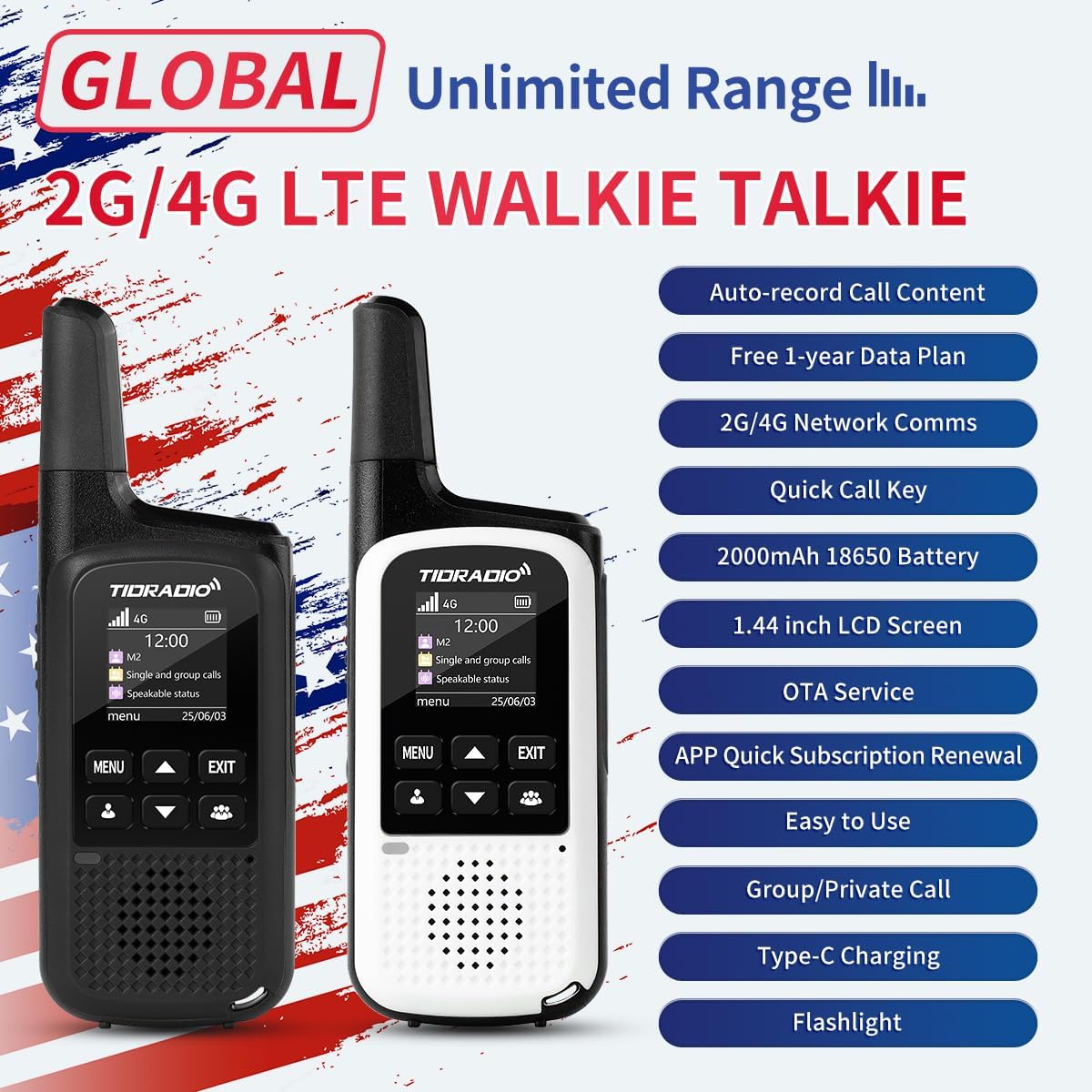

Image: Two TIDRADIO TD-M2 POC Radios, one black and one white, showcasing their compact design and display.

Fitur konci:

• Jangkauan Nasional: Utilizes 4G LTE for communication across vast distances (up to 6000 miles).
• Instant Communication: Push-to-Talk functionality for 1-on-1, 1-to-many, or group talks with minimal delay.
• SIM Card & Data Plan: Includes a SIM card with a 1-year free data plan. Renewal is available via the ODmaster APP.
• Rekaman Telepon: Automatically records call content when the ODmaster APP is running in the background.
• Énkripsi: Built-in encryption chip for secure communications.
• Pembaruan OTA: Supports Over-The-Air updates for improved stability and reliability.
• Desain awét: Drop-proof, compact, and comfortable to hold.
• Ngecas Tipe-C: Modern USB Type-C charging port.

2. Naon dina Box

Your TIDRADIO TD-M2 package includes the following items:

• 2 x TIDRADIO TD-M2 POC Radios
• 2 x Lithium Polymer Batteries (pre-installed or included separately)
• 2 x SIM Cards (pre-installed or included separately)
• 2 x Kabel Ngecas USB Tipe-C
• 2 x adaptor kakuatan
• 1 x Manual Pamaké

3. komponén produk jeung kontrol

Familiarize yourself with the various parts and controls of your TD-M2 radio:

Image: Detailed diagram of the TIDRADIO TD-M2 radio, highlighting key components such as the antenna, LED light, PTT button, SIM card slot, headset/USB charging port, menu/exit buttons, and microphone.

• anteneu: For signal reception and transmission.
• Lampu LED: Indicates status (e.g., power, charging, transmission).
• Tombol PTT: Push-to-Talk button for initiating communication.
• Tombol Menu: Ngaksés pilihan menu radio.
• Tombol Kaluar: Exits current menu or ends a call.
• Tombol Navigasi (Kaluhur/Turun/Kénca/Katuhu): Used to select or adjust volume and navigate menus.
• Slot Kartu SIM: Location for inserting the SIM card.
• Headset/USB Charging Port: Multi-functional port for accessories and charging.
• Mikropon: For voice input during communication.
• Speaker: Pikeun kaluaran audio.

4. Setup jeung Aktipkeun

4.1 Nyelapkeun Kartu SIM

The TD-M2 radios come with pre-installed SIM cards. If you need to re-insert or replace a SIM card, follow these steps:

1. Carefully open the SIM card slot cover on the side of the radio.
2. Insert the SIM card into the designated slot with the gold contacts facing down, ensuring it clicks into place.
3. Tutupkeun panutup slot kartu SIM pageuh-pageuh pikeun ngajaga tina lebu sareng kalembaban.

4.2 ODmaster APP Download and Account Registration

To fully utilize your TD-M2 radio's features, you need to download and register an account on the ODmaster APP.

• Unduh: Scan the QR code provided in the quick start guide or search for "ODmaster" in your device's app store (Android/iOS).
• Pendaptaran: Open the ODmaster APP and follow the on-screen instructions to register a new account using your phone number or email.

4.3 Device Binding and Group Creation

After registering, bind your TD-M2 radio to your ODmaster account and set up your communication groups.

1. In the ODmaster APP, navigate to the 'Devices' section.
2. Select 'TD-M2' from the list of available devices.
3. Scan the QR code displayed on your TD-M2 radio's screen to bind it to your account.
4. Once bound, go to the 'Groups' section in the APP to create new groups or add existing friends.
5. Add the bound TD-M2 radio to your desired groups to enable communication.

Video: Official tutorial from TIDRADIO Direct demonstrating how to quickly activate your M2 Rapid POC Radio, including app download, registration, and device binding.

5. Parentah Operasi

5.1 Daya Hurung/Pareuman

• Daya Hurung: Press and hold the red 'Exit' button until the screen lights up.
• Pareum listrik: Press and hold the red 'Exit' button until the device powers down.

5.2 Basic Communication (Push-to-Talk)

The TD-M2 supports various call types:

• Full Call (Group Call): To communicate with all members in your selected group, simply press and hold the PTT button on the side of the radio, speak clearly, and release the button to listen.
• Telepon Tunggal (Telepon Pribadi): Navigate to the 'Contacts' list using the menu buttons, select the desired individual, and then press and hold the PTT button to initiate a private conversation.
• Telepon Grup: Select a specific group from your 'Groups' list using the menu buttons, then press and hold the PTT button to communicate with that group.

Image: The TIDRADIO TD-M2 radio demonstrating Push-to-Talk functionality, highlighting support for up to 100 groups and 200 members, with clear, instant communication.

5.3 Fitur Ngarékam

To record conversations:

• Ensure the ODmaster APP is open and running in the background on your smartphone.
• All call content within relevant groups will be automatically recorded and accessible via the APP.

Image: A smartphone displaying the ODmaster app interface, showing call content being auto-recorded with an encryption shield icon, emphasizing enhanced security.

6. Pangropéa sarta perawatan

6.1 Ngecas Batré

• Connect the provided USB Type-C charging cable to the radio's charging port.
• Plug the other end of the cable into the power adapter and then into a wall outlet.
• The LED indicator on the radio will show charging status.
• A full charge provides approximately 6.3 hours of continuous use and up to 30 days of standby time.

6.2 Apdet Parangkat Lunak (OTA)

The TD-M2 supports Over-The-Air (OTA) updates to ensure optimal performance and access to new features.

• Periodically check the ODmaster APP for available software updates.
• Follow the on-screen instructions in the APP to download and install updates to your radio.

Image: The TIDRADIO TD-M2 radio's screen displaying the 'Update' option within its system menu, illustrating the lifetime free OTA service for easy upgrades, stability, and reliability.

7. Cara ngungkulan

• No Signal/Limited Range: Ensure you are within 4G LTE coverage. Check the SIM card is correctly inserted.
• Cannot Connect to ODmaster APP: Verify your smartphone has an active internet connection. Ensure the radio is powered on and within Bluetooth range for initial binding.
• Masalah Kualitas Telepon: Check network signal strength on the radio's display. Move to an area with better cellular reception if needed.
• Alat Teu Ngabales: Try restarting the radio by powering it off and then on again. If the issue persists, ensure the battery is charged.

8. Spésifikasi

9. Garansi jeung Rojongan

TIDRADIO offers customer support to ensure a satisfactory experience. For any issues or inquiries, please contact TIDRADIO Direct customer service.

• Rencana panyalindungan: Rencana Perlindungan 2 Taun sareng 3 Taun Pilihan sayogi kanggo ngagaleuh.
• Kabijakan pamulangan: A 30-day refund/replacement policy is typically offered. Please refer to your purchase platform for specific details.
