Cecotec Terrenator 360 Flex Z Electric Lawnmower 1500W | 36cm User Manual

Bubuka

This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Cecotec Terrenator 360 Flex Z Electric Lawnmower. Please read these instructions carefully before using the appliance and keep them for future reference.

Parentah Kasalametan

Salawasna merhatikeun precautions kaamanan dasar pikeun ngurangan résiko seuneu, shock listrik, sarta tatu pribadi.

Kasalametan Umum

• Baca sadaya parentah sateuacan dianggo.
• Jauhkeun barudak jeung piaraan ti wewengkon operasi.
• Wear appropriate personal protective equipment (PPE), including safety glasses, sturdy footwear, and hearing protection.
• Ulah ngoperasikeun mesin motong jukut dina kaayaan baseuh atawa hujan.
• Pariksa kabel listrik pikeun karuksakan saméméh unggal pamakéan.

Lawnmower Specific Safety

• Ensure the grass collector is securely attached before starting.
• Never place hands or feet near rotating parts.
• Clear the area of stones, sticks, and other debris before mowing.
• Salawasna pegatkeun sambungan catu daya sateuacan beberesih, nyaluyukeun, atanapi ngalaksanakeun pangropéa.
• Mow melintasi lamping, teu luhur jeung ka handap. Kudu ati-ati pisan nalika ngarobah arah dina lamping.

Setup sareng Majelis

Your Cecotec Terrenator 360 Flex Z lawnmower requires minimal assembly. Follow these steps to prepare your lawnmower for first use.

1. Nanganan Majelis

Attach the upper handle to the lower handle using the provided fasteners. Ensure all connections are secure.

2. Grass Collector Attachment

Assemble the 40-liter grass collector if it came disassembled. Then, securely attach it to the rear of the lawnmower. Ensure it clicks into place to prevent grass clippings from escaping.

Image: A user attaching the 40-liter grass collector to the rear of the lawnmower, ensuring it is properly seated.

3. adjustment jangkungna

The lawnmower features a Z-Tech centralized height adjustment system. To adjust the cutting height, locate the lever on the side of the mower. Move the lever to select one of the 6 available positions, ranging from 25 mm to 75 mm.

Image: A hand adjusting the Z-Tech lever on the side of the lawnmower to change the cutting height. The height settings are visible on the mechanism.

Image: A visual comparison showing grass cut at 25mm height versus 75mm height, illustrating the range of cutting options.

Parentah Operasi

Follow these steps for safe and effective operation of your electric lawnmower.

1. Ngamimitian Lawnmower

1. Ensure the power cord is securely connected to the lawnmower and a suitable outdoor power outlet.
2. Hold the safety switch lever on the handle.
3. Press the start button (if applicable) or pull the bail switch towards the handle to engage the motor.
4. The 1500W motor will start, and the blade will begin to rotate.

2. Mowing Technique

• Push the lawnmower at a steady, comfortable pace.
• Tumpang tindih unggal potongan rada saeutik pikeun mastikeun panutupna rata.
• Pikeun hasil anu pangsaéna, ulah motong langkung ti sapertiluna jangkungna jukut sakaligus.
• The 36 cm cutting width allows for efficient coverage of your lawn.

Image: A man wearing a red sweater and blue gloves operating the electric lawnmower on a green lawn in a garden setting.

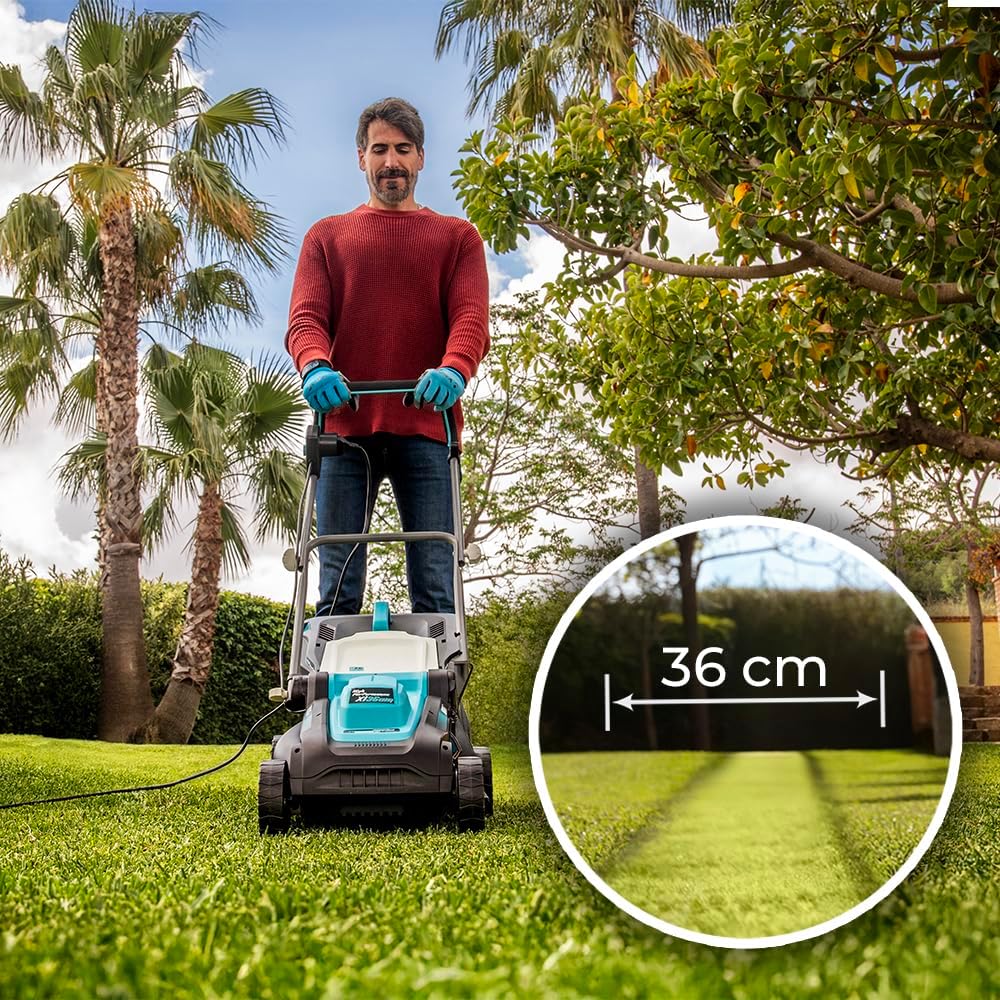

Image: The lawnmower shown on a lawn, with an overlay indicating its 36 cm cutting width, highlighting its coverage per pass.

3. Mulching Function (3-in-1)

Your lawnmower offers a 3-in-1 function, including mulching. To activate mulching, ensure the grass collector is removed and the mulching plug (if provided) is inserted into the discharge chute. This will finely chop grass clippings and return them to the lawn as natural fertilizer.

4. Stopping the Lawnmower

Release the safety switch lever or bail switch to stop the motor and blade rotation. Wait for the blade to come to a complete stop before approaching the machine.

Pangropéa

Pangropéa rutin ngajamin umur panjang sareng kinerja optimal tina mesin pemotong rumput anjeun.

1. beberesih

• Salawasna pegatkeun sambungan tina kakuatan saméméh beberesih.
• Saatos dianggo, bersihan handapeun dek mesin motong jukut pikeun miceun potongan jukut sareng runtah. Anggo sikat atanapi kerok.
• Ngusap bagian luar nganggo iklanamp lawon. Ulah nganggo jet cai atanapi pembersih tekanan tinggi.
• Empty and clean the grass collector regularly.

2. Perawatan sabeulah

• Periodically check the blade for sharpness and damage. A dull blade can tear grass, leading to an unhealthy lawn.
• If the blade is dull, have it sharpened by a qualified service technician.
• If the blade is bent or damaged, it must be replaced. Use only genuine Cecotec replacement parts.

3. Panyimpenan

• Store the lawnmower in a dry, secure place, away from children.
• Clean the mower thoroughly before long-term storage.
• Gagangna tiasa dilipet kanggo panyimpenan anu ringkes.

Image: A composite image showing the lawnmower in use, a close-up of the grass box, and the handle folded for compact storage.

Pamérésan masalah

Tingali kana bagian ieu pikeun masalah umum sareng solusina.

spésifikasi

Note: Product dimensions and weight provided in some listings may be for packaging or indicative only. Refer to the actual product for precise measurements.

Video produk

Garansi sareng Rojongan

Cecotec products are designed for durability and performance. This product comes with a standard manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions.

Spare parts for this model are available in the EU for a period of 10 years from the date of purchase.

Rojongan Palanggan

For technical assistance, warranty claims, or to order spare parts, please contact Cecotec customer support. Contact details can be found on the official Cecotec websitus atanapi dina bungkusan produk.

Anjeun oge bisa nganjang ka Cecotec Brand Store pikeun inpo nu leuwih lengkep sarta apdet produk.
