1. Bubuka
The SMALLRIG CB75 Base Battery is a high-capacity, versatile power solution designed for cameras, monitors, LED lights, and other accessories. Featuring a slim profile, multiple output ports, and a real-time power monitoring display, it provides stable and extended power for professional shooting environments. Its innovative design allows for direct mounting to cameras or cages, streamlining your rig setup.
The SMALLRIG CB75 Base Battery, showcasing its compact design and integrated mounting points.
2. Setélan
2.1 Masang Batré
The CB75 Base Battery offers flexible mounting options:
- Lampiran Langsung: Use the top 1/4"-20 screw to directly attach the battery to your camera or camera cage.
- Tripod/Gimbal Mounting: Utilize the bottom 1/4"-20 threaded hole for mounting on tripods or gimbals without requiring additional adapters.
- Arca-Swiss Compatibility: For quick release functionality, the battery is compatible with Arca-Swiss quick release mount plates (ID 4486) and cages, allowing for smooth slide-in installation and one-click auto-lock.
The CB75 Base Battery features built-in 1/4"-20 screws for direct attachment to cameras, ensuring effortless on-camera power.
Illustrations of direct attachment to a camera, maintaining accessible ports, and securing to a camera cage using a HawkLock quick release mount plate (sold separately).
2.2 Ngecas Awal
Before first use, fully charge the CB75 Base Battery. The dual 65W USB-C ports support fast charging, allowing a full recharge in approximately 2 hours.
The CB75 Base Battery supports 65W USB-C fast charging, achieving a full recharge in approximately 2 hours.
3. Parentah Operasi
3.1 Powering on / Pareum
To power on the battery, press and hold the power button located on the side until the display illuminates. To power off, press and hold the power button again until the display turns off.
3.2 Nyambungkeun Alat
The CB75 Base Battery features a 5-port versatile power hub:
- 2x D-Tap Ports: For powering professional video equipment.
- 2x 65W USB-C Ports: For fast charging and powering USB-C compatible devices.
- 1x DC5521 8V Port: For specific DC-powered accessories.
These ports allow simultaneous power delivery to cameras, monitors, LED lights, and other accessories.
The CB75 Base Battery provides a wide range of interfaces for versatile power delivery.
3.3 Ngawaskeun Status Batré
The full-color HD screen provides real-time information on battery status, including charge level, input/output data, and remaining runtime. This allows for precise energy management and helps prevent unexpected power failures during shoots.
The high-definition OLED screen displays real-time battery status for convenient monitoring.
Official product video demonstrating the features and usage of the SMALLRIG CB75 Base Battery.
4. Pangropéa
To ensure optimal performance and longevity of your SMALLRIG CB75 Base Battery, follow these maintenance guidelines:
- Panyimpenan: Simpen batréna di tempat anu tiis sareng garing jauh tina sinar panonpoé langsung sareng suhu anu ekstrim.
- beberesih: Use a soft, dry cloth to clean the exterior of the battery. Avoid using harsh chemicals or abrasive materials.
- Perlindungan batré: The battery is equipped with an intelligent protection circuit (BMS) that safeguards against overcharge, overheat, over-discharge, short-circuit, and overcurrent. These features ensure stable power delivery and extend the battery's lifespan.
The battery's intelligent control system (BMS) provides multiple protections for safe and secure operation.
5. Cara ngungkulan
If you encounter issues with your CB75 Base Battery, consider the following:
- Taya Kaluaran Daya: Ensure the battery is powered on. Check all cable connections to ensure they are secure and correctly inserted. Verify that the connected device is compatible with the battery's output specifications.
- Masalah ngecas: If the battery is not charging, ensure you are using a compatible 65W USB-C charger and cable. Some third-party cables may not support the required power delivery. Try a different USB-C cable if issues persist.
- Overheating: The battery has built-in temperature protection. If it becomes excessively hot, it may temporarily shut down. Allow it to cool down in a well-ventilated area before resuming use.
- Tampilan Teu Gawé: If the display is unresponsive, try powering the unit off and on again. If the issue persists, contact customer support.
6. Spésifikasi

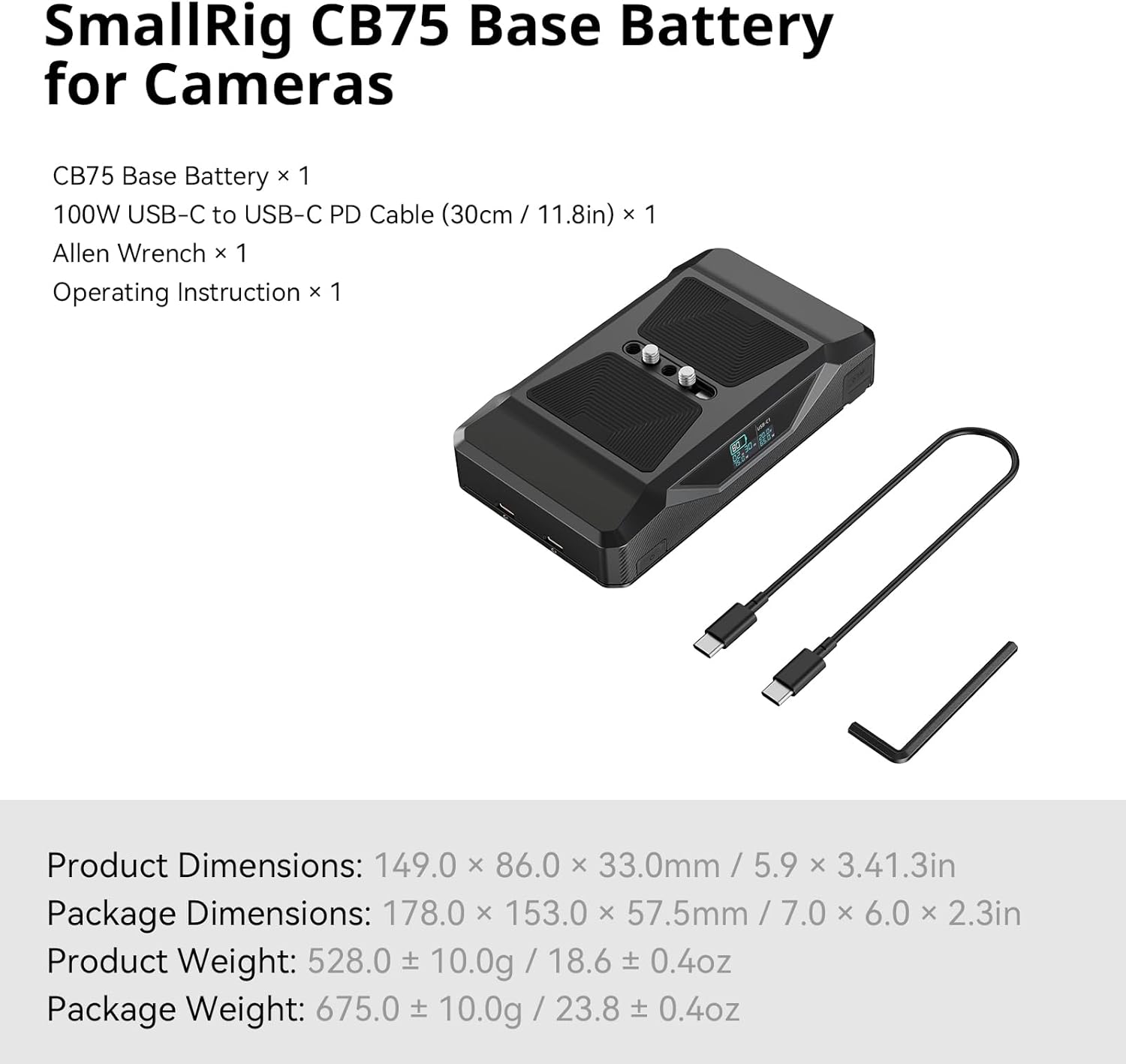

Product dimensions and package contents of the SMALLRIG CB75 Base Battery.
| Fitur | Rincian |
|---|---|
| Nomer modél | 4826 |
| Kapasitas batré | 73.8Wh / 5000mAh |
| Komposisi sél batré | Litium Ion |
| Voltage | 16.8 volt |
| Ampumur | 6 Amps |
| Reusability | Bisa dicas deui |
| Palabuhan Kaluaran | 2x D-Tap, 2x 65W USB-C, 1x DC5521 8V |
| Ngecas | 65W USB-C Fast Charging (approx. 2 hours for full charge) |
| Pamasangan | 1/4"-20 Screw (top & bottom), Arca-Swiss compatible |
| Item Dimensi | 5.9 x 3.4 x 1.3 inci (149.0 x 86.0 x 33.0 mm) |
| Item Beurat | 528 gram |
| Produsén | SMALLRIG |
7. Naon dina Box
- CB75 Base Battery x 1
- 100W USB-C to USB-C PD Cable (30cm / 11.8in) x 1
- Kunci Allen x 1
- Parentah Operasi x 1
8. Garansi jeung Rojongan
8.1 Émbaran jaminan
The SMALLRIG CB75 Base Battery comes with a 2-Taun Garansi from the date of purchase. This warranty covers manufacturing defects and ensures reliable performance under normal use. Please retain your proof of purchase for warranty claims.
8.2 Rojongan Palanggan
For technical assistance, troubleshooting, or warranty inquiries, please visit the official SMALLRIG website or contact their customer support team. You can find more information and resources at the SMALLRIG Store on Amazon.
