1. Bubuka
This manual provides detailed instructions for the setup, operation, and maintenance of your EAZYRC FMS FCX24 Power Wagon 1/24 RC Crawler. Please read this manual thoroughly before operating the vehicle to ensure proper function and safety.
1.1 Produk Leuwihview
The EAZYRC FMS FCX24 Power Wagon is a 1/24 scale remote-controlled rock crawler designed for off-road enthusiasts. It features a durable PC hard body with realistic details, a powerful brushless motor, a 2-speed transmission, and a robust 4x4 drivetrain with portal axles for superior performance on various terrains.

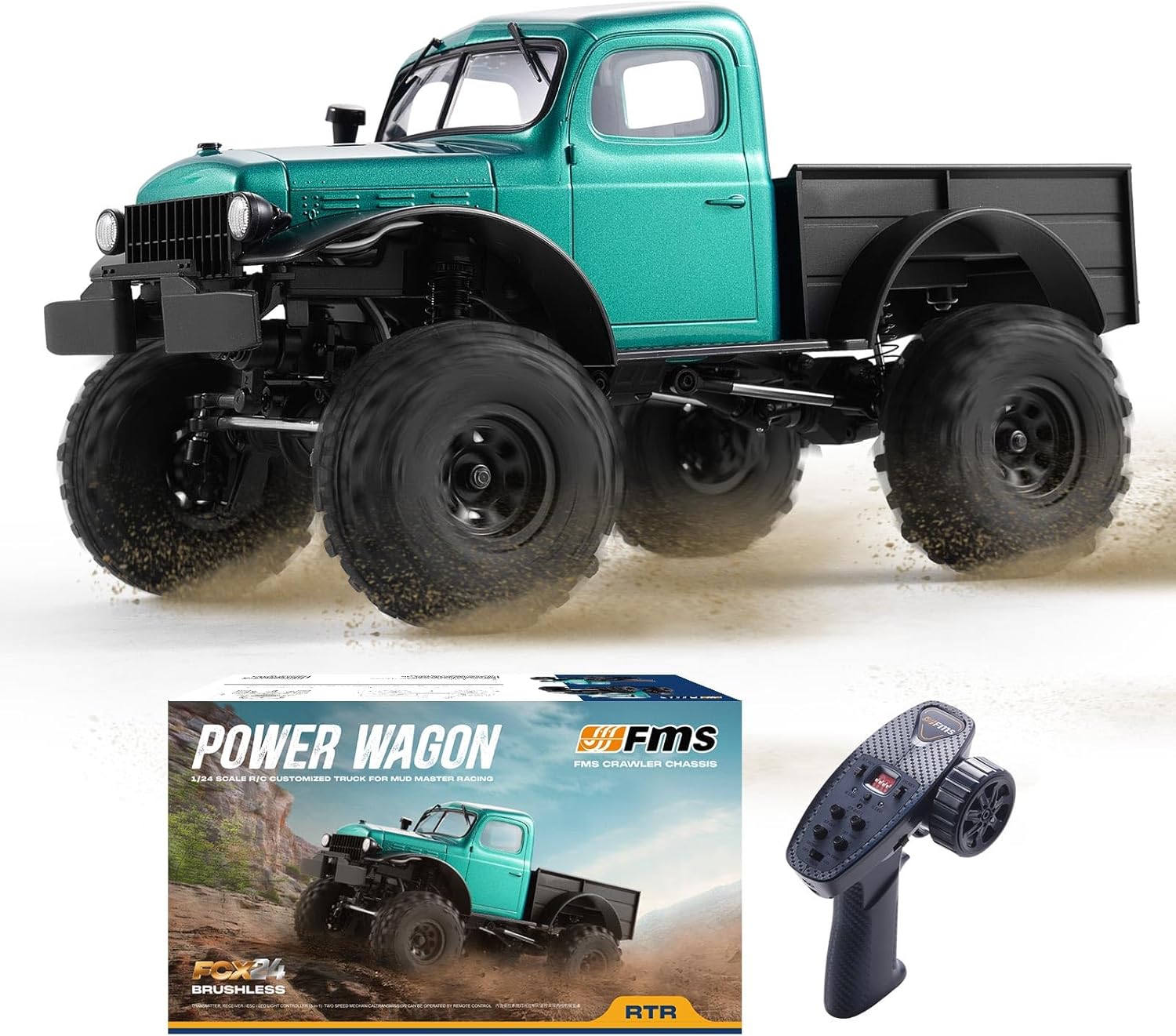

Image: The EAZYRC FMS FCX24 Power Wagon RC Crawler, its remote control, and packaging, highlighting the product's readiness for use.
1.2 Fitur konci
- Scale Hard Body: Features a green metallic PC hard body with opening doors and hood for enhanced realism and durability.
- Brushless Power System: Equipped with a 1212-3200KV brushless motor for linear throttle response, powerful low-end torque, and quiet operation.
- Portal Axles & 4WD Drivetrain: Provides full-time 4x4 drive and high-clearance portal axles to navigate challenging terrain effectively.
- Transmisi 2-Speed: Allows switching between high-speed trail cruising and low-speed crawling for versatile performance.
- All-Metal Suspension: Durable construction with metal oil-filled shocks and rugged chassis links for long-term reliability.
Gambar: Hiji leuwihview of the FMS FCX24 Power Wagon highlighting its key features such as 4WD, realistic appearance, 2.4GHz control, brushless motor, 2-speed transmission, and metal components.
1.3 Naon dina Box
Saatos unboxing, pariksa yén sadaya komponén aya:
- EAZYRC FMS FCX24 Power Wagon RC Crawler
- Kadali jauh (pamancar)
- Battery (for the vehicle)
- Charger
- Kabel Ngecas
- Manual Produk (dokumen ieu)
- Decal Sheet (for customization)
Image: The complete set of items included in the box: the RC crawler, its remote, battery, charger, and the instruction manual.
2. Émbaran Kasalametan
Salawasna merhatikeun pancegahan kaamanan di handap ieu pikeun nyegah tatu atanapi karusakan produk:
- Produk ieu disarankeun pikeun pangguna anu umurna 16 taun ka luhur.
- Jauhkeun ramo, rambut, sareng pakean anu longgar tina bagian anu obah.
- Do not operate the RC crawler near people, pets, or obstacles.
- Avoid operating in wet conditions or near water unless specifically designed for it (this model has a splash-proof motor, but is not fully waterproof).
- Pareuman heula kendaraan jeung remot kontrolna lamun teu dipaké.
- Use only the provided charger and battery. Do not overcharge the battery.
- Nyimpen produk dina tempat anu tiis sareng garing jauh tina sinar panonpoé langsung.
- Pikeun pamakéan éksternal wungkul.
3. Setélan
Follow these steps to prepare your RC crawler for its first use.
3.1 Ngecas Batré Kandaraan
- Connect the provided charging cable to the charger.
- Sambungkeun batré ka kabel ngecas.
- Colokkeun carjer ka colokan listrik anu cocog.
- Keun batréna ngecas pinuh. Tingali lampu indikator carjer pikeun status ngecas.
- Sanggeus dicas, pegatkeun sambungan batré tina carjer.
3.2 Masang Batré Kandaraan
- Locate the battery compartment on the RC crawler chassis. This model features an easy quick-release design for the body.
- Carefully insert the charged battery into the compartment.
- Secure the battery in place and close the compartment cover.
Image: The FMS FCX24 chassis with the body detached, illustrating the quick-release design for easy access to internal components like the battery.
3.3 Setup Kontrol Jauh
The remote control requires 1 9V battery (included).
- Buka kompartemen batré dina tonggong kadali jauh.
- Insert the 9V battery, observing the correct polarity (+/-).
- Tutup kompartemen batré.
- Hurungkeun kadali jauh.
- Turn on the RC crawler using the accessible, waterproof power switch. The vehicle and remote should automatically pair.
4. Parentah Operasi
Familiarize yourself with the controls and features for optimal performance.
4.1 Basic Driving
- Throttle pemicu: Pull the trigger to move forward, push to brake or reverse. The brushless motor provides linear throttle response.
- Setir: Turn the wheel left or right to steer the vehicle.
4.2 2-Speed Transmission
The FCX24 Power Wagon features a 2-speed transmission, allowing you to switch between high and low gears for different driving conditions.
- Gear handap: Ideal for technical crawling, steep climbs, and precise control. Provides maximum torque.
- Gear luhur: Suitable for faster trail cruising and covering ground quickly.
Refer to your remote control's manual for the specific switch or button to change gears. This allows for real-time adaptation to your environment.
Image: The FMS FCX24 Power Wagon showcasing its 2-speed transmission and 4-wheel drive capabilities on challenging terrain.
4.3 Terrain Handling
The FCX24 Power Wagon is designed to conquer various terrains:
- Medan Batuan: The portal axles and 4WD drivetrain provide excellent ground clearance and traction for navigating rocks and uneven surfaces.
- Mud & Gravel: The aggressive tires and powerful motor allow for effective movement through loose and soft conditions.
- Indoor Obstacles: Its compact size and precise control make it suitable for indoor crawling courses.
Image: The FMS FCX24 Power Wagon demonstrating its versatility across different environments, including marshland, grassland, mud, gravel, and indoor obstacle courses.
5. Pangropéa
Regular maintenance will extend the lifespan and performance of your RC crawler.
5.1 Kamanusaan sarta Studi Umum
- After each use, especially in dirty or dusty conditions, clean the vehicle with a soft brush or compressed air to remove debris.
- Wipe down the body and chassis with a damp lawon. Hindarkeun ngagunakeun bahan kimia anu kasar.
- Ensure the accessible power switch is clean and free of obstructions.
5.2 Lubrication and Inspection
Periodically inspect the following components:
- Gears: Check metal gearbox gears and metal gate axle gears for wear. Apply a small amount of RC-specific grease if needed.
- Bantalan: The vehicle features full metal ball bearings. Ensure they spin freely and are not contaminated.
- Guncangan: Inspect the metal oil-filled shocks for leaks or damage.
- Tumbu: Check metal four-link and metal steering four-link for bends or damage.
- Ban: Inspect tires for wear and tear. Ensure they are securely mounted.
Gambar: A lengkep view of the FMS FCX24 chassis, illustrating the placement and type of key components such as the brushless motor, metal links, hydraulic shocks, and various metal gears and bearings.
6. Cara ngungkulan
Bagian ieu ngabahas masalah umum anu anjeun tingali.
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Kendaraan teu ngaréspon kana remot. |
|
|
| Kandaraan gerakna laun atanapi kurang tanaga. |
|
|
| Setir teu responsif atanapi teu teratur. |
|
|
Lamun masalah persists, mangga ngahubungan rojongan customer.
7. Spésifikasi
| Fitur | Rincian |
|---|---|
| Modél | FCX24 Power Wagon |
| Skala | 1/24 |
| Motor | 1212-3200KV Brushless Motor (Splash-proof design) |
| Pangiriman | 2-Laju |
| Drivetrain | 4x4 Full-time Drive with Portal Axles |
| Bahan Awak | PC Hard Body (Green Metallic Paint) |
| Suspensi | All-Metal (Metal oil-filled shocks, rugged chassis links) |
| Bantalan | Full Metal Ball Bearings throughout the vehicle |
| Gears | Metal Gearbox Gears, Metal Gate Axle Gears |
| Sistim setir | Metal 4-Link Steering System |
| Dimensi produk | 9.33 x 4.96 x 4.96 inci |
| Item Beurat | 3.18 pon |
| Disarankeun Umur | 16 taun ka luhur |
| Batré Kadali Jauh | 1 x batré 9V (kaasup) |
Image: The physical dimensions of the FMS FCX24 Power Wagon RC Crawler, showing its length, width, and height.
8. Garansi jeung Rojongan
For any questions, technical assistance, or warranty claims, please contact EAZYRC customer support. Keep your purchase receipt as proof of purchase.
EAZYRC is committed to providing expert help and factory parts to keep your RC game strong. If you encounter any issues, do not hesitate to reach out.
Image: The EAZYRC FMS FCX24 Power Wagon on a challenging rock surface, accompanied by a message emphasizing comprehensive support and availability of parts.
