1. Émbaran Kasalametan penting
Always prioritize safety when operating your NAVEE GT3 Pro Electric Scooter. Failure to follow safety guidelines can result in serious injury or damage to the scooter.
- Maké Helm: Salawasna nganggo helm anu disertipikasi sareng alat pelindung anu sanés (pelindung tuur, pelindung siku) nalika numpak.
- Peraturan Lokal: Adhere to all local traffic laws and regulations regarding electric scooter use.
- Wates Umur sareng Beurat: This scooter is designed for adults. The maximum weight limit for safe operation is 165 pon (75 kg). Ulah ngaleuwihan wates ieu.
- Kaayaan Lingkungan: Avoid riding in heavy rain, snow, or on icy surfaces. The scooter has an IP54 rating for water resistance, but it is not waterproof.
- Pariksa Pra-Naik: Before each ride, check tire pressure, brake functionality, and ensure all quick-release mechanisms are securely fastened.
- Kasadaran: Be aware of your surroundings, pedestrians, and other vehicles. Ride defensively.
2. Produk Langkungview
The NAVEE GT3 Pro is a high-performance electric scooter designed for efficient urban commuting and recreational use. It features a robust motor, long-range battery, and advanced safety features.
Komponén konci
- Setang: Equipped with grips, brake levers, throttle, and a central LED display.
- Batang: The main vertical shaft connecting the handlebars to the deck, featuring the folding mechanism.
- Dek: The standing platform, housing the battery and control unit.
- Roda: 10-inch pneumatic (air-filled) tires for improved shock absorption and ride comfort.
- Motor: Integrated into the rear wheel, providing powerful propulsion.
- Rem: Front drum brake and rear EABS (Electronic Anti-lock Braking System).

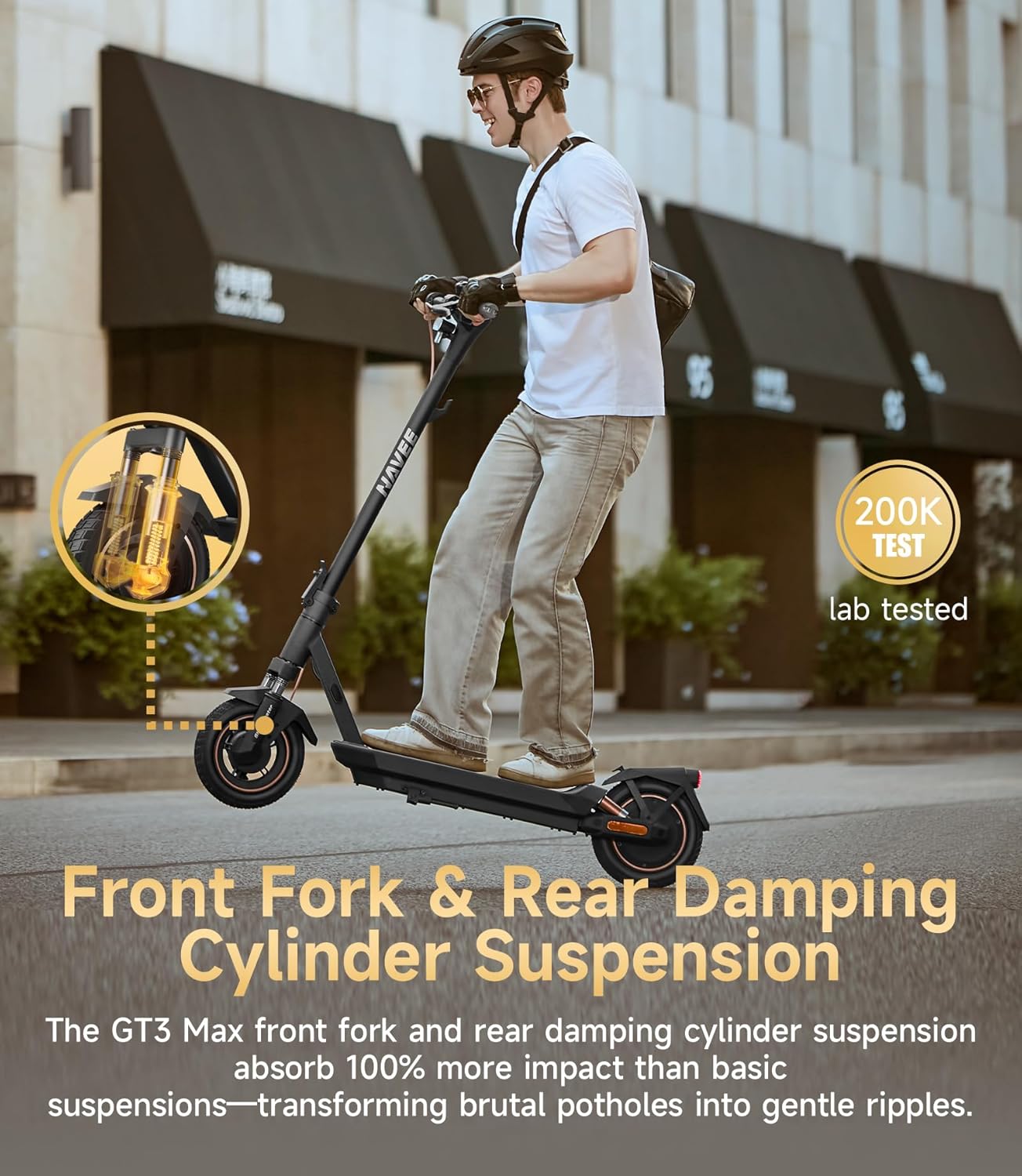

- Suspensi: Front fork suspension and rear damping cylinder for a smoother ride over varied terrain.
Gambar 2.1: Leuwihview of the NAVEE GT3 Pro Electric Scooter.

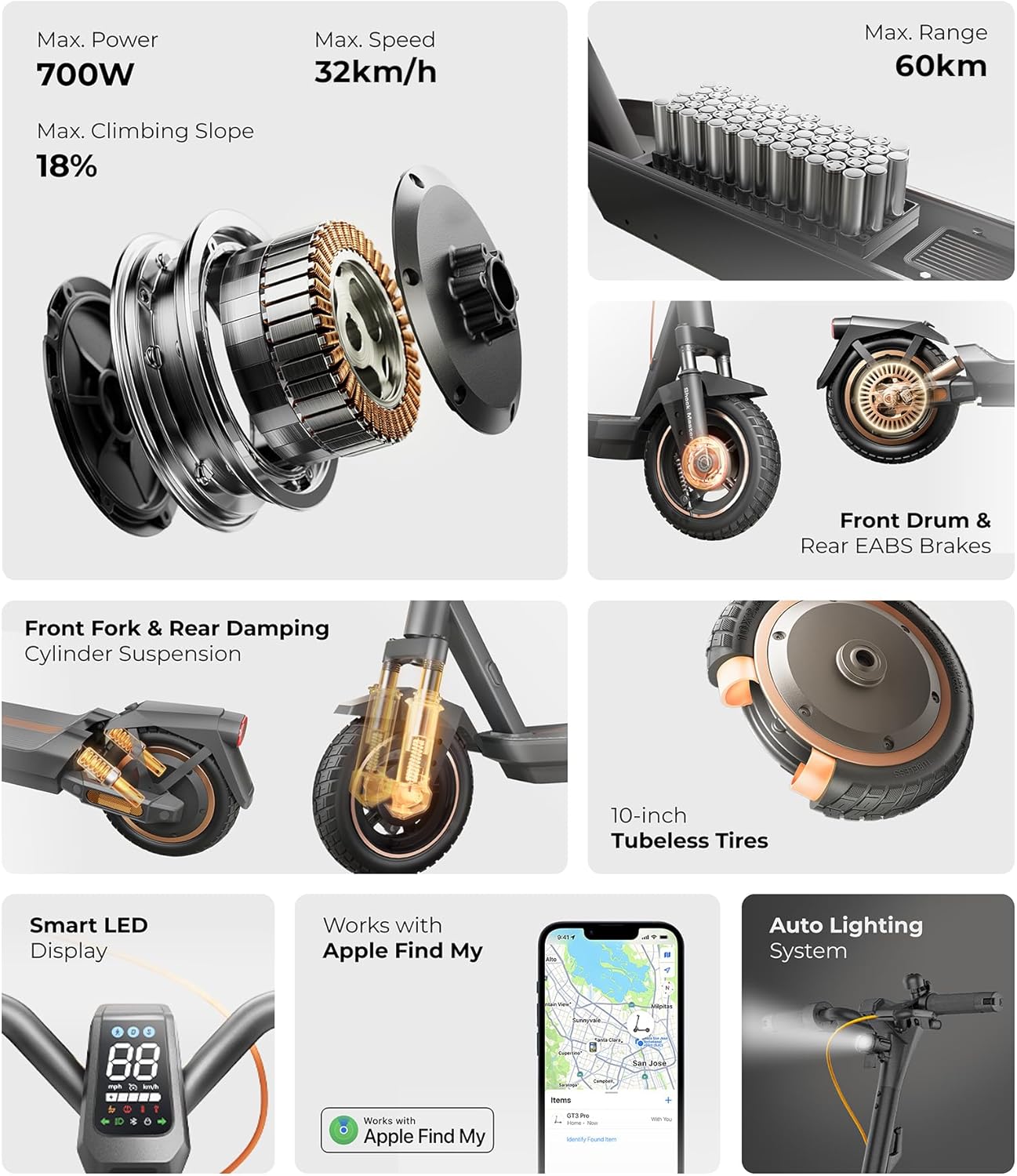

Figure 2.2: Detailed diagram highlighting key features like motor, battery, brakes, and suspension.
3. Setup jeung Pamakéan Awal
3.1 Unfolding Scooter nu
- Teundeun Scooter dina tempat nu datar.
- Lepaskeun kait tilepan anu aya dina gagangna.
- Carefully lift the stem until it locks into the upright position. Ensure the locking mechanism is fully engaged.
- Attach the handlebars to the stem, ensuring they are securely fastened.
Figure 3.1: The scooter's one-step folding mechanism for easy portability.
3.2 Ngecas Awal
Sateuacan numpak anu munggaran, eusian pinuh batré skuter.
- Locate the charging port on the scooter's deck.
- Connect the charger to the charging port, then plug the charger into a standard power outlet.
- Lampu indikator ngecas dina carjer bakal robah (contona, ti beureum ka héjo) nalika ngecas parantos réngsé.
- A muatan pinuh biasana nyokot kira-kira 10 jam.
Figure 3.2: Illustration of the scooter's battery system and charging process.
4. Parentah Operasi
4.1 Powering on / Pareum
- Pikeun Ngahurungkeun: Pencét terus tahan tombol daya dina layar LED salami sababaraha detik dugi ka layar hurung.
- Pikeun mareuman: Pencét terus tahan tombol daya deui nepi ka layar pareum.
4.2 Modeu numpak
The scooter offers three distinct speed modes to suit different riding conditions:
- Pedestrian Mode (3 MPH): Ideal for crowded areas or when riding alongside walkers.
- Daily Mode (12 MPH): Balanced speed for everyday commuting.
- Modeu Olahraga (20 MPH): Maximum speed for open roads and experienced riders.
Switch between modes by short-pressing the power button while the scooter is on.
4.3 System ngerem
The NAVEE GT3 Pro is equipped with a dual braking system for optimal safety:
- Rem Tromol Hareup: Operated by the left brake lever on the handlebars.
- Rear EABS (Electronic Anti-lock Braking System): Activated by the right brake lever, providing controlled and efficient stopping power.
Always use both brakes simultaneously for the most effective and stable stopping.
angka 4.1: Tutup-up view of the front drum and rear EABS braking system.
4.4 Smart Connectivity and Display
The scooter features a 3.6-inch LED display and smart connectivity via the NAVEE app.
- Témbong LED: Shows current speed, battery level, riding mode, and other essential information.
- NAVEE App: Connect via Bluetooth to monitor ride statistics, customize settings, and receive OTA updates.
- Apple Find My Network: Integrated technology allows for real-time GPS tracking of your scooter, enhancing security.
- Bluetooth Proximity Locking: Lock and unlock your scooter using the NAVEE app when within Bluetooth range.
Figure 4.2: The scooter's integrated LED display and connectivity with the NAVEE mobile application.
Video 4.1: Demonstration of the NAVEE GT3 Pro Electric Scooter in operation, showcasing its features and ride quality.
5. Pangropéa
Pangropéa rutin ngajamin umur panjang sareng kinerja optimal skuter anjeun.
5.1 Kamanusaan sarta Studi Ban
- The scooter uses 10-inch pneumatic (air-filled) tires. Regularly check tire pressure and inflate to the recommended PSI (found on the tire sidewall or in the full manual).
- Pariksa ban heula bisi aya nu geus aus, bocor, atawa ruksak sateuacan unggal numpak.
Figure 5.1: Close-up of the 10-inch tubeless tire, designed for durability and low maintenance.
5.2 Pangropéa batré
- Pikeun ngamaksimalkeun umur batre, ulah miceun batre sapinuhna.
- Store the scooter in a cool, dry place when not in use, and ensure the battery is charged to at least 50% if storing for extended periods.
- The 477Wh BMS battery is designed for approximately 1000 charge cycles, equivalent to about 5 years of typical use.
5.3 Beberesih sareng Panyimpenan
- Bersihkeun skuter ku iklanamp lawon. Ulah make jet cai-tekanan luhur atawa cleaners corrosive.
- Pastikeun panutup port ngecas ditutup pageuh pikeun nyegah cai asup.
- Store the scooter indoors in a dry environment to protect electronic components.
6. Cara ngungkulan
This section addresses common issues you might encounter with your NAVEE GT3 Pro Electric Scooter.
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Scooter teu daya on | Batré lemah; Sambungan leupas; Tombol daya teu jalan | Cas batréna; Pariksa sadaya sambungan kabel; Hubungi dukungan palanggan upami masalahna masih aya. |
| Jarak atanapi kecepatan anu dikirangan | Low tire pressure; Overloaded scooter; Battery degradation; Riding uphill frequently | Inflate tires to correct PSI; Ensure rider weight is within limits; Charge battery fully; Adjust riding style. |
| Rem karasa lemah | Perlu pangaluyuan kabel rem; Kampas rem geus aus | Adjust brake cable tension; Inspect and replace brake pads if worn. Consult a professional if unsure. |
| Masalah konektipitas aplikasi | Bluetooth off; App not updated; Scooter not discoverable | Ensure Bluetooth is enabled on your device; Update NAVEE app; Restart scooter and app. |
For issues not listed here or if solutions do not resolve the problem, please contact NAVEE customer support.
7. Spésifikasi
Detailed technical specifications for the NAVEE GT3 Pro Electric Scooter.
| Fitur | Spésifikasi |
|---|---|
| Ngaran modél | GT3 Pro-U |
| merek | KAPAL |
| Daya Motor | Kakuatan Puncak 1000W |
| Max Speed | 20 mph (32 km/h) |
| Béntang Max | Nepi ka 37.5 Miles (60 km) |
| Kapasitas batré | 477Wh BMS Lithium Battery |
| Waktu Ngecas | Kira-kira. 10 jam |
| Max Climbing Slope | 22% |
| Batesan Beurat | 165 Pon (75 kg) |
| Ukuran Ban | 10 inci |
| Tipe Tirus | Pneumatik (Tanpa Tube) |
| Gaya marake | Front Drum Brake, Rear EABS |
| Suspensi | Front Fork Suspension, Rear Dampdina Silinder |
| Bahan | Steel Aluminum Alloy |
| Dimensi dilipat | 46.93 × 7.09 × 22.36 inci |
| Diménsi Unfolded | Approx. 49.02 × 23.03 × 46.93 inches (Height varies slightly) |
| Beurat bersih | 48.5 lbs (22 kg) |
| Fitur husus | Traction Control System, Apple Find My Integration |
| Peunteun IP | IP54 (Deck) |
8. Garansi jeung Rojongan
8.1 Garansi Produk
The NAVEE GT3 Pro Electric Scooter comes with a comprehensive warranty:
- Scooter (excluding battery): Garansi 24 bulan ti tanggal pameseran.
- Batré: Garansi 12 bulan ti tanggal pameseran.
Please retain your proof of purchase for warranty claims. The warranty covers manufacturing defects and does not cover damage caused by misuse, accidents, or unauthorized modifications.
8.2 Rojongan Palanggan
For any questions, technical assistance, or warranty claims, please contact NAVEE customer support. Our dedicated team is available 24/7 and guarantees a response within 24 hours to all inquiries.
Refer to the contact information provided in your product packaging or visit the official NAVEE websitus pikeun detil rojongan.
