1. Produk Langkungview
The Generic Portable Air Pump (Model KICEH6RQT231JJUJH) is a versatile manual inflation device designed for various inflatables. It is suitable for inflating bicycle tires (road and mountain bikes), sports balls, and other inflatable items. Its compact and lightweight design ensures portability and ease of use.
Fitur konci:
- Desain serbaguna: Supports various inflation needs, including bike tires and inflatable toys.
- Basajan ngagunakeun: Features built-in adapters for mainstream devices and valves.
- Stabilitas ditingkatkeun: Non-slip foot pedal provides stability during operation.
- Portabel: Lightweight materials and compact folding for easy transport and storage.
- Kit lengkep: Includes inflation needles for diverse applications.
Image 1.1: The portable air pump in various use scenarios, demonstrating its versatility for bikes and sports equipment.
2. Setup jeung Majelis
Sateuacan nganggo heula, pastikeun sadaya komponén aya sareng dipasang leres.
- Ngabongkar: Carefully remove the air pump and all accessories from its packaging.
- Identipikasi komponén: Verify you have the main pump unit, flexible hose, and the included inflation needles.
- Nyiapkeun pikeun pamakéan: The pump typically comes pre-assembled. Ensure the flexible hose is securely attached to the pump body.
- Pilih adaptor: Choose the appropriate inflation needle or adapter for the item you intend to inflate. The kit includes needles for sports balls and other inflatables.

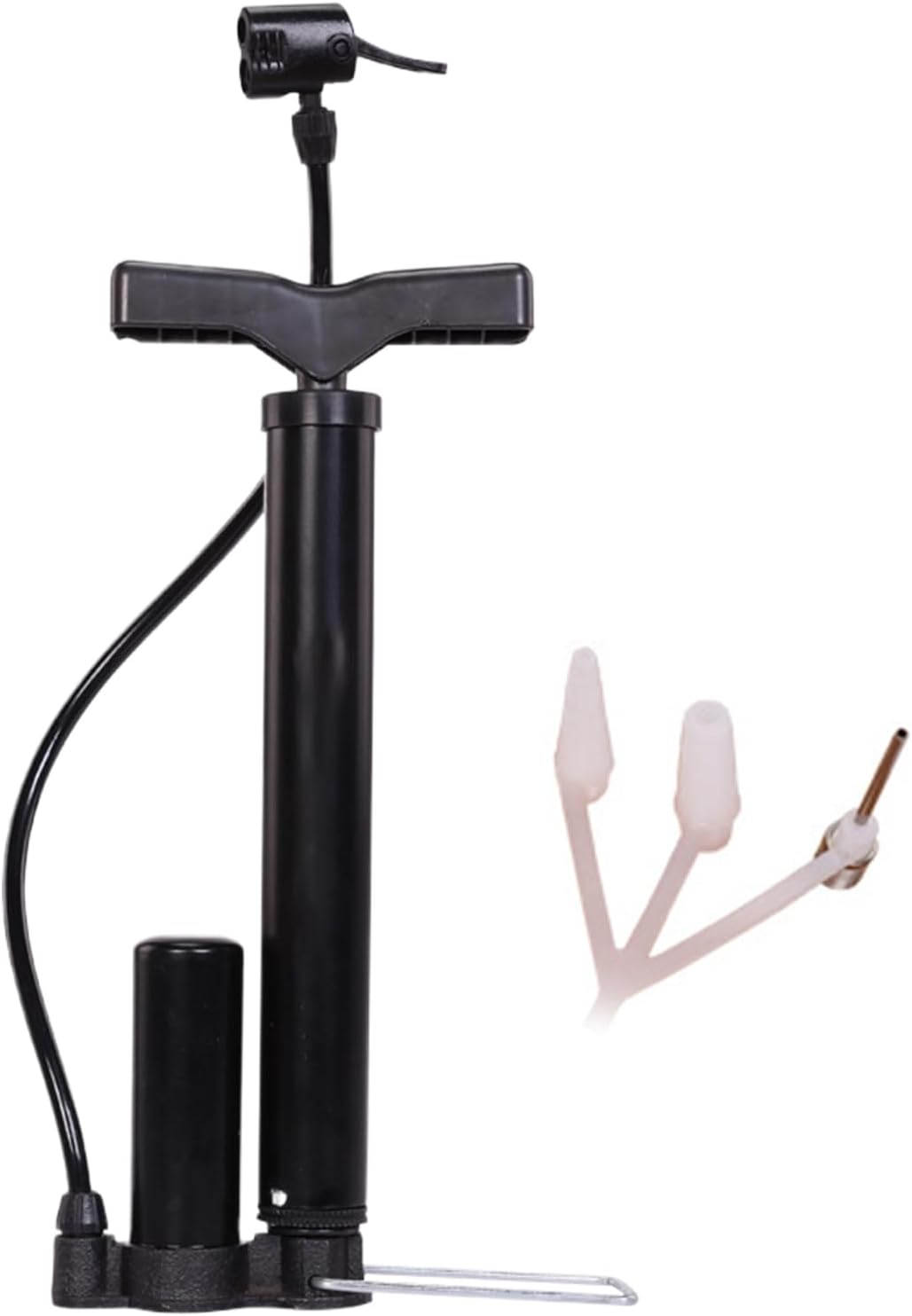

Image 2.1: The air pump with its included inflation needles, ready for various applications.
3. Parentah Operasi
Follow these steps to effectively inflate your items:
- Pasang Pompa: Place the pump on a flat, stable surface. Extend the foot pedal for stability.
- Nyambung ka Valve:
- For Bicycle Tires: Securely attach the pump's nozzle to the tire valve. Ensure a tight seal to prevent air leakage.
- For Sports Balls/Inflatables: Insert the appropriate inflation needle into the pump's nozzle, then firmly insert the needle into the item's inflation port.
- Mimitian ngompa: Hold the pump handle firmly and press down with steady, even strokes. Use your foot on the pedal to stabilize the pump.
- Monitor Tekanan: If your item has a recommended pressure, pump until the desired firmness is achieved. Avoid over-inflation.
- Pegatkeun sambungan: Once inflated, quickly and carefully disconnect the pump from the valve or inflation port.
3.1. Inflating a Basketball

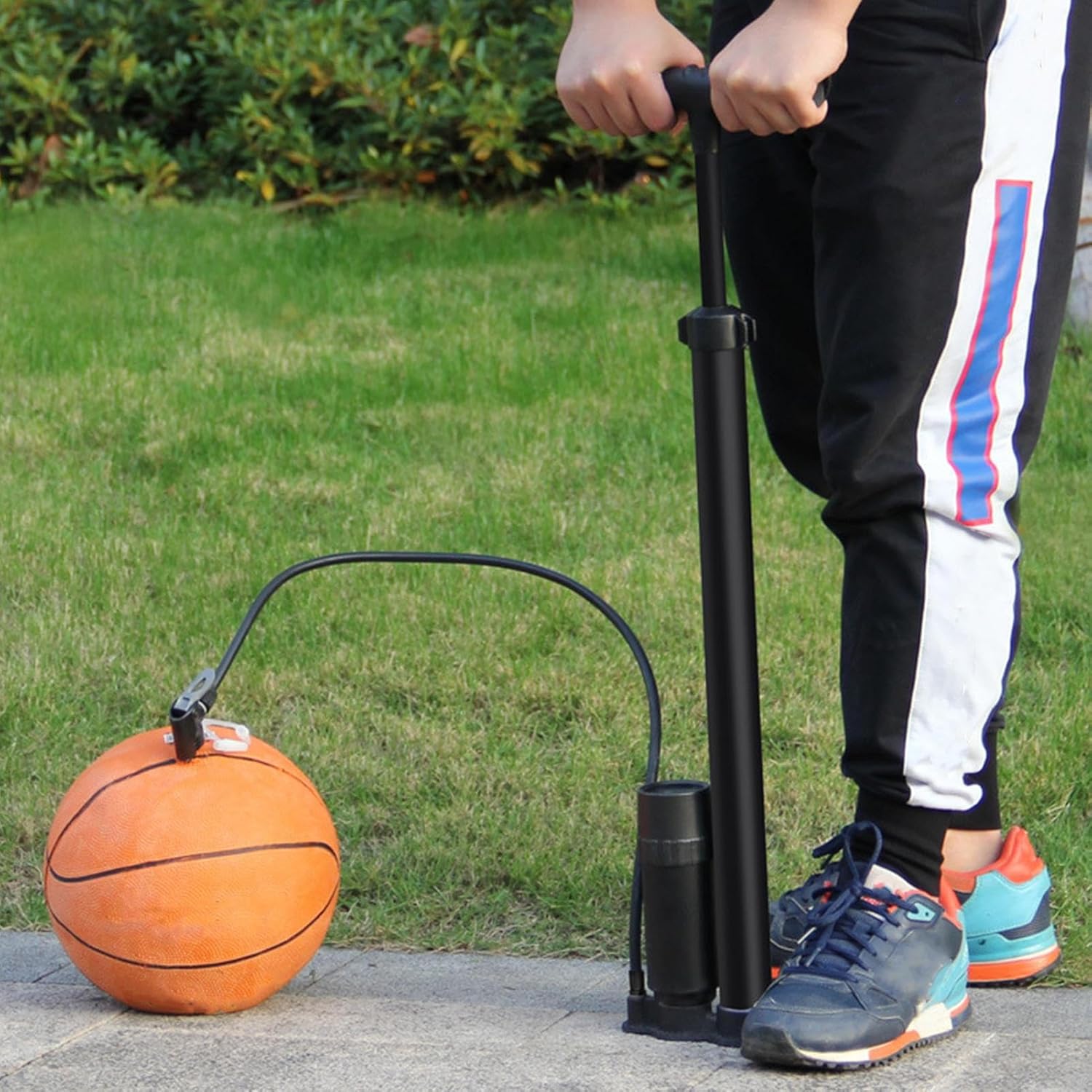

Image 3.1: Demonstrating the inflation of a basketball using the provided needle.
3.2. Inflating a Bicycle Tire
Image 3.2: Demonstrating the inflation of a bicycle tire.
4. Pangropéa
Proper maintenance ensures the longevity and optimal performance of your air pump.
- beberesih: Wipe the pump body and hose with a damp cloth after use to remove dirt and debris. Avoid using harsh chemicals.
- Panyimpenan: Store the pump in a dry, cool place away from direct sunlight and extreme temperatures. Ensure the hose is not kinked during storage.
- Pariksa maké: Periodically inspect the hose and nozzle for cracks, tears, or blockages. Replace any damaged parts if necessary.
- Lubrication: The internal mechanism typically does not require user lubrication. If the pump action becomes stiff, consult the manufacturer.
5. Cara ngungkulan
If you encounter issues with your air pump, try the following solutions:
- Pompa teu inflating:
- Ensure the nozzle is securely attached to the valve/needle and there is no air leakage at the connection point.
- Check if the inflation needle is fully inserted into the item's inflation port.
- Inspect the hose for any visible damage or blockages.
- Air leaking during inflation:
- Tighten the connection between the pump nozzle and the item's valve.
- Ensure the valve stem on the item is not damaged or bent.
- Verify the inflation needle is not bent or damaged.
- Pump action is stiff:
- Ensure the pump is clean and free of debris.
- Upami masalahna tetep, hubungi dukungan palanggan.
6. Spésifikasi
Detailed specifications for the Generic Portable Air Pump:
Image 6.1: Dimensions of the portable air pump.
| Fitur | Rincian |
|---|---|
| Nomer modél | KICEH6RQT231JJUJH |
| merek | Generik |
| Bahan | Alloy Steel, Metal |
| Item Beurat | 0.93 Pounds (approximately 421.84 g) |
| Parsél Dimensi | 32.5 x 10.5 x 5.5 cm |
| Komponén Kaasup | Jarum inflasi |
| Negara asal | Cina |
7. Émbaran jaminan
Warranty details for this product are not explicitly provided in the available information. Please refer to the product description or contact the seller directly for specific warranty terms and conditions.
8. Rojongan Palanggan
For any questions, technical assistance, or support regarding your Generic Portable Air Pump, please refer to the contact information provided in the product description or on the packaging. You may also contact the seller directly through the platform where the purchase was made.
