CURT Helux Coil-Spring 5th Wheel Pin Box Instruction Manual

1. Bubuka jeung Leuwihview

The CURT Helux™ 5th Wheel Pin Box is engineered to enhance towing comfort and protect your recreational vehicle (RV) by integrating advanced coil spring and shock absorber technology. This system is designed to replace standard pin boxes, significantly reducing chucking, jarring, and bouncing during travel. The result is a smoother and more stable ride for both the driver and passengers, including pets.

Its innovative design minimizes aggressive shifting, which helps protect your RV’s internal gear and belongings. Constructed from premium steel with a durable black powder coat finish, the Helux Pin Box ensures long-lasting reliability. The maintenance-free coil spring technology provides consistent performance without the upkeep typically associated with traditional air systems. This pin box is approved for use on Lippert frames, offering a seamless and worry-free towing experience.

Gambar 1: Leuwihview of the CURT Helux 5th Wheel Pin Box highlighting proprietary coil and shock technology that reduces chucking and jarring, approval on Lippert RV frames, and 30% reduction in force into the RV frame.

Image 2: Detail of the Helux pin box showcasing its robust steel construction and durable black powder coat finish, designed for long-lasting durability.

2. Naon dina Box

Upon unpacking, verify that all components are present and undamaged. The package for the CURT Helux Coil-Spring 5th Wheel Pin Box should contain the following:

• Helux 5th Pin Box (fully assembled)

Image 3: The retail packaging for the CURT Helux 5th Wheel Pin Box, indicating the product name and brand.

3. Setup jeung Instalasi

Installation of the CURT Helux Coil-Spring 5th Wheel Pin Box is designed to be straightforward, with no break-in period required. It is ready for immediate use once properly installed. This pin box is compatible with the Rhino Box bolt-mounting pattern and integrates seamlessly with Lippert RV frames without voiding your warranty.

Catetan Kasalametan Penting: Due to the critical nature of towing components, professional installation by a qualified technician is highly recommended to ensure proper fitment, safety, and compliance with all applicable towing regulations. Incorrect installation can lead to serious injury or damage.

Léngkah-léngkah Instalasi (Panduan Umum):

1. Review RV Manual: Consult your RV’s owner’s manual for specific instructions regarding pin box replacement and frame compatibility.
2. Secure the RV: Ensure the RV is safely supported and stabilized before beginning any work.
3. Remove Existing Pin Box: Carefully unbolt and remove the current pin box from the RV frame. Note the bolt pattern and any shims or spacers used.
4. Position Helux Pin Box: Align the CURT Helux Pin Box with the existing bolt holes on the RV frame. Ensure it matches the Rhino Box bolt-mounting pattern.
5. Aman sareng Hardware: Use appropriate grade hardware (typically included or specified by the RV manufacturer) to securely fasten the Helux Pin Box to the frame. Torque all bolts to the manufacturer’s specified values.
6. Pamariksaan ahir: Double-check all connections and ensure the pin box is firmly attached and free of any play.

Image 4: Diagram showing approximate dimensions of the Helux pin box, highlighting its compatibility with the Rhino Box mounting pattern for installation.

Image 5: Detailed dimensional drawing of the Helux pin box, including maximum and minimum pin weight specifications crucial for proper setup and safe towing.

Image 6: The Helux pin box shown installed on an RV, emphasizing its certification and approval for use on Lippert RV frames without voiding the warranty.

4. Parentah Operasi

The CURT Helux Coil-Spring 5th Wheel Pin Box operates automatically to provide a smoother towing experience. Its integrated coil spring and shock absorber technology continuously works to dampen road shocks and vibrations, reducing the impact on your RV and its occupants.

Key Operational Benefits:

• Smoother Ride: The system actively minimizes jarring and chucking, leading to a more comfortable journey for drivers, passengers, and pets.
• Reduced Frame Stress: By absorbing significant road forces, the pin box reduces stress on the RV’s frame and body by up to 30% compared to similar designs, contributing to the longevity of your vehicle.
• Stabilitas ditingkatkeun: The dampening action helps maintain better control and stability of the RV, especially over uneven terrain.

Image 7: The Helux pin box installed, illustrating how it provides a gentle ride within the tow vehicle, enhancing comfort for pets and passengers.

Image 8: A graph demonstrating the significant reduction in vertical acceleration (road shock) achieved by Helux Series Pin Boxes compared to a standard pin box (Brand X).

5. Pangropéa

The CURT Helux Coil-Spring 5th Wheel Pin Box features a virtually maintenance-free design. Unlike traditional air systems that require regular monitoring and adjustment of air pressure, the coil spring system provides dependable performance without ongoing upkeep.

Prakték Pangropéa anu Disarankeun:

• Inspeksi Visual périodik: Regularly inspect the pin box for any signs of wear, damage, loose fasteners, or corrosion. Pay close attention to the coil springs, shock absorbers, and mounting points.
• Kabersihan: Keep the pin box free from excessive dirt, mud, and road debris. A simple wash with soap and water can help prevent buildup.
• Pariksa Fastener: Periodically check all mounting bolts and nuts to ensure they remain properly torqued. Refer to your RV or pin box installation guide for specific torque specifications.
• Lubrication: While the coil spring system itself is maintenance-free, any moving pivot points or the kingpin may require occasional lubrication as per standard towing equipment practices. Consult your RV manual or a qualified technician for specific lubrication recommendations.

Should you notice any unusual noises, excessive movement, or visible damage, discontinue use and have the pin box inspected by a qualified service professional.

Gambar 9: A close-up view of the Helux pin box, highlighting its virtually maintenance-free design which offers an improved user experience compared to air bag systems.

6. Cara ngungkulan

This section provides general guidance for common issues. For complex problems or if you are unsure about any step, contact CURT customer support or a qualified service technician.

Masalah umum sareng Solusi:

• Excessive Chucking/Jarring:
  • Ensure the pin box is correctly installed and all fasteners are torqued to specification.
  • Verify that the kingpin is properly seated and locked in the 5th wheel hitch.
  • Check for proper weight distribution in the RV.
  • Inspect the 5th wheel hitch for wear or damage.
• Unusual Noises (Squeaks, Groans):
  • Inspect all pivot points and moving parts for debris or lack of lubrication.
  • Check for loose bolts or components.
  • Ensure the kingpin is adequately lubricated.
• Visible Damage or Wear:
  • Immediately cease towing if structural damage is observed.
  • Contact a qualified technician for assessment and repair or replacement. Do not attempt to repair structural components yourself.

7. Spésifikasi

The following specifications apply to the CURT Helux Coil-Spring 5th Wheel Pin Box, Model 2024122233:

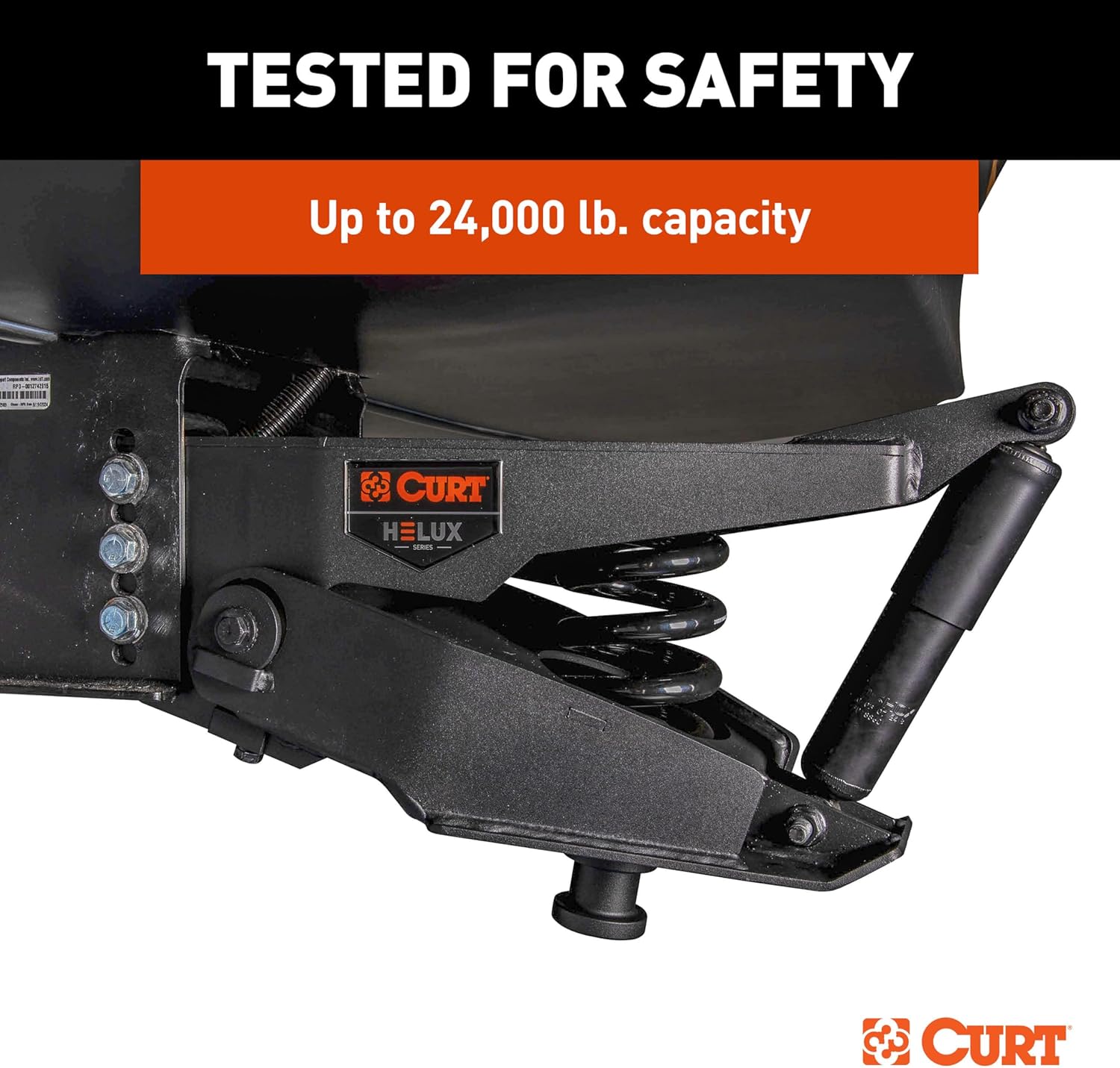

Image 10: The Helux pin box undergoing safety testing, confirming its robust design and capacity of up to 24,000 lbs.

8. Émbaran jaminan

The CURT Helux Coil-Spring 5th Wheel Pin Box is designed to be compatible with Lippert RV frames without voiding your existing RV warranty. CURT stands behind the quality and durability of its products.

For detailed information regarding the specific warranty coverage, terms, and conditions for the CURT Helux Pin Box, please refer to the official warranty documentation included with your product or visit the official CURT Manufacturing website. It is recommended to register your product upon purchase to facilitate any future warranty claims.

9. Rojongan

Should you require assistance with installation, operation, troubleshooting, or have any questions regarding your CURT Helux Coil-Spring 5th Wheel Pin Box, please contact CURT customer support.

Inpormasi kontak:

• Websitus: Visit the official CURT Manufacturing website for FAQs, product resources, and contact options.
• Telepon: Refer to the contact section of the CURT websitus pikeun nomer telepon layanan palanggan panganyarna.
• Surélék: General inquiries can often be submitted via email through the website’s contact form.

When contacting support, please have your product model number (2024122233) and purchase information readily available to expedite assistance.
