ANZZI Series Frameless Sliding Shower Door

Bubuka

This manual provides detailed instructions for the installation, operation, and maintenance of your ANZZI Series frameless sliding shower door. Please read all instructions carefully before beginning installation to ensure proper function and safety. Professional installation is recommended.

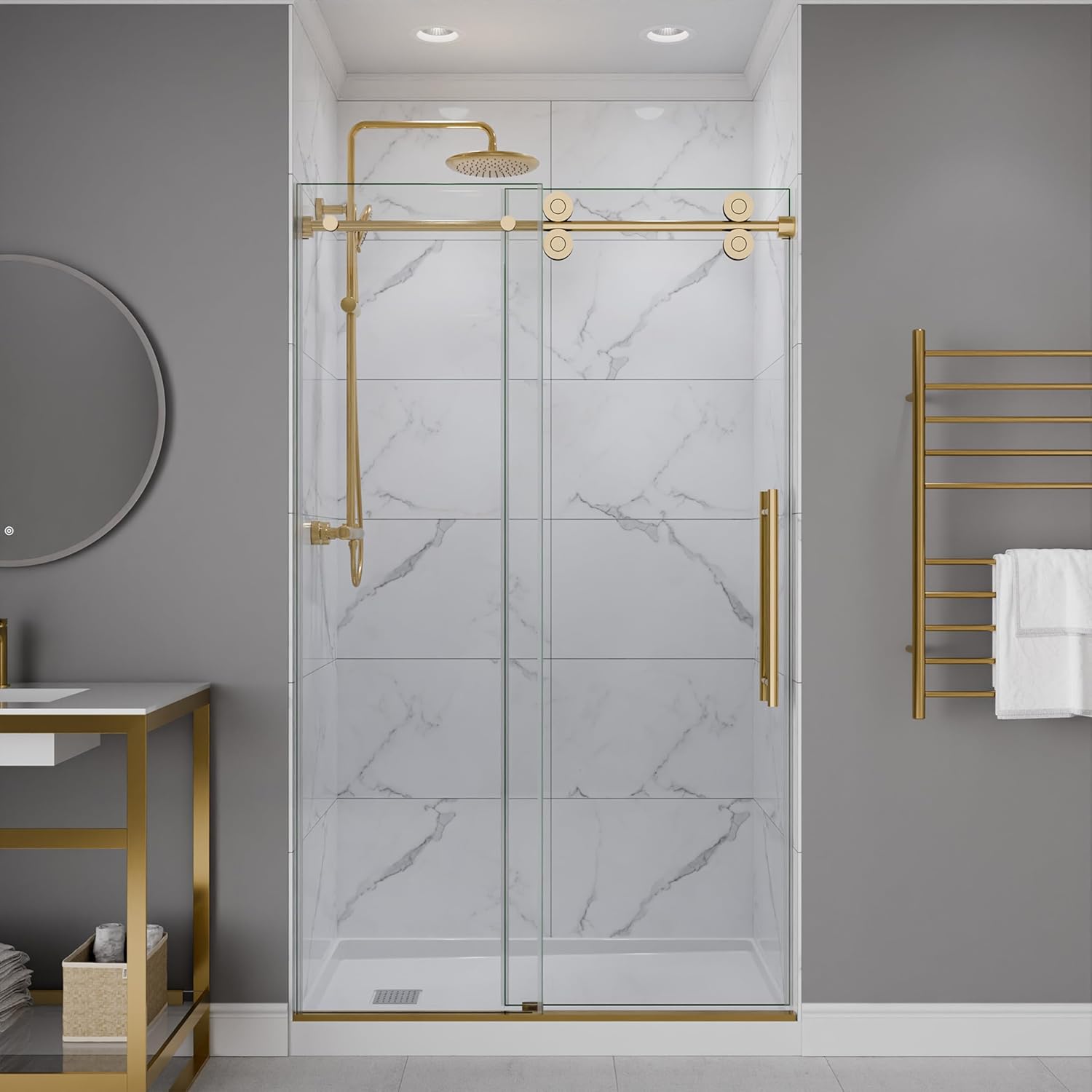

Gambar 1: Hareupeun view of the ANZZI Series Frameless Sliding Shower Door.

Émbaran Kasalametan

• Salawasna ngagem kacamata kaamanan salila instalasi.
• Handle glass panels with extreme care. Tempered glass can shatter if struck at the edges.
• Ensure all mounting surfaces are structurally sound and capable of supporting the weight of the shower door.
• Anggo alat-alat anu merenah sareng turutan sadaya kode bangunan lokal.
• Do not overtighten screws, as this may damage components or glass.
• Jauhkeun barudak sareng piaraan ti daérah pamasangan.

Eusi pakét

Pariksa heula sadaya komponén aya sareng henteu ruksak sateuacan ngamimitian pamasangan. Upami aya bagian anu leungit atanapi ruksak, hubungi dukungan palanggan ANZZI.

• Tempered Clear Glass Panels (Deco-Glass, 3/8" / 10mm thick)
• Rhino Alloy Hardware (Brushed Gold finish)
• Sliding Rail and Rollers
• Wall Brackets and Support Bar
• Bottom Rail and Guide Block
• Panto cecekelan
• Sealing Strips and Gaskets
• Installation Screws and Anchors

spésifikasi

Figure 2: Product dimensions and reversible installation feature.

Setup sareng Instalasi

For a visual guide, please refer to the official installation video below. Ensure you have all necessary tools and follow safety precautions.

Léngkah-léngkah Pamasangan konci:

1. Ukur sareng Nyiapkeun: Accurately measure your shower opening (W1 and W2) to ensure proper fit. Verify walls are plumb and level. Mark the installation points for the wall brackets.
2. Pasang Kurung Tembok: Drill holes at the marked locations. Secure the wall bracket plates, ensuring they are plumb.
3. Nyiapkeun Bar Rojongan: Remove wall brackets from the support bar. If necessary, cut the support bar to the required length (W1 minus 1.5 inches).
4. Pasang Bar Pangrojong: Attach the support bar to the installed wall bracket plates. Ensure it is level and secure.
5. Install Bottom Rail and Guide Block: Position the bottom rail and guide block at the center of the shower base. Mark and drill holes. Secure with screws if drilling into acrylic or wood, or use silicone sealant for tile.
6. Attach Rollers to Glass Panels: Assemble the rollers, gaskets, washers, and stoppers onto the glass panels. Ensure the side holes point upward.
7. Hang Fixed Glass Panel: Carefully lift and hang the fixed glass panel onto the support bar. Ensure it is properly seated and secured.
8. Panel Kaca Geser Gantung: Hang the sliding glass panel onto the support bar. Place a cloth or blanket under the door for protection during this step.
9. Saluyukeun Panto Panto: Slightly push the door to the wall to check if the water sealing strip aligns. If not, loosen the screw of the roller and turn the eccentric block to adjust the door's position. Retighten screws after adjustment.
10. Install Door Handles: Attach the door handles to the designated holes on the glass panels using the provided screws, anchors, and gaskets.
11. Apply Silicone Sealant: Apply silicone sealant along the bottom rail and vertical edges where the glass meets the wall to ensure a watertight seal.

Figure 3: Reversible installation options for left or right opening.

Parentah Operasi

Your ANZZI frameless sliding shower door is designed for smooth and quiet operation. To open or close the door, gently slide the handle along the track. Avoid forcing the door, as this may damage the rollers or track. The door features easy glide rollers for effortless movement.

Pangropéa

Beberesih sareng pangropéa rutin bakal mastikeun umur panjang sareng penampilan panto kamar mandi anjeun.

• Ngabersihan Kaca: The Tsunami Guard coating repels water, soap scum, and mineral staining, making cleaning easier. For best results, wipe down the glass after each use with a soft cloth or squeegee. For deeper cleaning, use a non-abrasive glass cleaner. Avoid harsh chemicals or abrasive pads that could damage the Tsunami Guard coating.
• Beberesih Perangkat Keras: Clean the brushed gold Rhino Alloy hardware with a soft, damp lawon. Ulah nganggo pembersih abrasif, wol baja, atanapi pembersih anu ngandung amonia, pemutih, atanapi asam, sabab ieu tiasa ngaruksak lapisan akhir.
• Segel sareng Gasket: Periodically check the sealing strips and gaskets for wear or damage. Replace them if necessary to maintain a watertight enclosure.
• Pangropéa roller: Ensure the rollers are free of debris and operate smoothly. If they become stiff, clean them and apply a small amount of silicone-based lubricant if needed.

Figure 4: Deco-Glass with Tsunami Guard coating for easy cleaning.

Pamérésan masalah

If you encounter issues with your shower door, try the following solutions:

• Panto teu ngageser kalawan lancar: Check rollers for debris. Clean and lubricate if necessary. Ensure the track is clear.
• bocor cai: Inspect all silicone sealant lines and sealing strips. Reapply sealant or replace worn seals as needed. Ensure the door is properly aligned and closes completely.
• Door alignment issues: Refer to the installation video and step 9 in the Setup section to adjust the eccentric blocks on the rollers.

Garansi sareng Rojongan

ANZZI offers peace of mind with a HARANSI UMUR on all products, reflecting our commitment to quality and durability. For technical assistance, replacement parts, or warranty claims, please contact ANZZI customer support.

Layanan Palanggan ANZZI:

• Websitus: www.anzzi.com
• Telepon: 1-844-44-ANZZI (for general inquiries)
• Surélék: support@anzzi.com
