AeroTek Body Camera Car Mount

Bubuka

The AeroTek Body Camera Car Mount is designed to provide a secure and versatile solution for mounting your T03/T05 body camera in a vehicle. This mount features a 360° rotating windshield suction cup, allowing for flexible angle adjustments to capture optimal footage. Its tool-free installation and compact design ensure ease of use and minimal obstruction of your view.

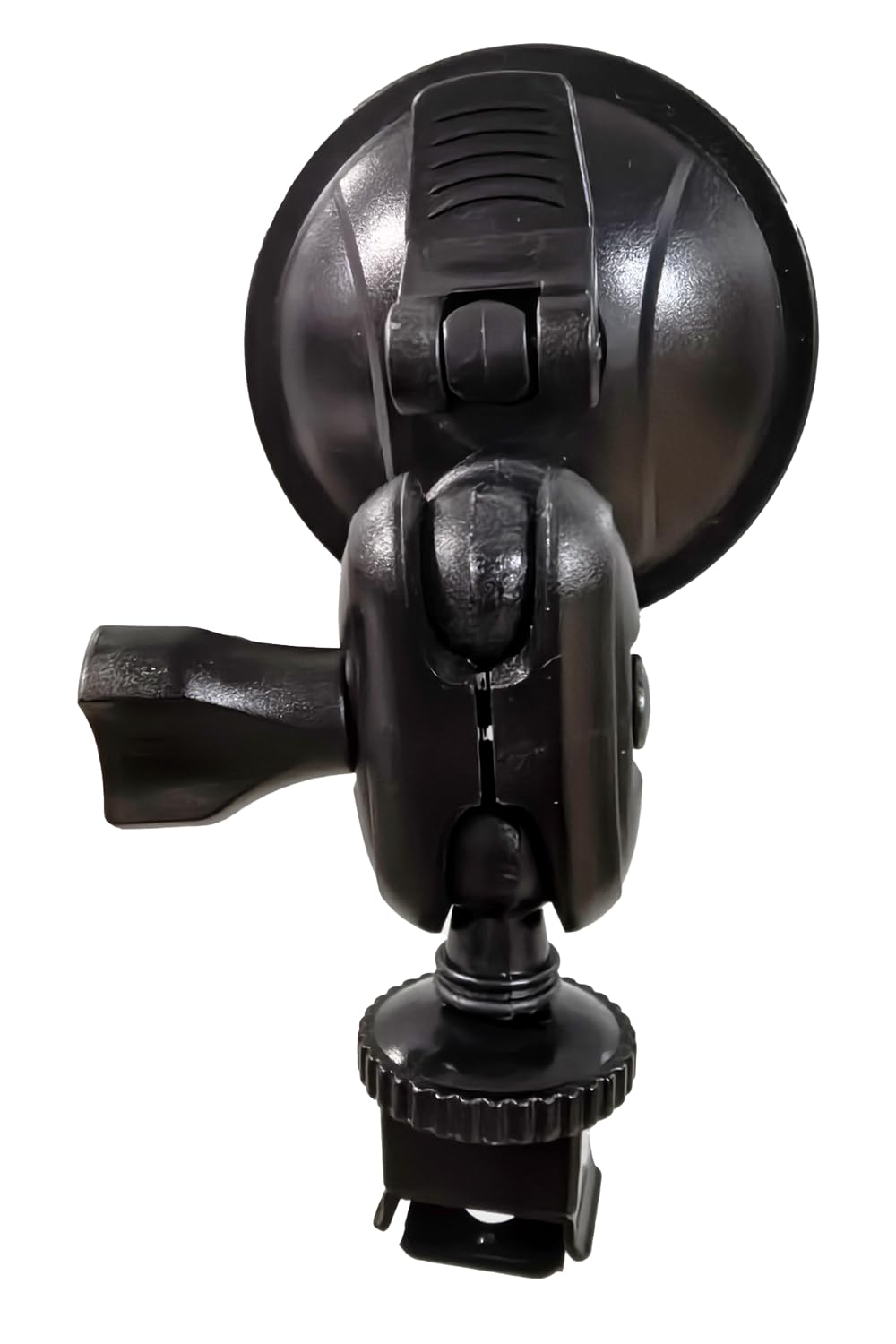

Figure 1: AeroTek Body Camera Car Mount

Produk Leuwihview

Key features of the AeroTek Body Camera Car Mount include:

• Kasaluyuan ekslusif: Specifically designed for AeroTek T03/T05 body camera models.
• 360° Flexible Adjustment: Allows for seamless rotation and angle adjustment to suit various recording needs and windshield types.
• Pamasangan Gratis Alat: Simple three-step process for quick and secure attachment without the need for additional tools.
• Lightweight and Versatile: Compact design ensures it does not obstruct the driver's view and can be adsorbed on glass or other smooth surfaces.
• Adhesi anu Aman: Engineered for strong suction, providing reliable stability for your body camera.

Naon dina Box

The AeroTek Body Camera Car Mount package includes:

• Nyeuseup cangkir mobil

Note: Body camera and other accessories are sold separately.

Setup & Pamasangan

Follow these steps to properly install your AeroTek Body Camera Car Mount:

1. Nyiapkeun permukaan: Ensure the chosen surface (e.g., car windshield, dashboard) is clean, smooth, and dry for maximum suction strength.
2. Cabut panutup pelindung: Carefully remove any protective film or cover from the suction cup base. Inspect the suction cup for any damage or debris.
3. Assemble Fittings: Attach the body camera holder or any required fittings to the mount's adjustable arm as needed. Ensure all connections are tightened securely.
4. Posisi Gunung: Place the suction cup firmly against the clean, smooth surface.
5. Engage Suction: Press down on the mount while simultaneously locking the lever or mechanism to create a vacuum seal.
6. Pariksa adhesion: Gently tug on the mount to ensure it is securely attached and not leaking air. The warning line on the suction cup should indicate proper adhesion.
7. Attach Body Camera: Securely attach your AeroTek T03/T05 body camera to the holder on the mount.

Parentah Operasi

Once the AeroTek Body Camera Car Mount is securely installed and your body camera is attached, you can adjust its position and angle:

• Penyesuaian sudut: Utilize the 360° rotating ball joint and adjustable arm to achieve the desired recording angle. Loosen the adjustment knobs, position the camera, and then tighten the knobs to lock it in place.
• Penempatan optimal: For best results, position the mount where it has a clear view of the desired recording area without obstructing your driving visibility.

Pangropéa

To ensure the longevity and optimal performance of your car mount:

• Cangkir Nyeuseup Bersih: Regularly clean the suction cup and the mounting surface with a damp cloth to remove dust and grime. This helps maintain strong adhesion.
• Pariksa keur maké: Periodically check the suction cup for any signs of wear, cracks, or deformation. Inspect the adjustable arm and joints for looseness.
• Panyimpenan: When not in use, store the mount in a cool, dry place away from direct sunlight to prevent material degradation.

Pamérésan masalah

If you encounter issues with your AeroTek Body Camera Car Mount, refer to the following common solutions:

• Mount Not Sticking:
  • Ensure the mounting surface is clean, smooth, and free of dust, oil, or moisture.
  • Press firmly on the suction cup while engaging the locking lever to create a strong vacuum.
  • Check the suction cup for damage or deformities. If damaged, replacement may be necessary.
• Camera Angle Drifts:
  • Tighten all adjustment knobs on the mount's arm and ball joint to secure the desired angle.
  • Ensure the body camera is properly seated and tightened in its holder.

spésifikasi

Émbaran Kasalametan

• Do not mount the device in a location that obstructs your view of the road or interferes with vehicle controls.
• Ensure the mount is securely attached before driving. A loose mount can become a projectile in an accident.
• Avoid prolonged exposure to extreme temperatures, as this may affect the suction cup's performance.
• Jauhkeun tina jangkauan barudak.

Garansi & Rojongan

Warranty and support information for the AeroTek Body Camera Car Mount was not provided in the product data. Please refer to the manufacturer's official website or contact your retailer for details regarding warranty coverage and customer support.
