1. Bubuka jeung Leuwihview
The SONICAKE Pocket Master is a portable multi-effects pedal designed for guitar, bass, and acoustic instruments. It integrates a wide range of effects, amp modeling, IR cabinet simulations, and a USB audio interface into a compact, rechargeable unit. This manual provides essential information for setting up, operating, and maintaining your device.
Figure 1: SONICAKE Pocket Master Multi-Effects Pedal (Transparent Green)
2. Fitur konci
- White-Box Digital Modeling Technology: Delivers organic, living tone with support for 3rd party IRs (5 user slots) for custom sound creation.
- Perpustakaan Éfék anu Éksténsif: Leuwih ti 100 épék gitar, bass, sareng akustik internal, kalebet 20 épék legendaris amp modél.
- High-Quality Signal Processing: 24-bit 44.1kHz signal processing ensures clear audio.
- Rhythm and Looper Functions: Features 99 built-in drum rhythms and a looper function.
- Prasetél: 100 customizable presets with an adjustable signal chain, allowing up to 9 simultaneous effect blocks.
- Antarmuka Audio USB: Stereo audio streaming with OTG function for direct connection to iOS/Android mobile devices.
- Konektipitas Bluetooth: For audio connection and control.
- Tampilan anu ramah-pamaké: Clear LCD color screen for easy navigation through effects and settings.
- Desain portabel: Compact, pocket-sized, and features a built-in rechargeable battery for on-the-go use.
- Rojongan Sofwér: Free Mac/Windows/iOS/Android software for sound editing and preset management.
3. Tata Letak sareng Kontrol Produk
Familiarize yourself with the physical layout and controls of your Pocket Master unit.
Gambar 2: Kontrol Panel Luhur
- 1. Layar LCD: Displays current preset, effects chain, and settings.
- 2. VALUE/VOL Knob: Adjusts volume and navigates menu options.
- 3. Saklar suku: Used for preset changes, tuner activation, and looper control.
Gambar 3: Port Panel Samping
- 4. IN Jack: 1/4" input for your instrument.
- 5. OUT/PHONES Jack: 1/4" output for amplifier atanapi headphone.
- 6. USB-C (OTG) Port: For connecting to mobile devices.
- 7. USB-C (Charging/Data) Port: Pikeun ngecas sareng nyambungkeun ka komputer.
4. Setélan
4.1 Ngecas Awal
Before first use, fully charge the Pocket Master using the provided USB-C cable and a compatible 5V USB power adapter (not included). The battery indicator on the LCD screen will show charging status.
4.2 Sambungan Dasar
- Connect your instrument (guitar, bass, or acoustic) to the IN jack (4) using a 1/4" instrument cable.
- Nyambungkeun OUT/TELEPON jack (5) to your amplifier, audio interface, or headphones.
- Press and hold the power button (usually integrated with a footswitch or knob, refer to the quick start guide for exact location) to turn on the device.

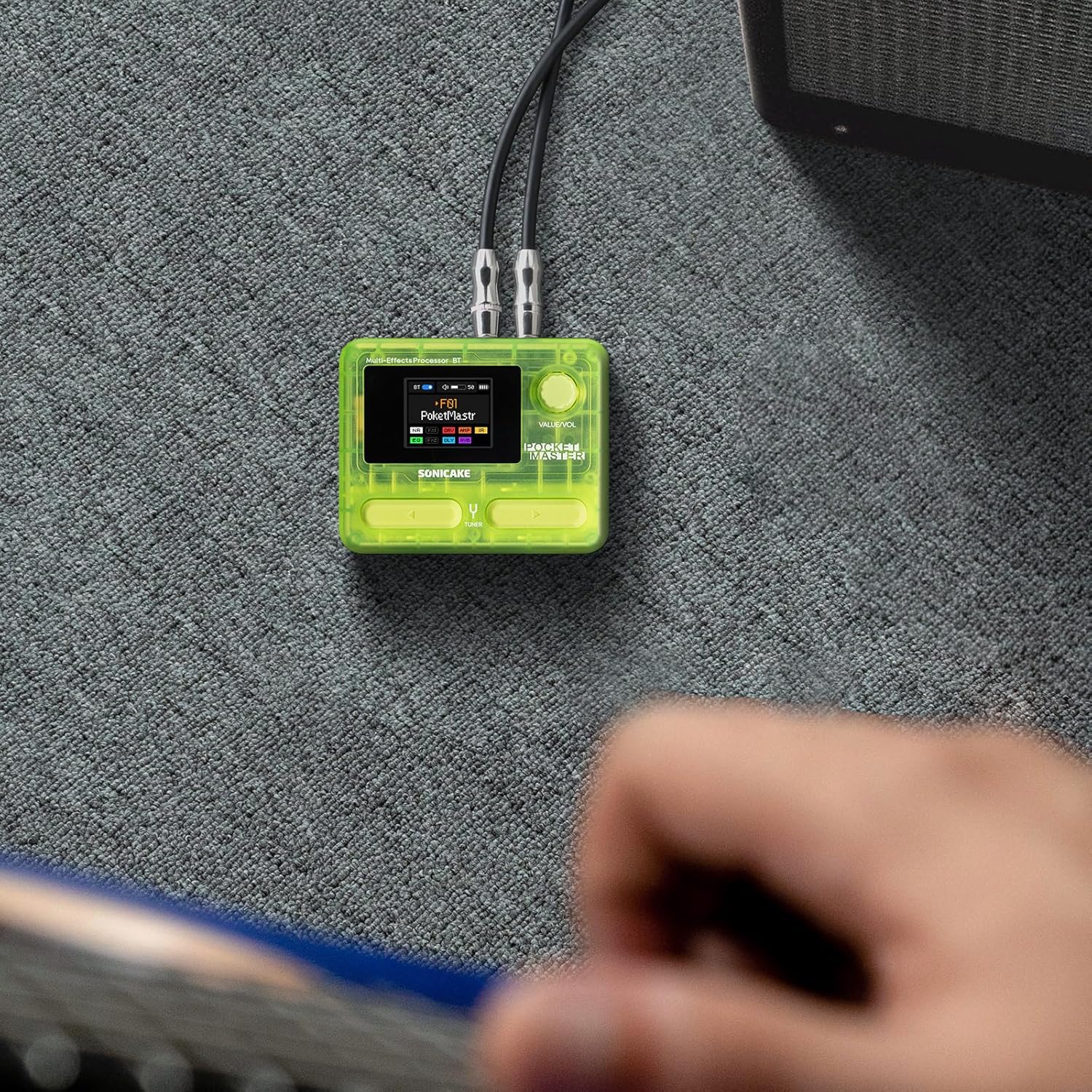

Figure 4: Connecting the Pocket Master to an instrument and amppangagung.
4.3 USB Audio Interface Setup
To use the Pocket Master as a USB audio interface for recording or playback:
- Connect the Pocket Master to your computer or mobile device using a USB-C cable via the dedicated USB-C (Charging/Data) port (7) or USB-C (OTG) port (6) for mobile devices.
- Install the necessary drivers and software from the official SONICAKE website for your operating system (Mac/Windows). For iOS/Android, download the companion app.
- Select the Pocket Master as your audio input/output device in your DAW or system settings.
Figure 5: USB connection for audio interface functionality.
5. Parentah Operasi
5.1 Navigasi Preset
Use the footswitches (3) to cycle through the 100 available presets. The LCD screen (1) will display the current preset number and name.
5.2 Adjusting Volume and Parameters
The VALUE/VOL knob (2) controls the overall output volume. When editing effects, this knob is used to adjust specific parameters. Pressing the knob may confirm selections or enter sub-menus.
5.3 Tuner Function
Hold down a specific footswitch (refer to the quick start guide for exact assignment) to activate the built-in tuner. The LCD screen will display tuning information.
5.4 Looper jeung Drum Mesin
The Pocket Master includes a looper and drum machine. Specific footswitch combinations or menu navigation are used to activate and control these features. The LCD screen provides visual feedback for recording, playback, and drum rhythm selection.
5.5 Bluetooth Audio and App Control
Pair your mobile device with the Pocket Master via Bluetooth to stream audio or use the dedicated app for deeper editing and preset management.
Figure 6: App control interface for the Pocket Master.
6. Effects and Amp Modél
The Pocket Master features a versatile effects matrix with up to 9 simultaneous effect blocks and over 100 high-quality effects. These include Noise Reduction (NR), two FX modules (FX1, FX2), Drive (DRV), Amp Modeling (AMP), Impulse Response (IR) cabinets, Equalizer (EQ), Delay (DLY), and Reverb (RVB).

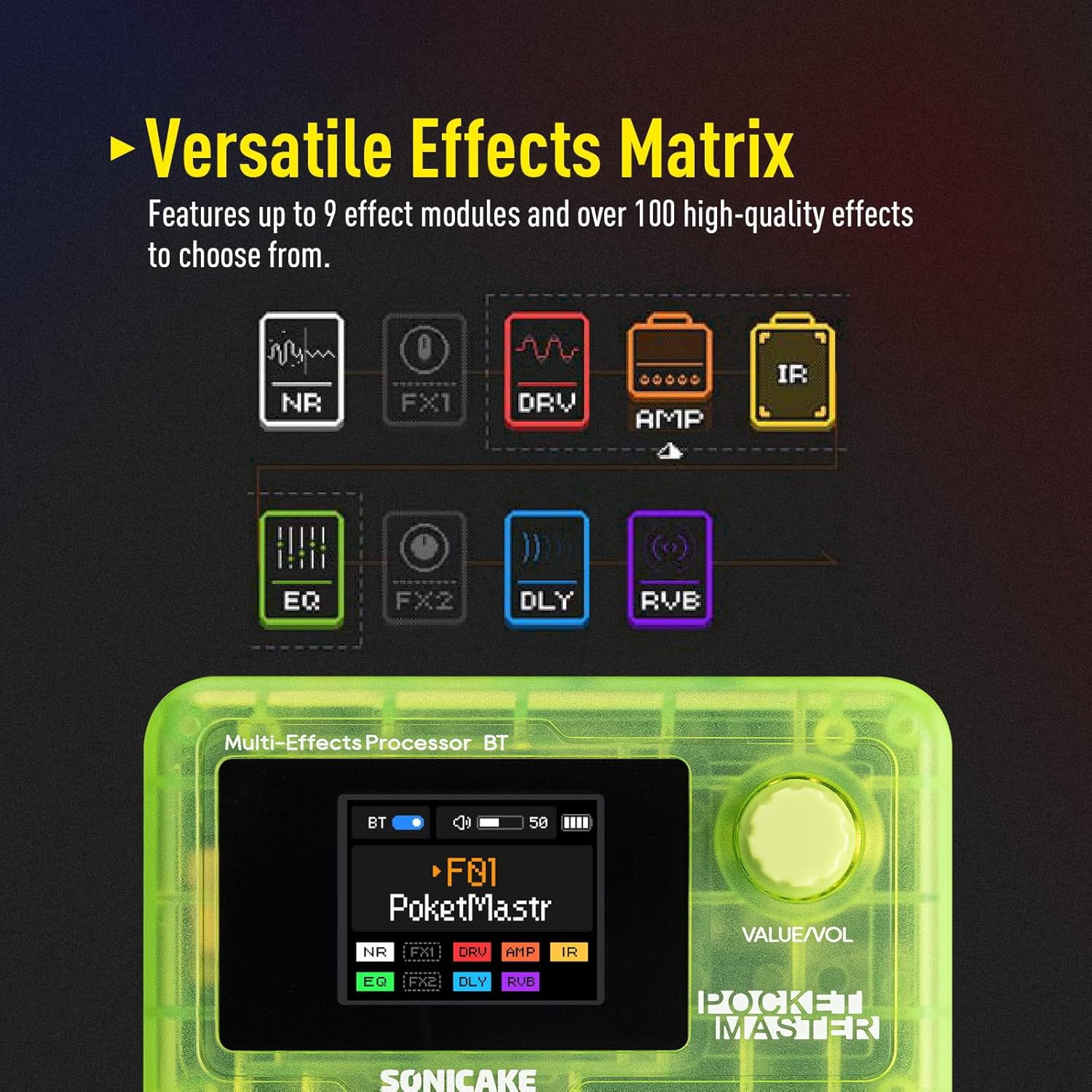

Figure 7: Visual representation of the effects chain.
You can customize the order and parameters of these effects within each preset using the device's controls or the companion software.
7. Pangropéa
- beberesih: Anggo kaén anu lembut sareng garing pikeun ngabersihan unit. Hindarkeun pembersih abrasive atanapi pangleyur.
- Panyimpenan: Simpen alat dina tempat anu tiis sareng garing jauh tina sinar panonpoé langsung sareng suhu anu ekstrim.
- Perawatan batré: To prolong battery life, avoid fully discharging the unit frequently. Charge regularly, even if not in use for extended periods.
- Pembaruan firmware: Pariksa SONICAKE resmi sacara berkala website for firmware updates to ensure optimal performance and access new features.
8. Cara ngungkulan
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Taya kaluaran sora | Incorrect cable connections, low volume, dead battery, incorrect preset. | Check all cable connections. Ensure volume is up on both Pocket Master and amplifier/headphones. Charge the unit. Select a different preset. |
| Unit teu hurung | Dead battery, faulty power button. | Charge the unit for at least 30 minutes. If still unresponsive, contact support. |
| Balukar henteu jalan sakumaha anu diharapkeun | Incorrect effect parameters, outdated firmware. | Adjust effect parameters via the knob or app. Check for and install any available firmware updates. |
| Masalah sambungan Bluetooth | Device not in pairing mode, interference, outdated app. | Ensure Pocket Master Bluetooth is enabled and in pairing mode. Move closer to the device. Update the companion app. |
9. Spésifikasi
- Beurat barang: 7.3 ons (208 gram)
- Ukuran produk: 2.44 x 4.13 x 2.44 inci
- Jumlah modél: QME-10TGN
- Batré: 1 Nonstandard Battery (rechargeable)
- Ngaran warna: Héjo Transparan
- Tipe Panyambung: USB
- Antarmuka Hardware: USB
- Format Sinyal: Digital
- Tipe Bahan: palastik
- Sumber Daya: Battery Powered, DC Powered
- Voltage: 5 volt
- Gaya: Multi-effects, Acoustic, Bass
10. Naon dina Box
- SONICAKE Pocket Master Multi-Effects Pedal
- Kabel Ngecas USB-C
- Manual pangguna (dokumén ieu)
- Footswitch, 1/4" stereo/headphone outputs (implied by product description, often integrated or part of the unit)
11. Garansi jeung Rojongan
For warranty information, technical support, and further assistance, please visit the official SONICAKE websitus atanapi ngahubungan layanan palanggan maranéhanana langsung. Simpen resi pameseran anjeun salaku bukti pameseran pikeun klaim garansi.
