Bubuka
This manual provides instructions for the authentic AIRROBO PC100 Fine Filter Basket, a replacement part designed specifically for the AIRROBO PC10 Cordless Robotic Pool Cleaner. This fine filter basket is essential for capturing small debris and particles, ensuring your pool water remains clean and clear. Proper installation and maintenance are crucial for optimal performance of your robotic pool cleaner.

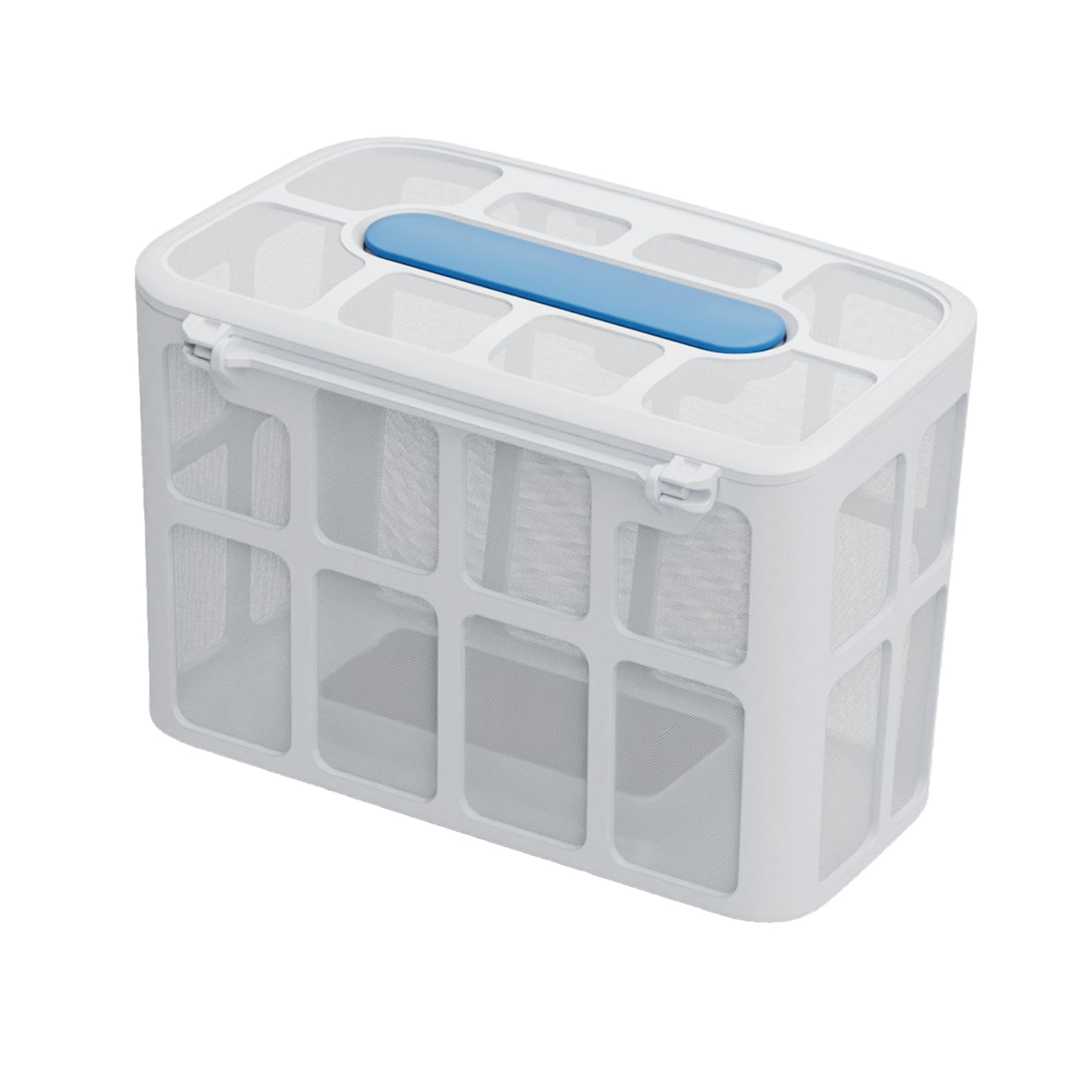

Gambar 1: The AIRROBO PC10 Fine Filter Basket. This image displays the complete filter basket assembly, highlighting its fine mesh material designed to capture small debris effectively. The basket features a sturdy frame and a handle for easy removal and installation.
Setup sareng Instalasi
Follow these steps to correctly install the fine filter basket into your AIRROBO PC10 Robotic Pool Cleaner.
- Pareum listrik: Ensure your AIRROBO PC10 robotic pool cleaner is powered off and disconnected from any charging source before beginning installation.
- Open Cleaner: Carefully open the top cover of the AIRROBO PC10 cleaner. Refer to your cleaner's main manual for specific instructions on opening the cover if needed.
- Cabut karanjang heubeul: If replacing an existing filter basket, grasp the handle of the old basket and lift it straight out of the cleaner's body. Dispose of the old basket responsibly.
- Lebetkeun Karanjang Anyar: Align the new AIRROBO PC100 Fine Filter Basket with the designated slot inside the cleaner. Gently lower the basket into place, ensuring it sits securely and flush within the cleaner's housing. The basket should click or settle firmly into position.
- Tutup panutup: Close the top cover of the robotic pool cleaner, ensuring it latches securely.
Catetan: Improper installation may lead to reduced cleaning efficiency or damage to the cleaner.
Pertimbangan Operasi
Once installed, the fine filter basket operates automatically as part of your AIRROBO PC10 robotic pool cleaner's normal cleaning cycle. No additional user action is required for the basket itself during operation.
- Cék biasa: Periodically check the filter basket for debris accumulation, especially after cleaning cycles.
- Kinerja optimal: A clean filter basket ensures maximum suction power and efficient filtration, leading to cleaner pool water.
Pangropéa jeung beberesih
Regular cleaning of the fine filter basket is essential to maintain the performance and longevity of your AIRROBO PC10 robotic pool cleaner.
- Cabut karanjang: After each cleaning cycle, or when the basket appears full, power off the cleaner and open its top cover. Grasp the handle of the filter basket and lift it out.
- Puing kosong: Invert the basket over a waste bin to empty large debris.
- Bilas sacara saksama: Use a garden hose or faucet to rinse the fine mesh filter thoroughly. Spray water from both the inside and outside of the basket to dislodge all trapped particles. Ensure all fine dust and debris are removed from the mesh.
- Pariksa Karusakan: While cleaning, inspect the filter mesh for any tears, holes, or signs of wear. If significant damage is present, the basket may need replacement.
- Pasang deui: Once clean, allow the basket to air dry completely before reinstalling it into the cleaner, or reinstall it wet if immediate use is required. Ensure it is seated correctly as described in the "Setup and Installation" section.
Rekomendasi: Clean the filter basket after every use for optimal filtration and to prevent strain on the cleaner's motor.
Pamérésan masalah
This section addresses common issues related to the fine filter basket.
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Filtrasi Goréng / Cai Keruh | Filter basket is clogged with debris. Filter mesh is damaged. Basket not seated correctly. | Clean the filter basket thoroughly as per maintenance instructions. Mariksa karuksakan; ngaganti lamun perlu. Reinstall the basket, ensuring it clicks into place. |
| Basket Does Not Fit Properly | Incorrect basket model for your cleaner. Obstruction in the cleaner's housing. | Verify that you have the correct PC100 Fine Filter Basket for the AIRROBO PC10 cleaner. Check for any debris or foreign objects preventing proper seating. |
| Ngurangan Daya Nyeuseup | Filter basket is full or partially clogged. | Clean the filter basket immediately. |
spésifikasi
- Ukuran produk: 10.16 x 10.16 x 10.16 cm (4 x 4 x 4 inci)
- Beurat barang: 762 g (1.68 lbs)
- merek: AIRROBO
- Ngaran modél: For PC100
- Jumlah modél: PC100
- Nomer Bagian: For PC100
- warna: Bodas
- Tipe Sumber Daya: Manual (for the basket itself, as it's a passive component)
- Pabrikan: AIRROBO
- ASIN: B0F2MCWH59
- Available for purchase since: 27 Maret 2025
Garansi sareng Rojongan
For specific warranty information regarding your AIRROBO PC100 Fine Filter Basket, please refer to the warranty documentation provided with your original AIRROBO PC10 Robotic Pool Cleaner or contact AIRROBO customer support directly. Keep your purchase receipt as proof of purchase.
For technical assistance, troubleshooting beyond this manual, or to inquire about other replacement parts, please visit the official AIRROBO website or contact their customer service department. Contact details can typically be found on the product packaging or the main cleaner's user manual.
