VEVOR 9-Pan Commercial Food Warmer Instruction Manual

1. Bubuka

This manual provides essential instructions for the safe and efficient operation, maintenance, and troubleshooting of your VEVOR 9-Pan Commercial Food Warmer. Please read this manual thoroughly before initial use and retain it for future reference. This commercial electric food warmer is designed to keep various food items, such as stews, pasta, congee, and soup, at optimal serving temperatures for extended periods.

2. Parentah Kasalametan

Pikeun nyegah tatu atanapi karusakan, salawasna turutan tindakan pencegahan kaamanan dasar ieu:

• Pastikeun alat disambungkeun ka stop kontak anu di-ground kalayan voltase anu lerestage (AC120V, 60Hz).
• Do not operate the food warmer without water in the heating compartment. The unit features an anti-dry burning protection device that will shut off if water levels are too low.
• Keep hands and face away from hot surfaces and steam during operation. Use heat-resistant gloves when handling hot pans.
• Do not immerse the electrical components or the entire unit in water or other liquids.
• Cabut colokan unit tina stop kontak sateuacan beberesih, pangropéa, atanapi nalika teu dianggo.
• Keep the power cord away from hot surfaces and ensure it is not pinched or damaged.
• This appliance is intended for commercial use. Do not modify the unit or use it for purposes other than its intended function.
• Pastikeun unit disimpen dina permukaan datar anu stabil pikeun nyegah tipping.

Image: Temperature Protection feature, indicating automatic shut-off at 125°C (257°F) to prevent overheating and fire hazards if the water boils dry.

3. Produk Langkungview

3.1 Fitur

• Efficient Built-in Heating Plate: Provides fast and even heating with improved water circulation, simplifying cleaning compared to traditional heating tubes.
• Kapasitas ageung: Equipped with nine 1/3-size pans, compatible with various pan sizes up to 5.9 inches deep.
• Kontrol Suhu Smart: Easy-to-operate control knob with a temperature range of 86-190°F (30-85°C) and a high-precision digital display.
• Konstruksi awét: Full stainless steel body for corrosion resistance, durability, and easy cleaning.
• Mobility and Storage: Features mobile wheels (two lockable) and a convenient handle for easy movement. Includes a large undershelf for storing tableware and utensils.
• Fitur kaamanan: Built-in anti-dry burning protection and a removable sneeze guard for hygiene.

Image: Comparison of the built-in heating plate design (left) for high efficiency and easy cleaning, versus a regular heating tube (right) which is less efficient and harder to clean. Note: Must be used with water.

Image: Capacity details for the 9-pan configuration, showing individual pan dimensions and volume. Also displays other compatible pan sizes for flexible replacement.

3.2 Komponén

• Awak Stainless Steel: The main structure of the food warmer.
• Food Pans: Nine 1/3-size stainless steel pans with lids.
• Sneeze Guard: Removable transparent shield for hygiene.
• Panél kontrol: Includes Digital Display, Dry Burn Indicator, Heating Indicator, Temperature Control Knob, and Power Switch.
• Undershelf: For storage of accessories and tableware.
• Roda: Four 4-inch rubber wheels, two of which are lockable for stability.
• Solokan Solokan: Tempatna di handap pikeun gampang ngocorkeun cai.
• Kabel listrik: 1.8m (5.9 ft) long power cord.

Gambar: Detil view of the control panel, highlighting the digital temperature display, dry burn indicator, heating indicator, temperature control knob, and power switch.

Image: Key physical components of the food warmer, including the stainless steel body, detachable sneeze guard, handle, wheels (with lockable feature), and power cord length.

Image: Illustration of the undershelf for storing tableware and the drain valve for convenient water removal.

4. Setélan

4.1 Ngabongkar bungkusan

• Carefully remove all packaging materials and inspect the unit for any shipping damage.
• Pastikeun sadaya komponén anu didaptarkeun dina daptar bungkusan aya.

4.2 Majelis

• Attach the four rubber wheels to the bottom of the unit's legs. Ensure the two lockable wheels are positioned for easy access.
• Secure the undershelf to the legs using the provided hardware.
• Install the detachable sneeze guard into its designated slots on the top of the unit.
• Attach the convenient handle to the side of the unit.

4.3 beberesih Awal

• Before first use, clean all food contact surfaces, including the pans, lids, and the interior of the heating compartment, with mild soap and warm water. Rinse thoroughly and dry.

Image: The 1.8m (5.9 ft) power cord, illustrating its length for flexible placement and the requirement for a 120V electrical connection.

5. Parentah Operasi

5.1 Ngeusian Cai

• Pastikeun klep solokan ditutup.
• Fill the heating compartment with water up to the indicated maximum fill line. Do not overfill.
• The unit must always be used with water to ensure proper heating and prevent damage.

5.2 Kontrol Suhu

• Plug the power cord into a suitable 120V, 60Hz grounded outlet.
• Turn the Power Switch to the 'ON' position. The Heating Indicator light will illuminate.
• Rotate the Temperature Control Knob to set the desired temperature between 86-190°F (30-85°C). The digital display will show the current internal temperature.
• Allow the unit to preheat for approximately 15-20 minutes to reach the set temperature.

5.3 Food Placement

• Place the food pans containing pre-cooked or hot food into the heating compartment.
• Cover the pans with their respective lids to retain heat and moisture.
• Monitor the food temperature periodically to ensure it remains within safe serving limits.

6. Pangropéa

6.1 beberesih poean

• After each use, turn off the power switch and unplug the unit. Allow it to cool completely.
• Remove all food pans and lids. Wash them with mild soap and warm water, rinse, and dry.
• Open the drain valve to empty the water from the heating compartment.
• Clean the interior of the heating compartment and the exterior surfaces of the unit with a damp cloth and mild detergent. Avoid abrasive cleaners or scouring pads that could scratch the stainless steel.
• Ensure all parts are thoroughly dry before reassembly or storage.

6.2 Draining Cai

• Always drain the water from the heating compartment after each use to prevent mineral buildup and maintain hygiene.
• Position a suitable container under the drain valve before opening it.

7. Cara ngungkulan

8. Spésifikasi

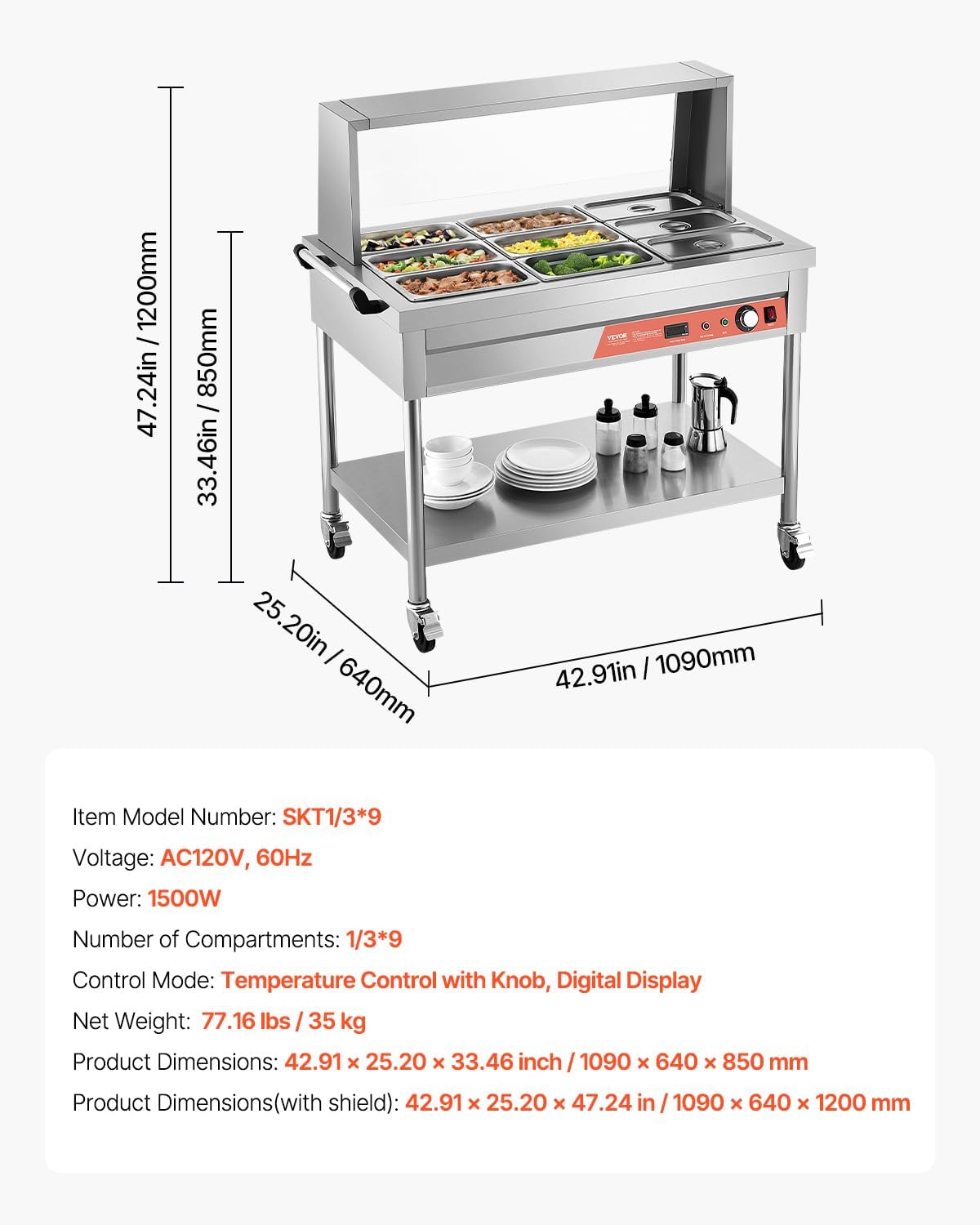

Image: Detailed dimensional drawing of the food warmer, including overall height, width, and depth, along with the height when the sneeze guard is installed.

9. Garansi jeung Rojongan

For warranty information or technical support, please refer to the warranty card included with your product or contact VEVOR customer service directly. Keep your purchase receipt and model number (SKT1/3*9) handy when contacting support.
