AKOASM Heavy Duty Upright Walker KLD1013 Instruction Manual

1. Bubuka

Thank you for choosing the AKOASM Heavy Duty Upright Walker KLD1013. This rollator is designed to provide stable and comfortable mobility assistance for seniors, promoting an upright posture and reducing strain. It features a robust aluminum frame, adjustable components, and a convenient folding design. Please read this manual thoroughly before assembly and use to ensure safe and proper operation.

Image 1.1: The AKOASM Heavy Duty Upright Walker KLD1013 in its operational state, demonstrating its design for upright posture support.

2. Émbaran Kasalametan

Your safety is paramount. Adhere to all warnings and instructions to prevent injury or damage.

• Kapasitas beurat maksimum: Do not exceed the maximum user weight of 450 lbs (204 kg). The storage basket has a maximum capacity of 11 lbs (5 kg).
• Pariksa marake: Always test the brakes before each use. Ensure they engage properly and hold the walker securely. Do not use the walker if the brakes are faulty.
• Pangropéa biasa: Periodically inspect all parts, including wheels, brakes, and fasteners. Tighten any loose components immediately.
• Pamakéan permukaan: Use the walker on flat, stable ground. Avoid uneven surfaces, steep inclines, or stairs.
• Sitting Safely: When using the seat, ensure the walker is completely stopped and the parking brakes are engaged. Sit down gently; do not drop onto the seat.
• Stabilitas: Always maintain a balanced posture while using the walker. Do not lean excessively to one side.
• Majelis: Ensure all components are correctly assembled and securely locked before use.

3. Fitur Produk

3.1. Thickened Aluminum Frame

The walker features a reinforced aluminum frame, providing exceptional strength and durability. This design supports a weight capacity of up to 450 lbs, making it suitable for a wide range of users.

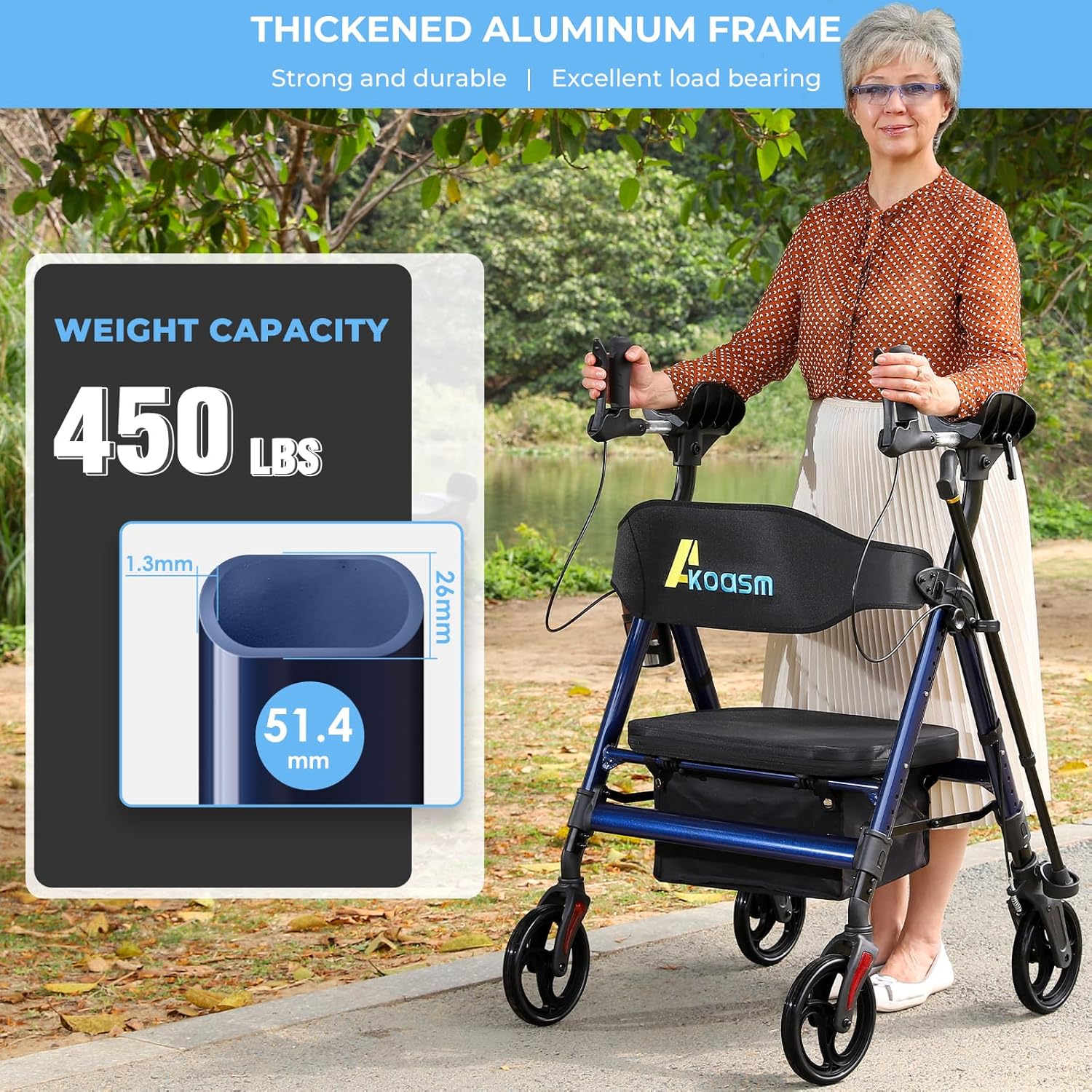

Image 3.1: Detail of the thickened aluminum frame, illustrating its strength and the 450 lbs weight capacity.

3.2. Ergonomic Backrest and Wide Seat

The detachable backrest provides targeted lumbar support, aiding in maintaining proper posture whether sitting or walking. The 19-inch wide, 16-inch deep, and 1.8-inch thick seat features breathable mesh over high-density foam, ensuring comfort and stability during rest breaks.

Image 3.2a: User demonstrating the comfort of the ergonomic backrest and wide seat.

Image 3.2b: Detailed view of the seat dimensions for comfort.

3.3. 8-inch All-Terrain Tires

Equipped with 8-inch puncture-proof tires, this walker is designed to navigate various indoor and outdoor surfaces. Reflective wheel strips enhance visibility in low-light conditions, improving safety.

Image 3.3: Illustration of the all-terrain tires and their features.

3.4. Integrated Accessories

The walker includes a cup holder, a cane stand, and a large detachable storage bag. The storage bag features an internal Velcro-secured pocket for personal items.

Image 3.4a: The cup holder attachment.

Image 3.4b: The cane stand attachment.

4. Majelis jeung Setup

The AKOASM Upright Walker is designed for quick and tool-free assembly. Follow these steps to set up your walker:

1. Buka Walker: Carefully remove the walker from its packaging. Stand it upright and gently pull the sides apart until the frame locks into place. Ensure all locking mechanisms are engaged.
2. Pasang sandaran: Slide the backrest onto its designated posts on the frame until it clicks securely.
3. Pasangkeun Kantong Panyimpen: Secure the storage bag under the seat using the provided fasteners.
4. Adjust Handle and Seat Height: Proceed to Section 5 for detailed instructions on adjusting the handle and seat height to your comfort.
5. Cék ahir: Before first use, ensure all parts are securely attached and the walker is stable. Test the brakes.

5. Pangaluyuan

The AKOASM Upright Walker offers adjustable handle and seat heights to accommodate users between 5'6" and 6'6". Proper adjustment is crucial for comfort and safety.

5.1. Handle Height Adjustment

The handles can be adjusted to 5 different levels, ranging from 40 inches to 47.3 inches (101.6 cm to 120.1 cm). This ensures proper elbow angle alignment, reducing wrist fatigue and promoting a natural, upright posture.

1. Locate the adjustment buttons on the handle posts.
2. Pencét tombol sareng geser gagang kaluhur atanapi kahandap ka jangkungna anu dipikahoyong.
3. Release the button and ensure the handle locks securely into one of the 5 height settings. Repeat for the other handle.

5.2. Korsi Jangkungna adjustment

The seat can be adjusted to 5 different levels, ranging from 19.2 inches to 22.9 inches (48.8 cm to 58.2 cm) from the ground.

1. Locate the adjustment pins on the seat support frame.
2. Pull out the pins and slide the seat frame up or down to the desired height.
3. Re-insert the pins and ensure the seat frame locks securely into one of the 5 height settings.

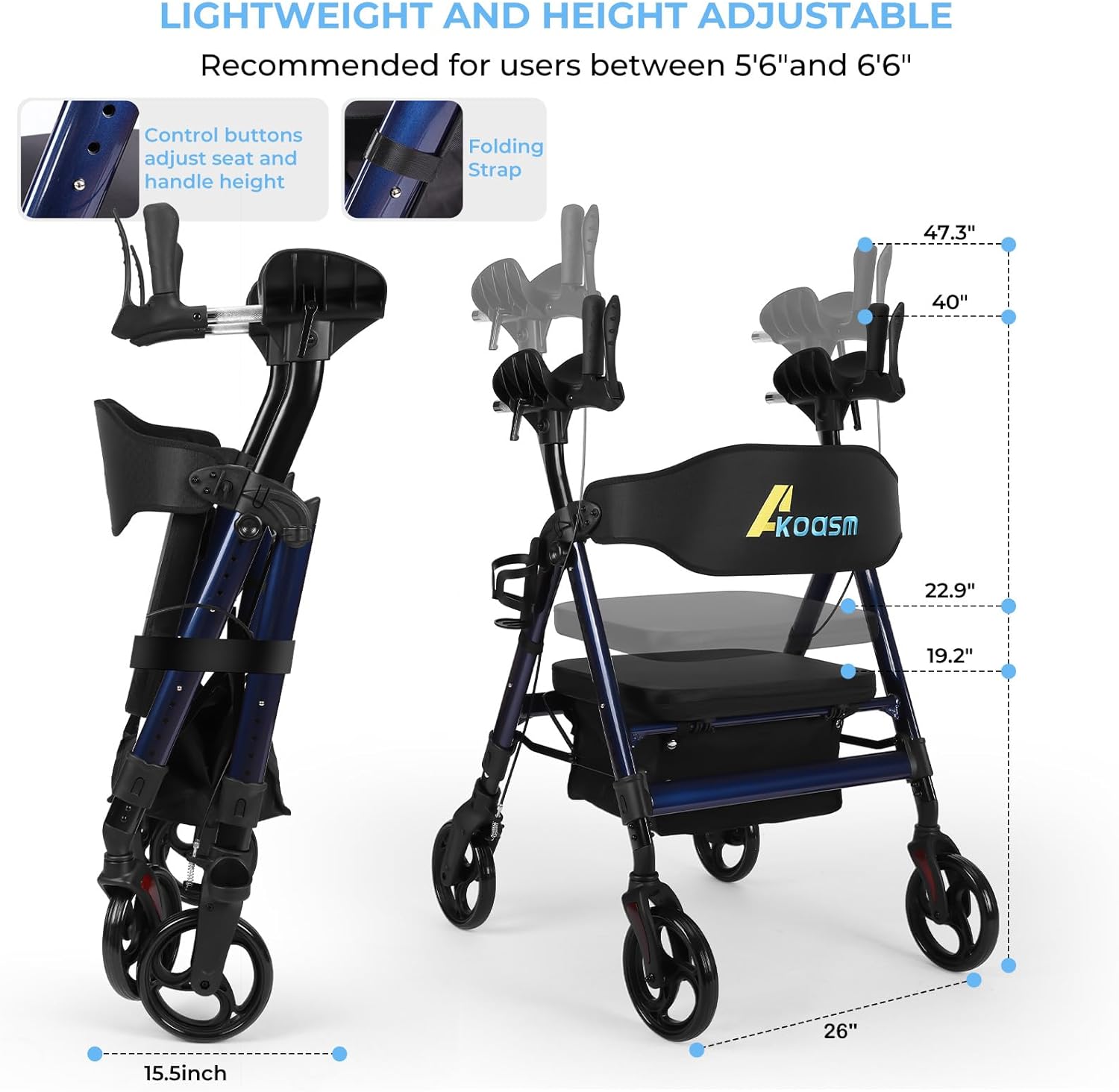

Image 5.1: Visual guide for handle and seat height adjustments.

6. Parentah Operasi

6.1. Walking with the Rollator

To walk, push the rollator forward a comfortable distance, then step forward. Maintain an upright posture, keeping your body centered within the walker for optimal balance and support.

6.2. 3-Mode Braking System

The walker is equipped with a 3-in-1 braking system for enhanced safety and control:

• Mode bébas: Allows the wheels to roll freely without resistance.
• Mode slow: Provides resistance, ideal for controlling speed on slight declines or when extra stability is desired.
• Modeu Taman: Engages the parking brake to lock the wheels, preventing the walker from rolling. Use this mode when sitting on the seat or when the walker needs to remain stationary.

To operate the brakes, squeeze the brake levers on the handles. To engage the parking brake, push the brake levers down until they lock into place. Pull them up to release.

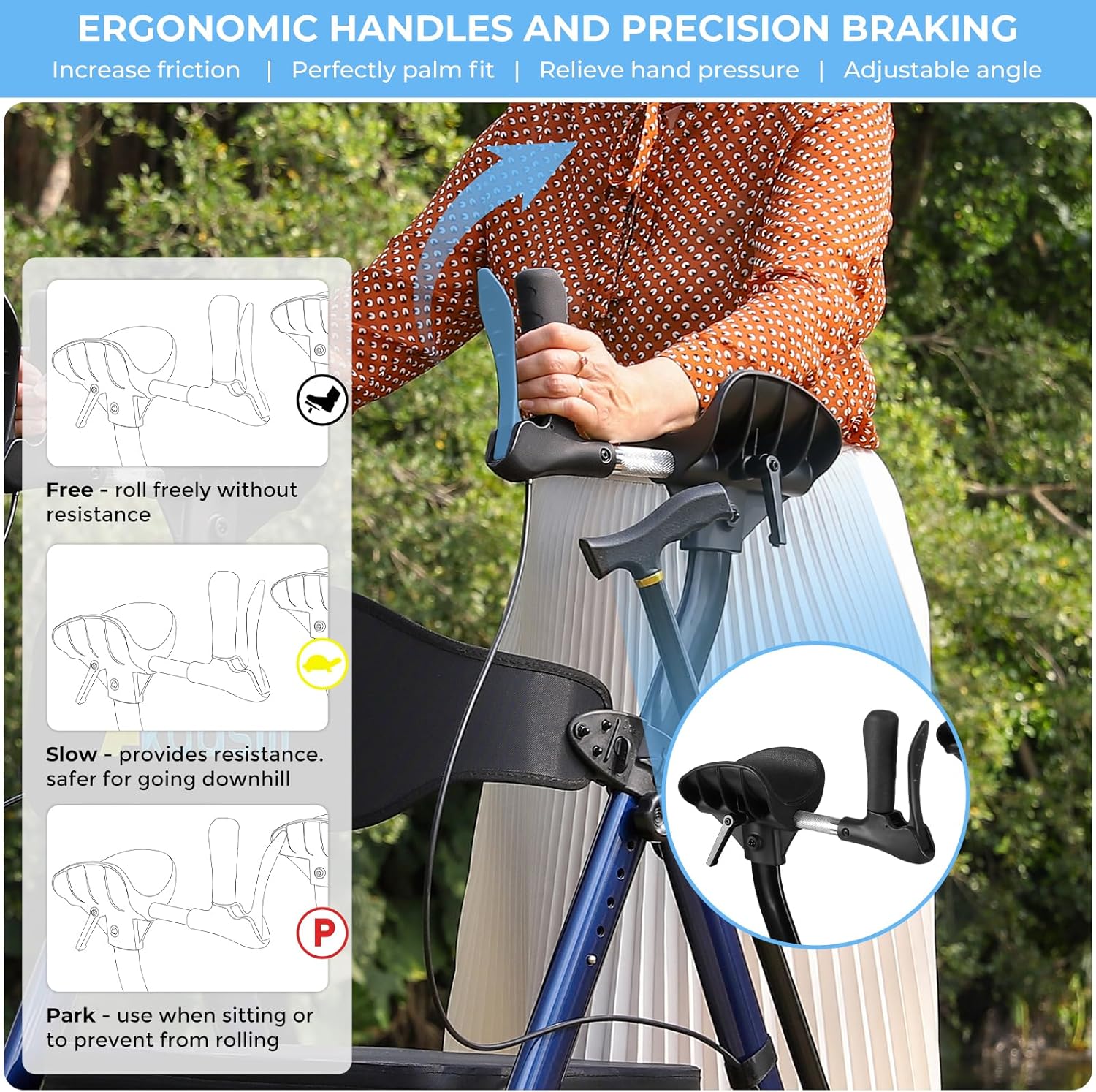

Image 6.1: Explanation of the 3-mode braking system.

6.3. Using the Seat

Before sitting, ensure the walker is on a flat, stable surface and the parking brakes are fully engaged. Turn around and slowly lower yourself onto the seat. Use the handles for support as needed. To stand up, push off the handles and slowly rise.

7. tilepan jeung Panyimpenan

The AKOASM Upright Walker can be folded in seconds for convenient transport and storage.

1. Prepare for Folding: Ensure the storage bag is empty and the backrest is in its lowest position if adjustable.
2. Initiate Fold: Locate the folding strap or mechanism, typically under the seat or on the frame. Pull upwards or activate the mechanism to begin folding.
3. Complete Fold: Continue to bring the sides of the walker together until it is fully collapsed. A dedicated locking mechanism ensures stability when folded.
4. Aman pikeun Angkutan: Use any provided straps or clips to keep the walker securely folded during transport or storage.

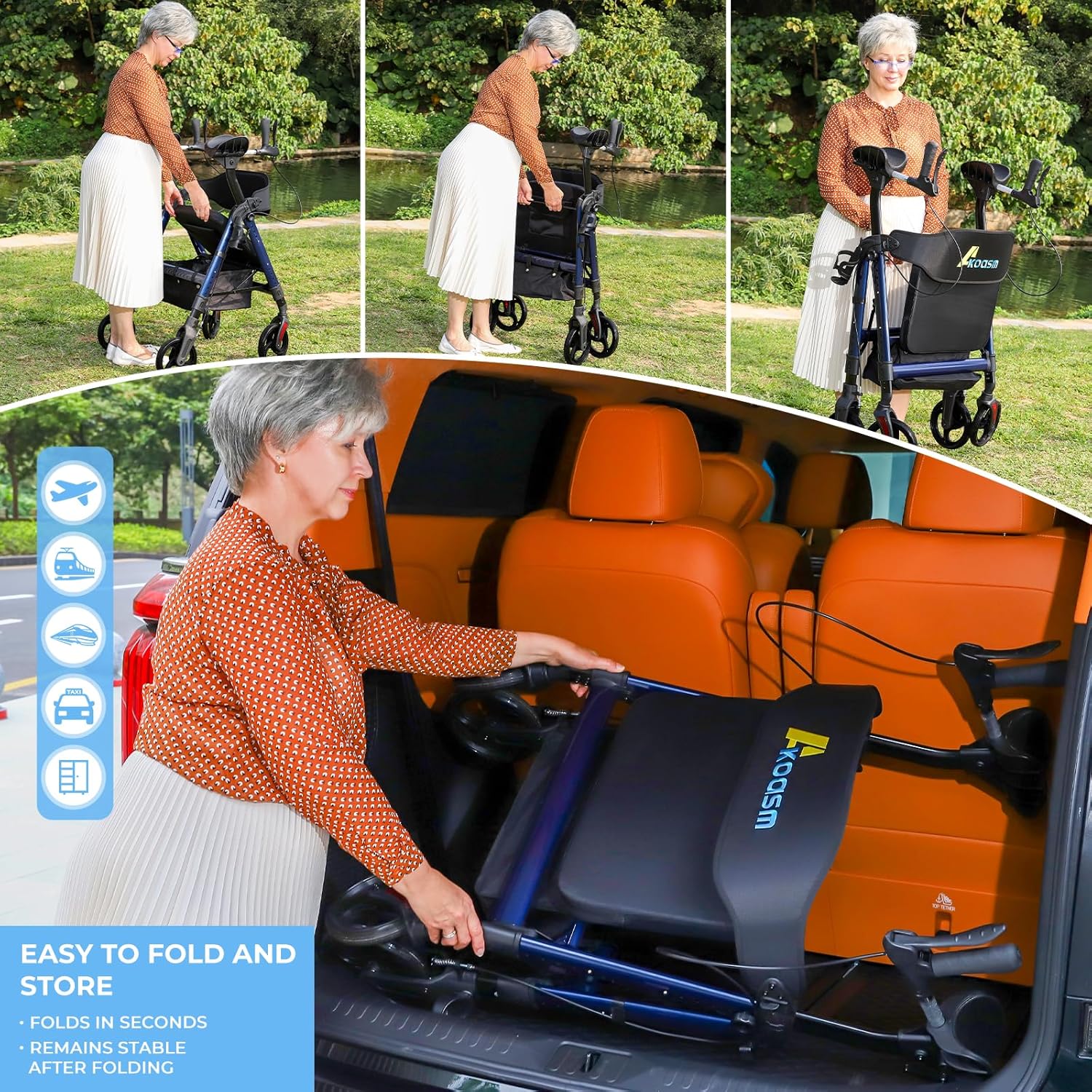

Image 7.1: Folding the walker for easy storage and transport in a vehicle.

8. Pangropéa

Regular maintenance ensures the longevity and safe operation of your AKOASM Upright Walker.

• beberesih: Lap rangka sareng korsi nganggo iklanamp cloth and mild detergent. Avoid abrasive cleaners. Ensure all parts are dry before storage.
• Pamariksaan: Regularly check all screws, bolts, and fasteners. Tighten any that are loose.
• Rem: Inspect brake cables for wear or damage. Ensure brake levers operate smoothly and effectively. Adjust if necessary (consult a professional if unsure).
• Roda: Check wheels for excessive wear or damage. Ensure they rotate freely and are free of debris.
• Panyimpenan: Store the walker in a dry, clean environment away from extreme temperatures.

9. Cara ngungkulan

If you encounter issues with your AKOASM Upright Walker, refer to the following common problems and solutions:

• Walker feels unstable:
  • Ensure all frame locking mechanisms are fully engaged after unfolding.
  • Pariksa yén sakabéh screws na bolts anu tightened.
  • Verify that the handle and seat heights are adjusted evenly on both sides.
• Brakes are not working effectively:
  • Check if the brake cables are properly routed and not snagged.
  • Ensure the brake levers are fully squeezed or pushed down for parking.
  • If the issue persists, the brake cables may need adjustment. Consult a qualified technician.
• Roda teu muter lancar:
  • Inspect wheels for debris (hair, lint) caught in the axles. Clean as necessary.
  • Check for any damage to the wheels or bearings.
• Difficulty folding the walker:
  • Ensure the folding mechanism is fully disengaged (e.g., pulling the strap upwards).
  • Check for any obstructions preventing the frame from collapsing.

If you cannot resolve an issue using these steps, please contact customer support.

10. Spésifikasi

11. Garansi jeung Rojongan

AKOASM is committed to providing high-quality products. While specific warranty details are not provided in this manual, please retain your proof of purchase for any warranty claims.

For any questions, concerns, or assistance with your AKOASM Heavy Duty Upright Walker KLD1013, please contact AKOASM customer support. We aim to respond to all inquiries within 24 hours.

Kontak Rojongan Palanggan: Please refer to the contact information provided with your purchase or visit the official AKOASM websitus pikeun pilihan rojongan.
