1. Émbaran Kasalametan penting
Please read this manual carefully before using your AKOASM Rollator Walker. Failure to follow instructions may result in injury.
- Kapasitas beurat: This rollator is designed to support a maximum user weight of 300 lbs (approximately 136 kg). Do not exceed this limit.
- Rem: Always check the brakes for proper function before each use. Engage the parking brakes when sitting or standing.
- Stabilitas: Ensure all parts are securely locked in place before use. Do not use on stairs or escalators.
- rupa bumi: While designed for all-terrain use, exercise caution on uneven surfaces, inclines, and declines. Avoid steep slopes.
- Penyesuaian: Ensure handles and seat are adjusted to a comfortable and safe height for the user.
- Pangropéa: Regularly inspect the rollator for wear and tear, especially wheels, brakes, and frame components.
Figure 1: AKOASM Rollator Walker overview, highlighting its lightweight aluminum frame and 300 lbs capacity.
2. Setup jeung Majelis
The AKOASM Rollator Walker is designed for quick, tool-free assembly.
2.1 Unfolding Rollator nu
- Remove the rollator from its packaging.
- Tempatkeun rollator dina permukaan anu datar sareng stabil.
- Gently pull the handles outwards until the frame fully expands and locks into place. Ensure the seat is flat and secure.
- Verify that all locking mechanisms are engaged before use.
Figure 2: Steps for unfolding the rollator, demonstrating its ease of assembly.
2.2 Adjusting Handle and Seat Height
The handle and seat heights are adjustable to accommodate users between 5'6" and 6'6".
- jangkungna cecekelan: Locate the control buttons on the handle posts. Press the buttons and slide the handles up or down to the desired height (32.4" to 39"). Ensure both handles are at the same height and click securely into place.
- Jangkungna korsi: The seat can be adjusted to 3 levels (20" to 23"). Consult the product diagram for specific adjustment points. Ensure the seat is level and locked before sitting.

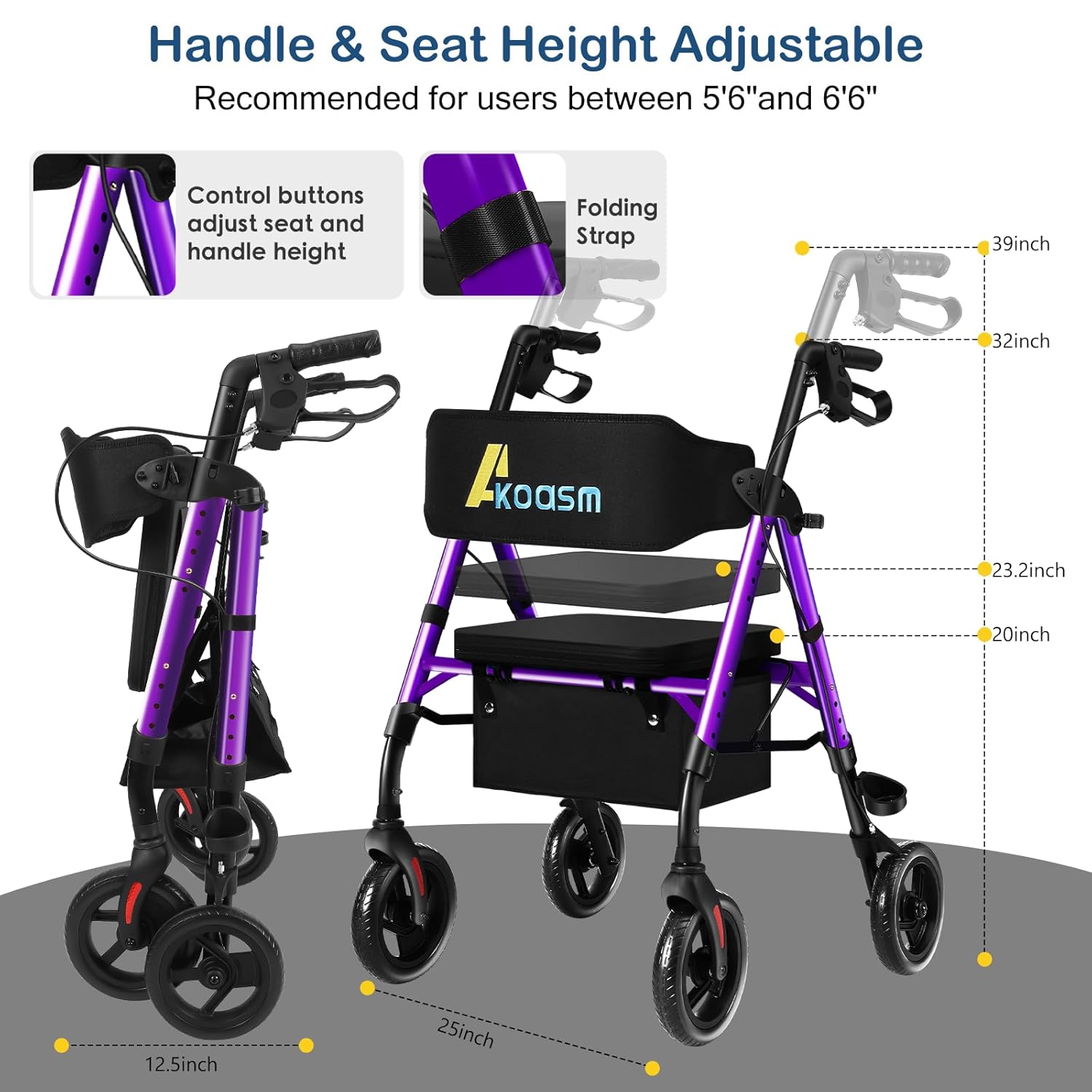

Figure 3: Handle and seat height adjustment points and ranges.
3. Parentah Operasi
3.1 Ngagunakeun rem
The rollator features a 3-mode braking system for enhanced safety and control.
- Mode bébas: Allows the rollator to move freely without resistance.
- Mode slow: Provides resistance, making it safer for going downhill or when more control is desired.
- Modeu Taman: Engages the parking brake to lock the wheels, preventing movement when sitting or standing. To engage, push the brake levers down until they click into place. To release, pull the levers up.
Gambar 4: Detil view of the 3-mode precision braking system.
3.2 Leumpang nganggo Rollator
Maintain an upright posture and keep the rollator close to your body. Push the rollator forward slightly, then step forward. Repeat this motion, ensuring the rollator remains stable.
3.3 Ngagunakeun Korsi
Before sitting, ensure the rollator is on a flat surface and the parking brakes are fully engaged. Sit down slowly and carefully. The seat is waterproof PU leather with a solid wooden board and high-density foam for comfort. The backrest is thickened and widened for support.
Figure 5: The comfortable seat and convenient storage basket.
3.4 Lipetan pikeun Nyimpen sareng Ngangkut
The rollator can be folded in seconds for easy storage and transport.
- Ensure the storage basket is empty.
- Pull the folding strap located on the seat upwards.
- The rollator will collapse inwards. Use the dedicated locking mechanism to secure it in the folded position.
Figure 6: The rollator in its folded configuration, ready for transport.
4. Pangropéa
Pangropéa rutin mastikeun umur panjang sareng operasi rollator anjeun anu aman.
- beberesih: Ngusap pigura kalayan iklanamp cloth and mild detergent. Do not use abrasive cleaners. The PU seat is waterproof and can be easily cleaned.
- Roda: Periodically check the 8-inch all-terrain non-pneumatic rubber wheels for debris and ensure they rotate freely.
- Rem: Test the brakes regularly. If they feel loose or ineffective, consult the troubleshooting section or contact support.
- Pengikat: Ensure all screws, bolts, and locking mechanisms are tight and secure. Do not overtighten.
- Panyimpenan: Simpen rollator di tempat anu garing sareng jauh tina suhu anu ekstrim.
5. Cara ngungkulan
Upami anjeun ngalaman masalah sareng rollator anjeun, tingali masalah sareng solusi umum ieu:
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Brakes are not engaging or feel loose. | Brake cable needs adjustment or wear on brake pads. | Inspect brake cables for damage. Adjust cable tension if necessary (refer to a qualified technician if unsure). Ensure brake pads are clean and free of debris. |
| Wheels are not rolling smoothly or are sticking. | Debris in wheel mechanism or worn bearings. | Clean wheels and axles of any hair, dirt, or debris. If problem persists, contact customer support. |
| Rollator feels unstable or wobbly. | Frame not fully locked or fasteners are loose. | Ensure the frame is fully unfolded and all locking mechanisms are engaged. Check and tighten all visible screws and bolts. |
| Handles or seat cannot be adjusted. | Adjustment buttons/levers are stuck or obstructed. | Ensure no debris is obstructing the adjustment mechanisms. Apply gentle pressure while pressing buttons. Do not force adjustments. |
6. Spésifikasi
| Fitur | Rincian |
|---|---|
| Nomer modél | KLD1002 |
| Ukuran produk (L x W x H) | 63.5 x 69.1 x 99.1 cm (25 x 27.2 x 39 inci) |
| Item Beurat | 7.48 kg (16.5 lbs) |
| Kamampuh beurat pamaké maksimum | 300 lbs (136 kg) |
| Bahan | Bingkisan aluminium |
| Tipe kabayang | 8-inch All-Terrain Non-Pneumatic Rubber Wheels |
| Nanganan Jangkungna Pangaluyuan | 32.4" to 39" (5 levels) |
| Koréksi Jangkungna Jangkungna | 20" to 23" (3 levels) |
| Bahan Kursi | Waterproof PU Leather with solid wooden board & high-density foam |
| Lipat | Yes, with dedicated locking mechanism |
| Sistem ngerem | 3-Mode Precision Brakes (Free/Slow/Stop) |
Figure 7: Detailed product specifications and comparison.
7. Garansi jeung Rojongan
For warranty information, please refer to the documentation included with your purchase or contact the retailer. AKOASM is committed to customer satisfaction.
If you have any questions, concerns, or require assistance with your AKOASM Rollator Walker, please do not hesitate to contact our customer support. We aim to provide a response within 24 hours.
Contact information can typically be found on the product packaging or the retailer's websitus.
