Mova X4 Pro Cordless Wet Dry Vacuum Cleaner Instruction Manual

1. Bubuka

Thank you for choosing the Mova X4 Pro Cordless Wet Dry Vacuum Cleaner. This manual provides essential information for the safe and efficient use, maintenance, and troubleshooting of your appliance. Please read this manual thoroughly before first use and keep it for future reference.

2. Parentah Kasalametan

• Always disconnect the appliance from the charging station before cleaning or performing maintenance.
• Ulah neuleumkeun unit utama dina cai atawa cairan séjén.
• Use only the original power adapter and charging station provided with the appliance.
• Jauhkeun rambut, pakean longgar, ramo, sareng sadaya bagian awak tina bukaan sareng bagian anu obah.
• Ulah nyokot bahan kaduruk atawa kaduruk, lebu panas, atawa badag, objék seukeut.
• Ensure the clean water tank is filled with appropriate cleaning solution (non-foaming) and the dirty water tank is properly installed before operation.
• This appliance is for household use only. Do not use outdoors or on wet surfaces other than those intended for wet cleaning.
• Barudak kedah diawaskeun pikeun mastikeun yén aranjeunna henteu maén sareng alatna.

3. Eusi Paket

Carefully unpack your Mova X4 Pro and check that all items are present and in good condition. The package should include:

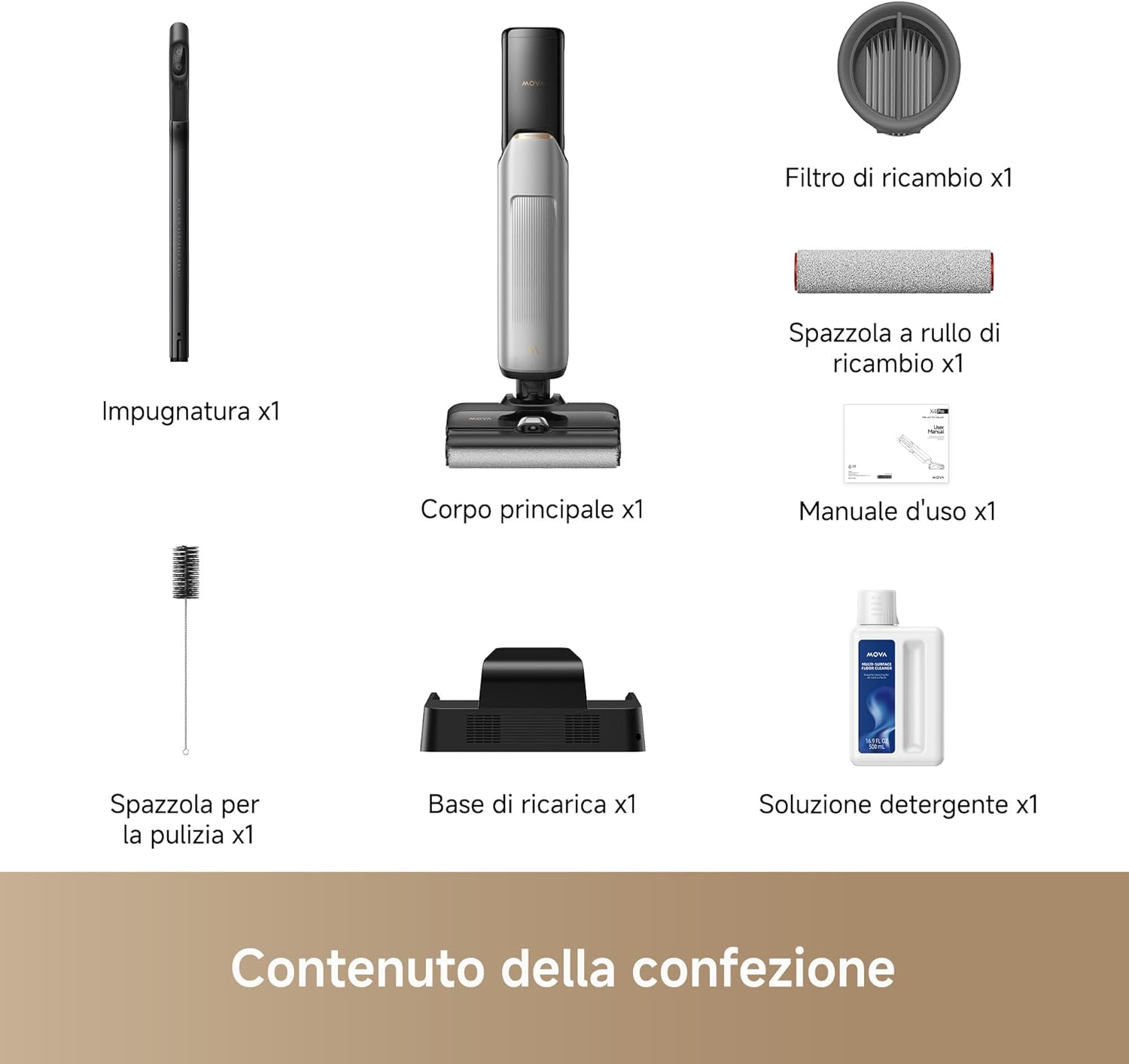

Image: All components included in the Mova X4 Pro package, neatly arranged. This includes the main unit, handle, charging base, cleaning brush, spare roller brush, spare filter, detergent solution, and user manual.

• Main Unit (x1)
• Gagang (x1)
• Dasar ngecas (x1)
• Sikat beberesih (x1)
• Spare Roller Brush (x1)
• Spare Filter (x1)
• Detergent Solution (x1)
• Buku Panduan Pamaké (x1)

4. Setélan

4.1 Majelis

1. Selapkeun cecekelan kana unit utama nepi ka clicks aman kana tempatna.
2. Simpen dasar pangisi daya dina permukaan anu datar sareng stabil caket stop kontak.
3. Connect the power adapter to the charging base and plug it into the power outlet.

4.2 Ngecas Awal

Image: The Mova X4 Pro vacuum cleaner being docked onto its charging station. The image highlights the ease of placing the unit onto the base for automatic charging and power-off.

Before first use, fully charge the Mova X4 Pro. Place the main unit onto the charging base. The display will indicate the charging status. A full charge takes approximately 45 minutes.

4.3 Ngeusian Tangki Cai Beresih

• Cabut tank cai bersih tina unit utama.
• Open the tank cap and fill with clean water. For enhanced cleaning, add a small amount of non-foaming cleaning solution (such as the provided Mova detergent). Do not exceed the MAX fill line.
• Close the cap securely and reattach the tank to the main unit.

5. Parentah Operasi

5.1 Powering on / Pareum

Press the power button on the handle to turn the appliance on. Press it again to turn it off.

5.2 Modeu beberesih

Image: The Mova X4 Pro cleaning a floor with hot water at 80°C, illustrating the powerful stain removal capability and the continuous fresh water supply to the brush.

The Mova X4 Pro offers multiple cleaning modes:

• Smart Mode: Automatically adjusts suction power and water flow based on detected dirt levels for efficient cleaning and optimized battery life.
• Hot Water Mode: Heats water to 80°C for effective removal of stubborn stains and deep cleaning. This mode provides 10 times superior stain removal power compared to traditional methods.
• SpotHeat™ Jet: For particularly tough stains, activate the SpotHeat™ jet function to apply concentrated hot water and suction, ensuring thorough cleaning.

5.3 Flexible Cleaning

Image: The Mova X4 Pro laid flat at 180° to clean under low-lying furniture, demonstrating its flexible design and ability to reach tight spaces (9cm brush height, 13cm body height).

• 180° Flat Design: The vacuum can lay flat to reach under furniture and into tight spaces, ensuring comprehensive cleaning without effort.
• Bersihan Tepi: The dual-edge brush design allows for cleaning right up to walls and baseboards, leaving no gaps.
• Maneuverability: With a lightweight design and 60° rotation, the X4 Pro offers effortless navigation around obstacles.

6. Pangropéa

6.1 Fungsi timer beberesih

Gambar: Hiji internal view of the Mova X4 Pro's self-cleaning process, showing 100°C hot water dissolving dirt and cleaning the roller brush for impeccable hygiene.

Image: The Mova X4 Pro's 90°C hot air drying process for the roller brush, ensuring it remains soft, odor-free, and ready for long-term performance.

After each use, place the Mova X4 Pro on its charging base to initiate the self-cleaning cycle. The appliance offers two self-cleaning modes:

• Intelligent Self-Cleaning: A quiet and gentle cleaning of the brush (approx. 3 minutes) followed by intelligent drying (15-30 minutes at 55 dBA).
• Deep Self-Cleaning: A rapid and thorough cleaning of the brush with 100°C hot water and rotation (approx. 6 minutes), followed by quick drying (5 minutes at 63 dBA).

The self-cleaning process ensures the roller brush is hygienically clean and odor-free.

6.2 Ngosongkeun Tangki Cai Kotor

After each cleaning session or when the dirty water tank is full, remove it from the main unit. Carefully open the tank and dispose of the dirty water. Rinse the tank and filter thoroughly with clean water. Ensure the solid waste separator is also cleaned.

6.3 Ngabersihkeun Sikat Rol sareng Filter

Gambar: A close-up view of the Mova X4 Pro's tangle-free brush design, featuring a comb-like scraper that effectively removes hair and pet fur from the roller brush during operation and self-cleaning.

• Even with the self-cleaning function, it is recommended to periodically remove the roller brush and rinse it under running water. Use the provided cleaning brush to remove any tangled hair or debris from the brush and the brush cover.
• Remove the HEPA filter from the dirty water tank. Rinse it under running water until clean. Allow the filter to air dry completely before reinserting it. Do not use the appliance with a wet filter.

6.4 Panyimpenan

Store the Mova X4 Pro on its charging base in a dry, cool place. Ensure both water tanks are empty and clean before storing for extended periods.

7. Cara ngungkulan

8. Spésifikasi

Image: The Mova X4 Pro demonstrating its long-lasting power, highlighting a 6x 5000mAh battery pack, 760ml clean water tank, 730ml dirty water tank, 45 minutes of runtime in Smart Mode, and coverage of up to 350m² on a single charge.

9. Garansi jeung Rojongan

The Mova X4 Pro comes with a standard manufacturer's warranty. Please refer to the warranty card included in your package or visit the official Mova website for detailed warranty terms and conditions. For technical support, spare parts, or service inquiries, please contact Mova customer service through their official channels.

Dukungan Online: Nganjang www.mova.com/support (misample link, please refer to actual product documentation).

Surélék: support@mova.com (misample email, please refer to actual product documentation).
