1. Bubuka
This manual provides essential instructions for the safe and effective use of your VEVOR Ladder Stabilizer, Model KH-WD04. Please read all instructions carefully before installation and operation to ensure personal safety and proper product function. Retain this manual for future reference.
The VEVOR Ladder Stabilizer is designed to enhance stability and safety when working at height, particularly for tasks involving roof gutters or walls. It features adjustable feet, anti-slip rubber pads, and a robust carbon steel construction.
2. Produk Langkungview
The VEVOR Ladder Stabilizer (Model KH-WD04) is a heavy-duty accessory designed to provide additional stability for extension ladders. Key features include:
- Kasaluyuan lega: Fits ladders with an outer width of 11.81'' to 17.32''. Compatible with wood, fiberglass, and aluminum ladders.
- Desain Kasalametan: Features anti-slip rubber feet, a tool tray for convenience, and a D-ring locking mechanism to prevent detachment.

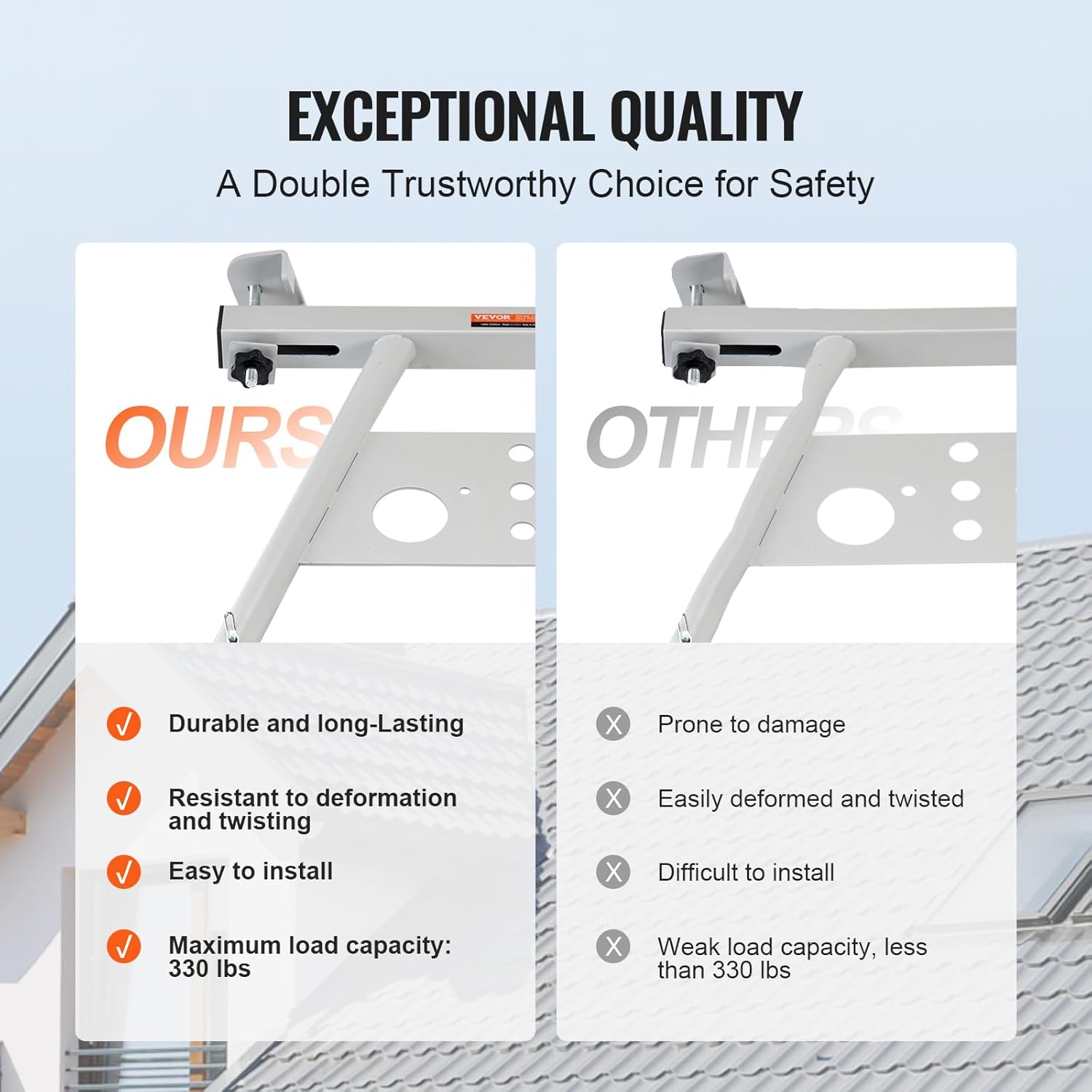

- Kualitas luar biasa: Constructed from high-quality carbon steel for durability, resistance to deformation, and twisting.
- Kapasitas Beban Tinggi: Supports up to 330 lbs (150 kg), ensuring robust safety.
Image 2.1: Ladder Stabilizer showing compatibility range and dimensions. The stabilizer fits ladders with outer widths from 11.81" to 17.32". Footboard depth ranges from 20.55" to 27.95" and span ranges from 26.18" to 32.1".

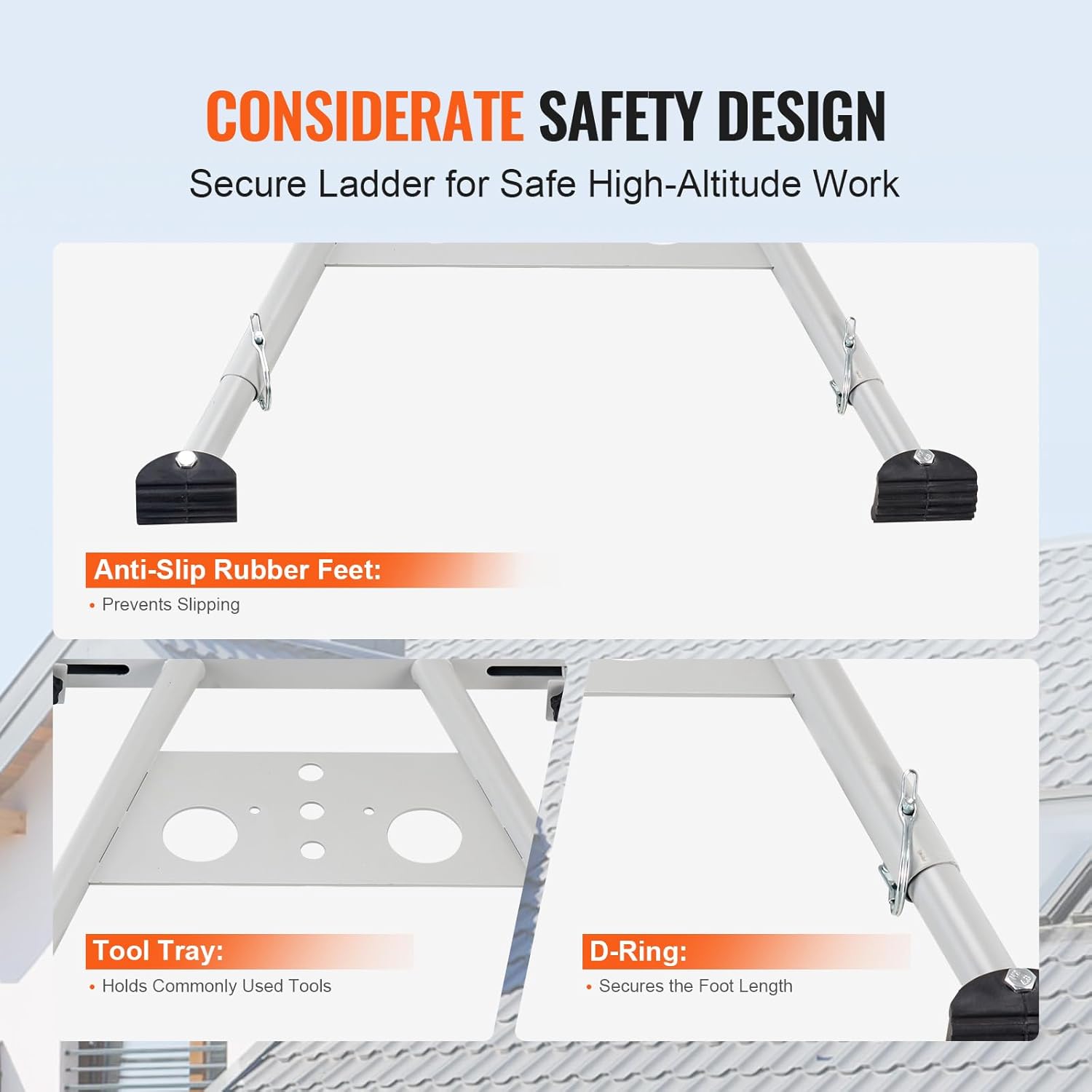

Image 2.2: Close-up of the Ladder Stabilizer highlighting its safety features, including anti-slip rubber feet, an integrated tool tray, and a D-ring for secure locking.
3. Spésifikasi
| Fitur | Rincian |
|---|---|
| Nomer Modél Item | KH-WD04 |
| Bahan Utama | Baja Karbon |
| Warna | Matte pérak |
| Beurat bersih | 9.96 lbs / 4.52 kg ± 3% |
| Kapasitas beban dipeunteun | 330 pon / 150 kg |
| Ukuran barang (L x W x H) | 32.1 x 27.95 x 2.17 inci / 665 x 522 x 55 mm |
| Compatible Ladder Outer Width | 11.81'' to 17.32'' |
Eusi pakét:
- Ladder Stabilizer x 1
- D-Ring Lock φ6 x 2
- M8 Anti-Loosening Hex Nuts x 2
- M8 x 50 External Hex Screws x 2
- Open-End Wrenches x 2
- Suku karét x 2
- Locking Screws x 2
- Buku Panduan x 1
Image 3.1: Diagram illustrating the dimensions and components of the VEVOR Ladder Stabilizer, Model KH-WD04, along with a list of included package contents.
4. Émbaran Kasalametan
Always prioritize safety when using ladders and ladder accessories. Failure to follow these safety guidelines may result in serious injury or property damage.
- Pariksa sateuacan dianggo: Before each use, inspect the ladder stabilizer and your ladder for any damage, wear, or loose components. Do not use if damaged.
- Pastikeun kasaluyuan: Verify that your ladder's outer width falls within the stabilizer's compatible range (11.81'' to 17.32'').
- Pamasangan Aman: Always ensure the stabilizer is securely attached to the ladder and all locking mechanisms (D-rings, screws, bolts) are tightened before climbing.
- Surface Stabil: Position the ladder and stabilizer on a firm, level, and non-slippery surface. The anti-slip rubber feet are designed for stability, but caution is still required on wet or uneven ground.
- Proper Angle: Set up your ladder at the correct angle (approximately 75 degrees from the horizontal) for maximum stability.
- Kapasitas beurat: Do not exceed the maximum load capacity of 330 lbs (150 kg) for the stabilizer. This includes the user's weight, tools, and materials.
- Maintain Three Points of Contact: Always maintain three points of contact (two hands and one foot, or two feet and one hand) when climbing or descending the ladder.
- Hindarkeun Overreaching: Do not overreach while on the ladder. Reposition the ladder and stabilizer as needed.
- Kaayaan cuaca: Avoid using the ladder and stabilizer in strong winds, rain, or icy conditions.
- Bahaya listrik: Be aware of overhead power lines and other electrical hazards. Maintain a safe distance.
- Not Recommended for Vented Ridges: This stabilizer is not recommended for use on roofs with vented ridges.
5. Setup jeung Instalasi
Follow these steps for quick and secure installation of the VEVOR Ladder Stabilizer onto your extension ladder.
Image 5.1: Visual guide for the 4-step installation process of the VEVOR Ladder Stabilizer.
- Step 1: Position the Crossbar
Place the stabilizer's crossbar against the ladder's stiles at the desired height. Ensure it is centered and level. - Step 2: Secure the L-shaped Lock
Using the provided screws and bolts, secure the L-shaped locking mechanisms to the crossbar, clamping it firmly to the ladder stiles. Ensure a tight fit to prevent movement. - Step 3: Adjust Stabilizer Legs
Insert and adjust the stabilizer legs to the desired position. The legs have five-level adjustable lengths to adapt to various slopes and distances from the working surface. - Step 4: Secure with D-ring
Once the legs are in the desired position, secure them using the D-ring locks. This prevents the stabilizer legs from detaching or shifting during use.
After installation, gently shake the ladder to confirm the stabilizer is securely attached and stable before climbing.
6. Parentah Operasi
The VEVOR Ladder Stabilizer is designed to provide a safe standoff distance from walls or gutters, allowing for easier access and increased stability.
- Posisi: Once installed, position the ladder so that the stabilizer's rubber feet rest firmly against the wall, roof edge, or gutter. The adjustable legs allow you to achieve the optimal standoff distance.
- Adjusting for Slopes: The five-level adjustable leg length enables adaptation to various surface angles and distances. Adjust each leg independently if necessary to ensure both feet are making full contact with the surface.
- Tool Tray Use: Utilize the integrated tool tray to keep essential tools within easy reach, reducing the need to climb up and down frequently. Ensure tools are placed securely to prevent them from falling.
- Working on Roofs/Gutters: The stabilizer creates a safe working space by keeping the ladder away from the structure, preventing damage to gutters and providing better access for tasks like cleaning or repairs.
Gambar 6.1: Hiji example of the ladder stabilizer in use, providing a safe standoff from a roof gutter for maintenance work.

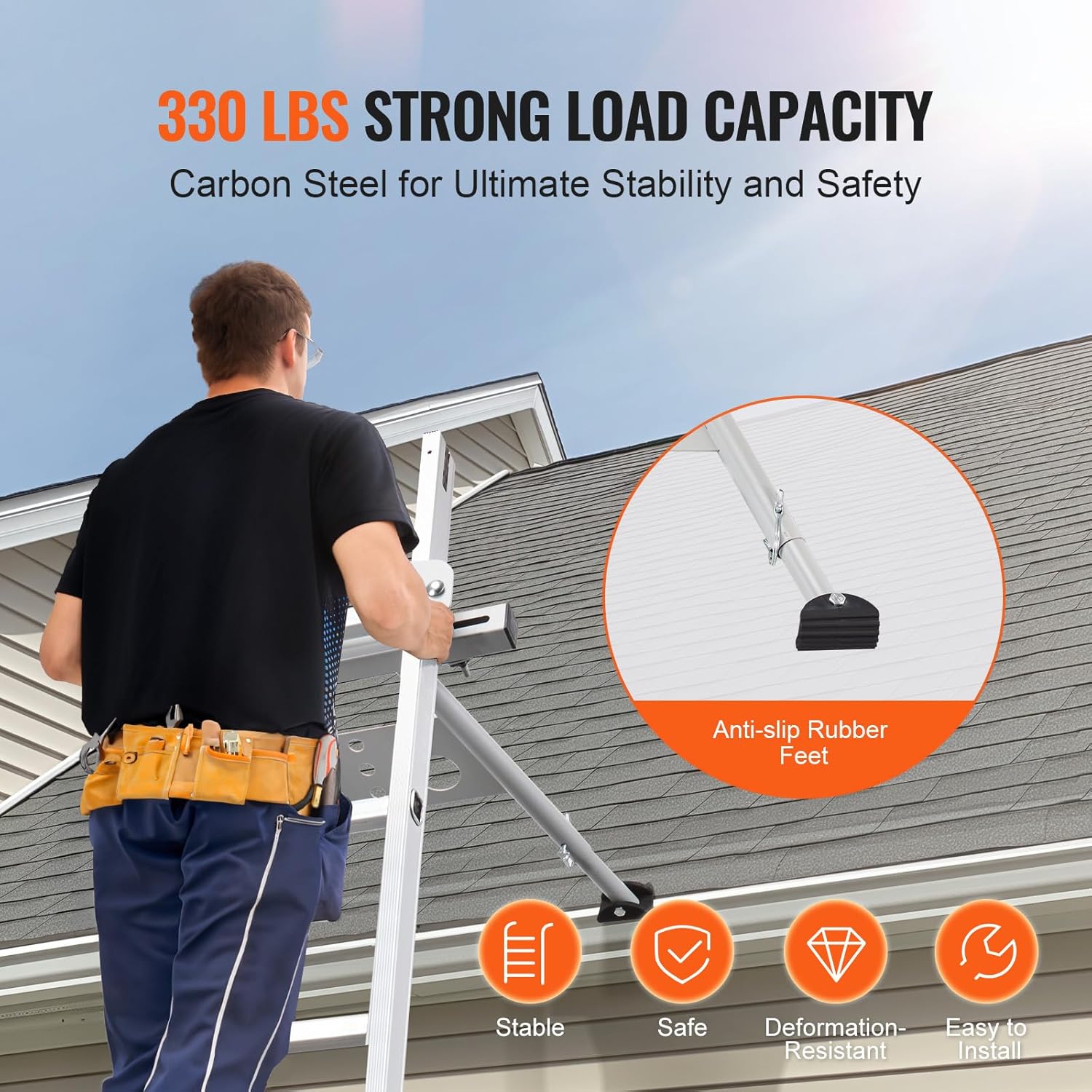

Image 6.2: A person using a ladder equipped with the stabilizer to safely access a roof for snow removal.
7. Pangropéa
Regular maintenance ensures the longevity and continued safe operation of your ladder stabilizer.
- beberesih: Ngabersihan penstabil nganggo iklanamp cloth after each use, especially if exposed to dirt, mud, or other debris. Avoid harsh chemicals that could damage the finish or rubber components.
- Pamariksaan: Periodically inspect all components for signs of wear, corrosion, or damage. Pay close attention to the rubber feet, D-rings, screws, and bolts. Replace any worn or damaged parts immediately.
- Panyimpenan: Store the ladder stabilizer in a dry, clean place, away from extreme temperatures and direct sunlight, when not in use.
- Lubrication: Lightly lubricate moving parts, such as the adjustable leg mechanisms, if they become stiff. Use a silicone-based lubricant.
8. Cara ngungkulan
This section addresses common issues you might encounter with your ladder stabilizer.
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Stabilizer does not fit the ladder. | Ladder outer width is outside the compatible range (11.81'' to 17.32''). | Measure your ladder's outer width. If it falls outside the specified range, the stabilizer is not compatible. Do not attempt to force fit. |
| Stabilizer feels unstable after installation. | Loose screws/bolts, D-rings not secured, uneven ground, or incorrect ladder angle. |
|
| Adjustable legs are stiff or difficult to move. | Dirt/debris in the mechanism, lack of lubrication, or minor corrosion. | Clean the adjustable mechanisms thoroughly. Apply a light amount of silicone-based lubricant to the moving parts. |
| Rubber feet show signs of wear or damage. | Normal wear and tear, or damage from sharp objects/rough surfaces. | Replace worn or damaged rubber feet immediately to maintain anti-slip properties and safety. Contact VEVOR support for replacement parts. |
9. Émbaran jaminan
VEVOR products are manufactured to high-quality standards. For specific warranty details regarding your KH-WD04 Ladder Stabilizer, please refer to the warranty card included with your purchase or visit the official VEVOR websitus. Simpen resi pameseran anjeun salaku bukti pameseran pikeun klaim garansi.
10. Rojongan Palanggan
If you have any questions, require technical assistance, or need to order replacement parts for your VEVOR Ladder Stabilizer, please contact VEVOR customer support. You can find contact information on the official VEVOR websitus atawa ngaliwatan pangecér dimana anjeun dibeuli produk.
VEVOR resmi Websitus: www.vevor.com
