Philips SFL2201 Rechargeable LED Flashlight User Manual

Produk Leuwihview

The Philips SFL2201 is a versatile and powerful rechargeable LED flashlight designed for various applications, from daily use to outdoor adventures and emergency situations. Its robust construction, flexible design, and multiple lighting modes make it an essential tool.

The Philips SFL2201 LED flashlight in its standard form.

Fitur konci

• Flexible Rotating Lamp Kepala: The SFL2201 features a 90° rotatable lamp head, allowing for multi-angle illumination and conversion into an L-shaped light. This adaptability meets diverse lighting needs, whether for work, reading, or outdoor activities.
• High Brightness LED Beads: Equipped with high-quality LED beads, the flashlight provides bright yet soft light. This design effectively reduces eye fatigue and protects vision during close-up work or prolonged use.
• Robust and Durable Design: The tactical flashlight's casing is crafted from high-quality aluminum alloy, ensuring it is lightweight, durable, and highly resistant to drops.
• Opat Modeu Pencahayaan: Offers high brightness, low brightness, strobe, and SOS modes to cater to various requirements, including daily illumination, emergency signaling, and outdoor adventures.
• Kompak sareng Portabel: With its pocket-sized design and a net weight of only 165g, it is easy to carry or hold, making it ideal for everyday use, outdoor activities, or emergency backup.

A nutup-up view of the Philips SFL2201 flashlight, emphasizing its robust aluminum alloy casing and textured grip.

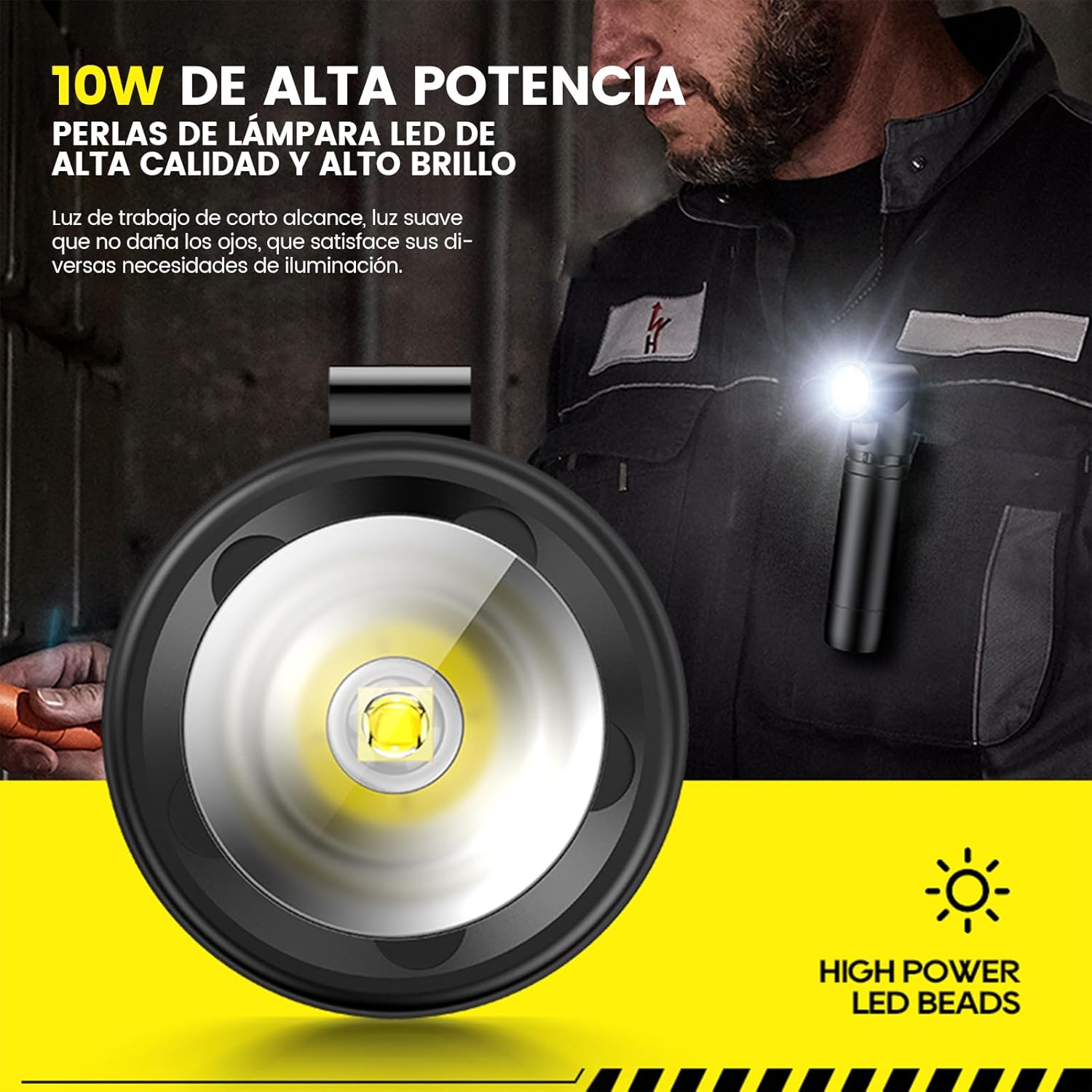

An illustration highlighting the high-quality, high-brightness LED beads of the Philips SFL2201 flashlight, designed for powerful and soft illumination.

Setup sareng Ngecas

Eusi pakét

Pastikeun sadaya item aya dina bungkusan:

• Philips SFL2201 LED Flashlight
• Kabel Ngecas USB Tipe-C
• Tali pigeulang
• 1 AA Lithium Ion Battery (pre-installed or included separately)

Muatan Awal

Before first use, fully charge the flashlight. The SFL2201 uses a USB Type-C port for convenient charging.

1. Locate the USB Type-C charging port on the flashlight.
2. Connect the provided USB Type-C cable to the flashlight and a compatible 5V/2A USB power adapter (not included).
3. The charging indicator light will show the charging status. A red light typically indicates charging, while a green light indicates a full charge.
4. Ngeusi batre pinuh butuh kurang leuwih 5 jam.

Close-up of the Philips SFL2201 flashlight's control button, illustrating the continuous dimming feature from 5% to 100% brightness.

Parentah Operasi

Daya Hurung / Pareum sareng Pamilihan Mode

The flashlight features a single button for power control and mode cycling.

• Pikeun Ngahurungkeun/Pareuman: Pencét terus tahan tombol daya salila kurang leuwih 1-2 detik.
• Ka Modeu Siklus: Once powered on, short press the power button to cycle through the four lighting modes: High Brightness, Low Brightness, Strobe, and SOS.
• Dimming kontinyu: Some models may support continuous dimming. While the light is on, press and hold the power button to adjust brightness smoothly between minimum and maximum levels. Release the button at your desired brightness.

Flexible Head Operation

Anu lamp head can be rotated 90 degrees to convert the flashlight into an L-shaped light, providing versatile illumination options.

A user holding the Philips SFL2201 flashlight, demonstrating the 90-degree rotation of the lamp head for adjustable illumination angles.

Magnetic Base and Clip

The SFL2201 features a magnetic base and a durable metal clip for hands-free operation and easy portability.

• Attachment magnét: Use the magnetic base to attach the flashlight to metallic surfaces, such as a car hood for repairs or a metal workbench.
• Pamakéan Klip: The metal clip allows you to securely attach the flashlight to your pocket, belt, backpack strap, or other gear for convenient carrying.

Images showing the Philips SFL2201 flashlight being used in various scenarios, such as clipped to a backpack, belt, or magnetically attached to a car hood, showcasing versatility na.

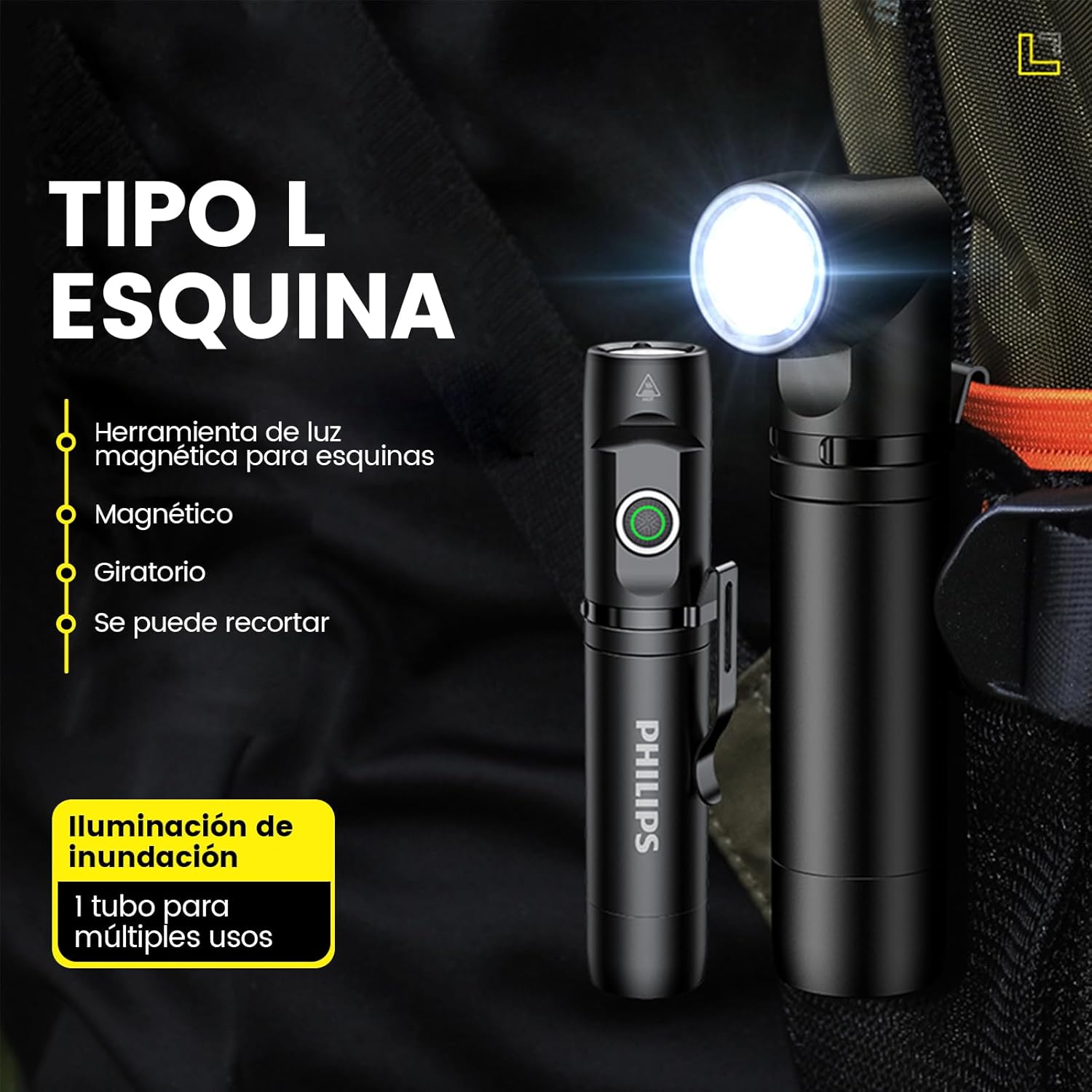

The Philips SFL2201 flashlight configured in its L-shape mode, highlighting its magnetic base for hands-free use and a clip for attachment.

Pangropéa

Proper maintenance ensures the longevity and optimal performance of your Philips SFL2201 flashlight.

• beberesih: Ngusap awak senter ku hipu, damp lawon. Entong nganggo pembersih atanapi pangleyur anu abrasif. Jaga lénsa tetep bersih pikeun kaluaran cahaya anu optimal.
• Perawatan batré: For best battery life, avoid fully discharging the battery frequently. Recharge the flashlight regularly, especially if it has not been used for an extended period.
• Panyimpenan: Store the flashlight in a cool, dry place away from direct sunlight and extreme temperatures. If storing for a long time, charge the battery to about 50% every few months.

Pamérésan masalah

If you encounter issues with your Philips SFL2201 flashlight, refer to the following common problems and solutions:

spésifikasi

Detailed technical specifications for the Philips SFL2201 LED Flashlight:

An infographic detailing the Philips SFL2201 flashlight's specifications, including power, drop resistance, lighting modes, battery life, charging time, charging method, weight, and dimensions.

Garansi sareng Rojongan

Your Philips SFL2201 LED Flashlight comes with a manufacturer's warranty.

• Mangsa Garansi: 1 taun ti tanggal pameseran.
• Cakupan Garansi: Covers defects in materials and workmanship under normal use. It does not cover damage caused by misuse, accidents, unauthorized modifications, or normal wear and tear.
• Rojongan Palanggan: For warranty claims, technical assistance, or product inquiries, please contact Philips customer support through their official website or the retailer where the product was purchased. Please have your proof of purchase and model number ready.
