Bubuka
This manual provides comprehensive instructions for the safe and efficient use of your new TECASA 36-inch induction cooktop. Please read this manual thoroughly before installation and operation, and keep it for future reference.

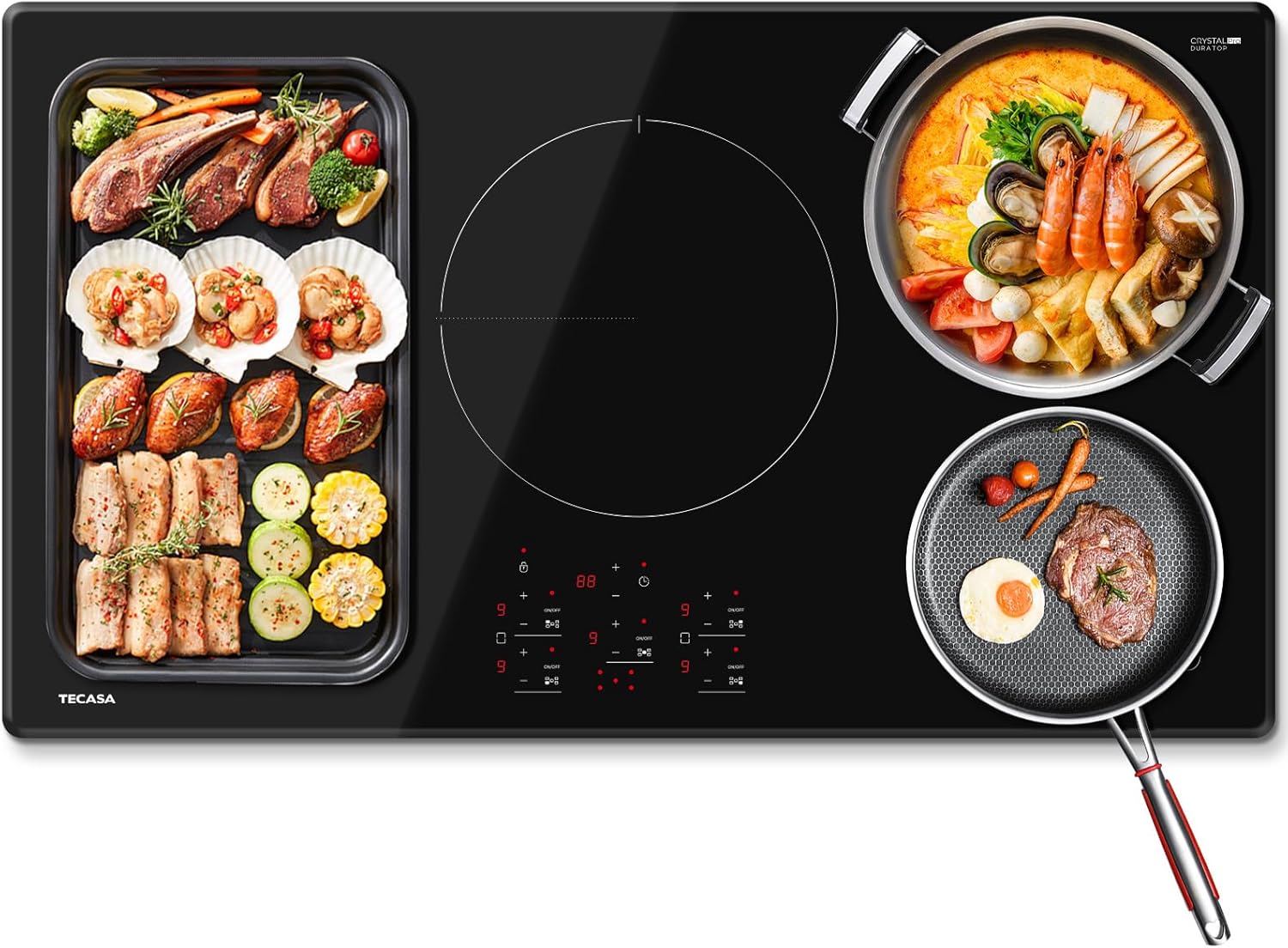

Image: The TECASA 36-inch induction cooktop in use, showcasing its multiple cooking zones with different types of cookware and food.
Émbaran Kasalametan penting
Your safety and the safety of others are paramount. Please read all instructions before operating the appliance to reduce the risk of fire, electric shock, injury to persons, or damage to the cooktop.
- Sambungan listrik: This unit is designed for hardwiring. Ensure the operating voltage (208–240V, 50–60Hz) and fuse protection (≥50A) are suitable for your electrical system. Disconnect power before any work or maintenance.
- Kasaluyuan Cookware: Only use magnetic cookware suitable for induction cooking. The cooktop features automatic cookware recognition.
- Perlindungan overheat: The cooktop is equipped with overheat protection to prevent damage.
- Konci Kaamanan Anak: Utilize the child lock feature to prevent accidental activation by children or pets.
- Indikator Panas Sésa: The cooktop will display a residual heat indicator (H) after use, warning that the surface is still hot. Avoid contact to prevent burns.
- Spill Detection: The cooktop includes spill detection to enhance safety.
- Pareuman otomatis: For safety, the cooktop will automatically shut off under certain conditions.
Image: The TECASA induction cooktop incorporates multiple safety features, including automatic shut-off, voltage protection, overflow protection, and sensor protection, to ensure safe operation.
Image: The cooktop's automatic pan detection system ensures that only compatible magnetic cookware will heat, preventing energy waste and potential hazards from unsuitable pots and pans.
Unpacking Your Cooktop
Carefully unpack your TECASA induction cooktop. Ensure all accessories are present and inspect the unit for any damage before installation.
- Cut the sealing tape on the box.
- Remove the support corners and protective foam.
- Carefully lift the cooktop out of the box.
- Remove all product accessories, including the instruction manual, warranty policy, mounting brackets, and sealing tape.
Video: This video demonstrates the unpacking process for the TECASA induction cooktop, showing how to safely remove the unit and its accessories from the packaging.
Setup sareng Instalasi
Proper installation is crucial for the performance and safety of your induction cooktop. It is recommended that installation be performed by a qualified electrician or technician.
Required Installation Space and Dimensions:
Ensure adequate ventilation and clearance around the cooktop. Refer to the diagram below for precise cutout and clearance dimensions.
- Ukuran produk: 35.43" W x 20.47" D x 2.95" H
- Ukuran cutout: 33.87" W x 19.69" D
- Minimum 30" clearance above the cooktop to overhead cabinets/hood.
- Minimum 2" clearance on sides and rear.
Image: This image provides a detailed diagram of the cooktop's physical dimensions and the necessary countertop cutout measurements for proper built-in installation.
Mounting the Cooktop:
After preparing the cutout, install the mounting brackets to secure the cooktop in place. Align the cooktop carefully into the opening.
Video: This video segment illustrates the process of installing the mounting brackets and carefully positioning the cooktop into the prepared countertop opening.
Sambungan listrik:
WARNING: Disconnect the appliance from the mains electricity supply before carrying out any work or maintenance on it.
The cooktop requires a 208-240 VAC, 50/60 Hz power supply and a 4 AWG wire gauge with ≥50 A fuse protection. Connect the L1 (Black), L2 (Red), and Ground (Green) wires according to the wiring diagram and local electrical codes.
Video: This video demonstrates the correct procedure for connecting the cooktop's electrical wiring to the main power supply, including L1 (black), L2 (red), and ground (green) wires, and securing the connections.
Parentah Operasi
Your TECASA induction cooktop offers precise control and efficient cooking. Familiarize yourself with the touch controls for optimal performance.
Operasi dasar:
- Hurungkeun/Pareuman: Press the main power button to turn the cooktop on or off.
- Zona masak Hurung/Pareuman: Press the ON/OFF button for the desired cooking zone to activate or deactivate it.
- Heating Level Adjustment: Use the '+' and '-' buttons to select one of the 9 power levels for each zone.
- Fungsi Boost: Activate the boost function for rapid heating. This provides up to 3700W of power for 5 minutes. Press the desired zone's key until 'b' appears.
- Timer: Press the timer button to set a countdown timer up to 99 minutes.
- Konci Budak: Press the lock button to prevent accidental changes to settings or activation of cooking zones.
Image: This image details the intuitive touch controls of the cooktop, including power level adjustments, timer, child lock, and boost function.
Flexible Cooking Zones (Bridge Function):
The cooktop features flexible cooking zones that can be combined for larger cookware.
- Fungsi sasak: Press the bridge function button to sync the front and rear heating zones into one large zone, ideal for griddles or large roasting pans.
Image: The flexible cooking zones allow for both independent use with standard pots and pans, or combined use with larger cookware like griddles, enhancing cooking versatility.
Masak Éfisién:
The TECASA induction cooktop provides 10800W total power across 5 burners, ensuring fast and efficient cooking with 90% heating efficiency.
Image: This image illustrates the power output of each of the five induction burners, demonstrating the cooktop's capacity for various cooking tasks simultaneously.
Image: This graphic highlights the superior heating efficiency of the induction cooktop, demonstrating faster boiling times compared to traditional gas cooktops.
Image: The boost function provides an instant surge of power for quick heating, significantly reducing cooking time for tasks like boiling water or searing.
Pangropéa jeung beberesih
Bebersih sareng pangropéa teratur bakal mastikeun umur panjang sareng kinerja optimal cooktop anjeun.
- Beberesih permukaan: The microcrystal panel is scratch-resistant and easy to clean. Wipe the surface with a damp cloth after each use. Avoid abrasive cleaners or harsh chemicals.
- Daya tahan: The cooktop's crystal glass surface can withstand temperatures up to 1472°F and has a hardness of 8.5GPa for excellent scratch resistance.
Image: The smooth, scratch-resistant glass surface of the cooktop makes daily cleaning effortless, requiring only a simple wipe with a damp lawon.

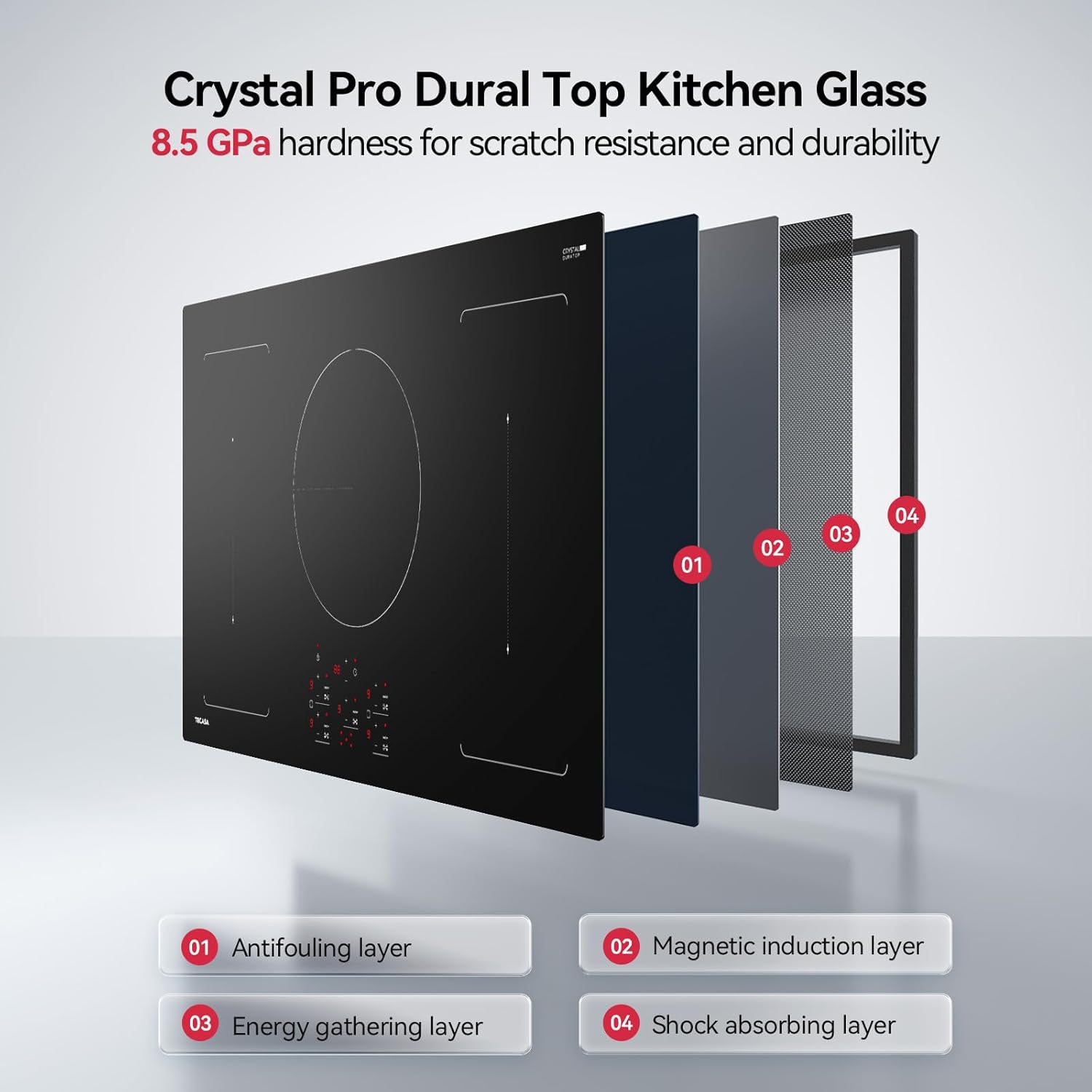

Image: The cooktop's durable crystal glass surface is engineered with multiple layers for enhanced scratch resistance, temperature endurance, and overall longevity.
Pamérésan masalah
If you encounter any issues with your cooktop, please refer to the following common troubleshooting tips. For more complex problems, contact customer support.
- Cooktop not turning on: Check the circuit breaker to ensure power is supplied. Verify the cooktop is properly hardwired.
- No heat from a cooking zone: Ensure compatible magnetic cookware is placed centrally on the zone. Check if the child lock is activated.
- Kodeu kasalahan: Refer to the full instruction manual for a list of error codes and their solutions.
spésifikasi
| Fitur | Rincian |
|---|---|
| merek | TECASA |
| Nomer modél | MT-C510065 |
| Tipe Pamasangan | Lebetkeun |
| Dimensi produk | 20.47" D x 35.43" W x 2.95" H |
| Ukuran Cutout | 33.87" W x 19.69" D |
| Item Beurat | 43 pon |
| Unsur pemanasan | 5 |
| Tipe Burner | Induksi |
| Total Wattage | 10800 watt |
| Voltage | 208–240 Volts (Rated 240V) |
| Frékuénsi | 50–60 Hz |
| Protection sekering | ≥50 A |
| Gauge kawat | 4 AWG |
| Jenis Bahan | Kaca Kristal |
| Fitur husus | Adjustable Temperature, Automatic Pan Detection, Automatic Shut-Off, Boost Function, Residual Heat Indicator, Hot Surface Indicator, Safety Lock, Timer |
| Komponén Kaasup | 1 x Induction Cooktop 5 Burners 36 Inch |
Garansi sarta Rojongan Palanggan
Your TECASA induction cooktop comes with a 1-year warranty. For technical support, customer service, or any questions regarding your product, please contact TECASA customer support. We are committed to providing reliable service and assistance.
