1. Bubuka
The AOPUTTRIVER AP-5000Y is a versatile 3-in-1 digital hot wire anemometer designed for precise measurement of wind speed, air volume (CFM/CMM), and temperature. Its retractable sensor and clear LCD display make it an essential tool for various applications, including HVAC system maintenance, environmental monitoring, and air flow analysis. This manual provides detailed instructions for the safe and effective operation of your AP-5000Y anemometer.
2. Émbaran Kasalametan
Please read all safety warnings and instructions carefully before operating the device to ensure safe and proper use. Keep this manual for future reference.
- Do not expose the device to extreme temperatures, high humidity, or corrosive environments.
- Hindarkeun ngaragragkeun alatna atanapi mangaruhan kana tabrakan anu kuat.
- Do not attempt to disassemble, repair, or modify the device, as this will void the warranty and may cause damage or injury.
- Ensure the battery is correctly connected and charged before initial use.
- Pegatkeun sambungan alat tina sumber listrik sateuacan diberesihan.
- Jauhkeun alat tina jangkauan barudak.
3. Produk Langkungview
The AP-5000Y anemometer features a compact design with an extendable hot wire sensor. Below are the main components and controls:
Gambar 3.1: AP-5000Y Digital Hot Wire Anemometer, showing the main unit, flexible probe, and Type-C charging cable.
Gambar 3.2: Detailed diagram illustrating the main components: LCD screen, On/Off button, Mode button, Unit button, Data Hold button, Sensor, Sensor Protective Cover, and Connection Cable.
3.1. Fitur konci
Gambar 3.3: Leuwihview of the multi-functional features including 5 units, Max/Min/Avg display, LCD backlight, °C/°F option, auto power off, air flow/temperature measurement, and 360-degree bendable probe.
Gambar 3.4: Illustration of the 3-in-1 capabilities: measuring wind speed (0.1-30m/s), wind temperature (0°C-45°C), and air volume (CMM 0-999900m³/min, CFM 0-999900ft³/min).
- Pangukuran 3-in-1: Accurately measures wind speed, air volume (CFM/CMM), and temperature.
- Sensor anu tiasa ditarik: Designed for precise measurements in confined spaces, with a probe size of 298.5*40.84*23.7mm.
- Layar LCD: Provides clear readings of maximum, minimum, real-time values for wind speed, air volume, temperature, and humidity. Includes dry-wet prevention touch keys, data hold, and battery level indicator.
- Panyambung Tipe-C: Enables convenient charging. (Note: Battery cable connection required before charging).
- Aplikasi serbaguna: Widely used for environmental monitoring, air traffic control, and HVAC system adjustments.
4. Eusi Paket
Saatos muka bungkusan, mangga pastikeun sadaya barang anu didaptarkeun di handap ieu kalebet sareng dina kaayaan anu saé:
Gambar 4.1: Visual representation of the package contents, including the main unit, canvas bag, instruction manual, and data cable.
- AP-5000Y Digital Hot Wire Anemometer Unit x 1
- Kantong Kanvas x 1
- Buku Panduan x 1
- Kabel Data Tipe-C x 1
5. Setélan
Before first use, ensure the battery is properly connected and charged.
5.1. Battery Connection and Charging
penting: Before starting to use this anemometer, you need to connect the battery line interface!
- Use a small screwdriver to remove the battery cover.
- Connect the battery line interface.
- Tighten the battery cover.

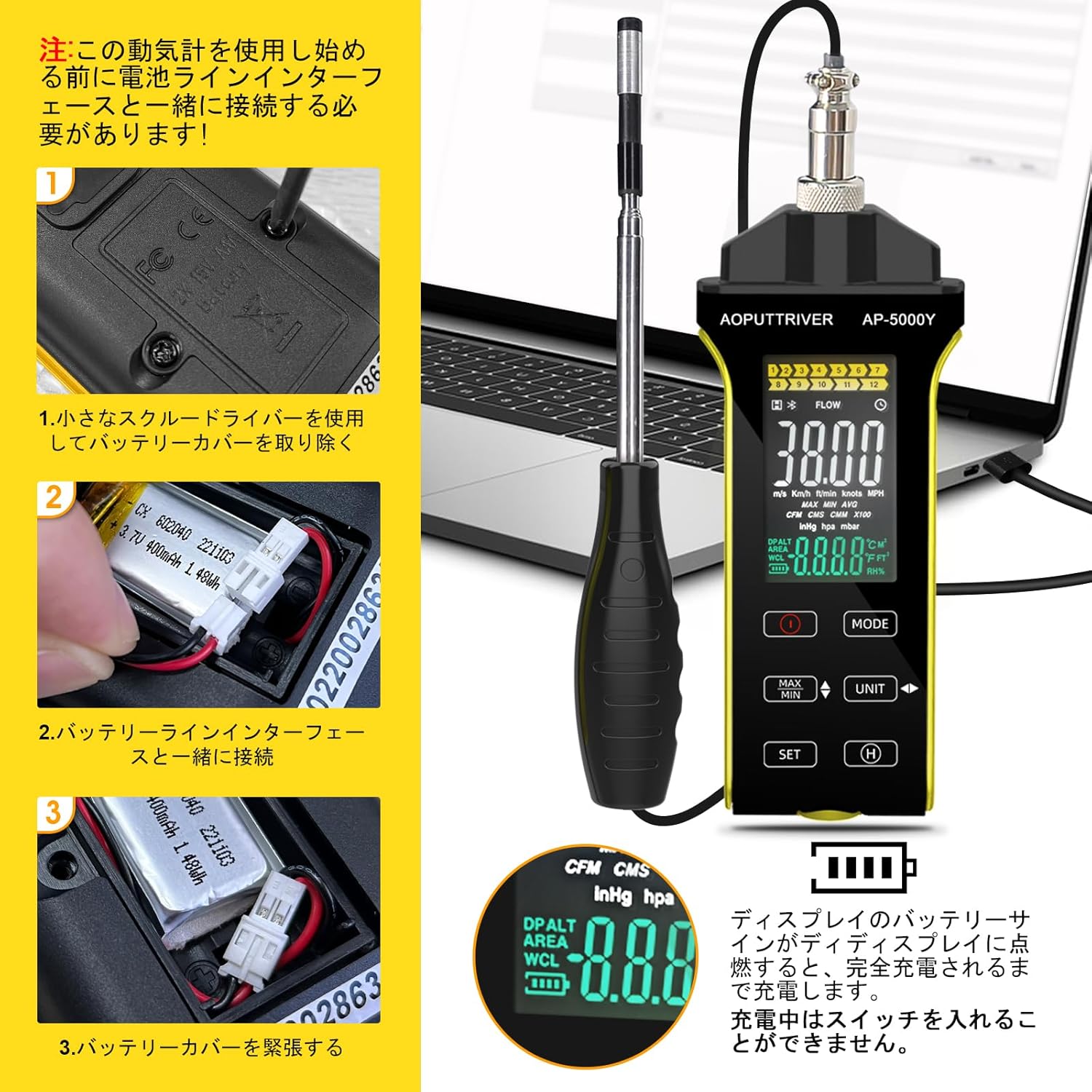

Gambar 5.1: Visual guide for connecting the battery. Step 1: Remove cover. Step 2: Connect battery cable. Step 3: Replace cover. The image also shows the battery indicator on the LCD and notes that charging requires the device to be off.
The device can be charged via the Type-C connector. The display's battery sign will light up until fully charged. The device cannot be turned on while charging.
6. Parentah Operasi
6.1. Daya Hurung / Pareum
Pencét éta ON/OFF tombol pikeun ngahurungkeun atawa mareuman alat.
6.2. Measurement Modes and Units
The AP-5000Y supports various measurement modes and units:
- Laju Angin: m/s, km/h, ft/min, knots, mph.
- Volume hawa: CFM (ft³/min), CMM (m³/min).
- Suhu: °C / °F.
Gambar 6.1: Table showing the measurement ranges, resolution, and accuracy for wind speed (TM/S, KM/H, FT/MIN, KNOTS, MPH) and air volume (CFM/CMM).
6.3. Using the Retractable Sensor
The flexible probe can be bent 360 degrees, making it easy to measure in narrow spaces such as air ducts or vents.
Gambar 6.2: The extendable hot wire sensor being used to measure airflow inside a narrow duct, demonstrating its flexibility.
Gambar 6.3: Illustration of the probe's extendable length and its ability to rotate 360 degrees for versatile measurement in various environments.
6.4. Fungsi tampilan
The LCD display provides comprehensive information:
- Real-time Values: Shows current wind speed, air volume, and temperature.
- MAKSIMUM/MIN/RATA-RATA: Pencét éta MAX/MIN button to cycle through maximum, minimum, and average readings for wind speed.
- Konversi Unit: Ngagunakeun éta UNIT button to switch between different units (e.g., m/s, ft/min, °C, °F).
- Tahan Data: Pencét éta TAHAN tombol pikeun ngabekukeun bacaan ayeuna dina tampilan.
- Lampu tukang: The LCD display features a backlight for visibility in low-light conditions.
Gambar 6.4: The LCD display showing various measurement units and values, highlighting the backlight feature for clear visibility in both bright and dark environments.
7. Pangropéa
7.1. beberesih
- Usap alatna nganggo lawon anu lemes sareng garing.
- Ulah make cleaners abrasive, pangleyur, atawa bahan kimia kuat.
- Keep the sensor clean and free from dust, lint, or debris to ensure accurate readings.
7.2. Panyimpenan
- Simpen alat dina tempat anu tiis sareng garing jauh tina sinar panonpoé langsung sareng suhu anu ekstrim nalika henteu dianggo.
- Ensure the sensor is retracted and protected by its cover during storage.
- If storing for an extended period, it is recommended to fully charge the battery before storage and recharge periodically to maintain battery health.
8. Cara ngungkulan
If you encounter any issues with your AP-5000Y anemometer, please refer to the table below for common problems and their solutions.
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Alat teu hurung. | Batré teu disambungkeun atawa discharged. | Ensure battery cable is connected (refer to Section 5.1). Charge the device using the Type-C cable. |
| Bacaan teu akurat. | Sensor is dirty or damaged. Incorrect measurement technique. | Clean the sensor carefully. Ensure the sensor is fully extended and positioned correctly in the airflow. Avoid obstructions. |
| Pintonan taram atanapi kosong. | Low battery. Backlight off. | Recharge the battery. Check if the backlight function is enabled (if applicable). |
| Teu tiasa ngagentos unit/mode. | Buttons not pressed correctly or device frozen. | Ensure firm button presses. Try turning the device off and on again. |
9. Spésifikasi
Detailed technical specifications for the AP-5000Y Digital Hot Wire Anemometer:
| Parameter | Nilai |
|---|---|
| Produsén | AOPUTTRIVER |
| Modél | AP-5000Y |
| Rentang Angin Angin | 0.1 - 30 m/s |
| Akurasi Kacepetan Angin | ± 5% ± 1 angka |
| Rentang Suhu hawa | 0 - 45°C (32 - 113°F) |
| Air Volume Range (CFM/CMM) | 0 - 999900 m³/min (CMM) / ft³/min (CFM) |
| Resolusi Pangukuran | 0.01 (for certain parameters) |
| Dimensi Probe | 298.5 x 40.84 x 23.7 mm |
| Sumber Daya | Rechargeable Battery (Type-C charging) |
| Beurat produk | 520 g |
| Ukuran Paket | 31 x 18.2 x 5.7 cm |
10. Garansi jeung Rojongan
AOPUTTRIVER products are manufactured to high quality standards and are backed by a manufacturer's warranty. For specific warranty terms and conditions, please refer to the documentation included with your purchase or visit the official AOPUTTRIVER websitus.
For technical support, troubleshooting assistance, or any inquiries regarding your AP-5000Y anemometer, please contact AOPUTTRIVER customer service through the contact information provided on the product packaging or their official websitus. Punten tahan bukti pameseran anjeun pikeun klaim garansi.
