Buku Panduan Pangguna Titik Aksés Wi-Fi 6 In-Wall Grandstream GWN7661E

Bubuka

The Grandstream GWN7661E is an advanced in-wall AX3000 Wi-Fi 6 access point designed for seamless wireless connectivity in various environments, including offices, hotels, homes, and apartments. This device is optimized for voice-over-Wi-Fi deployments and integrates smoothly with Grandstream's Wi-Fi capable IP phones, providing a robust and reliable network infrastructure.

Gambar: Hiji sudut view of the Grandstream GWN7661E In-Wall Wi-Fi 6 Access Point, showcasing its compact and discreet design.

Naon dina Box

Pastikeun yén sadaya komponén aya dina bungkusan:

• GWN7661E In-Wall Wi-Fi 6 Access Point

Note: Additional mounting hardware or power adapters may be sold separately or included depending on the specific product bundle.

Disetél

Pamasangan fisik

The GWN7661E is designed for in-wall installation, typically replacing a standard wall plate or network jack. Ensure the installation location provides adequate ventilation and is within reach of necessary network cabling.

Image: The GWN7661E access point shown alongside its mounting plate, illustrating how the device attaches to the wall for a clean, integrated look.

Pikeun masang:

1. Carefully remove the existing wall plate or prepare the wall box for installation.
2. Connect the Ethernet cable from your network to the PoE IN port on the back of the GWN7661E.
3. Secure the mounting plate to the wall box.
4. Attach the GWN7661E unit to the mounting plate, ensuring it clicks securely into place.

Gambar: A lengkep view of the PoE IN port located on the back of the GWN7661E, where the main network and power connection is made.

Network Connectivity and Power

The GWN7661E supports Power over Ethernet (PoE) or PoE+ for power. Connect a network cable from a PoE-enabled switch or injector to the "PoE IN" port on the access point. The device will automatically adapt to the power source.

Image: The rear panel of the GWN7661E, displaying the three Gigabit LAN ports (LAN 1, LAN 2, LAN 3), with LAN 2 and LAN 3 also supporting PoE Out, and the reset button.

The GWN7661E features four Gigabit wireline ports. LAN 1 is the primary uplink. LAN 2 and LAN 3 support PoE Out, allowing you to power other devices like IP phones or cameras directly from the access point.

Ngoperasikeun Titik Aksés

Fungsi Dasar

Once powered on and connected to the network, the GWN7661E will broadcast Wi-Fi signals. It supports Wi-Fi 6 (802.11ax) with AX3000 speeds, utilizing 2x2:2 (2.4GHz) and 3x3:2 (5GHz) MU-MIMO and OFDMA technology for efficient multi-device communication. It can support up to 256 concurrent Wi-Fi client devices.

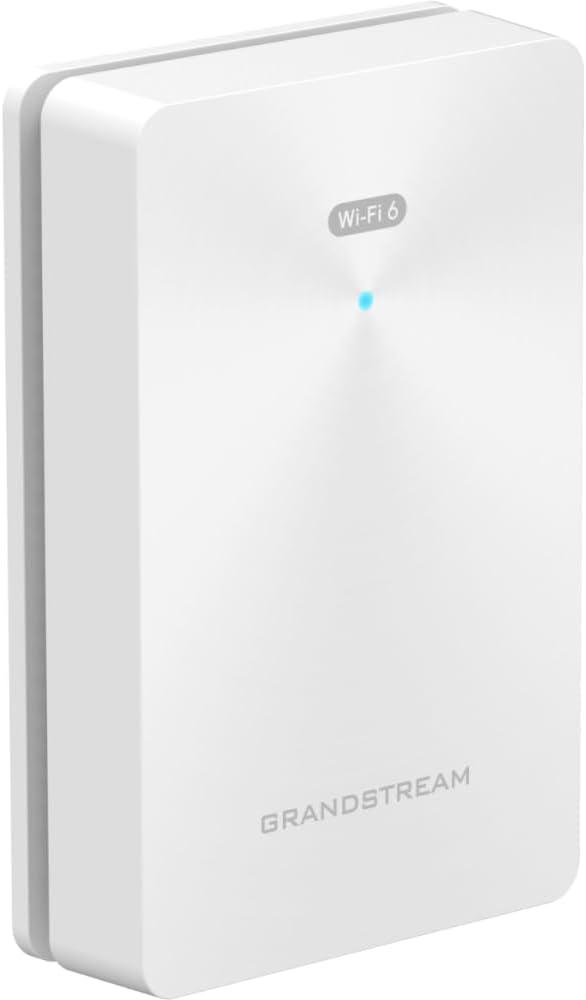

Image: The front face of the GWN7661E, showing the "Wi-Fi 6" logo and the central LED indicator which provides status information.

Manajemén jaringan

The GWN7661E can be managed through several methods:

• Pangontrol Tertanam: The access point has an embedded controller capable of managing up to 50 local GWN access points.
• GDMS Networking: For larger deployments, Grandstream Device Management System (GDMS) offers unlimited cloud-based AP management.
• Manajer GWN: Solusi parangkat lunak on-premise pikeun ngatur titik aksés GWN.

Refer to the Grandstream GWN series documentation for detailed instructions on configuring and managing your network.

Pangropéa

To ensure optimal performance and longevity of your GWN7661E access point, consider the following maintenance practices:

• Pembaruan firmware: Regularly check for and apply the latest firmware updates from Grandstream's official websitus. Apdet firmware sering ngawengku paningkatan kinerja, patch kaamanan, sareng fitur anyar.
• beberesih: Periodically clean the exterior of the device with a soft, dry cloth. Avoid using liquid cleaners or aerosols.
• Kaayaan Lingkungan: Ensure the device operates within its specified temperature and humidity ranges. Avoid blocking ventilation openings.

Pamérésan masalah

If you encounter issues with your GWN7661E, try the following steps:

• Teu Aya Daya/LED Pareum: Verify the Ethernet cable is securely connected to the PoE IN port and that the PoE source (switch or injector) is functioning correctly.
• Teu Aya Sinyal Wi-Fi: Check the device's status LED. If it's not indicating normal operation, try restarting the device by unplugging and re-plugging the Ethernet cable. Ensure the Wi-Fi is enabled in the device's configuration.
• Kinerja goréng: Check for potential sources of interference (e.g., other wireless devices, microwaves). Ensure the device is placed optimally and that firmware is up to date.
• Teu Bisa Ngaksés Antarmuka Manajemén: Verify your computer is on the same network segment as the GWN7661E. Try resetting the device to factory defaults using the reset button (refer to the full manual for exact procedure and implications).
• Tombol Reset: A small reset button is located on the rear panel (see image in Setup section). Use a paperclip to press and hold for approximately 10 seconds to perform a factory reset.

For more complex issues, consult the comprehensive Grandstream GWN7661E documentation or contact Grandstream technical support.

spésifikasi

Spésifikasi téknis konci pikeun Grandstream GWN7661E:

Garansi sareng Rojongan

Kanggo inpormasi garansi sareng dukungan téknis, mangga tingal Grandstream resmi websitus atanapi hubungi reseller Grandstream resmi anjeun. Simpen resi pameseran anjeun salaku bukti pameseran pikeun klaim garansi.

Pabrikan: Grandstream

model: GWN7661E
