Patikuin 63" W Black Dresser TV Stand Instruction Manual

1. Bubuka

Hatur nuhun pikeun meuliasing the Patikuin 63" W Black Dresser TV Stand. This manual provides essential information for the safe assembly, operation, and maintenance of your new furniture. Please read these instructions carefully before beginning assembly and retain them for future reference.

2. Produk Langkungview

The Patikuin 63" W Black Dresser TV Stand is a versatile furniture piece designed to accommodate televisions up to 75 inches while providing extensive storage. It features a sturdy metal frame, a durable wooden top, and 14 fabric drawers for organizing various items.

Fitur konci:

• 14 Fabric Drawers: nawaran ample storage with two types of drawers for organized separation of items like clothing, blankets, remotes, and media.
• Stopkontak Terpadu: Equipped with 2 AC outlets and 2 USB ports on the tabletop for convenient charging of electronic devices.
• Konstruksi awét: Features a high-quality fabric and sturdy wooden top, supported by a robust steel frame.
• Kit Anti Tip: Includes an anti-tip kit to secure the unit to a wall, enhancing safety and stability.
• Desain serbaguna: Suitable for use as a TV stand in bedrooms or living rooms, or as a storage dresser in various spaces such as dorms, closets, nurseries, or hallways.

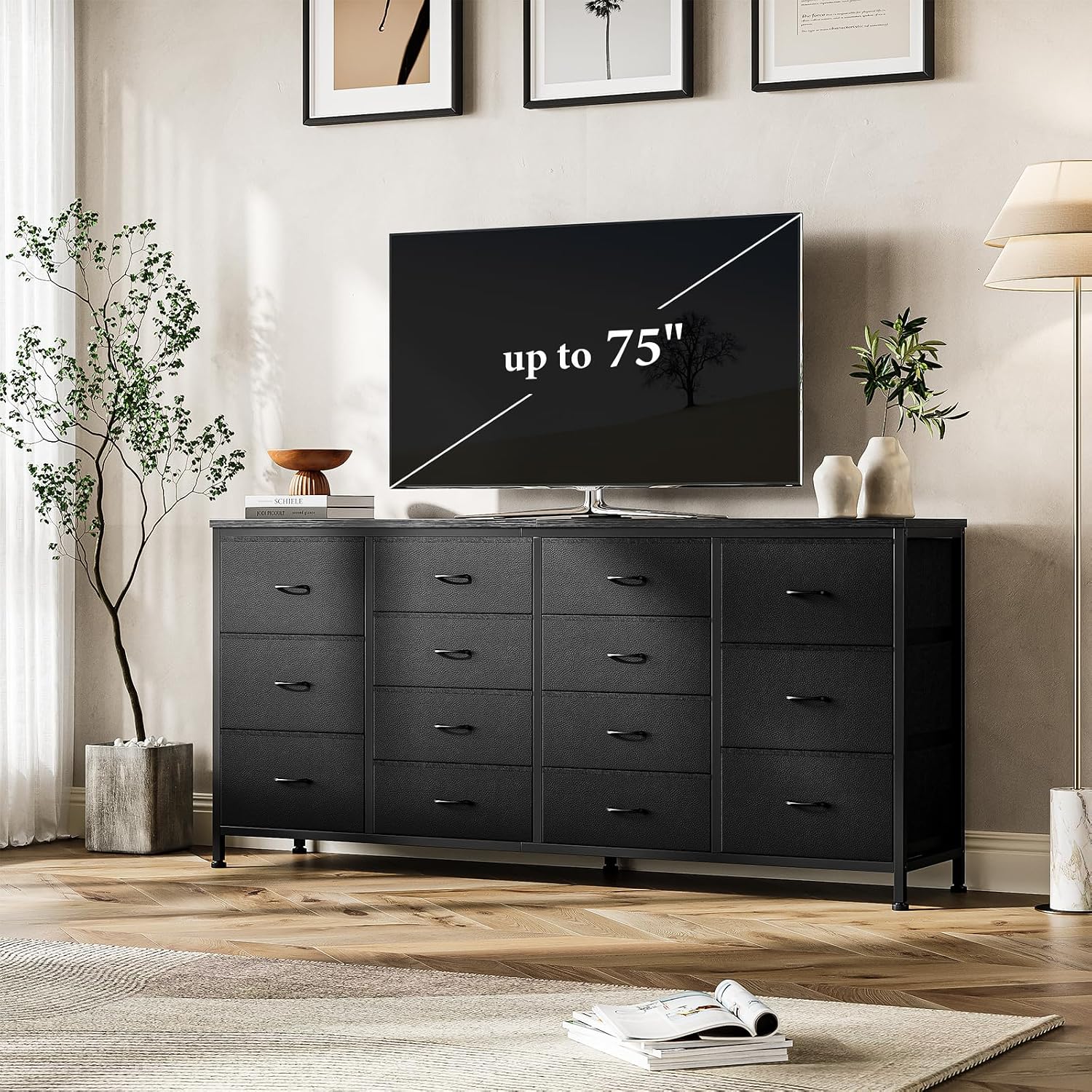

Image 2.1: The Patikuin 63" W Black Dresser TV Stand in a living room setting, supporting a large television.

ukuran:

• Overall Size: 63" W x 13.8" D x 29.5" H
• Small Drawer Interior: 14.6" W x 13.8" D x 5.9" H (approximate)
• Large Drawer Interior: 14.6" W x 13.8" D x 8" H (approximate)
• Top Weight Capacity: 110 lbs

Image 2.2: Detailed dimensions of the dresser TV stand, including overall size and individual drawer capacities.

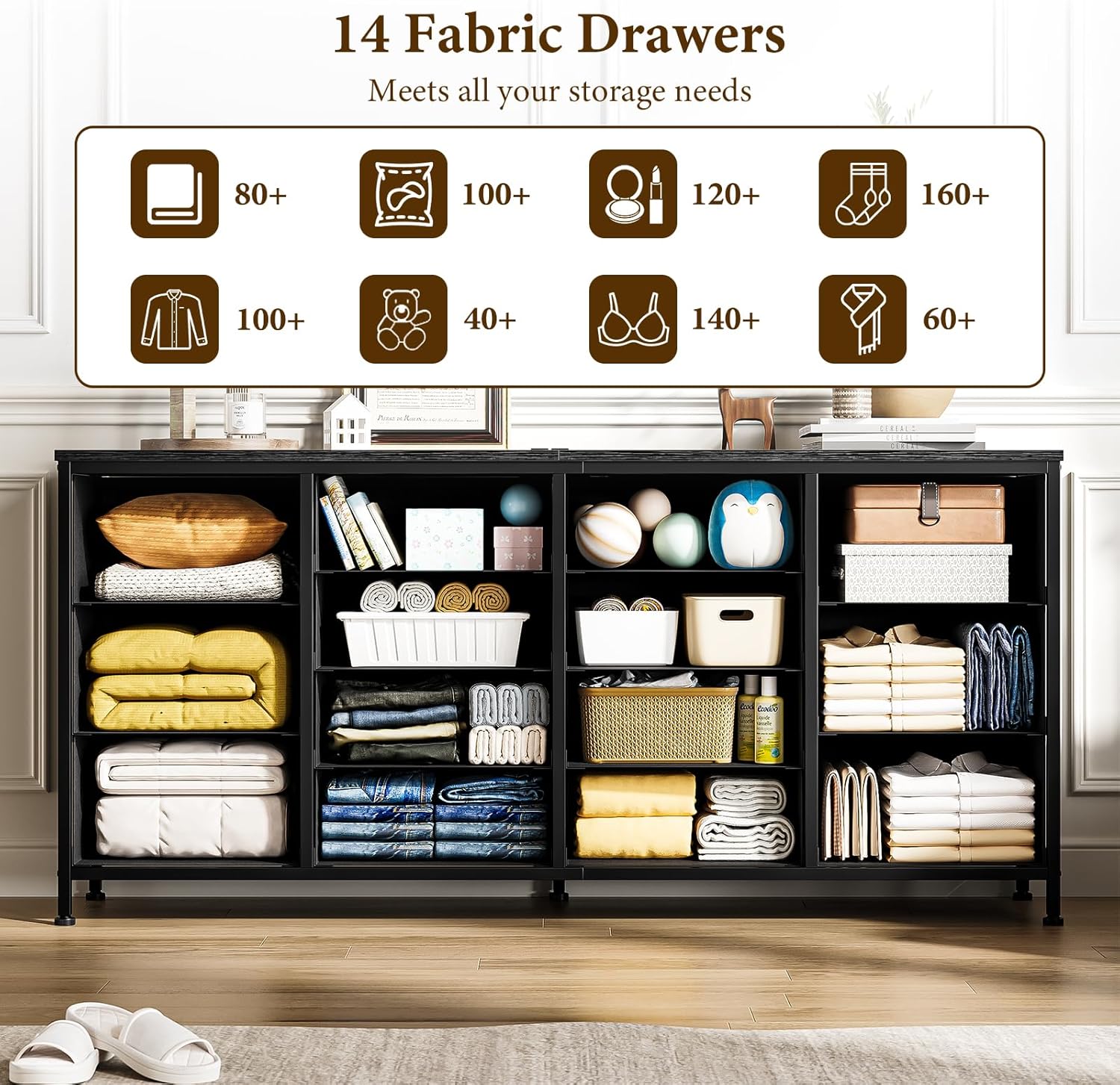

Image 2.3: An illustration demonstrating the storage capacity of the 14 fabric drawers for different types of items.

3. Émbaran Kasalametan

• Always install the included anti-tip kit to prevent accidental tipping, especially in households with children or pets.
• Do not exceed the maximum weight capacity of the top surface (110 lbs) or individual drawers.
• Ensure the unit is placed on a flat, stable, and level surface.
• Tetep bagian leutik jeung bahan bungkusan jauh ti barudak salila assembly.
• Ulah nangtung atawa nanjak dina unit.
• Périodik pariksa sagala sambungan na fasteners pikeun mastikeun aranjeunna tetep kedap.
• Avoid placing hot items directly on the wooden top surface without protection.

4. Eusi Paket

Sateuacan ngarakit, pariksa yén sadaya komponén anu didaptarkeun di handap aya sareng henteu ruksak.

• 1 x 14 Drawers Dresser Frame and Top
• 1 x Accessory Kit (hardware)
• 1 x Pakakas Anti-Tip
• 1 x Manual Parentah (Dokumén ieu)

5. Setup jeung Majelis

Assembly of this unit is designed to be straightforward. Please follow the step-by-step instructions provided in the included accessory kit. It is recommended to have a clear, spacious area for assembly.

Léngkah Majelis Umum:

1. Buka bungkus sadaya komponén sareng teundeun dina permukaan anu lemes sareng bersih pikeun nyegah goresan.
2. Identify all parts using the provided parts list in the accessory kit.
3. Assemble the metal frame structure according to the diagrams. Pay close attention to the orientation of each piece, especially the bottom brackets, to ensure proper alignment.
4. Attach the wooden top to the assembled frame.
5. Assemble the fabric drawers by inserting the bottom panels and handles.
6. Selapkeun drawers dirakit kana pigura.
7. Install the anti-tip kit by securing the unit to a wall stud using the provided hardware. This step is crucial for safety.
8. Adjust the leveling feet at the bottom of the unit to ensure stability on uneven floors.

Estimated assembly time: Approximately 30-45 minutes.

6. Parentah Operasi

Using the Integrated Power Outlets:

The dresser TV stand includes a built-in power strip with 2 standard AC outlets and 2 USB charging ports. To use these, ensure the power cord extending from the unit is securely plugged into a functional wall outlet.

• Plug your electronic devices into the AC outlets for power.
• Connect your USB charging cables to the USB ports to charge compatible devices such as smartphones, tablets, or smartwatches.
• Avoid overloading the power strip. Refer to the power strip's specifications for maximum wattage.

Gambar 6.1: A close-up view of the desktop power outlets, showing 2 AC and 2 USB ports in use.

7. Pangropéa

beberesih:

• Luhur Kai: Ngusap ku hipu, damp cloth. Avoid harsh chemicals or abrasive cleaners. Dry immediately.
• Laci lawon: Tempat beresih kalayan deterjen hampang sareng iklanamp cloth. Allow to air dry completely. Do not machine wash.
• Pigura logam: Diusap ku hipu, garing atawa rada damp lawon.

Perawatan Umum:

• Périodik pariksa sagala screws na fasteners pikeun mastikeun aranjeunna kedap. Kencangkeun deui upami diperyogikeun.
• Avoid exposing the unit to direct sunlight or extreme temperature changes to prevent material damage.
• Do not drag the unit when moving it; always lift to prevent damage to the legs and frame.

8. Cara ngungkulan

9. Spésifikasi

10. Garansi jeung Rojongan

For any questions, missing parts, or assistance with assembly or operation, please contact Patikuin customer support. Refer to your purchase documentation or the Patikuin brand store on Amazon for contact information.

Punten tahan bukti pameseran anjeun pikeun klaim garansi.
