Pro Chaser WS2200 Spark Plug User Manual

Bubuka

This manual provides essential instructions for the proper installation, maintenance, and troubleshooting of your Pro Chaser WS2200 Spark Plug. This spark plug is designed for use with various Craftsman 25cc and 27cc string trimmers and weed eaters, including models such as WS210, WC2200, CMXGTAMD25CC, CMXGTAMD25SC, 41AD25CC793, and 41AD25SC793. Adhering to these guidelines will help ensure optimal performance and longevity of your equipment.

Émbaran Kasalametan

Always prioritize safety when working with small engines. Failure to follow safety precautions can result in serious injury or damage to equipment.

• Ensure the engine is completely off and cool before attempting any maintenance or installation.
• Pegatkeun sambungan kabel busi pikeun nyegah ngamimitian teu kahaja.
• Anggo alat pelindung pribadi anu pas, kalebet kacamata sareng sarung tangan.
• Jauhkeun barudak sareng jalma anu aya di tempat damel.
• Refer to your equipment's original owner's manual for specific safety instructions and procedures.

Setup sareng Instalasi

Follow these steps to correctly replace your spark plug.

Alat anu diperyogikeun:

• Spark plug wrench (typically 13/16 inch or 19mm)
• Spark plug gapping tool (if necessary)
• Kaén beresih

Prosedur:

1. Persiapan: Ensure the engine is turned off and has cooled down completely. Locate the spark plug boot and gently pull it off the spark plug. Clean any debris around the spark plug base to prevent it from falling into the combustion chamber when the plug is removed.
2. Removing the Old Spark Plug: Use a spark plug wrench to loosen the old spark plug by turning it counter-clockwise. Once loose, remove it by hand. Inspect the old spark plug for signs of wear or fouling, which can indicate engine issues.

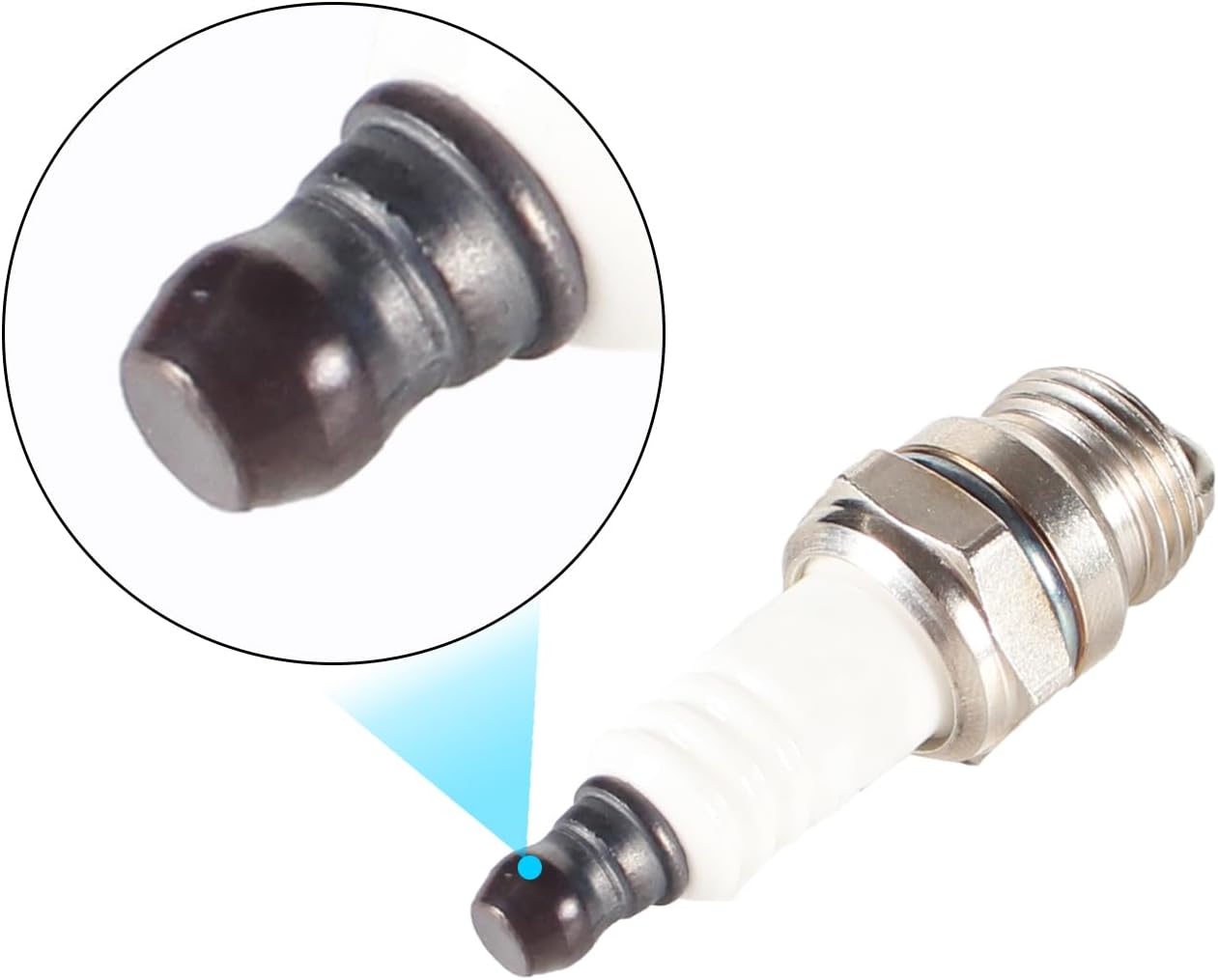

3. Inspect New Spark Plug: Before installation, visually inspect the new Pro Chaser WS2200 spark plug for any damage.
4. Check Spark Plug Gap: While these spark plugs are typically pre-gapped, it is good practice to verify the gap using a gapping tool. Refer to your equipment's owner's manual for the exact recommended gap specification. Adjust if necessary by carefully bending the ground electrode.
5. Installing the New Spark Plug: Carefully thread the new spark plug into the cylinder head by hand, turning clockwise. Ensure it threads smoothly to avoid cross-threading. Once finger-tight, use the spark plug wrench to tighten it. For optimal sealing and to prevent damage, tighten an additional 1/2 to 3/4 turn for new plugs with gaskets, or to the torque specification provided in your equipment's manual. Do not overtighten.
6. Reconnect Spark Plug Wire: Firmly push the spark plug boot back onto the new spark plug until it clicks into place, ensuring a secure connection.

Ngoperasikeun

After successful installation of the Pro Chaser WS2200 Spark Plug, your equipment should be ready for operation. Ensure all connections are secure and that no tools or debris are left near moving parts. Start the engine according to your equipment's manufacturer instructions. A properly installed spark plug will contribute to easier starting and smooth engine performance.

Pangropéa

Regular inspection and maintenance of your spark plug are vital for optimal engine performance and fuel efficiency.

• Frékuénsi pamariksaan: Inspect the spark plug every 25-50 hours of operation or at least once per season, whichever comes first.
• Cék Visual: Remove the spark plug and examine the electrode and insulator tip. A healthy spark plug will have a light tan or grayish-brown color. Black, oily deposits indicate rich fuel mixture or oil burning. White, blistered, or eroded electrodes suggest overheating or a lean fuel mixture.
• beberesih: If the spark plug shows minor deposits, you can gently clean it with a wire brush or spark plug cleaner. However, if deposits are heavy or the electrodes are significantly worn, replacement is recommended.
• Re-gapping: Over time, the spark plug gap can change due to erosion. Re-check the gap during each inspection and adjust it to the manufacturer's specification for your equipment.
• ngagantian: Replace the spark plug annually or if it shows signs of heavy wear, damage, or consistent fouling, even after cleaning.

Pamérésan masalah

If your engine experiences issues, the spark plug can often provide clues or be the source of the problem.

• Mesin teu ngamimitian:
  • Pariksa naha kabel busi parantos nyambung kalayan pageuh.
  • Remove the spark plug and inspect it. If it's wet with fuel, it might be flooded. Clean and dry it, or replace it.
  • Check for spark: With the spark plug connected to the wire and grounded against a metal part of the engine (away from the spark plug hole), pull the starter cord. A strong blue spark should be visible. If not, the spark plug may be faulty, or there could be an issue with the ignition system.
• Engine Misfires or Runs Roughly:
  • Inspect the spark plug for fouling, wear, or incorrect gap.
  • Ensure the spark plug is tightened correctly. A loose plug can cause misfires.
• Leungitna Daya:
  • A worn or fouled spark plug can lead to inefficient combustion and reduced engine power. Inspect and replace if necessary.

If troubleshooting the spark plug does not resolve the issue, consult your equipment's service manual or a qualified technician.

spésifikasi

Garansi sareng Rojongan

For specific warranty information regarding your Pro Chaser WS2200 Spark Plugs, please refer to the documentation provided at the time of purchase or contact the retailer. As a general guideline, spark plugs are wear-and-tear items and their lifespan is dependent on usage and engine conditions.

For technical support or further assistance, please contact Pro Chaser customer service through their official channels or the retailer from whom the product was purchased. When contacting support, please have your product model number (PCAC0045) and purchase details readily available.
