PELONIS PHTA1ABB Space Heater & Air Circulator Fan Bundle User Manual

Bubuka

This user manual provides important information for the safe operation, maintenance, and troubleshooting of your PELONIS PHTA1ABB Portable Space Heater and Pelonis 3 Speed Small Room Air Circulator Fan bundle. Please read this manual thoroughly before using the products and retain it for future reference.

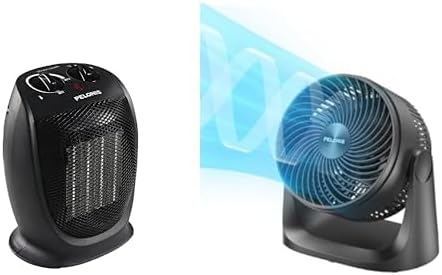

Image: The PELONIS PHTA1ABB Portable Space Heater (left) and the Pelonis 3 Speed Small Room Air Circulator Fan (right) shown together. The heater is black with control knobs on top, and the fan is also black, designed to circulate air with a visible blue airflow pattern.

Parentah Kasalametan penting

Salawasna turutan pancegahan kaamanan dasar nalika nganggo alat-alat listrik pikeun ngirangan résiko kahuruan, kejutan listrik, sareng tatu pikeun jalma.

• Read all instructions before using this heater and fan.
• Do not use the heater or fan outdoors.
• Pemanas ieu panas nalika dianggo. Pikeun nyegah kaduruk, ulah ngantep kulit bulistir noél surfaces panas.
• Simpen bahan-bahan anu gampang kaduruk, sapertos parabot, bantal, sprei, kertas, baju, sareng gorden sahenteuna 3 kaki (0.9 m) ti payun pemanas, sareng jauhkeun tina sisi sareng tukang.
• Extreme caution is necessary when any heater or fan is used by or near children or invalids and whenever the heater or fan is left operating and unattended.
• Always unplug heater/fan when not in use.
• Do not operate any heater/fan with a damaged cord or plug or after the heater/fan malfunctions, has been dropped or damaged in any manner.
• Ulah ngajalankeun ari handapeun karpét. Ulah nutupan ari ku karpet lémparan, runners, atawa panutup sarupa. Atur tali jauh ti wewengkon lalulintas sarta dimana eta moal tripped leuwih.
• To disconnect heater/fan, turn controls to OFF, then remove plug from outlet.
• Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire, or damage the heater/fan.
• Pikeun nyegah kamungkinan seuneu, ulah meungpeuk asupan hawa atanapi knalpot dina cara naon waé. Ulah dipaké dina surfaces lemes, kawas ranjang, dimana bukaan bisa jadi diblokir.
• A heater/fan has hot and arcing or sparking parts inside. Do not use it in areas where gasoline, paint, or flammable liquids are used or stored.
• Use this heater/fan only as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock, or injury to persons.
• Always plug heaters/fans directly into a wall outlet/receptacle. Never use with an extension cord or relocatable power tap (outlet/power strip).
• The fan is designed for indoor use only.
• Pastikeun kipas disimpen dina permukaan anu stabil sareng rata.

Produk Leuwihview

PELONIS PHTA1ABB Portable Space Heater

This compact ceramic heater provides efficient heating for small to medium-sized rooms. It features adjustable heat settings and safety features.

• Setélan kakuatan: 1500W (Luhur) / 900W (Rendah)
• Téknologi pemanasan: PTC keramik
• Fitur: Adjustable Thermostat, Overheat Protection, Tip-Over Switch, Fan-only mode.
• ukuran: Kira-kira 6" x 7" x 9"

Pelonis 3 Speed Small Room Air Circulator Fan

This air circulator fan is designed to provide powerful airflow for improved air circulation throughout a room. It features multiple speed settings and an adjustable head.

• Ukuran Blade: 7 inci
• Setélan laju: 3 (Luhur, Sedeng, Handap)
• Laras: 100° Adjustable Head Tilt
• Tingkat Noise: 38 dB (Low), 45 dB (High)
• ukuran: Kira-kira 6.88"P x 10.82"L x 10.94"T

Disetél

Space Heater Setup

1. Unpack the heater from its packaging.
2. Place the heater on a firm, level surface free from obstructions and at least 3 feet (0.9 m) away from any walls or combustible materials.
3. Pastikeun kabel listrik henteu diciwit atanapi ruksak.
4. Colokkeun pemanas langsung kana stop kontak AC 120V. Ulah nganggo kabel ekstensi atanapi stop kontak.

Air Circulator Fan Setup

1. Cabut kipas tina bungkusan na.
2. Place the fan on a stable, flat surface where airflow is desired.
3. Ensure the power cord is not obstructed.
4. Plug the fan into a standard 120V AC wall outlet.

Parentah Operasi

Operating the Space Heater

1. Daya Hurung: Colokkeun manaskeun kana stop kontak listrik anu cocog.
2. Pilih Mode: Use the mode control knob (often labeled with symbols like fan, low heat, high heat) to select your desired setting:
   • Ngan kipas: Ngasirkulasikeun hawa tanpa panas.
   • Panas Lemah (900W): Provides moderate heat.
   • Panas Tinggi (1500W): Provides maximum heat.
3. Setel Thermostat: Use the thermostat control knob to set the desired room temperature. The heater will cycle on and off to maintain this temperature. Turn the knob clockwise to increase the temperature setting.
4. Pareum listrik: Turn the mode control knob to the "OFF" position and unplug the heater from the wall outlet when not in use.

Operating the Air Circulator Fan

1. Daya Hurung: Colokkeun kipas kana stop kontak listrik anu cocog.
2. Pilih Speed: Use the speed control knob or buttons to select one of the three available speeds:
   • rendah: For quiet operation and gentle airflow.
   • Sedeng: For balanced airflow.
   • luhur: Pikeun sirkulasi hawa anu maksimal.
3. Saluyukeun Dengdekkeun: Manually adjust the fan head up or down to direct the airflow up to 100 degrees.
4. Pareum listrik: Turn the speed control to the "OFF" position and unplug the fan from the wall outlet when not in use.

Pangropéa

Regular maintenance ensures optimal performance and longevity of your PELONIS products. Always unplug the appliance before cleaning.

beberesih umum

• Ngagunakeun lemes, damp cloth to wipe the exterior surfaces of the heater and fan.
• Do not use abrasive cleaners or solvents as they may damage the surfaces.
• Ensure no water enters the interior of the appliances.

Lebu Nyabut

• For the heater, use a vacuum cleaner with a brush attachment to remove dust from the air intake and exhaust grilles.
• For the fan, gently wipe the blades and grille with a soft cloth or use a vacuum cleaner to remove accumulated dust.

Panyimpenan

• When not in use, store the heater and fan in a cool, dry place.
• It is recommended to store them in their original packaging to protect them from dust and damage.

Pamérésan masalah

Sateuacan ngahubungi layanan palanggan, mangga tingali pituduh ngungkulan masalah ieu.

spésifikasi

PELONIS PHTA1ABB Portable Space Heater

• model: PHTA1ABB
• kakuatan: 1500W (Luhur) / 900W (Rendah)
• Voltage: 120V AC
• Cakupan pemanasan: Nepi ka 200 sq ft
• Fitur kaamanan: Overheat Protection, Tip-Over Switch
• ukuran: Kira-kira 6" x 7" x 9"

Pelonis 3 Speed Small Room Air Circulator Fan

• model: 7-inch Air Circulator Fan
• Ukuran Blade: 7 inci
• Setélan laju: 3 (Henteu, Sedeng, Luhur)
• Dengdekkeun adjustable: 100°
• Voltage: 120V AC
• Tingkat Noise: 38 dB (Low), 45 dB (High)
• ukuran: Approx. 6.88"D x 10.82"W x 10.94"H

Garansi sareng Rojongan

For warranty information or technical support, please refer to the warranty card included with your product or visit the official PELONIS website. You can also contact PELONIS customer service directly for assistance.

PELONIS Customer Service: www.pelonis.com/support
