TOTAL 165-Piece Tool Set User Manual

Bubuka

Thank you for choosing the TOTAL 165-Piece Tool Set. This comprehensive kit is designed to provide you with a wide array of tools for various home repair, DIY projects, and professional tasks. It includes a powerful 20V cordless impact drill, essential hand tools, and a versatile collection of bits and accessories, all organized in a durable carrying case. Please read this manual carefully before using the tools to ensure safe and efficient operation.

Gambar: Leuwihview of the TOTAL 165-Piece Tool Set, showcasing the cordless drill, battery, charger, and various hand tools.

Émbaran Kasalametan

Always follow basic safety precautions when using power tools and hand tools to reduce the risk of fire, electric shock, and personal injury.

• Nganggo alat pelindung diri (APD) anu merenah such as safety glasses, gloves, and hearing protection.
• Jaga wewengkon gawé anjeun beresih jeung cahayana alus. Wewengkon nu pabalatak atawa poek ngocorkeun kacilakaan.
• Ulah ngajalankeun parabot kakuatan dina atmosfir ngabeledug, kayaning ku ayana cair kaduruk, gas, atawa lebu.
• Jauhkeun murangkalih sareng jalma-jalma nalika ngajalankeun alat listrik. Distractions bisa ngabalukarkeun anjeun leungit kontrol.
• Nyimpen parabot dianggurkeun kaluar jangkauan sahiji barudak jeung jalma untrained.
• Jaga parabot kalayan ati-ati. Jaga parabot motong tetep seukeut sareng bersih. Pakakas anu dirawat kalayan leres kirang gampang ngabeungkeut sareng langkung gampang dikontrol.
• Anggo alat anu pas pikeun aplikasi anjeun. Tong maksa alat alit atanapi asesoris pikeun ngalakukeun padamelan alat anu beurat.
• Disconnect the battery pack from the drill before making any adjustments, changing accessories, or storing the tool.
• Only use the specified battery pack and charger for this tool set.

Eusi pakét

Your TOTAL 165-Piece Tool Set includes the following components:

• 1 x 20V Cordless Impact Drill
• 1 x 2.0Ah Battery Pack
• 1 x Charger (220V-240V)
• 1 x 8oz Claw Hammer
• Various SL (Slotted) and PH (Phillips) Screwdrivers
• 1 x Combination Pliers
• 1 x Long-Nose Pliers
• 1 x rengkuh adjustable
• 1 x Electrician’s Scissors
• 10 x Precision Screwdriver Bits
• Additional Screwdriver Handles
• Masonry Drill Bits (various sizes)
• Twist Drill Bits (various sizes)
• Wood Drill Bits (various sizes)
• 8 x Hex Keys (1.5mm to 6mm)
• 7 x Power Sleeves (Cr-V)
• 40 x sekrup
• 40 x Plastic Plugs
• 1 x Awét Mawa Case

Image: All 165 pieces of the tool set, including the drill, hand tools, and various bits, neatly arranged.

Disetél

1. Ngecas Batré

Before first use, fully charge the 2.0Ah Lithium-Ion battery pack. Connect the charger to a standard 220V-240V AC power outlet. Insert the battery pack into the charger. The indicator light on the charger will show the charging status. A full charge typically takes approximately 1-2 hours.

2. Attaching the Battery to the Drill

Align the battery pack with the base of the drill handle. Slide the battery pack firmly into place until it clicks, indicating it is securely locked. To remove, press the release buttons on the sides of the battery pack and slide it out.

3. Inserting Drill Bits or Screwdriver Bits

Ensure the drill is off and the battery is removed for safety. Twist the chuck counter-clockwise to open the jaws. Insert the desired drill bit or screwdriver bit into the chuck, ensuring it is centered. Twist the chuck clockwise to tighten the jaws firmly around the bit. For screwdriver bits, you may use the magnetic bit holder for quick changes.

Parentah Operasi

Bor Dampak tanpa kabel

• Hurungkeun/Pareuman: Press the trigger switch to start the drill. Release the trigger to stop.
• Kontrol laju: The drill features variable speed control. Press the trigger lightly for slower speeds and harder for faster speeds.
• Rotasi Maju/Mundur: Use the forward/reverse selector switch located above the trigger to change the direction of rotation. Push left for forward (drilling/tightening) and right for reverse (loosening/removing).
• Setélan torsi: Adjust the torque collar to the desired setting for screwdriving applications. Higher numbers indicate higher torque.
• Drill/Impact Mode: Rotate the collar to select between drilling mode (for wood, metal) and impact drilling mode (for masonry, concrete). The impact function provides a maximum impact rate of 22,500 bpm for efficient drilling in hard materials.

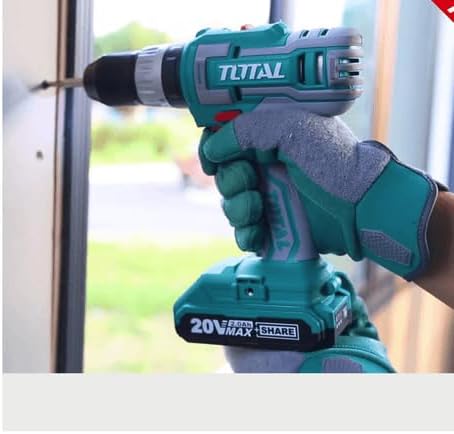

Image: A user demonstrating the cordless impact drill in action, drilling into a surface.

Pakakas leungeun

• Screwdrivers (SL & PH): Use the appropriate tip size and type (Slotted or Phillips) for the screw head. Apply firm, even pressure while turning.
• Palu cakar: Used for driving nails and prying them out. Ensure a firm grip and strike squarely.
• Combination & Long-Nose Pliers: Combination pliers are for gripping, bending, and cutting wires. Long-nose pliers are ideal for reaching into tight spaces and delicate gripping.
• Kunci adjustable: Adjust the jaw opening to fit the nut or bolt head snugly. Apply force in the direction of the fixed jaw.
• Electrician’s Scissors: Designed for cutting electrical wires and other materials. Use with caution and ensure power is off when working with electrical components.
• Tombol Hex: Insert the correct size hex key into the hexagonal socket of a screw or bolt and turn to tighten or loosen.

Pangropéa

• beberesih: After each use, wipe down all tools with a clean, dry cloth to remove dust, dirt, and debris. For stubborn grime, a slightly damp lawon bisa dipaké, dituturkeun ku drying langsung.
• Lubrication: Apply a light coat of machine oil to moving parts of pliers, wrenches, and the drill chuck periodically to ensure smooth operation and prevent rust.
• Perawatan batré: Store battery packs in a cool, dry place away from direct sunlight and extreme temperatures. Do not store fully discharged batteries for extended periods. Charge them periodically if not in use.
• Panyimpenan: Always return tools to their designated slots in the durable carrying case after use. This protects the tools from damage, prevents loss, and keeps them organized for future use.

Image: The TOTAL 165-Piece Tool Set neatly organized within its sturdy carrying case, ready for storage or transport.

Pamérésan masalah

spésifikasi

Garansi sareng Rojongan

For warranty information and customer support, please refer to the warranty card included with your product or visit the official TOTAL Tools websitus. Simpen resi pameseran anjeun salaku bukti pameseran pikeun klaim garansi.

For technical assistance or inquiries, please contact TOTAL customer service through the contact details provided on their official websitus atanapi bungkusan produk.
