WUBEN X2Pro Rechargeable EDC Flashlight User Manual

1. Bubuka

The WUBEN X2Pro is a versatile and powerful Everyday Carry (EDC) flashlight designed for a wide range of applications, from emergency situations to outdoor adventures and daily tasks. It features a dual-light system with both main and side lights, offering multiple modes and flexible power options. This manual provides comprehensive instructions for the safe and efficient operation and maintenance of your WUBEN X2Pro flashlight.

2. Émbaran Kasalametan

• Entong look directly into the light beam or shine it directly into anyone's eyes. The high lumen output can cause temporary vision impairment or eye damage.
• Jauhkeun tina jangkauan barudak.
• Ensure batteries are inserted with correct polarity to prevent damage to the device.
• Ulah campur batré heubeul jeung anyar, atawa tipena béda accu.
• Avoid disassembling the flashlight head as this may damage the lights and void the warranty.
• Simpen senter di tempat anu tiis sareng garing upami henteu dianggo salami lami.
• The flashlight may become warm during prolonged use at high output levels. This is normal.

3. Naon dina Box

Your WUBEN X2Pro package includes the following components:

• WUBEN X2Pro Flashlight
• ARC Guide Buckle
• Lanyard
• Kabel USB-C
• Manual pangguna (dokumén ieu)

Image: The WUBEN X2Pro flashlight shown with its included accessories: ARC Guide Buckle, Lanyard, USB-C Cable, and User Manual.

4. Produk Langkungview

The WUBEN X2Pro features a robust design with intuitive controls and multiple lighting options.

Gambar: A lengkep view of the WUBEN X2Pro flashlight, highlighting its compact and durable construction.

4.1. Main Light System

The main light system consists of 4 LED chips, providing powerful illumination with various modes.

• Kaluaran: Up to 1500 lumens.
• Beam Jarak: Nepi ka 205 méter.
• Modeu: Turbo, High, Medium, Low, Flood, and Spotlight.

Image: Illustration of the WUBEN X2Pro's powerful main light, demonstrating its 1500 lumens output and 205-meter beam distance, along with icons for Flood, Spot, Low, Medium, High, and Turbo modes.

Image: Visual comparison of the WUBEN X2Pro's stepless zoom functionality, showing the difference between Flood and Spot illumination patterns in a dark outdoor setting.

4.2. Side Light System

The side light offers additional versatility for various tasks.

• Kaluaran Lampu Bodas: 400 lumén.
• Lampu UV: 365nm for detection purposes.
• Penyesuaian Dengdekkeun: 20° for flexible, focused lighting.
• Dimming: Stepless dimming for precise brightness control.

Image: A close-up of the WUBEN X2Pro highlighting the side light features, including 400 lumens white light, 365nm UV light, 20° tilt adjustment, and the rotary switch for stepless dimming.

Image: Demonstrations of the 365nm UV light's versatility, showing its use for fluorescent agent detection, stain finding, hotel cleanliness checking, and ringworm detection.

4.3. Innovative Switch Design

The X2Pro incorporates a unique dual-switch system for intuitive control.

• Saklar Togel: Easily switch between main light, side light, and lock mode. This prevents accidental activation and conserves battery.
• Saklar Rotary: Provides stepless dimming for precise brightness adjustment of the side light.

4.4. Magnetic Tail Cap & Pocket Clip

For hands-free operation and convenient carrying.

• Tutup Buntut Magnét: Allows attachment to metal surfaces for hands-free lighting during repairs or work.
• Klip saku: Enables easy and secure carrying in a pocket or on gear.

Gambar: Examples of hands-free operation using the WUBEN X2Pro's magnetic base (attached to a car hood) and pocket clip (attached to a hat for tent setup and reading).

Image: A person wearing a helmet with the WUBEN X2Pro mounted, illustrating its compatibility with rescue and tactical helmets for hands-free lighting.

5. Setélan

5.1. Pamasangan batré

The WUBEN X2Pro comes with two 920mAh rechargeable batteries. It can also operate with a single battery or be compatible with AA batteries (not included) for flexible power options.

1. Locate the battery compartment release mechanism, typically a toggle switch or latch.
2. Buka kompartemen batré.
3. Insert the two 920mAh batteries, ensuring correct polarity as indicated inside the compartment. The flashlight can also function with one battery.
4. Tutup kompartemen batré anu aman dugi ka ngaklik kana tempatna.

Image: A hand holding the WUBEN X2Pro with its battery compartment open, showing the two rechargeable batteries inside. Icons indicate compatibility with AA Alkaline, AA Ni-MH, and single battery operation.

5.2. Ngecas

The X2Pro supports USB-C charging for convenience.

1. Panggihan port ngecas USB-C dina senter.
2. Connect the provided USB-C cable to the flashlight and a compatible power source (e.g., wall adapter, power bank, computer USB port).
3. The charging indicator light will illuminate (typically red) to show charging is in progress.
4. Once fully charged, the indicator light will change color (typically blue). Charging takes approximately 2.5 hours.

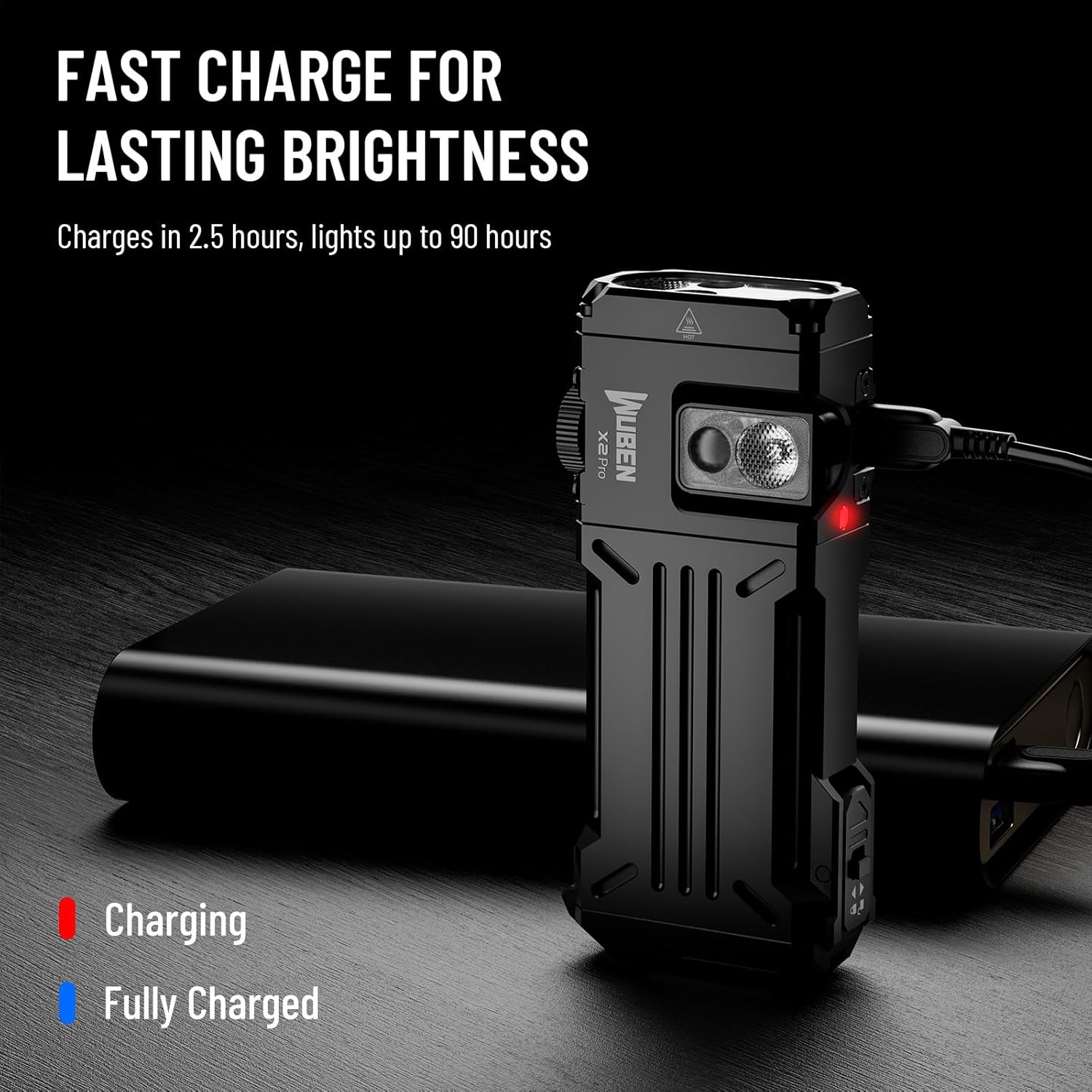

Image: The WUBEN X2Pro connected via USB-C cable to a power bank, with the charging indicator light visible. Text indicates charging in 2.5 hours and up to 90 hours of light.

6. Parentah Operasi

6.1. Power On/Off and Lock Mode

• To power on the flashlight, slide the toggle switch to either the main light or side light position.
• To power off, slide the toggle switch to the central "Lock" position. This also prevents accidental activation.

6.2. Operasi Lampu Utama

When the toggle switch is set to the main light position:

• Mode Ngabuburit: Press the main button to cycle through modes: Low → Medium → High.
• Modeu Turbo: Double-press the main button from any state to activate Turbo mode. Double-press again to return to the previous mode.
• Flood/Spotlight Switching: From any main light mode, press and hold the main button to switch between Flood and Spotlight. Release to select.

6.3. Side Light Operation

When the toggle switch is set to the side light position:

• Cahaya bodas: Press the main button to turn on the white side light.
• Lampu UV: Double-press the main button to activate the 365nm UV light. Double-press again to return to white light.
• Dimming Stepless: While the white side light is on, rotate the rotary switch to adjust brightness continuously.

7. Pangropéa

• beberesih: Bersihkeun awak senter ku sabun anu lemes,amp lawon. Pikeun permukaan optik, anggo lawon pembersih lénsa.
• Lubrication: Periodically apply silicone grease to the O-rings to maintain water resistance.
• Perawatan batré: If the flashlight will not be used for an extended period, remove the batteries to prevent leakage. Recharge batteries regularly to prolong their lifespan.
• Tahan cai: The X2Pro has an IP68 waterproof rating. Ensure the USB-C port cover is fully sealed before exposing to water.

8. Cara ngungkulan

9. Spésifikasi

10. Garansi jeung Rojongan

The WUBEN X2Pro comes with a limited warranty. For detailed warranty terms and conditions, please refer to the official WUBEN websitus atanapi ngahubungan rojongan customer maranéhanana.

If you encounter any issues or have questions regarding your WUBEN X2Pro flashlight, please visit the WUBEN Store on Amazon or contact WUBEN customer service directly for assistance.
