hauck Rapid 3 Air Stroller Instruction Manual

1. Bubuka

This manual provides essential information for the safe and proper assembly, operation, and maintenance of your hauck Rapid 3 Air Stroller. Please read all instructions carefully before use and retain this manual for future reference.

2. Émbaran Kasalametan

PERHATOSAN: Gagal nuturkeun peringatan sareng petunjuk ieu tiasa nyababkeun tatu serius atanapi maot.

• Always secure your child with the 5-point harness.
• Pernah ninggalkeun anak anjeun unattended dina stroller nu.
• Do not use the stroller if any parts are damaged or missing.
• Pastikeun sadaya alat ngonci aktip sateuacan dianggo.
• Do not overload the storage basket. Maximum load for the basket is 3 kg (6.6 lbs).
• The stroller is designed for children up to 22 kg (48.5 lbs).
• Ulah ngagantungkeun kantong atanapi barang-barang sanésna dina gagangna, sabab ieu tiasa nyababkeun stroller janten teu stabil sareng tibalik.
• Always engage the brake when parking the stroller.
• Keep children clear of moving parts when making adjustments.

3. Parentah Majelis

Follow these steps to assemble your hauck Rapid 3 Air Stroller. For a visual guide, please refer to the assembly video below.

3.1 Ngabuka Stroller

1. Tempatkeun stroller anu dilipet dina tempat anu datar.
2. Release the folding lock mechanism.
3. Lift the handle until the frame locks into place. Ensure both sides are securely locked.

3.2 Ngagantelkeun Roda Rear

1. Locate the rear wheel axles on the stroller frame.
2. Align each rear wheel with its corresponding axle.
3. Push the wheel firmly onto the axle until it clicks into place. Pull on the wheel to ensure it is securely attached.

3.3 Ngagantelkeun kabayang hareup

1. Locate the front wheel attachment point on the stroller frame.
2. Insert the front wheel assembly into the designated slot until it clicks securely.

3.4 Attaching the Bumper Bar

1. Align the ends of the bumper bar with the attachment points on the stroller seat.
2. Push firmly until both sides click into place.

3.5 Ngalampirkeun Kanopi

1. Slide the canopy attachment clips onto the designated points on the stroller frame near the handle.
2. Secure any additional fasteners, such as Velcro straps, to the frame.

3.6 Attaching the Cup Holder

1. Clip the cup holder onto the side of the stroller handle. Ensure it is firmly attached.

Majelis Video Guide

4. Ngoperasikeun Stroller

4.1 Adjustable Push Handle

The push handle can be adjusted to six different height positions for comfortable pushing. Press the buttons on both sides of the handle and move it up or down to your desired height. Release the buttons to lock it in place.

Adjust the push handle to your preferred height for ergonomic comfort.

4.2 Reclining Seat

The backrest and leg support are adjustable to provide comfort for your child, whether they are awake or resting. To recline the backrest, locate the adjustment mechanism behind the seat and adjust to the desired position. The leg support can be adjusted by pressing the buttons on the sides.

The seat can be adjusted to an upright or reclined position for your child's comfort.

4.3 Sun Canopy (UPF 50+)

The large sun canopy provides reliable protection against sun and wind, featuring UPF 50+ sun protection. It can be extended using a zipper for additional coverage. A peek-a-boo window allows you to keep an eye on your child without disturbing them.

The extendable canopy offers UPF 50+ sun protection and includes a viewjandela ing.

4.4 Swivel Front Wheel Lock

The front wheel can swivel for easy maneuverability or be locked into a fixed position for stability on rougher terrain. To lock the front wheel, push down the lever located near the wheel. To unlock, lift the lever.

The front wheel can be locked for stability or allowed to swivel for maneuverability.

4.5 System ngerem

The stroller is equipped with a foot-operated brake on the rear wheels. To engage the brake, press down firmly on the brake pedal located near the rear wheels. To release, lift the pedal. Always ensure the brake is fully engaged when the stroller is stationary.

4.6 Tilepan kareta nu

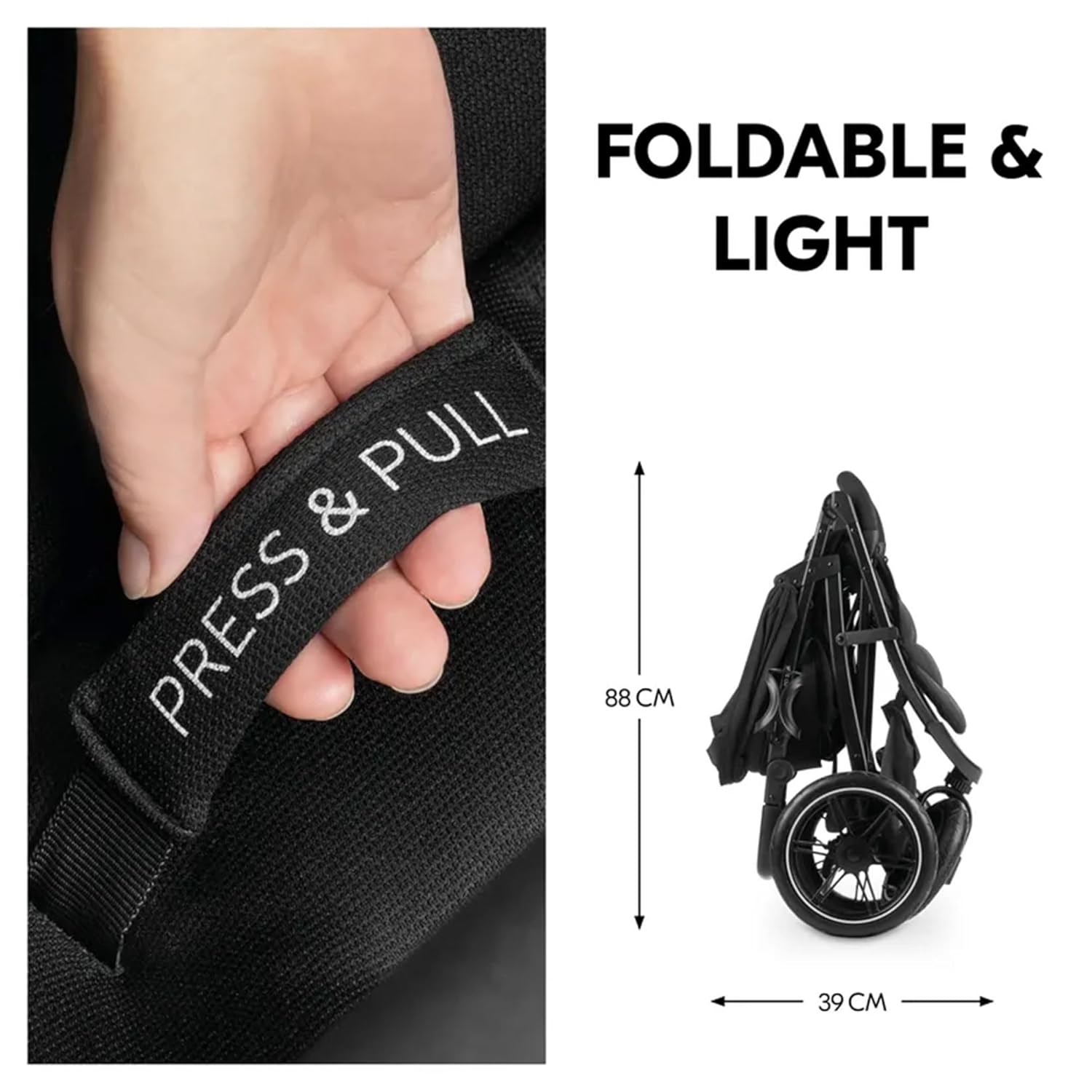

The Rapid 3 Air Stroller features a compact one-hand fold mechanism. To fold, ensure the seat is in an upright position. Locate the 'Press & Pull' strap on the seat, press the button, and pull the strap upwards. The stroller will fold compactly. Secure the folding lock if present.

The stroller features a compact one-hand fold for easy storage and transport.

5. Perawatan sareng Pangropéa

5.1 Parentah beberesih

• Bagian lawon: bagian lawon beresih jeung iklanamp lawon jeung sabun hampang. Ulah make detergents kasar atawa ngabodaskeun. Ngidinan ka hawa garing lengkep.
• Pigura: Ngusap pigura ku lemes, damp lawon. Tegalan tuntas pikeun nyegah karat.
• Bagian plastik: Clean plastic components with a damp lawon.

5.2 Pangropéa Roda

• Regularly check the air wheels for proper inflation. Refer to the tire sidewall for recommended pressure.
• Keep wheels free of dirt and debris. Remove any tangled hair or string from the axles.
• Lubricate moving parts, such as axles and swivel mechanisms, periodically with a silicone-based lubricant.

5.3 Panyimpenan

Store the stroller in a clean, dry place away from direct sunlight and extreme temperatures. Ensure the stroller is completely dry before storing to prevent mold or mildew.

6. Cara ngungkulan

If you encounter any issues with your stroller, please refer to the following common problems and solutions:

• Kereta dorong henteu tiasa dilipet atanapi dibuka kalayan lancar: Check for any obstructions in the folding mechanism. Ensure all locks are disengaged before attempting to fold. Lubricate moving parts if necessary.
• Roda kaku atawa squeaky: Clean the wheels and axles to remove dirt and debris. Lubricate the axles and swivel mechanisms with a silicone-based spray. Check air pressure for air wheels.
• Stroller narik kana hiji sisi: Ensure the front wheel is properly aligned and locked if desired. Check tire pressure on air wheels for even inflation.
• Harness hésé diatur: Ensure the straps are not twisted. Refer to the assembly video for correct harness setup.

Lamun masalah persists, mangga ngahubungan rojongan customer.

7. Spésifikasi

8. Garansi jeung Rojongan

For warranty information or customer support, please refer to the documentation provided with your purchase or visit the official hauck websitus. Simpen bukti pameseran anjeun pikeun klaim garansi.
