Fenix HM23 V2.0 300 Lumen AA Battery Headlamp Manual pamaké

Bubuka

The Fenix HM23 V2.0 is a compact and versatile headlamp designed for various outdoor activities and everyday use. Featuring a powerful Luminus SST20 LED, it delivers a maximum output of 300 lumens with a beam distance of 88 meters. Its quick-release design allows for use as both a headlamp and a right-angle flashlight. Powered by a single AA battery, it offers efficient power and a long runtime. This manual provides detailed instructions for the safe and effective operation of your Fenix HM23 V2.0 headlamp.

The Fenix HM23 V2.0 headlamp shown with its adjustable headband, ready for use.

Eusi pakét

Mangga parios pakét kanggo barang-barang ieu:

• Fenix HM23 V2.0 Headlamp
• Ikat sirah
• Batré Alkali AA
• Replacement O-Ring
• Instruksi Manual

Disetél

Pamasangan batré

1. Unscrew the tail cap of the headlamp counter-clockwise to open the battery compartment.
2. Insert one AA battery (Alkaline, Ni-MH, or Li-ion 1.5V) with the positive (+) terminal facing towards the head of the lamp.
3. Screw the tail cap back on clockwise until it is fully tightened. Ensure the O-ring is properly seated to maintain water resistance.

The Fenix HM23 V2.0 headlamp with its battery compartment open, revealing the AA battery slot. This image illustrates the easy access for battery replacement.

Kantétan Headband

Headlétamp can be easily attached to or detached from the included headband. Slide the headlamp into the bracket on the headband until it clicks securely into place. To detach, press the release tab on the bracket and slide the headlamp kaluar.

Pilihan Pamasangan

The Fenix HM23 V2.0 features a quick-release design and a dual-function pocket clip, allowing it to be used in various ways:

• Headlamp: Attached to the headband for hands-free illumination.
• Right-Angle Flashlight: Detached from the headband and used as a compact handheld light.
• Pocket/Gear Clip: The integrated body clip allows attachment to pockets, backpack straps, or other gear.
• Buntut Magnét: The magnetic base allows the headlamp to be securely attached to metal surfaces for hands-free work.

Examples of the Fenix HM23 V2.0 headlamp's versatile mounting options: securely attached to a backpack strap and conveniently clipped to a shirt pocket, demonstrating its hands-free capabilities.

Parentah Operasi

The Fenix HM23 V2.0 is operated by a single large button switch located on the side of the headlamp.

Daya Hurung/Pareuman

• Pikeun Ngahurungkeun: Press and hold the switch for 0.5 seconds. The headlamp will activate in the last used white light mode.
• Pareuman: Pencét jeung tahan switch pikeun 0.5 detik.

Modeu Lampu Bodas

Nalika headlamp is on, single-click the switch to cycle through the white light modes: Low → Med → High.

Modeu Lampu Beureum

Nalika headlamp is switched off, double-click the switch within 0.5 seconds to activate the red light mode. Single-click to cycle between Red Constant-on → Red Flash.

Mode Mémori

Headlétamp remembers the last selected white light output level. When turned on again, it will activate in that mode. The red light modes do not have a memory function; it will always start in Red Constant-on when activated.

Sudut Beam adjustable

Headlétamp features a 150-degree adjustable beam angle, allowing you to direct the light precisely where needed. Simply tilt the headlamp body up or down within its bracket.

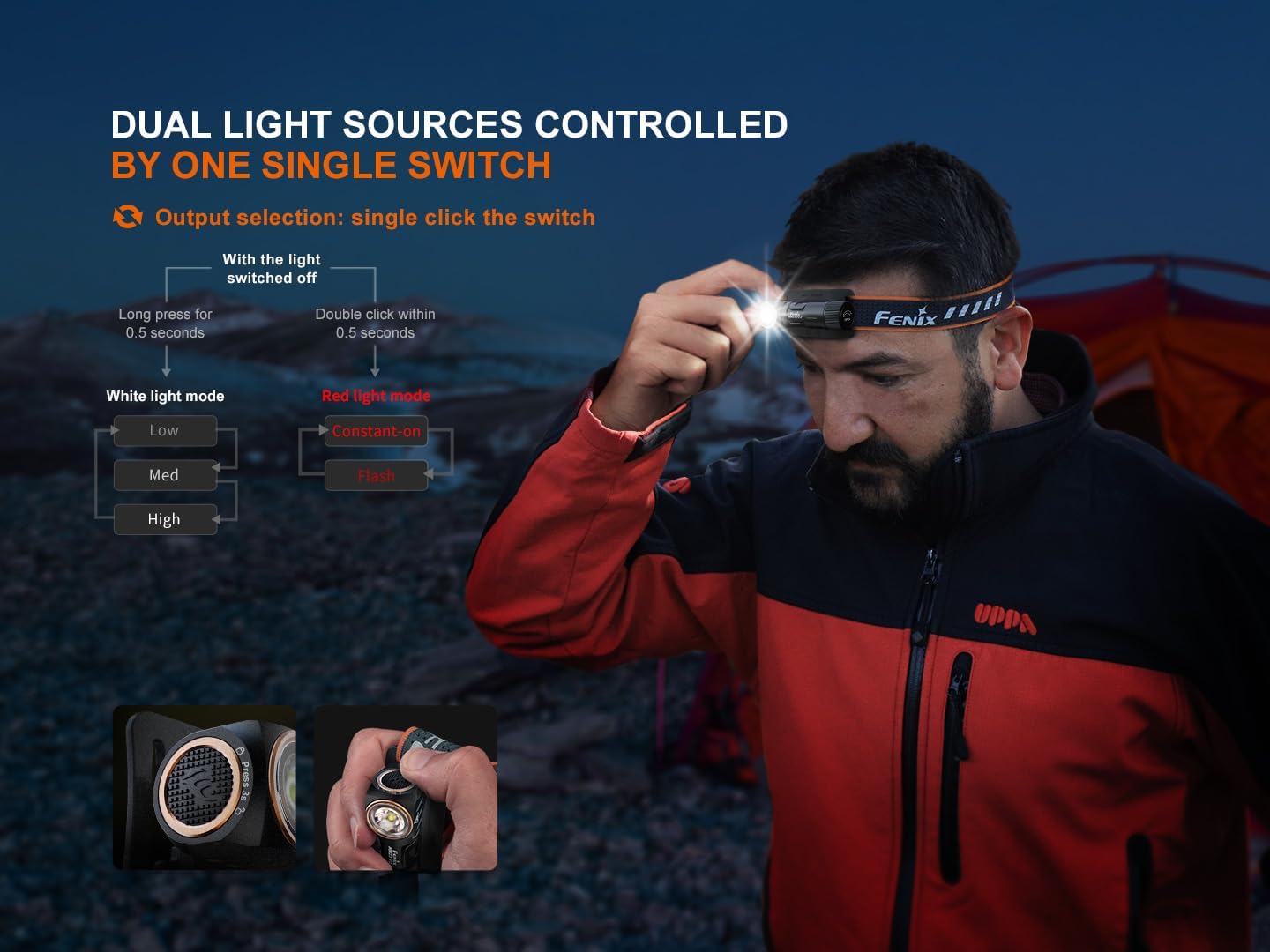

An illustration demonstrating the single-button operation of the Fenix HM23 V2.0 headlamp, detailing how to access white light modes (Low, Med, High) and red light modes (Constant-on, Flash) through long presses and double clicks.

Pangropéa

• beberesih: Periodically clean the headlamp body with a soft cloth. For stubborn dirt, use a mild detergent.
• Pangropéa O-Ring: Inspect the O-ring regularly for wear and tear. Replace it if damaged to maintain the IP68 waterproof rating. Lubricate the O-ring with silicone grease as needed.
• Perawatan batré: Cabut batré lamun headlamp will not be used for an extended period to prevent leakage. Store batteries in a cool, dry place.
• Thread Cleaning: Clean the threads of the tail cap and battery compartment regularly to ensure good electrical contact and smooth operation.

Pamérésan masalah

If your Fenix HM23 V2.0 headlamp is not functioning correctly, please try the following steps:

• Headlamp teu hurung:
  • Pariksa naha batréna dipasang kalayan leres kalayan terminal positif (+) ngadep ka sirah.
  • Ensure the battery has sufficient charge. Try replacing it with a new or fully charged battery.
  • Confirm the tail cap is fully tightened to ensure proper electrical contact.
  • Bersihkeun kontak sareng ulir batré nganggo lawon bersih.
• Light output is dim or flickers:
  • Batréna meureun lemah. Ganti atanapi isi ulang batréna.
  • Pastikeun kontak batré beresih jeung bebas tina korosi.
• asupan cai:
  • Check the O-ring for damage or improper seating. Replace or reposition as necessary.
  • Pastikeun cap buntut sapinuhna pageuh.

If the problem persists after trying these steps, please contact Fenix customer support for further assistance.

spésifikasi

Émbaran jaminan

The Fenix HM23 V2.0 headlamp comes with a limited warranty. For detailed information regarding warranty coverage, terms, and conditions, please refer to the official Fenix website or contact your authorized Fenix dealer. Please retain your purchase receipt as proof of purchase for warranty claims.

Kontak jeung Rojongan

For further assistance, technical support, or to inquire about Fenix products, please visit the official Fenix websitus di www.fenixlight.com or contact your local Fenix distributor.
