Buku Panduan Pangguna Generator Turbin Angin Vertikal TESUP Atlas

1. Bubuka

This manual provides essential information for the safe and efficient operation of your TESUP Atlas Vertical Wind Turbine Generator. The TESUP Atlas is designed as a 10 kW wind turbine generator body, featuring an integrated IoT charge controller and the capability for hand-crank emergency power generation. Please read this manual thoroughly before installation and operation.

Catetan: Wind turbine blades are sold separately and are not included with this generator body.

2. Émbaran Kasalametan

Always prioritize safety during installation, operation, and maintenance. Failure to follow these instructions may result in injury or damage to the equipment.

• Ensure all electrical connections are made by a qualified electrician.
• Cabut sadaya sumber daya sateuacan ngalaksanakeun pangropéa atanapi pamasangan.
• Anggo alat pelindung pribadi (PPE) anu pas nalika dipasang.
• Do not operate the generator if any parts are damaged or missing.
• Jauhkeun barudak sareng jalmi anu teu sah tina unit nalika operasi.
• The hand-crank mechanism is for emergency use only.

3. Naon Kaasup

Your TESUP Atlas package includes the following components:

• TESUP Atlas Wind Turbine Generator Body (10 kW)
• Integrated IoT Charge Controller
• Hand-crank mechanism (for emergency power)

Gambar 3.1: The TESUP Atlas Wind Turbine Generator body, shown both inside its protective wooden shipping crate and as a standalone unit. The crate includes handles for transport.

4. Setup jeung Instalasi

Proper installation is crucial for the performance and longevity of your TESUP Atlas generator. This section outlines the general steps for setting up the unit. For detailed electrical wiring, consult a qualified professional.

4.1. Pamilihan Loka

Choose a location with optimal wind exposure, free from obstructions like buildings or trees that could create turbulence. Ensure the site allows for secure mounting of the generator and any associated wind turbine blades (sold separately).

4.2. Mounting the Generator

The generator body should be securely mounted to a stable structure capable of withstanding wind loads. Use appropriate fasteners for the mounting surface. The base of the generator has pre-drilled holes for attachment.

Gambar 4.1: Dimensional drawing of the TESUP Atlas generator body, indicating its length, width, height, and shaft diameter for planning installation and blade attachment.

4.3. Sambungan listrik

The TESUP Atlas features an integrated IoT charge controller for seamless integration with your home's power system. It supports both AC and DC connections and can be integrated with solar panels and other wind turbines for a comprehensive energy solution.

Gambar 4.2: Leuwihview of on-grid connection possibilities for the TESUP Atlas, demonstrating how it integrates with an inverter, home electrical system, the main grid, solar panels, and other TESUP wind turbines. Data can be monitored via the 'My TESUP App'.

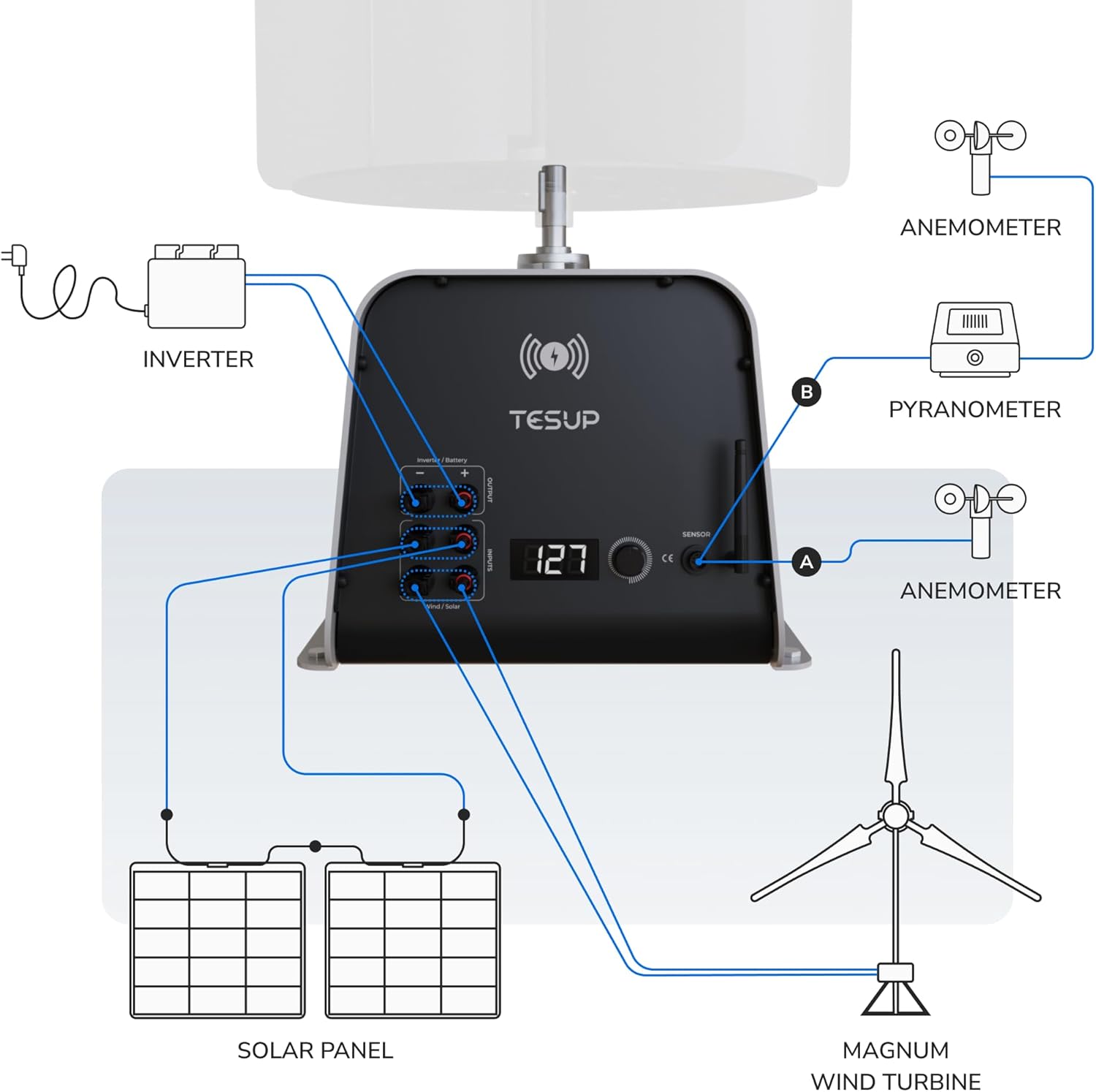

Gambar 4.3: Detailed wiring diagram for the TESUP Atlas, illustrating connections for solar panels, an additional Magnum wind turbine, and environmental sensors (anemometer and pyranometer) to optimize energy generation and monitoring.

Connect the output of the wind turbine blades (not included) to the generator shaft. Then, connect the generator's electrical output to your inverter or charge controller system as per the wiring diagrams provided and local electrical codes.

5. Parentah Operasi

5.1. Wind Power Generation

Once properly installed with compatible wind turbine blades, the TESUP Atlas will begin generating electricity when sufficient wind speeds are present. The integrated IoT controller manages the charging process and allows for remote monitoring via the TESUP mobile application.

5.2. Emergency Hand-Crank Operation

In situations where wind is not available, the TESUP Atlas can be operated manually using the integrated hand-crank mechanism to provide emergency power. This feature is designed for backup power generation during outages atanapi di lokasi terpencil.

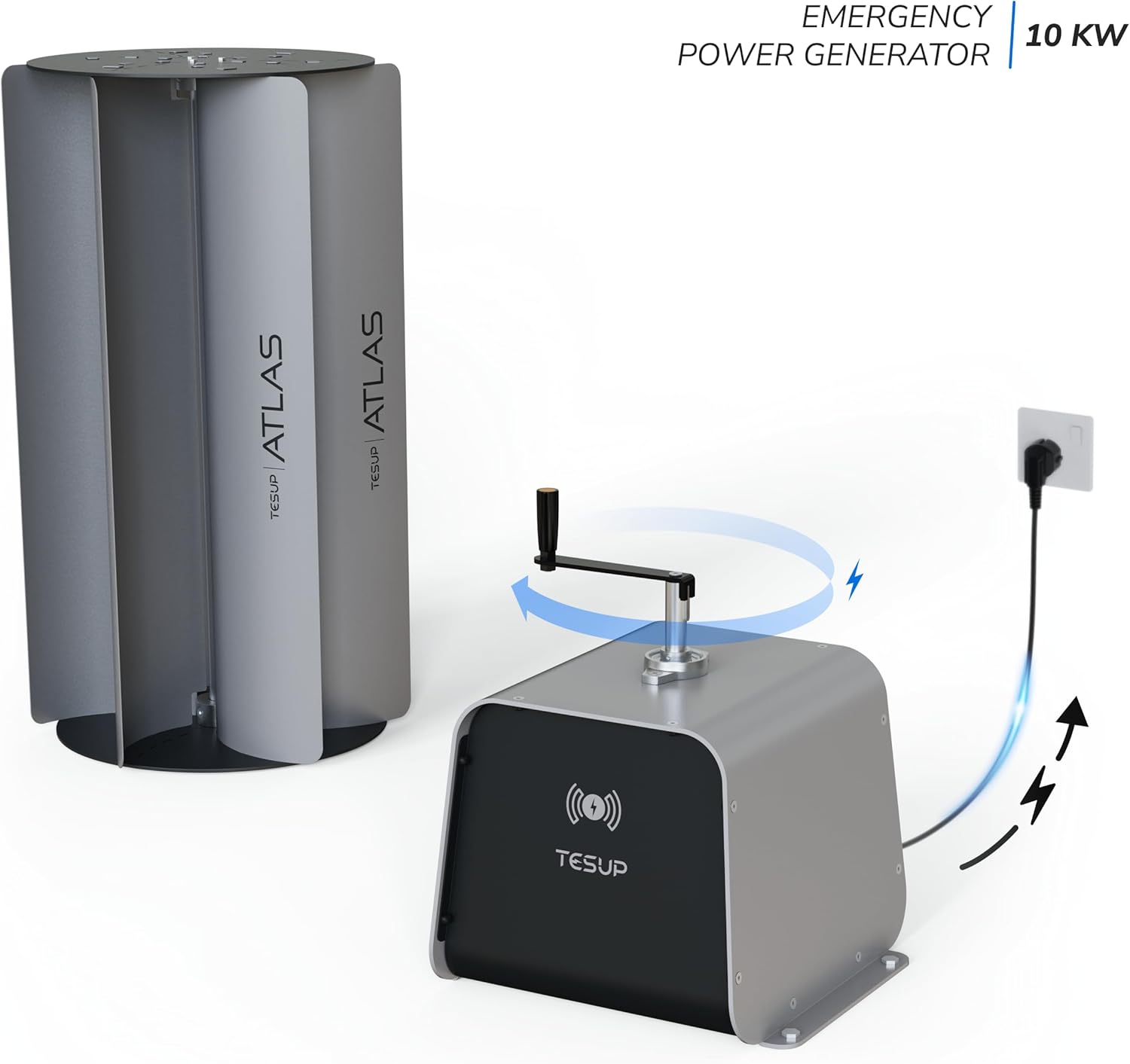

Gambar 5.1: The TESUP Atlas generator demonstrating its hand-crank emergency power capability. Turning the crank generates electricity, which can be used to power devices.

To use the hand-crank: Locate the hand-crank attachment point on the generator body. Securely attach the crank and rotate it clockwise at a consistent speed to generate power. Monitor the output display on the unit or via the app.

6. Pangropéa

Regular maintenance ensures optimal performance and extends the lifespan of your TESUP Atlas generator.

• Inspeksi périodik: Regularly inspect the generator body, mounting hardware, and electrical connections for any signs of wear, corrosion, or damage.
• beberesih: Keep the exterior of the generator clean from dust, dirt, and debris. Use a soft, damp lawon. Ulah make cleaners abrasive atawa pangleyur.
• Blade Inspection (if applicable): If using with wind turbine blades, inspect them for cracks, chips, or imbalance. Refer to the blade manufacturer's manual for specific maintenance.
• Hand-Crank Mechanism: Ensure the hand-crank mechanism operates smoothly. Lubricate moving parts if necessary with a suitable lubricant.
• Apdet parangkat lunak: Keep the IoT charge controller firmware updated via the TESUP app to ensure optimal performance and security.

7. Cara ngungkulan

If you encounter problems not listed here or if the suggested solutions do not resolve the issue, please contact TESUP customer support.

8. Spésifikasi

9. Garansi jeung Rojongan

For warranty information, technical support, or spare parts inquiries, please contact TESUP directly. Refer to the official TESUP websitus wéb atanapi dokuméntasi pameseran anjeun kanggo inpormasi kontak sareng syarat garansi anu pangénggalna.

Pabrikan: TESUP

Websitus: www.tesup.com
