Bubuka
This user manual provides essential information for the safe operation, maintenance, and troubleshooting of your NAVEE V50 Electric Scooter. Please read this manual thoroughly before using the scooter to ensure proper function and to maximize your riding experience.
The NAVEE V50 Electric Scooter is designed for adult commuters, offering a powerful 700W motor, a maximum speed of 20 MPH, and a range of up to 31 miles. It features 10-inch pneumatic tires for various road conditions, a dual brake system for enhanced safety, and a foldable design for convenient storage and transport.
Gambar: Leuwihview of the NAVEE V50 Electric Scooter highlighting its 700W max power, 31 miles range, 10-inch pneumatic tires, innovative suspended display, dual brake system, IP55 waterproof rating, 20% incline capability, double rotation folding, smart app control, and auto-sensing headlight.
Émbaran Kasalametan
Your safety is paramount. Always wear a helmet and appropriate protective gear when riding. Adhere to local laws and regulations regarding electric scooter usage.
- The NAVEE V50 has passed stringent UL 2272 testing, ensuring a high standard of safety.
- Always perform a pre-ride check, including brakes, tires, and battery level.
- Avoid riding in heavy rain or through deep puddles, despite the IP55 waterproof rating.
- Ulah ngaleuwihan kapasitas beban maksimum 265 lbs (120 kg).
- Jaga jarak anu aman tina kendaraan sareng pejalan kaki sanés.
Setup sareng Majelis
The NAVEE V50 Electric Scooter comes largely pre-assembled. Follow these steps for initial setup:
- Unfolding Scooter nu: Angkat gagang stang kalayan ati-ati dugi ka konci dina tempatna. Pastikeun mékanisme tilepan parantos dikunci pageuh.
Image: The NAVEE V50 Electric Scooter demonstrating its innovative folding design, showing how it can be compactly stored and transported, including examples of storage in a car trunk and being carried by hand.
- Setang adjustment: The handlebar features an adjustable design. Adjust it to a comfortable height for your riding posture.
Image: The NAVEE V50 Electric Scooter showcasing its lightweight and adjustable handlebar design, illustrating how the handlebar can be folded down for compact storage.
- Ngecas awal: Before first use, fully charge the scooter's battery. Connect the adapter to the charging port, typically located at the front-positioned charging port on the deck. The LED indicator on the charger will change when fully charged.

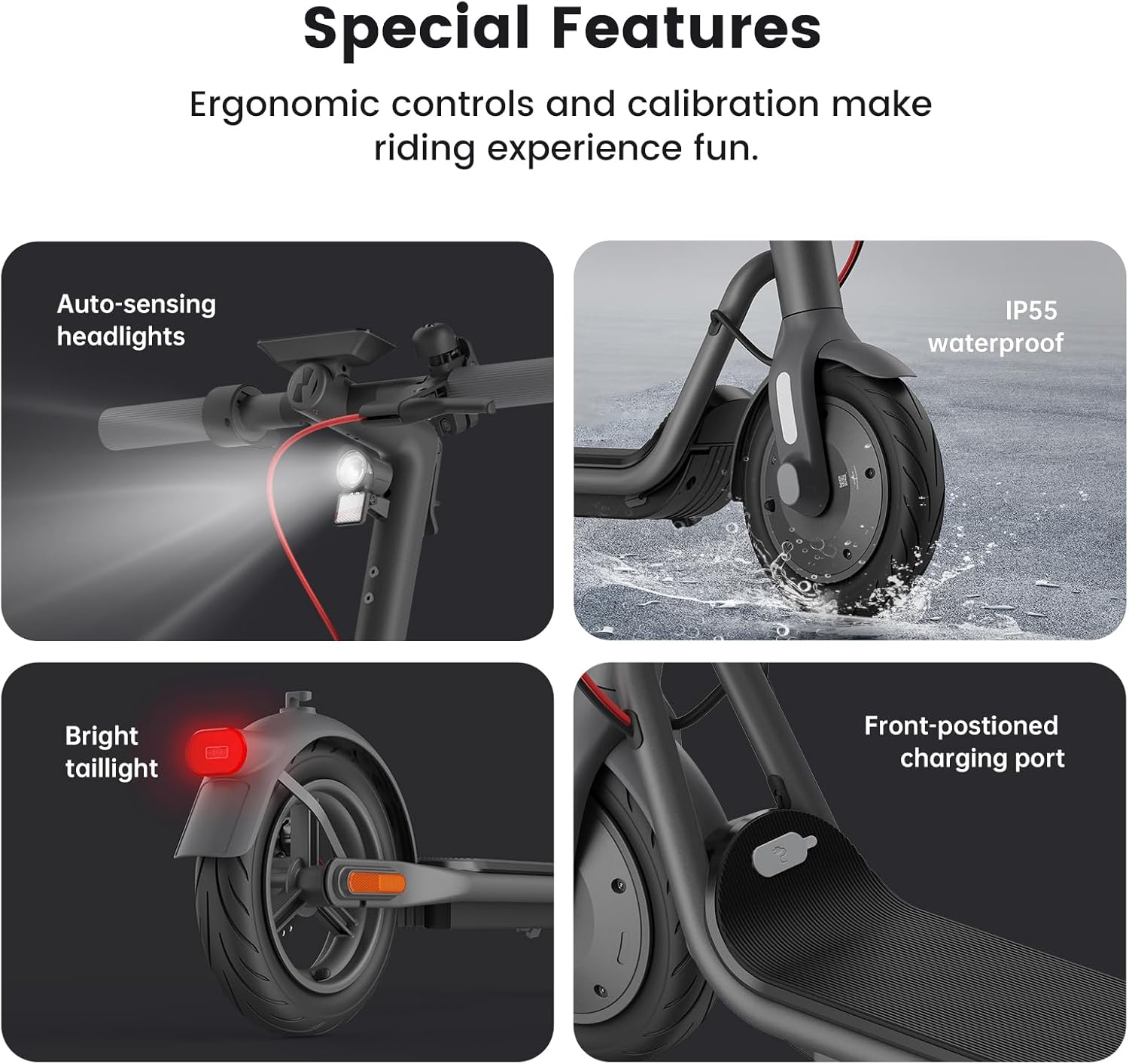

Gambar: Detil view of the NAVEE V50 Electric Scooter's special features, including the auto-sensing headlights, bright taillight, IP55 waterproof rating, and the front-positioned charging port.
- Sambungan Aplikasi: Download the official NAVEE app from your smartphone's app store. Follow the in-app instructions to pair your scooter. The app allows for electric lock, taillight control, automatic sensor-controlled headlamp, energy recovery level adjustment, and real-time data display.
Image: The NAVEE V50 Electric Scooter displayed alongside a smartphone screen showing the NAVEE app interface, which provides real-time speed, battery life, and other vehicle status information.
Parentah Operasi
Ngahurungkeun/Pareuman
Press and hold the power button on the handlebar to turn the scooter on or off. The LED display will illuminate upon power-on.
Numpak Scooter
- dimimitian: Place one foot on the deck and push off with the other foot to gain initial momentum. Once moving, press the accelerator to engage the motor.
- Modeu Laju: The scooter typically has multiple speed modes (e.g., Eco, Standard, Sport). Use the mode button on the handlebar to switch between them. The V50 can reach a maximum speed of 20 MPH (32 km/h).
- ngerem: The V50 features a high-efficiency dual brake system. Apply both the electronic brake (via accelerator lever) and the mechanical disc brake (via brake lever) simultaneously for effective stopping.
- Lampu hareup jeung lampu tukang: The 1.9W auto-sensing headlight automatically adjusts to ambient light conditions. The bright taillight enhances visibility from the rear.
Gambar: A close-up view of the NAVEE V50 Electric Scooter's handlebar, showing the integrated LED display, controls, and grips.
Image: The front of the NAVEE V50 Electric Scooter with its auto-sensing headlight illuminated, demonstrating its visibility feature.
Image: The rear of the NAVEE V50 Electric Scooter with its bright taillight illuminated, enhancing safety and visibility from behind.
Pangropéa
Pangropéa rutin ngajamin umur panjang sareng kinerja optimal skuter anjeun.
- Tekanan Ban: Check the pressure of the 10-inch pneumatic tires regularly. Proper inflation improves ride quality and range. Refer to the tire sidewall for recommended pressure.
- Sistem rem: Inspect brake levers and cables for proper tension and function. Ensure brake pads are not excessively worn.
- beberesih: Ngusap handap Scooter kalawan iklanamp lawon. Ulah nganggo semprotan cai tekanan tinggi langsung kana komponén éléktronik.
- Perawatan batré:
- Ngecas batré sapinuhna saméméh neundeun jangka panjang.
- Store the scooter in a cool, dry place.
- Hindarkeun batréna lengkep sateuacan ngecas.
- Pengikat: Periodically check all screws and bolts for tightness, especially on the folding mechanism and wheels.
Image: The NAVEE V50 Electric Scooter's 10-inch pneumatic tires are shown easily tackling different road conditions, including speed bumps and wet surfaces, demonstrating their obstacle-surpassing ability and IP55 waterproof design.
Pamérésan masalah
This section addresses common issues you might encounter with your NAVEE V50 Electric Scooter.
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Scooter teu daya on. | batré lemah; sambungan leupas; tombol kakuatan gangguan. | Charge the battery fully. Check all visible cable connections. If issue persists, contact support. |
| Ngurangan rentang atawa speed. | Low tire pressure; heavy load; riding uphill; cold weather; battery degradation. | Inflate tires to recommended pressure. Reduce load. Battery performance can be affected by temperature. |
| Brakes feel weak or squeaky. | Worn brake pads; loose brake cable; disc contamination. | Inspect brake pads for wear and replace if necessary. Adjust brake cable tension. Clean brake disc with rubbing alcohol. |
| Masalah sambungan aplikasi. | Bluetooth off; app outdated; scooter not in pairing mode. | Ensure Bluetooth is enabled on your device. Update the app. Restart both scooter and phone. |
For issues not listed here, or if solutions do not resolve the problem, please contact NAVEE customer support.
spésifikasi
| Fitur | Rincian |
|---|---|
| Modél | V50 (NKT2211-D32) |
| Daya Motor | 700W (Kakuatan Maks) |
| Max Speed | 20 MPH (approx. 32 km/h) |
| Béntang Max | Up to 31 Miles (approx. 50 km) |
| Batré | 36V 374Wh Lithium Ion (included) |
| Ban | 10-inch Pneumatic (front and rear) |
| Tipe marake | Sistim marake ganda |
| Max Beban Kamampuh | 120 Kilogram (265 lbs) |
| Ukuran produk (dilipat) | 114L x 57.1W x 118.9H Centimetres (approx. 45.0L x 22.5W x 46.8H inches) |
| Item Beurat | 18.3 kg (kira-kira 40.3 lbs) |
| Bahan Pigura | alumunium |
| Peunteun waterproof | IP55 |
| Fitur husus | Anti-Puncture Tire, Dual Braking System, Foldable, Lightweight, Wide Platform, Auto-sensing Headlight, App Control |
Image: Diagram illustrating the key dimensions of the NAVEE V50 Electric Scooter, including height, length, handlebar width, and deck width.
Garansi sareng Rojongan
NAVEE offers a professional warranty and support for the V50 Electric Scooter:
- Garansi: One year or 180 days warranty on different parts. Please refer to the detailed warranty policy provided with your purchase for specific terms and conditions.
- Jaminan Uang Balik: 30-dinten duit deui jaminan.
- Palayanan palanggan: CA-based professional 24-hour online service is available for assistance.
For technical support, warranty claims, or any inquiries, please refer to the contact information provided in your product packaging or visit the official NAVEE websitus.
Catetan penting
- Test data for range is based on specific conditions (e.g., 15 km/h for 50 km range). Actual range may vary based on rider weight, terrain, speed, and temperature.
- The scooter supports AirTag hidden tracking (AirTag henteu kalebet).
Sumberdaya Video
Currently, there are no official seller videos available for embedding in this manual. Please refer to the manufacturer's official websitus atanapi saluran dukungan pikeun tutorial pidéo atanapi demonstrasi anu sayogi.
