Bosch SMS4EVW08E Series 4 Freestanding Dishwasher User Manual

1. Bubuka jeung Leuwihview

This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Bosch SMS4EVW08E Series 4 Freestanding Dishwasher. Please read these instructions carefully before using the appliance for the first time.

The Bosch SMS4EVW08E is a 60 cm freestanding dishwasher designed for optimal cleaning performance and user convenience. Key features include Home Connect for remote control and diagnostics, EfficientDry for enhanced drying results, and a Washing Assistant for program selection.

Image: The Bosch SMS4EVW08E Series 4 freestanding dishwasher, white, positioned in a modern kitchen setting next to a sink and wooden countertop.

2. Émbaran Kasalametan

Salawasna taat kana tungtunan kaamanan di handap pikeun nyegah tatu pribadi atawa ruksakna alat.

• Kasalametan listrik: Ensure the dishwasher is properly grounded and connected to a suitable power supply as specified in the technical data. Do not use extension cords.
• Sambungan cai: Connect the water inlet and outlet hoses securely to prevent leaks. Do not reuse old hoses.
• Kasalametan Anak: Keep children away from the dishwasher, especially when it is operating or when the door is open, as residual detergent may be present.
• Detergent jeung bilas bantuan: Store detergents and rinse aids out of reach of children. Use only dishwasher-specific products.
• Objék seukeut: Load sharp items (knives, forks) with the sharp end pointing downwards in the cutlery basket or horizontally in the cutlery drawer to avoid injury.
• Stabilitas Alat: Ensure the freestanding appliance is stable and level to prevent tipping.

3. Setup jeung Instalasi

The Bosch SMS4EVW08E is a freestanding model, designed for easy placement in your kitchen. Follow these steps for proper installation:

1. Ngabongkar bungkusan: Carefully remove all packaging materials. Inspect the dishwasher for any transport damage.
2. Posisi: Place the dishwasher on a firm, level surface. Adjust the feet to ensure stability and proper leveling. The dimensions are approximately 60D x 60B x 84H centimeters.
3. Sambungan suplai cai: Sambungkeun selang asupan cai kana keran cai tiis nganggo ulir 3/4 inci. Pastikeun sambunganna pageuh pikeun nyegah bocor.
4. Sambungan drainase: Connect the drain hose to a suitable drain pipe or sink trap. Ensure the hose is not kinked and is positioned at the correct height to allow proper drainage.
5. Sambungan listrik: Plug the dishwasher into a grounded electrical outlet (240 Volt). Do not use adapters or extension cords.

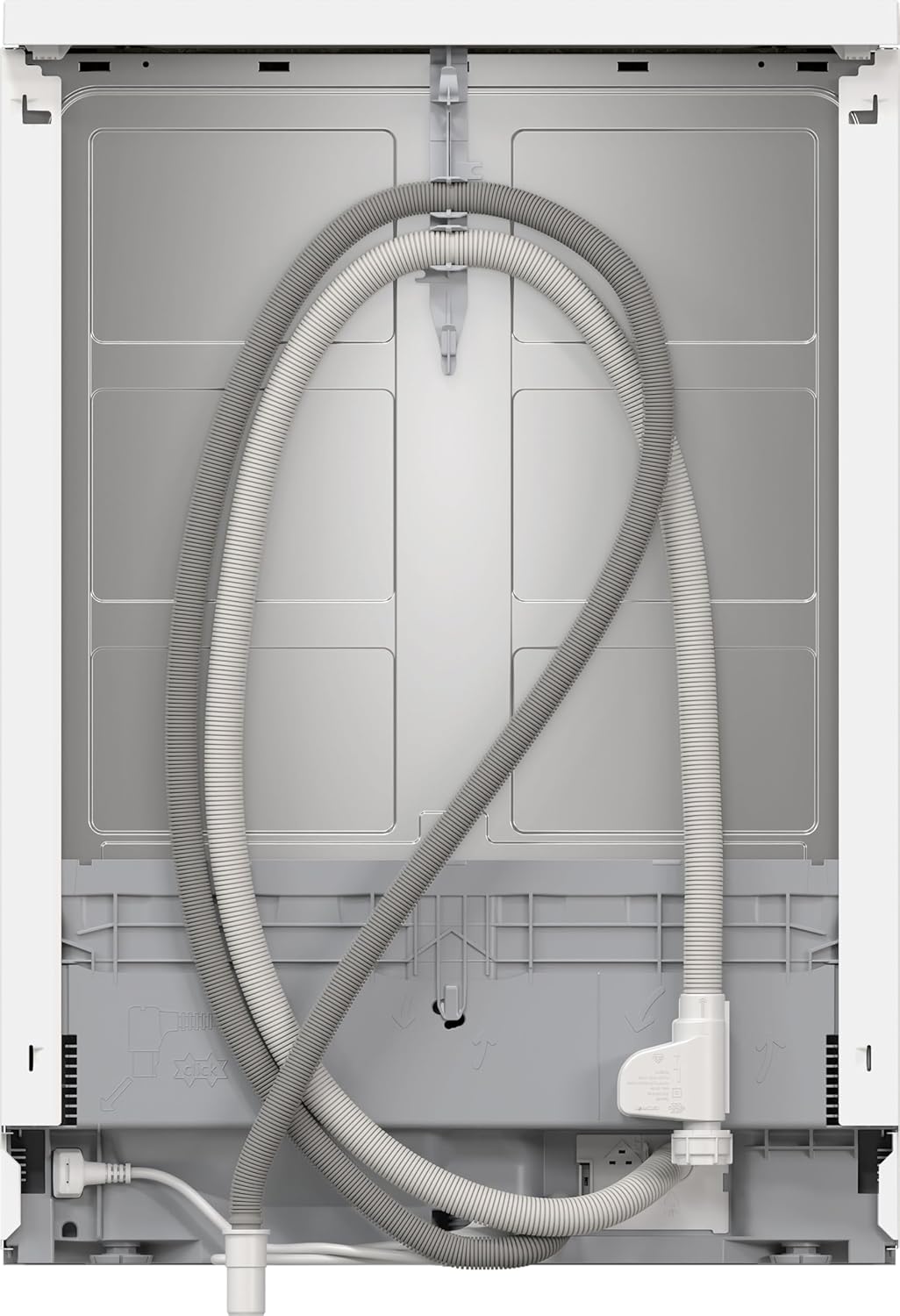

Gambar: Tukangeun view of the Bosch SMS4EVW08E dishwasher, illustrating the proper connection of the water inlet and drain hoses.

4. Parentah Operasi

Your Bosch SMS4EVW08E dishwasher offers a range of programs and features for efficient dishwashing.

4.1. Loading dishwasher nu

Beban anu leres mastikeun hasil beberesih sareng pangeringan anu optimal.

• Laci Sendok: Place cutlery individually in the top drawer to prevent nesting and ensure thorough cleaning.

Image: The top cutlery drawer of the Bosch dishwasher, showing various utensils neatly arranged for washing.

• Karanjang luhur: Ideal for glasses, cups, and small plates. The upper basket is height-adjustable (Rackmatic) to accommodate taller items in the lower basket.

Image: The upper basket of the Bosch dishwasher, loaded with glasses, cups, and small plates, demonstrating its capacity and arrangement.

• Gorobag handap: Suitable for larger items such as dinner plates, pots, and pans.

Image: The lower basket of the Bosch dishwasher, filled with dinner plates, showcasing its capacity for larger items.

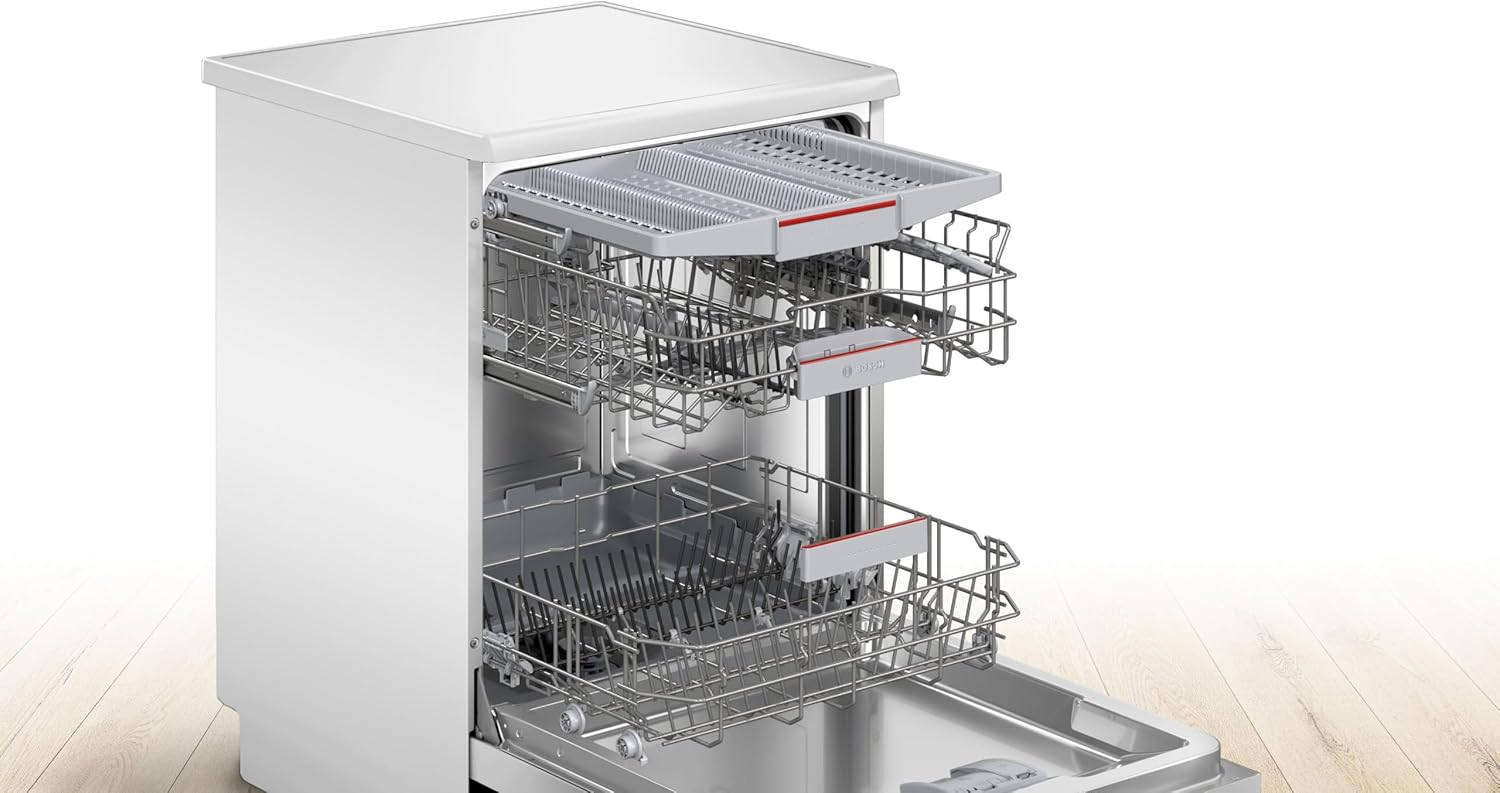

Gambar: Hiji interior view of the Bosch dishwasher with both the upper and lower baskets pulled out, illustrating the full loading capacity.

4.2. Nambahkeun Detergent jeung bilas bantuan

Open the detergent dispenser and add the recommended amount of dishwasher detergent. If using a tablet, place it in the designated compartment. Ensure the rinse aid dispenser is filled for optimal drying and shine.

Image: Close-up of the detergent dispenser in the Bosch dishwasher, showing a dishwasher tablet and the compartment for liquid rinse aid.

4.3. Program Selection and Start

Select one of the available programs using the control panel. The dishwasher offers 6 cycle options, including Eco, Automatic, Intensive, and Quick Wash. Press the 'Start' button to begin the cycle.

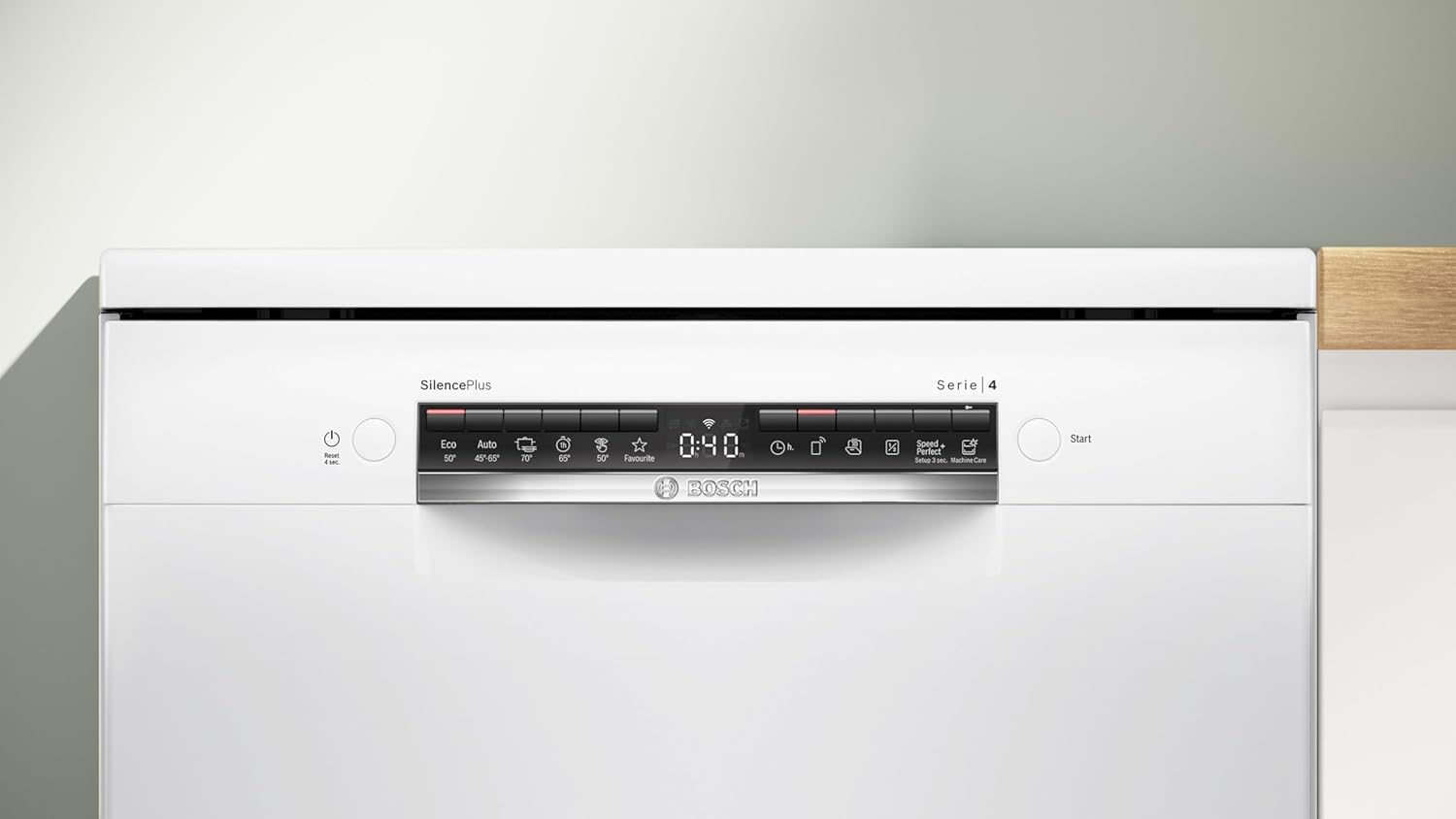

Image: The control panel of the Bosch SMS4EVW08E dishwasher, displaying program options and digital timer.

4.4. Fitur husus

• Sambungkeun imah: Control your dishwasher remotely, access the digital manual, and receive useful tips via the Home Connect app on your smartphone.
• EfisiénGering: The dishwasher door automatically opens at the end of the cycle to enhance the drying process. This feature can be deactivated if desired.
• Unduh Program: Access and download additional washing programs through the Home Connect app.
• Asisten cuci: Answer a few simple questions in the Home Connect app to receive recommendations for the most suitable washing program.

5. Pangropéa

Pangropéa rutin ngajamin umur panjang sareng kinerja optimal mesin pencuci piring anjeun.

• Saringan beberesih: Regularly check and clean the filter system at the bottom of the dishwasher to remove food particles and debris.
• Panangan Semprot beberesih: Pastikeun nozzles panangan semprot teu diblokir. Cabut sareng bersihkeun upami diperyogikeun.
• Bersihan Luar: Ngusap permukaan luar kalayan lemes, damp lawon. Ulah make cleaners abrasive.
• Salt and Rinse Aid Refill: Monitor the indicator lights for salt and rinse aid and refill as needed.

6. Cara ngungkulan

If you encounter issues with your dishwasher, refer to the following common problems and solutions. For more complex issues, consult the Home Connect app for remote diagnostics or contact customer support.

• Piring anu teu beresih: Check filter cleanliness, ensure spray arms are not blocked, verify proper loading, and confirm sufficient detergent and rinse aid.
• Cai henteu ngocor: Inspect the drain hose for kinks or blockages. Clean the filter system.
• Mesin cuci piring teu tiasa dihurungkeun: Ensure the door is fully closed and latched. Check power supply and circuit breaker.
• Sora anu teu biasa: Check for foreign objects in the pump area or spray arms. Ensure dishes are not obstructing rotation.

7. Spésifikasi

Detailed technical specifications for the Bosch SMS4EVW08E Series 4 Dishwasher:

7.1. Energy Label

Image: The EU Energy Label for the Bosch SMS4EVW08E dishwasher, showing energy efficiency class B, 65 kWh/100 cycles, 14 place settings, 9.0 L water, 44 dB noise, and a program duration of 3:55.

Pikeun langkung rinci, tingal pangkalan data EPREL resmi: https://eprel.ec.europa.eu/qr/1935622

8. Garansi

Your Bosch SMS4EVW08E dishwasher comes with a minimum Garansi produsén 24 bulan. Please retain your proof of purchase for warranty claims. For specific terms and conditions, refer to the warranty documentation provided with your appliance or contact Bosch customer support.

9. Rojongan

For technical assistance, spare parts, or further inquiries, please contact Bosch customer support:

• Surélék: bosch-infoteam@bshg.com
• Telepon: +49 89 69 339 339
• Websitus: www.bsh-group.com

You can also find additional information and support on the Bosch Home Connect websitus: www.bosch-home.com/energylabel
