vretti P83 A4 Wireless Thermal Printer User Manual

1. Bubuka

Thank you for choosing the vretti P83 A4 Wireless Thermal Printer. This compact and portable printer is designed for convenience, offering high-quality, inkless printing on the go. It supports various paper sizes and connects seamlessly via Bluetooth to your mobile devices (iOS/Android) and via USB to your computers (Windows/Mac OS). This manual provides detailed instructions to help you set up, operate, and maintain your printer for optimal performance.

Image: The vretti P83 A4 Wireless Thermal Printer, a compact and portable device.

2. Fitur Produk

• Kompak sareng Portabel: Weighing only 0.63 kg (1.39 lbs) and with dimensions of 27.1 x 11.9 x 6.9 cm, the P83 is designed for easy transport and use anywhere.
• Inkless Thermal Printing: Utilizes advanced thermal printing technology, eliminating the need for ink cartridges, toner, or ribbons. This ensures clean, hassle-free printing without clogs or spills.
• kasaluyuan luhur: Connects wirelessly via Bluetooth to iOS and Android smartphones using the "Xlife Pro" app. Also supports USB connection for Windows and Mac OS computers.
• Kualitas Cetak Luhur: Features a 300 DPI resolution, delivering crisp, clear text and graphics for professional-looking documents.
• Batré awét: Equipped with a built-in 2600 mAh battery, providing extended usage for all-day printing needs.
• Versatile Paper Support: Compatible with thermal paper rolls and continuous thermal paper, supporting various sizes including A4, B5, A5, 110mm, 80mm, and 53mm.

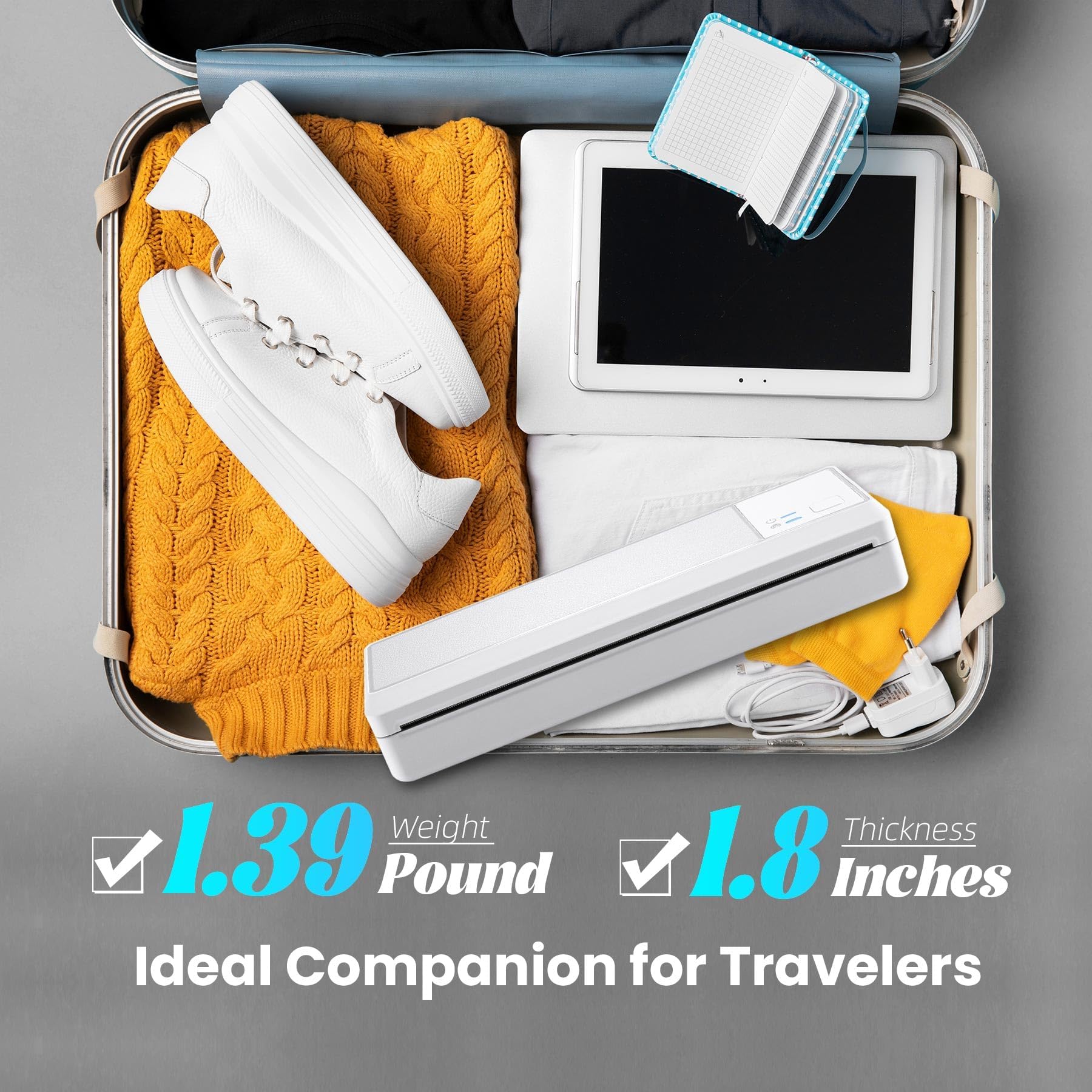

Image: The vretti P83 printer fits easily into a travel bag, demonstrating its compact size and light weight (1.39 pounds).

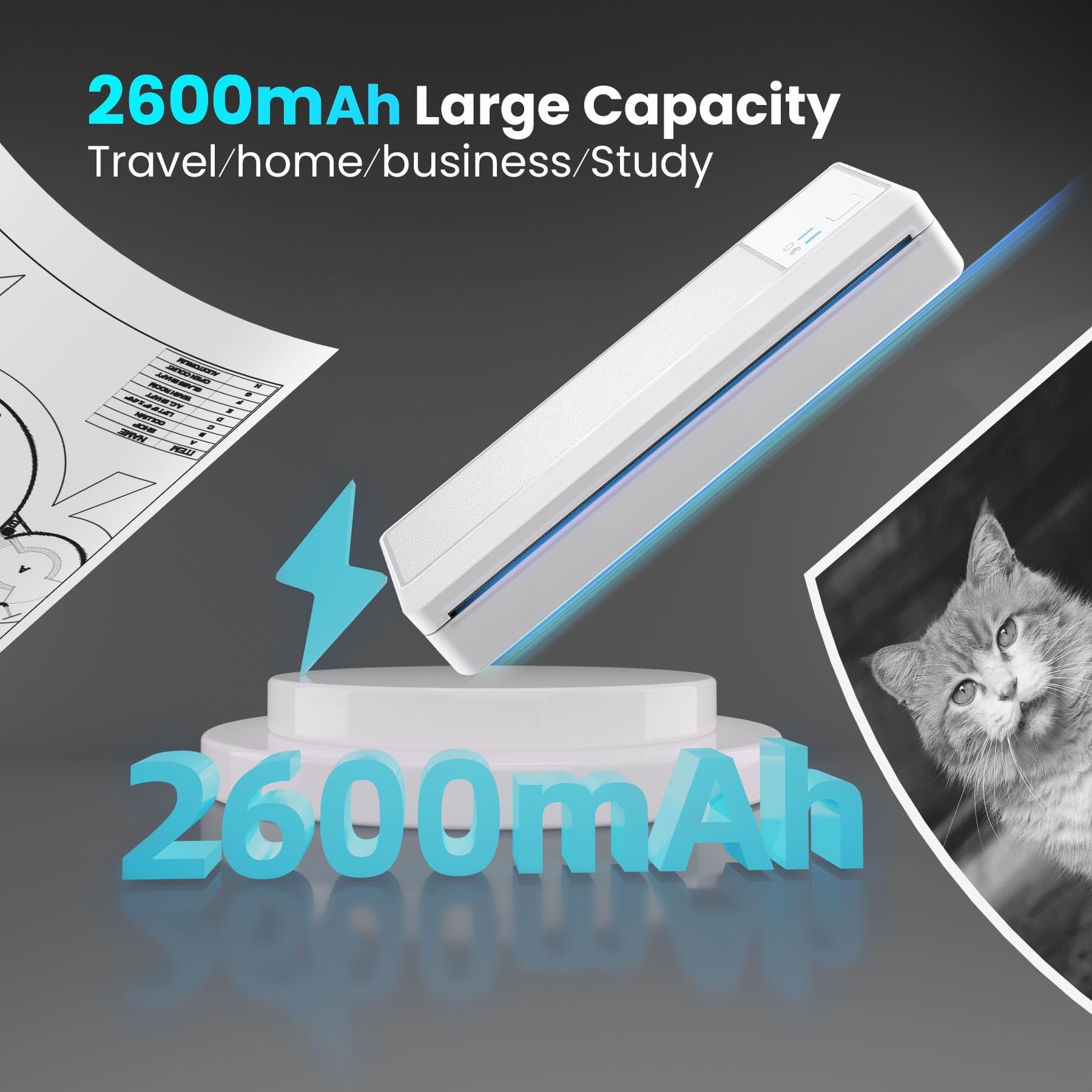

Image: The vretti P83 printer features a 2600mAh large capacity battery, ideal for travel, home, business, and study.

3. Eusi Paket

Mangga parios eusi pakét nalika unboxing. Lamun aya item nu leungit atawa ruksak, kontak rojongan customer.

• vretti P83 A4 Wireless Thermal Printer
• Kabel USB
• Thermal Paper Roll (starter)
• Manual pamaké

4. Setup Guide

4.1 Ngahurungkeun sareng Ngecas

1. Muatan Awal: Before first use, fully charge the printer using the provided USB cable. Connect the USB cable to the printer's charging port and a compatible USB power adapter (not included) or computer USB port. The charging indicator light will show the charging status.
2. Hurungkeun/Pareuman: Press and hold the power button for a few seconds to turn the printer on or off.

4.2 Ngamuat Thermal Paper

The vretti P83 printer supports both thermal paper rolls and continuous thermal paper. Ensure you use thermal paper as the printer does not use ink.

1. Buka panutup kompartemen kertas.
2. Insert the thermal paper roll or continuous paper, ensuring the printable side (usually smoother and brighter) faces the print head.
3. Pull out a small length of paper past the print head.
4. Tutup panutup kompartemen kertas pageuh nepi ka klik kana tempatna.

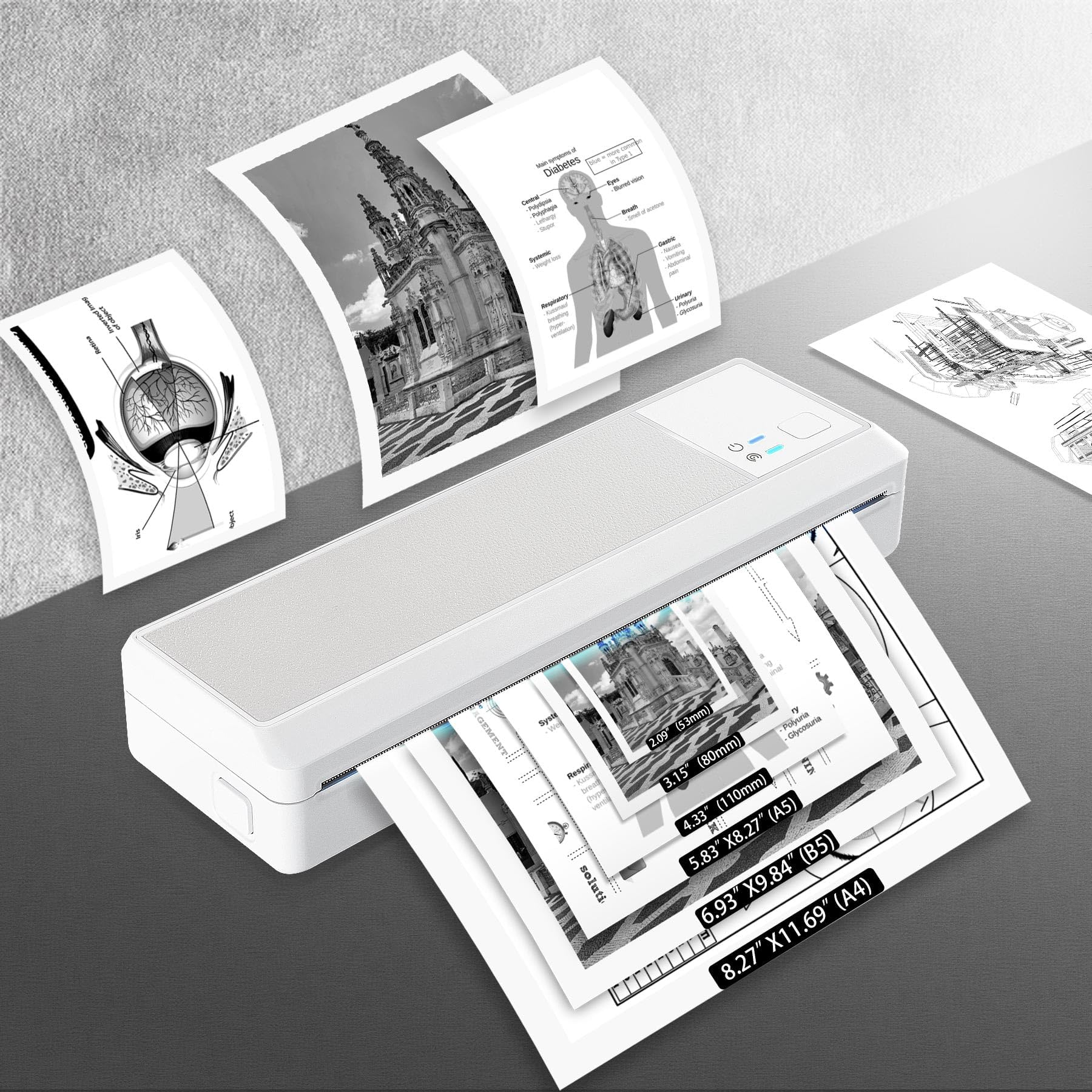

Image: The printer supports a variety of thermal paper sizes, from A4 down to smaller custom widths like 53mm.

Image: The adjustable design of the printer allows for easy loading and printing on various thermal paper sizes.

4.3 Connecting Your Printer

4.3.1 Bluetooth Connection (iOS/Android)

1. Unduh Aplikasi: Milarian pikeun "Xlife Pro" in the Apple App Store (for iOS) or Google Play Store (for Android) and install it on your smartphone.


   Image: The vretti P83 supports Bluetooth wireless printing via the Xlife Pro app, available on iOS and Android.

2. Aktipkeun Bluetooth: Ensure Bluetooth is enabled on your smartphone and the printer is powered on.
3. papasangan: Open the "Xlife Pro" app. The app will guide you through the pairing process. Select "P83" from the list of available devices.
4. Konfirmasi: Once paired, the app will indicate a successful connection.

4.3.2 USB Connection (Windows/Mac OS)

1. Sambungkeun kabel: Sambungkeun printer ka komputer Anjeun nganggo kabel USB nu disadiakeun.
2. Pamasangan supir: Your computer may automatically install the necessary drivers. If not, please visit the vretti official website to download and install the appropriate drivers for your operating system (Windows or Mac OS).
3. Setup printer: After driver installation, the printer should appear in your computer's printer settings.

Image: The vretti P83 printer supports both Bluetooth connectivity for mobile devices and USB connection for computers, offering flexible printing options.

5. Parentah Operasi

5.1 Printing from Mobile Devices (via Xlife Pro App)

1. Ensure your printer is connected via Bluetooth to your smartphone.
2. Open the "Xlife Pro" app.
3. Select the type of document you wish to print (e.g., PDF, image, web page, text).
4. Adjust print settings such as paper size, orientation, and number of copies within the app.
5. Tap the "Print" button to initiate printing.

5.2 Printing from Computers (via USB)

1. Ensure your printer is connected via USB to your computer and drivers are installed.
2. Buka dokumén atanapi gambar anu anjeun hoyong nyitak dina komputer anjeun.
3. Pindah ka "File" > "Cetak" (atanapi pencét Ctrl+P/Cmd+P).
4. Select "vretti P83" from the list of available printers.
5. Adjust print preferences as needed (e.g., paper size, quality).
6. Pencét "Citak".

Image: The vretti P83 printer delivers superior print quality with 300DPI resolution, resulting in sharper text and graphics compared to 203DPI printers.

6. Pangropéa

Proper maintenance ensures the longevity and optimal performance of your vretti P83 printer.

6.1 Ngabersihan Print Head

• Pareuman printer tur pegatkeun sambungan tina sumber kakuatan.
• Buka panutup kompartemen kertas.
• Gently wipe the print head with a soft, lint-free cloth lightly dampened with isopropyl alcohol. Do not use water or abrasive cleaners.
• Allow the print head to dry completely before closing the cover and turning the printer back on.

6.2 Perawatan sareng Panyimpenan Umum

• Keep the printer in a clean, dry environment, away from direct sunlight, extreme temperatures, and humidity.
• Hindarkeun lungsur atanapi nahan printer kana dampak anu kuat.
• Use only recommended thermal paper. Using non-thermal paper or low-quality thermal paper can damage the print head.
• When not in use for extended periods, fully charge the battery and store the printer in a cool, dry place. Recharge every 3 months to maintain battery health.

7. Cara ngungkulan

8. Spésifikasi

9. Garansi jeung Rojongan

vretti is committed to providing excellent customer service. Your vretti P83 printer comes with dedicated support to ensure your satisfaction.

9.1 Rojongan Téknis

For any questions or issues regarding your vretti P83 printer, our professional team offers lifetime technical support via email, phone, and remote control. Please refer to the contact information provided with your product packaging or on the official vretti websitus pikeun pitulung.

9.2 Émbaran jaminan

Specific warranty terms and conditions may vary by region. Please retain your proof of purchase for warranty claims. For detailed warranty information, refer to the documentation included with your product or visit the official vretti websitus.
