APPASO Touchless Kitchen Faucet Instruction Manual

1. Bubuka

Thank you for choosing the APPASO Touchless Kitchen Faucet. This manual provides detailed instructions for the installation, operation, maintenance, and troubleshooting of your new faucet. Please read this manual thoroughly before installation and retain it for future reference.

Image: APPASO Touchless Kitchen Faucet in Brushed Gold with included soap dispenser.

2. Produk Langkungview jeung Fitur

The APPASO Touchless Kitchen Faucet is designed for convenience and durability, featuring a brushed gold finish and advanced functionality.

Fitur konci:

• Operasi touchless: Wave your hand to activate/deactivate water flow. Automatic shut-off after three minutes to conserve water.
• Practical Sprayer: Three water spouting settings (streaming, spraying, brooming) for diverse cleaning needs.
• Pull-Down Hose: A 20-inch pull-out hose allows the spray head to reach all sides of the sink.
• 360° Swivel Body: Provides enhanced flexibility and convenience during use.
• Konstruksi awét: Made from stainless steel with an anti-corrosion, anti-rust, and fingerprint-proof brushed finish.
• Kartrid Keramik Premium: Tested for over 500,000 cycles, ensuring quality and durability.
• Dispenser Sabun anu kalebet: A matching soap dispenser is provided for a cohesive look.
• Manual Override: The touchless function can be switched to manual operation by detaching the sensor box.

Komponén Kaasup:

• Touchless Kitchen Faucet (Brushed Gold)
• Asesoris pamasangan
• Manual pamaké
• Weight Ball
• Dispenser sabun
• Sensor Box and Battery Box (requires 4 AA 1.5V alkaline batteries, not included)

Image: Demonstrating the touchless activation of the faucet.

Image: Visual representation of the three water outlet modes: Double Broom, Spray, and Stream.

3. Émbaran Kasalametan

• Salawasna mareuman suplai cai utama sateuacan ngamimitian pamasangan atanapi pangropéa.
• Pastikeun sadaya sambungan aman pikeun nyegah bocor.
• Use appropriate tools and follow all local plumbing and electrical codes.
• The sensor box requires 4 AA 1.5V alkaline batteries. Do not mix old and new batteries, or different types of batteries.
• Ensure the countertop is no less than 18 inches high from your cabinets if the faucet is to be installed under a cabinet.

4. Pamasangan

Pra-Pasang:

1. Pareuman suplai cai utama ka tilelep dapur anjeun.
2. Remove your old faucet and clean the mounting area.
3. Ensure your sink has 2-4 holes for proper installation.

Pasang Keran:

1. Insert the faucet body through the main hole in your sink.
2. Secure the faucet from underneath the sink using the provided mounting accessories.

Connecting Water Lines and Sensor Box:

1. Sambungkeun garis suplai cai panas jeung tiis kana inlets pakait dina keran nu.
2. Install the gravity ball onto the pull-down hose at the marked position. This ensures the spray head retracts smoothly.
3. Connect the outlet pipe to the quick connector under the touch controller.
4. Connect the top of the sensor box to the outlet pipe and tighten it.
5. Finally, connect the battery box to the sensor box. Ensure 4 AA batteries are installed in the battery box.

Image: Step-by-step diagram for installing the sensor box and connecting the battery box.

5. Operasi

Touchless Function:

• Ensure the faucet handle is in the 'on' position.
• Wave your hand gently in front of the sensor located at the base of the faucet to turn the water on or off.
• The faucet will automatically turn off after three minutes of continuous flow to prevent water waste.

Operasi manual:

• To use the faucet manually, simply use the single handle to control water flow and temperature.
• To permanently switch to manual operation, detach the sensor box and connect the hose directly.

Image: Diagram illustrating the process to switch the faucet to manual operation.

Sprayer Functions:

• The pull-down sprayer offers three modes: Stream, Spray, and Double Broom (a powerful blade-like spray). Switch between modes using the buttons on the spray head.
• The 20-inch pull-out hose and 360° swivel spout provide extensive reach and flexibility.

6. Pangropéa

beberesih:

• Bersihkeun keran sacara rutin nganggo lawon lemes sareng sabun anu hampang. Hindarkeun pembersih anu abrasif atanapi bahan kimia anu keras anu tiasa ngaruksak lapisan akhir.
• The brushed gold finish is designed to be fingerprint-proof, reducing the need for frequent cleaning.

Pangropéa Aerator:

• If water flow becomes restricted, the aerator may need cleaning. Use the provided blue key tool to detach and clean the aerator.
• An extra aerator is included for replacement if necessary.

Ngagantian batré:

• When the touchless function becomes inconsistent or stops working, it may be time to replace the 4 AA batteries in the battery box.
• Use a Phillips head screwdriver to open the battery box.

7. Cara ngungkulan

8. Spésifikasi

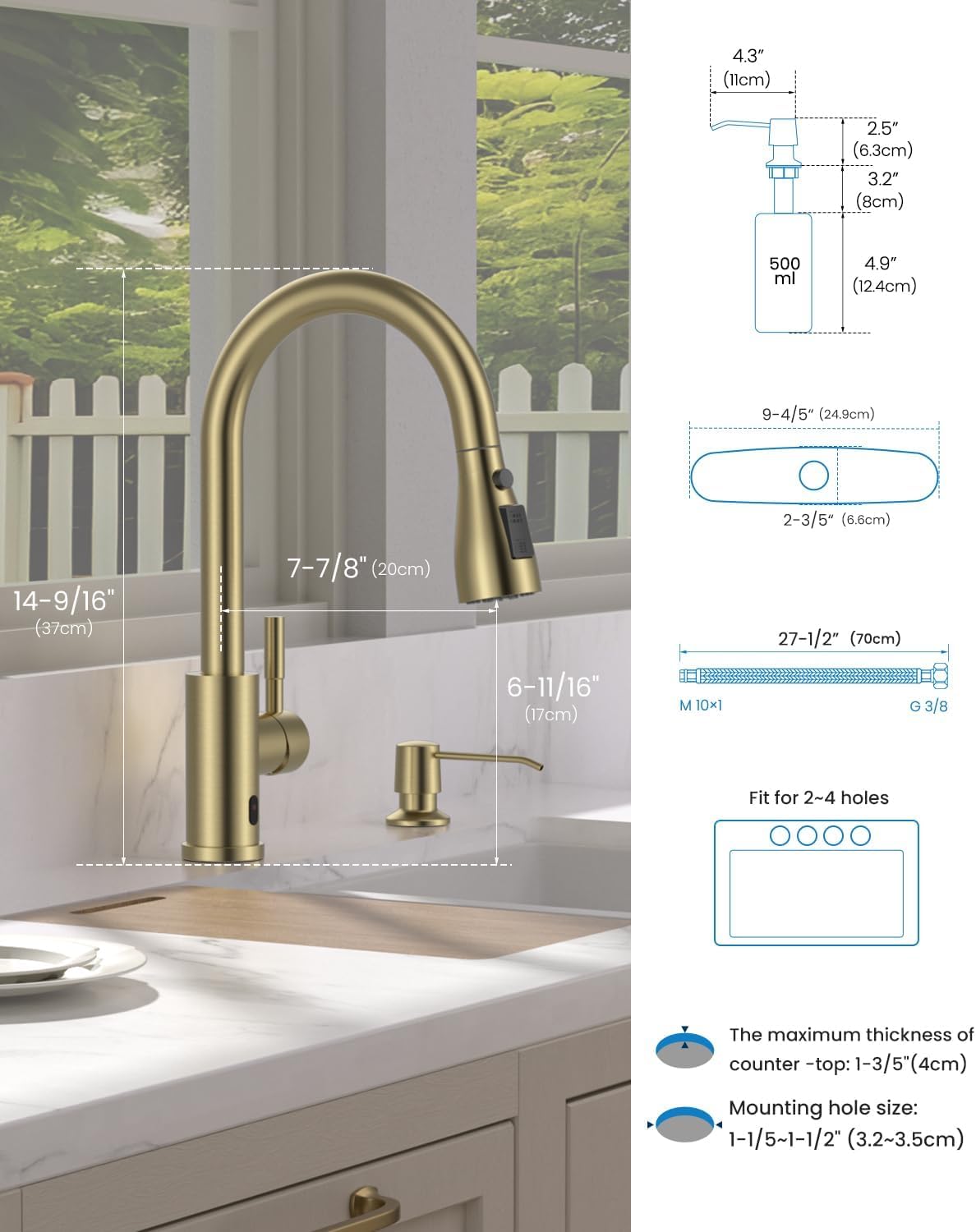

Image: Detailed dimensions for the faucet and soap dispenser, including mounting hole size and maximum countertop thickness.

9. Garansi jeung Rojongan

APPASO is dedicated to providing exceptional customer service. If you have any questions, concerns, or require support regarding your faucet, please contact the APPASO customer service team. Refer to the product packaging or the APPASO official websitus pikeun detil jaminan husus sarta informasi kontak.
