1. Bubuka
The Philips GoSure 5101 Dash Cam is designed to provide reliable and high-quality video recording for your vehicle. Equipped with a 2K QHD 1600p Sony STARVIS IMX335 sensor and a 135° wide-angle lens, it captures clear footage day and night. This manual provides detailed instructions for installation, operation, and maintenance of your dash cam.
2. Naon dina Box
Buka bungkus kotak sareng pastikeun sadaya barang aya:
- Philips GoSure 5101 Dash Camera
- Kabel Ngecas
- Cigar Jack (Car Charger)
- Manual pamaké
Image: Contents of the Philips GoSure 5101 Dash Cam box.
Video: Pra pondokview demonstrating the unboxing and contents of the Philips GoSure 5101 Dash Cam.
3. Produk Langkungview
The Philips GoSure 5101 features a compact design with a 3-inch LCD display for easy viewing and menu navigation. The main camera lens is equipped with an F2.0 aperture for optimal light capture. It includes a built-in microphone for audio recording and a USB port for power and data transfer.
Image: The Philips GoSure 5101 Dash Cam highlighting its 135-degree wide-angle lens and coverage of three lanes.
4. Pamasangan
Follow these steps for proper installation of your dash cam:
- Ngabersihan kaca hareup: Ensure the area on your windshield where the dash cam will be mounted is clean and dry.
- Pasang Gunung: Remove the protective film from the detachable adhesive base of the mount. Firmly press the mount onto the chosen location on your windshield, ideally behind the rearview eunteung pikeun optimal view sareng halangan minimal.
- Pasang Dash Cam: Slide the dash cam onto the mount until it clicks into place.
- Sambungkeun Kakuatan: Connect the charging cable to the dash cam and route it along the edge of the windshield and dashboard to the cigar jack (car charger). Plug the cigar jack into your vehicle's 12V power outlet.
- Saluyukeun Sudut: Power on your vehicle to activate the dash cam. Adjust the camera angle to ensure it captures the road ahead clearly, covering the desired field of view.
Image: Demonstrating the easy installation process of the dash cam on a car windshield.
5. Setup Awal
Before first use, insert a compatible microSD card (not included) into the designated slot on the dash cam. The device supports up to 256GB microSD cards. Format the card through the dash cam's settings menu for optimal performance. The dash cam will automatically power on and off with your car's ignition.

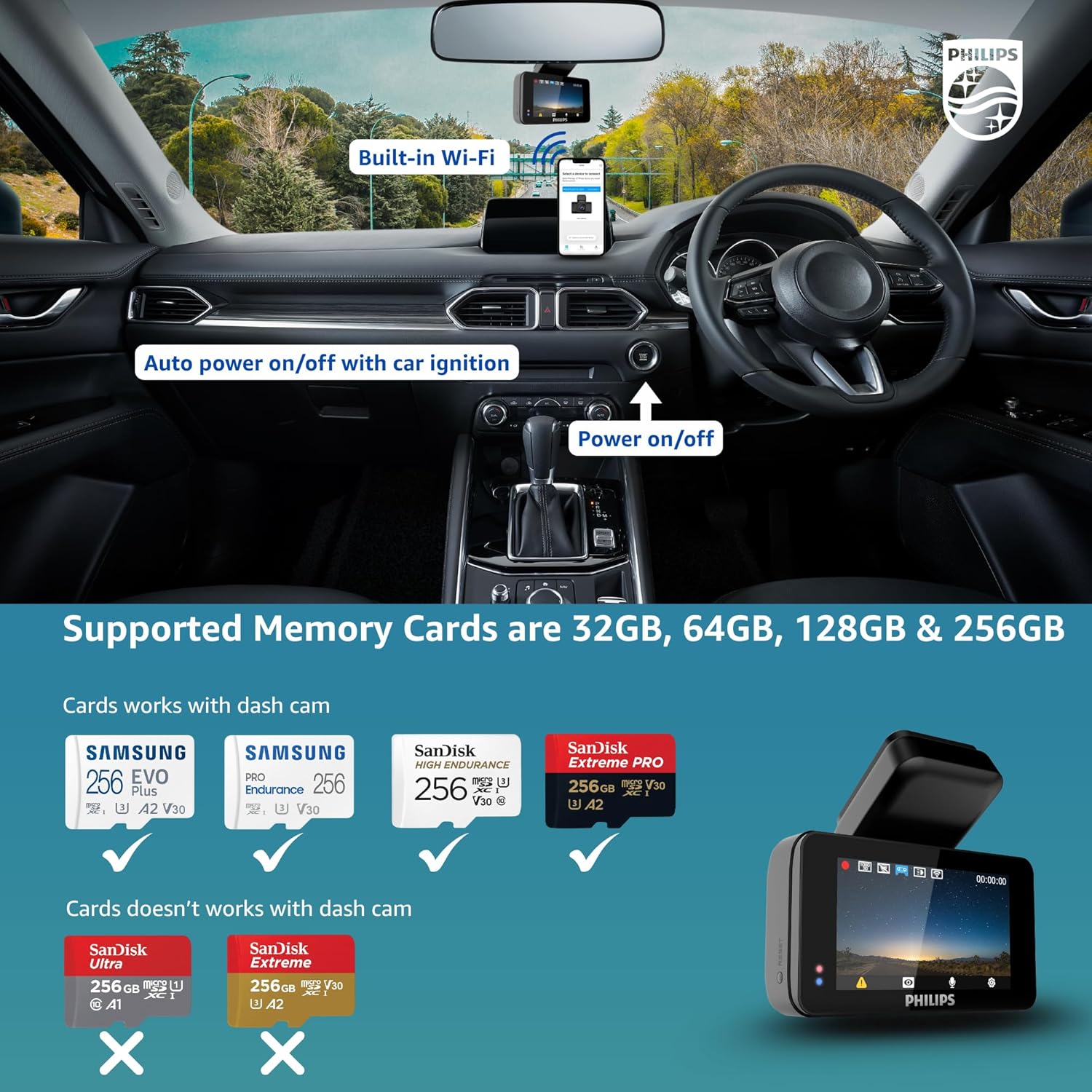

Image: Dash cam installed on a car dashboard, illustrating compatible and incompatible memory card types.
6. Parentah Operasi
6.1. Rekaman Dasar (Loop Recording)
The dash cam automatically begins recording when powered on. It uses loop recording, continuously overwriting the oldest files with new footage once the memory card is full. This ensures uninterrupted recording without manual intervention.
6.2. G-Sensor (Rekaman Darurat)
The built-in 3-axis G-Sensor detects sudden impacts or collisions. When an event is detected, the current footage is automatically locked and saved in a secure folder, preventing it from being overwritten by loop recording. This preserves crucial evidence.
Image: Dash cam in emergency recording mode, showing G-Sensor activation and app connectivity.
6.3. Wawasan Peuting
Equipped with a Sony STARVIS IMX335 sensor and Wide Dynamic Range (WDR) technology, the dash cam provides superior night vision. It enhances clarity in low-light conditions, making details like license plates more visible even at night.
Image: Night and day clarity comparison, demonstrating the dash cam's ability to capture clear license plates at night.
Image: Night vision performance with WDR, showing enhanced detail compared to an ordinary shot.
6.4. Kontrol sora
The GoSure 5101 supports voice commands for hands-free operation. You can instruct the dash cam to take a picture, lock the current video, open the recorder, or close the recorder, allowing you to focus on driving.
Image: Voice control features of the dash cam, enabling hands-free operation for various functions.
6.5. Wi-Fi Connectivity & App Usage
The dash cam features built-in Wi-Fi, allowing you to connect it to your smartphone via the GoSure Safe mobile app. The app provides a user-friendly interface to view hirup footage, download recorded videos, manage settings, and review emergency clips directly on your phone.
Image: The GoSure Safe app interface on a smartphone, showing various settings and video management options.
7. Fitur canggih
7.1. ADAS Alerts
The dash cam includes Advanced Driver-Assistance Systems (ADAS) features such as collision detection, buffered motion detection, and driver fatigue alerts to enhance driving safety.
Image: Driver safety and ADAS alerts, including collision detection and driver fatigue warning.
7.2. Temperature Resistance
The Philips GoSure 5101 is designed to operate reliably in a wide range of temperatures, from -10°C to 60°C, making it suitable for various climates.
8. Pangropéa
- beberesih: Use a soft, dry cloth to clean the camera lens and screen. Avoid abrasive cleaners.
- Kartu mémori: Regularly format your microSD card (at least once a month) to maintain optimal performance and prevent data corruption.
- Pembaruan firmware: Pariksa Philips website or the GoSure Safe app for available firmware updates to ensure your dash cam has the latest features and improvements.
9. Cara ngungkulan
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Dash cam does not power on | Teu aya catu daya; sambunganna leuleus | Check car charger connection; ensure vehicle ignition is on. |
| Rekaman eureun teu disangka-sangka | Memory card full or corrupted; incompatible memory card | Format the memory card; replace with a compatible, high-speed card. |
| Kualitas pidéo goréng | Dirty lens; incorrect resolution settings | Clean the lens; adjust video resolution in settings. |
| Masalah sambungan Wi-Fi | Incorrect password; too far from phone | Ensure correct Wi-Fi password; keep phone close to the dash cam. |
10. Spésifikasi
| Fitur | Rincian |
|---|---|
| Modél | GS5101 |
| Resolusi Capture Video | 1600p (2K QHD) |
| Sénsor Gambar | Sony STARVIS IMX335 |
| Viewdina Angle | 135 darajat |
| Ukuran tampilan | 3 inci |
| Tipe tampilan | LCD |
| Fitur husus | App Control, Built-In Display, Built-In Microphone, Built-In WiFi, G-Sensor, Loop Recording, Night Vision, Voice Control |
| Téhnologi konektipitas | Wifi |
| Compatible Media Type | MP4 |
| Tipe Mémori Flash | microSD (up to 256GB, not included) |
| Suhu Operasi | -10°C nepi ka 60°C |
| Item Beurat | 350 g |
| Dimensi produk | 7 x 6 x 5 cm |
11. Garansi jeung Rojongan
Kanggo inpormasi jaminan sareng dukungan pelanggan, mangga tingal Philips resmi websitus atanapi ngahubungan layanan palanggan maranéhna. Simpen resi pameseran anjeun salaku bukti pameseran pikeun klaim garansi.
