AVer VC520 Pro3 Conference Camera Instruction Manual

1. Bubuka

The AVer VC520 Pro3 is an advanced conferencing system designed for mid-to-large room meetings. It features a 36X total zoom Pan-Tilt-Zoom (PTZ) camera, enhanced AVer SmartFrame technology, Preset Framing, and a Sony Wide Dynamic Range (WDR) sensor. The system offers 3-way outputs, including HDMI connectivity, for versatile streaming options and a superior video and audio experience. A key feature is Smart Composition, an embedded AI function that swiftly captures high-quality close-up images of meeting participants. Coupled with an extended speakerphone solution, the VC520 Pro3 delivers a comprehensive video conferencing experience.

2. Naon dina Box

Pastikeun yén sadaya komponén aya dina bungkusan:

• VC520 Pro3 Camera
• Kabel USB 2.0 Tipe-B ka Tipe-A
• VC520 Pro3 Speakerphone
• Camera to Speakerphone Cable (33ft/10m)
• Kadali jauh
• Power Adapter and Power Cord (6ft/1.8m)
• Tembok-Gunung Bracket

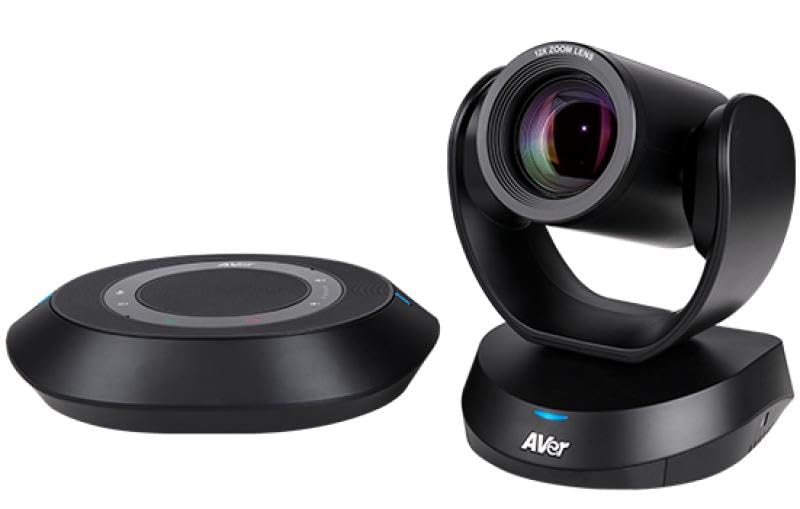

Image: The AVer VC520 Pro3 Conference Camera and Speakerphone components.

3. Parentah Setup

1. Posisi kaméra: Place the VC520 Pro3 Camera on a stable surface or mount it to a wall using the provided wall-mount bracket. Ensure it has a clear view of the meeting area.
2. Sambungkeun Speakerphone: Connect the VC520 Pro3 Speakerphone to the camera using the Camera to Speakerphone Cable. This cable is 33 feet (10 meters) long, allowing flexible placement.
3. Sambungkeun Kakuatan: Plug the power adapter into the camera and then into an electrical outlet.
4. Nyambung ka Komputer: Connect the camera to your computer using the supplied USB 2.0 Type-B to Type-A Cable. The system is designed for simplified connectivity with a single USB cable.
5. Pariksa sambungan: Ensure all cables are securely connected. The system should power on automatically.

4. Parentah Operasi

4.1 Operasi kaméra

• Pan-Tilt-Zoom (PTZ): Use the remote control to adjust the camera's pan, tilt, and 36X total zoom (12x optical zoom).
• SmartFrame: The integrated AVer SmartFrame technology automatically frames participants, ensuring everyone is visible.
• Framing prasetél: Configure and recall specific camera positions for quick adjustments during meetings.
• Komposisi pinter: This AI-enhanced feature automatically adjusts the camera to focus on participants, providing high-quality close-up images.

4.2 Speakerphone Operation

• Audio Clarity: The speakerphone is engineered with echo cancellation and noise suppression technologies for clear audio.
• Kontrol volume: Adjust the speakerphone volume using the controls on the unit or the remote control.
• Fungsi mute: Use the mute button on the speakerphone or remote control to mute the microphone.

4.3 Kasaluyuan Software

The AVer VC520 Pro3 is compatible with a wide range of video conferencing applications, including:

• Zum
• Microsoft Teams
• Skype for Business, Skype
• Google Meet
• Intel Unite
• RingCentral
• V-Cube, LiveOn
• CyberLink U Meeting
• TrueConf
• Adobe Connect
• Cisco WebEx
• Fuze
• GoToMeeting
• Vidyo
• vMix
• WebRTC
• Wirecast
• XSplit

5. Pangropéa

To ensure the longevity and optimal performance of your AVer VC520 Pro3, follow these maintenance guidelines:

• beberesih: Gently wipe the camera lens and exterior surfaces with a soft, dry, lint-free cloth. Avoid using abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish or optical components.
• Panyimpenan: Lamun teu dipaké pikeun période nambahan, nyimpen alat dina tiis, tempat garing jauh ti sinar panonpoé langsung jeung hawa ekstrim.
• Manajemén Kabel: Pastikeun sadaya kabel dijahit kalayan rapih sareng henteu ditegangkeun pikeun nyegah karusakan.

6. Cara ngungkulan

If you encounter issues with your VC520 Pro3, refer to the following common troubleshooting steps:

• Taya Kaluaran Video:
  • Check all cable connections, especially the USB cable to your computer and the power cable to the camera.
  • Ensure the camera is powered on (check indicator lights).
  • Verify that the correct camera is selected in your video conferencing software settings.
  • Coba sambungkeun kaméra ka port USB anu béda dina komputer anjeun.
• No Audio from Speakerphone:
  • Ensure the speakerphone is properly connected to the camera.
  • Check the volume level on the speakerphone and in your computer's audio settings.
  • Verify that the speakerphone is not muted.
  • Confirm that the VC520 Pro3 speakerphone is selected as the audio output device in your conferencing software.
• Camera Not Recognized by Computer:
  • Balikan deui komputer anjeun.
  • Coba kabel USB anu béda.
  • Ensure your operating system and conferencing software are up to date.

For further assistance, please refer to the official AVer support websitus atanapi ngahubungan layanan palanggan maranéhna.

7. Spésifikasi

8. Garansi jeung Rojongan

Garansi: The AVer VC520 Pro3 Conference Camera comes with a 3-Taun Garansi ti tanggal beuli. Punten tahan bukti pameseran anjeun pikeun klaim garansi.

Bantosan Téknis: For technical assistance, product inquiries, or warranty service, please visit the official AVer website or contact their customer support department. Detailed contact information and support resources can typically be found on the AVer websitus.
