Fookoo 2 Magnetic Solar Wireless Backup Camera System

1. Bubuka

This manual provides detailed instructions for the installation, operation, and maintenance of your Fookoo 2 Magnetic Solar Wireless Backup Camera System. Designed for ease of use and versatility, this system enhances driving safety by providing clear rear and side views for various vehicles, including cars, SUVs, RVs, trucks, and campers.

Leuwihview of the Fookoo 7-inch Magnetic Solar Wireless Backup Camera System.

2. Fitur Produk

• 1-Minute DIY Installation: Features a strong magnetic base and built-in battery for quick, drill-free attachment to metallic surfaces.
• Solar Panel & Rechargeable 9600mAh Battery: Offers extended operation time with solar-assisted charging and a high-capacity internal battery.
• Lower Consumption, Longer Working Time: Advanced technology for efficient power usage, including automatic sleep mode when the screen is off.
• 7-inch IPS Touchscreen Monitor: Provides a 1080P HD display with intuitive touch controls and a dual-split screen mode for simultaneous camera views.
• Dual-antenna & 2.4GHz Wireless Signal: Ensures stable, delay-free signal transmission up to 200ft in open areas, supporting speeds up to 102 mph.
• IP69 Waterproof Camera with Night Vision: Durable camera with a 130-degree viewing angle, equipped with 7 infrared lights for clear night vision.
• Loop Record & Parking Assistance: Supports video recording to an SD card (32-128GB, not included) and features adjustable parking lines for safer maneuvering.
• Pilihan Pasang Serbaguna: Monitor can be mounted via windshield suction cup or U-shaped bracket.

3. Naon dina Box

Pariksa yén sadaya komponén aya nalika unboxing:

• 7" Monitor
• Solar Magnetic Camera (x2)
• Car Charger with USB Port
• Type-C Cable & Plug (x2)
• Pamasangan Kit
• Panyungyung
• Hardwired Power Cord
• Antena (x4)
• Nguseup Piala Gunung
• Bracket U ngawangun
• Parentah Manual

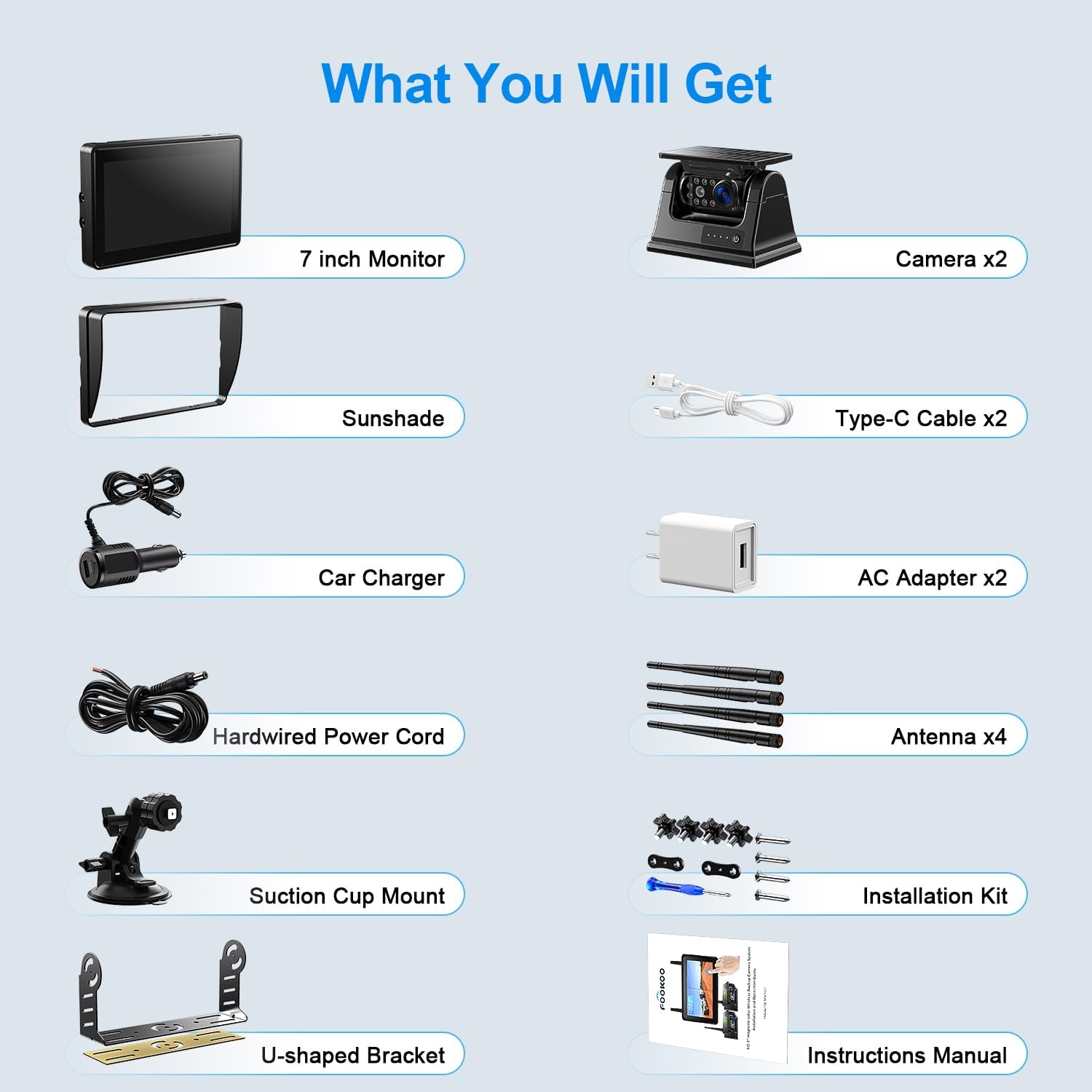

All components included in the Fookoo 2-Cam system package.

4. Setup & Instalasi

4.1 Camera Installation (1-Minute DIY)

1. Ngecas kaméra: Before first use, fully charge the camera using the provided Type-C cable and charger.
2. Hurungkeun Kaméra: Pencét tombol daya dina kaméra pikeun ngaktipkeunana.
3. Attachment magnét: Place the camera on any metallic surface of your vehicle (e.g., rear bumper, trailer hitch, side panel). The strong magnetic base will secure it without drilling.
4. Saluyukeun Sudut: The camera features an up-down adjustable and wide viewing angle (130 degrees). Adjust as needed for optimal view.

Simple three-step installation process for the magnetic solar camera.

4.2 Pamasangan monitor

The 7-inch IPS touchscreen monitor offers two primary mounting options:

• Suction Cup Gunung: Attach the suction cup mount to your windshield or dashboard.
• U-shaped Bracket: Use the U-shaped bracket for a more permanent dashboard installation.

After mounting, plug the car charger into your vehicle's cigarette lighter socket. The monitor will automatically turn on and display the camera image.

Choose between suction cup or U-shaped bracket for monitor placement.

4.3 Initial Pairing (if needed)

The system is typically pre-paired. If the camera image does not appear, ensure both the camera and monitor are powered on. Refer to the included instruction manual for specific pairing steps if necessary.

5. Parentah Operasi

5.1 Operasi layar rampa

The 7-inch IPS monitor features a sensitive touchscreen for easy navigation. Simply touch the screen to access functions and settings. One touch wakes up the system from sleep mode.

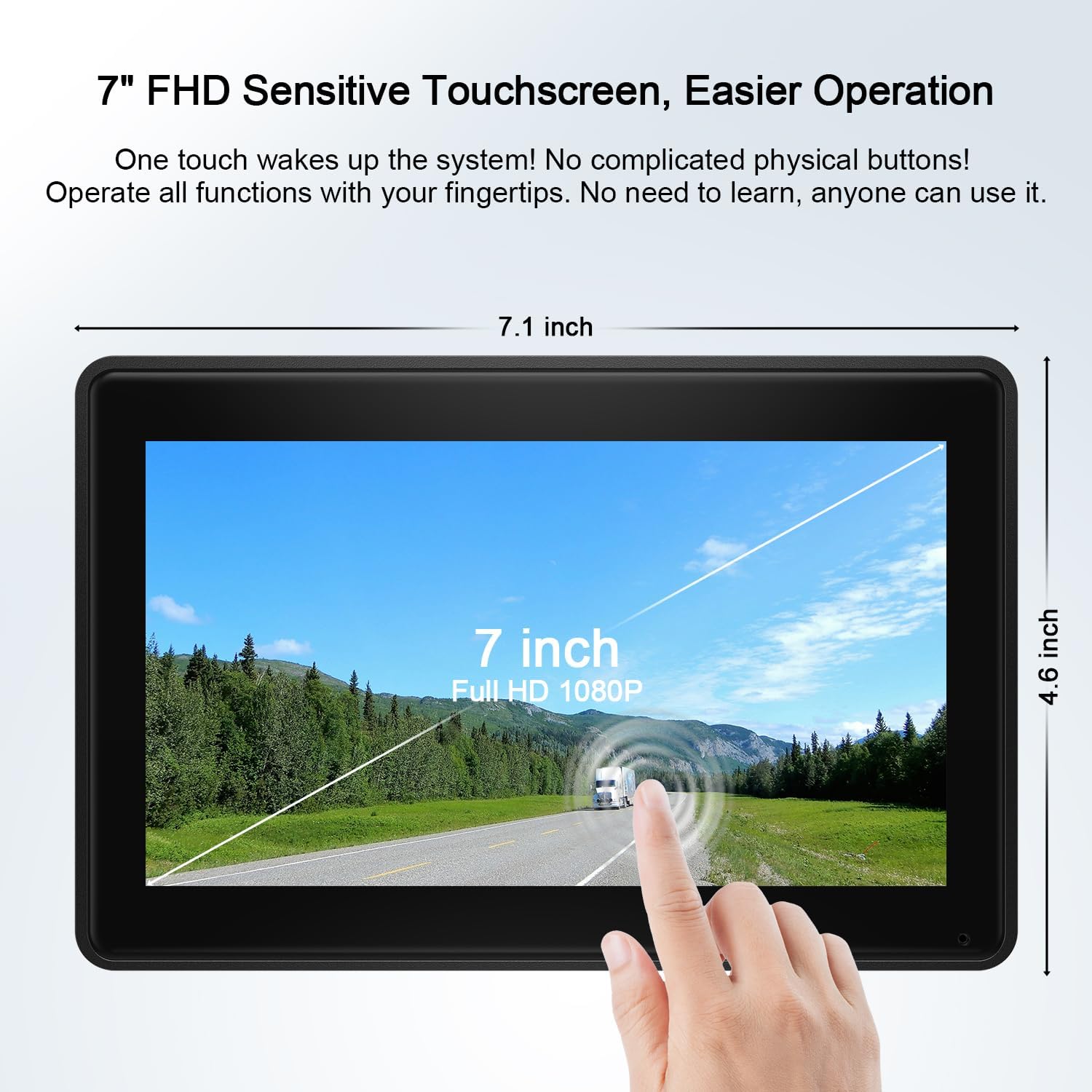

The 7-inch Full HD 1080P touchscreen monitor offers intuitive operation.

5.2 Dual-Split Screen Mode

The monitor supports a dual-split screen mode, allowing you to view feeds from two cameras simultaneously. This feature is particularly useful for reducing blind spots and monitoring different angles of your vehicle or trailer.

The monitor supports dual-split screen, parking assistance, loop recording, and image flip functions.

5.3 Visi Peuting

The camera is equipped with 7 infrared lights and a photoreceptor. In low ambient light conditions, the infrared lights automatically activate to provide clear night vision, ensuring visibility even in darkness.

5.4 Loop Recording & Parking Assistance

• Ngarekam loop: Insert a compatible SD card (32-128GB, sold separately) into the monitor to enable loop recording. This function continuously records driving conditions, overwriting the oldest footage when the card is full. Recorded videos can be played back directly on the monitor.
• Jalur parkir: The system provides adjustable parking lines on the display to assist with safer and faster parking maneuvers.

5.5 Manajemén kakuatan

The camera features a low-power consumption design. When the monitor screen is turned off, the camera automatically enters sleep mode to conserve battery. When the monitor is turned back on, the camera automatically reactivates. This eliminates the need for manual power cycling of the camera.

6. Pangropéa

• Ngecas: The camera's 9600mAh battery is primarily charged via the integrated solar panel. For faster or supplemental charging, use the provided Type-C cable and charger.
• Rating waterproof: The camera has an IP69 waterproof rating, making it resistant to water and dust. No special precautions are needed for car washes or rain.
• beberesih: Gently clean the camera lens and monitor screen with a soft, dry cloth. Avoid abrasive cleaners.
• Anteneu: Ensure the dual antennas on both the camera and monitor are securely attached for optimal wireless signal performance.

The camera features a built-in 9600mAh battery and solar panel for extended operation.

Key features of the solar rechargeable camera, including its magnetic base and night vision capabilities.

7. Cara ngungkulan

For further assistance, please refer to the comprehensive instruction manual or contact Fookoo customer support.

8. Spésifikasi

9. Jaminan & Dukungan

Fookoo offers a 24-month replacement support jeung layanan purna jual salami hirup for this product. Customer satisfaction is our first priority.

If you encounter any issues, find anything defective, or require assistance, please do not hesitate to reach out to Fookoo customer service. We are online 24 hours a day to provide support.

Fookoo provides 24-month replacement support and lifetime after-sales service.
