Baofeng Walkie Talkie Battery Replacement Type-C Charger User Manual

1. Bubuka

This manual provides essential information for the safe and effective use of your Baofeng Walkie Talkie Replacement Batteries with Type-C charging capability. These 1500mAh rechargeable Li-ion batteries are designed to be compatible with various walkie-talkie models, including BF-888S, BF-777S, BF-999S, and Retevis H-777. Please read this manual thoroughly before use.

Image: Two Baofeng BF-888S upgrade batteries with Type-C charging ports, one shown connected to a USB Type-C cable.

2. Fitur Produk

• Certified Original Baofeng Battery: Features a patent appearance, high-quality mainboard, and new packaging for improved quality.
• Type-C Charging Method: Allows for convenient charging anytime, anywhere using a USB Charger, Car Charger, Power Bank, or standard wall socket.
• Expert Certification and Security: Designed with low heat dissipation, over-current protection, and over-temperature protection for enhanced safety.
• Kasaluyuan lega: Compatible with BF-666S, BF-777S, BF-888S, BF-999S, and Retevis H-777 walkie-talkies.
• Kapasitas 1500mAh: Nyadiakeun kakuatan dipercaya pikeun pamakéan nambahan.

3. Setup jeung Instalasi

3.1 Pamasangan batré

1. Ensure your walkie-talkie is powered off before attempting battery installation or removal.
2. Locate the battery compartment on the back of your compatible walkie-talkie (e.g., Baofeng BF-888S).
3. Align the battery with the compartment, ensuring the contacts on the battery match the contacts in the radio.
4. Geserkeun batréna lalaunan kana tempatna dugi ka ngaklik pageuh.
5. Verify the battery is firmly seated and does not wobble.

Image: A Baofeng walkie-talkie demonstrating the compatibility and fit of the BL-1 Type-C battery.

4. Operating Instructions: Charging

4.1 Metode Ngecas

These batteries offer versatile charging options:

• Ngecas Tipe-C Langsung: Connect a standard USB Type-C cable directly to the port on the battery.
• Traditional Cradle Charging: The battery can also be charged using the original walkie-talkie charging cradle, if available.

Image: Illustration of two charging methods: direct Type-C cable connection to the battery and charging via a traditional walkie-talkie charging cradle. Safety features like over-charge, over-heat, and over-discharge protection are also highlighted.

4.2 Recommended Power Sources for Type-C Charging

You can use various 5V USB power sources:

• Car Charger (USB port)
• PC/Laptop USB Port
• Bank kakuatan
• Standard USB Wall Socket Adapter

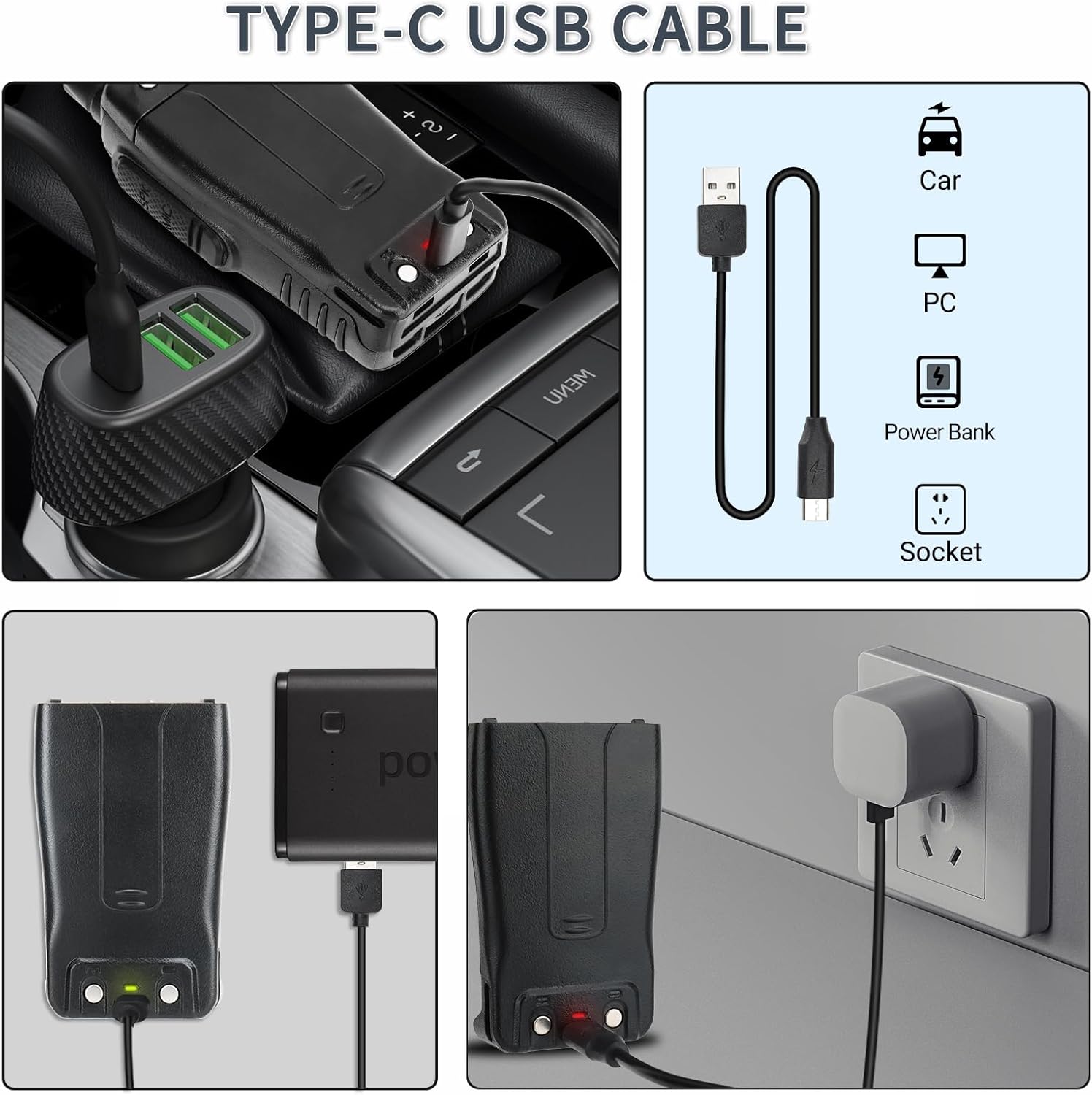

Image: Visual guide demonstrating different power sources for Type-C USB charging, including car chargers, personal computers, power banks, and wall sockets.

4.3 Status Indikator LED

The battery features an LED indicator to show its charging status:

• Lampu Beureum: Nunjukkeun batréna ayeuna keur dicas.
• Lampu héjo: Nunjukkeun batréna tos dieusi pinuh.

Gambar: A lengkep view of the battery's LED indicator, illustrating that a red light signifies charging in progress, and a green light indicates a full charge.

5. Pangropéa

• Simpen batré di tempat anu tiis sareng garing jauh tina sinar panonpoé langsung sareng suhu anu ekstrim.
• Hindarkeun sering-sering ngecas batré pikeun manjangkeun umurna.
• Clean battery contacts periodically with a dry, lint-free cloth to ensure good connection.
• Ulah ngalaan batréna kana cai atanapi kalembaban anu kaleuleuwihi.
• If the battery will not be used for an extended period, charge it to about 50% before storage.

6. Cara ngungkulan

6.1 Batré Teu Ngecas

• Pariksa sambungan kabel: Ensure the Type-C cable is securely plugged into both the battery and the power source.
• Pariksa Sumber Daya: Try a different USB port or wall adapter to ensure the power source is functional.
• Pariksa Kontak Batré: Make sure the battery contacts are clean and free of debris.
• Indikator LED: Confirm the red LED lights up when charging. If not, the battery or cable may be faulty.

6.2 Hirup batré pondok

• muatan pinuh: Ensure the battery is fully charged (green LED) before use.
• Faktor Lingkungan: Extreme cold or hot temperatures can affect battery performance.
• Pola pamakéan: Heavy usage, such as continuous transmission, will deplete the battery faster.
• Umur batré: All rechargeable batteries degrade over time. If the battery is old, consider replacement.

7. Spésifikasi

Image: Detailed dimensions of the battery, indicating a height of 8.3 CM, width of 5.3 CM, and thickness of 1.5 CM.

8. Garansi jeung Rojongan

Kanggo inpormasi garansi sareng dukungan téknis, mangga tingal BAOFENG resmi. websitus atanapi ngahubungan pangecér Anjeun. Simpen resi pameseran anjeun salaku bukti pameseran.

Pikeun pitulung salajengna, anjeun tiasa nganjang ka Toko BAOFENG di Amazon.
