EAZYRC FMS 1/24 FCX24M RC Crawler Instruction Manual

1. Bubuka

Thank you for choosing the EAZYRC FMS 1/24 FCX24M RC Crawler, Land Rover Defender 110. This ready-to-run (RTR) 4x4 mini RC truck is designed for enthusiasts seeking a realistic and capable remote-controlled vehicle. This manual provides essential information for safe operation, setup, maintenance, and troubleshooting to ensure optimal performance and longevity of your RC crawler.

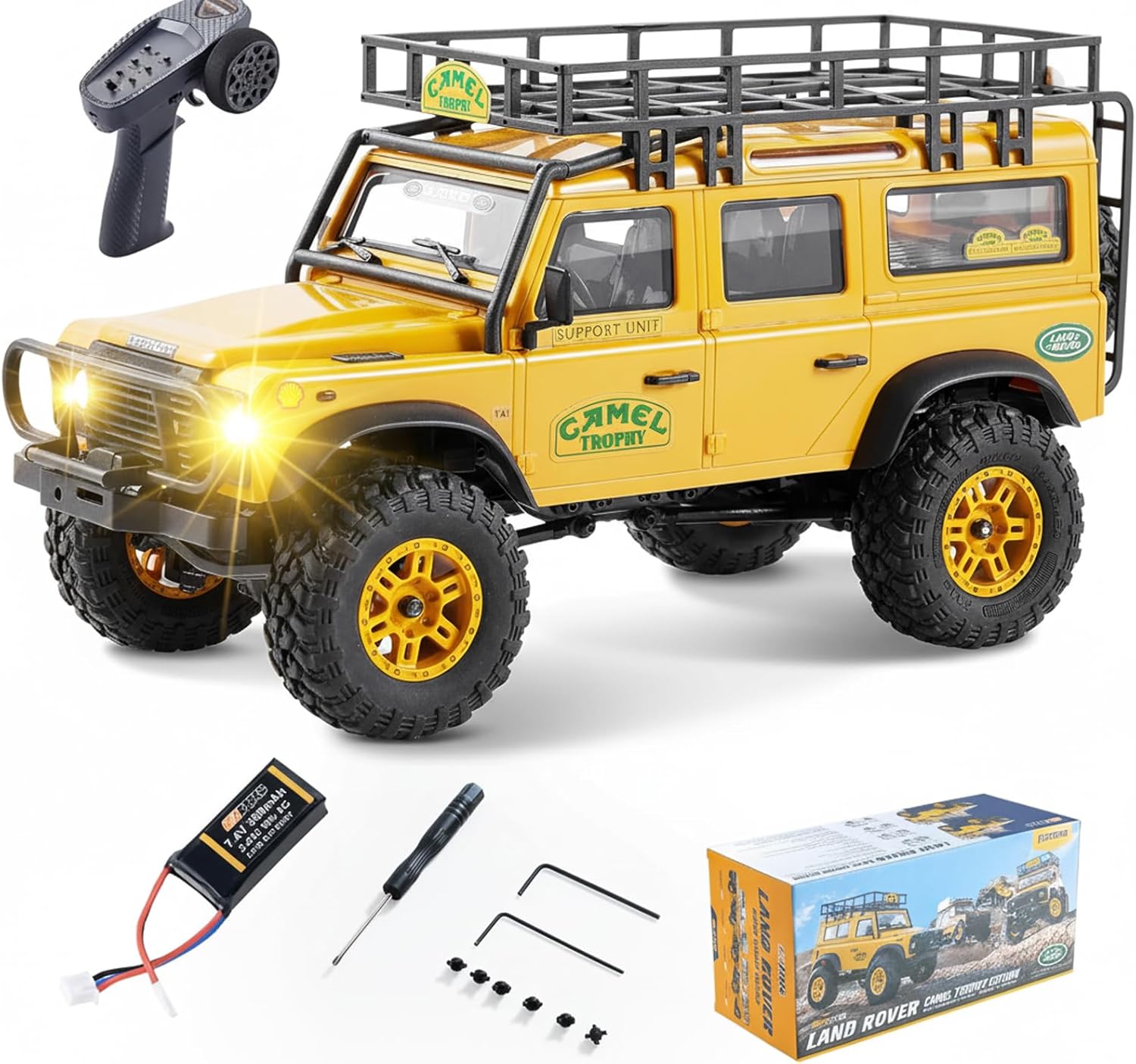

Image 1.1: EAZYRC FMS 1/24 FCX24M RC Crawler, Land Rover Defender 110, with included accessories.

2. Émbaran Kasalametan

Pikeun Paké Luar Ngan.

Always operate the RC crawler in a safe environment, away from people, pets, and obstacles. Do not operate near water or in wet conditions unless the product is specifically rated as waterproof. Keep small parts out of reach of children. Adult supervision is recommended for users under 16 years of age.

3. Eusi Paket

Pastikeun yén sadaya item anu didaptarkeun di handap kalebet kana pakét anjeun:

• EAZYRC FMS 1/24 FCX24M RC Crawler (Land Rover Defender 110)
• 2.4Ghz Remote Control
• LiPo Battery 2S 7.4V 380mAh
• Charger
• Kabel Ngecas
• Manual Produk (dokumen ieu)
• Hex Wrench (for maintenance)

Image 3.1: Internal components and accessories of the FCX24M RC Crawler.

4. Fitur Produk

The EAZYRC FMS 1/24 FCX24M RC Crawler boasts several advanced features for an enhanced crawling experience:

• Official Land Rover Authorized Appearance: Faithfully replicates the Land Rover Series with intricate interior and accessories, including a roof rack.
• Durable FCX24M Chassis: Equipped with a non-load-bearing metal ladder frame for excellent rigidity and stability.
• Two-Speed Gearbox: Allows switching between low-speed crawling (3km/h) and higher-speed traversal (8km/h).
• Integrated ESC Receiver: Simplifies electronics and provides reliable control.
• 050 Motor: Nyadiakeun ample kakuatan pikeun rupa-rupa terrains.
• Front and Rear Portal Axles: Increases ground clearance and improves crawling capabilities.
• Large Diameter Tires: Enhances grip and obstacle-crossing ability.
• Brightenable Headlamps: Functional lighting for realistic operation and visibility.

Image 4.1: Visual representation of the FCX24M's core features.

5. Setélan

5.1 Ngeusi batre

1. Sambungkeun kabel ngecas ka carjer.
2. Sambungkeun batré ka kabel ngecas.
3. Colokkeun carjer kana sumber daya anu cocog.
4. Monitor the charging process. The indicator light on the charger will typically change color or turn off when charging is complete.
5. Cabut batréna saatos dicas pinuh. Ulah ngecas kaleuleuwihi.

5.2 Pamasangan batré

1. Locate the battery compartment on the RC crawler.
2. Carefully insert the charged LiPo battery into the compartment.
3. Connect the battery connector to the vehicle's power port. Ensure correct polarity.
4. Amankeun panutup kompartemen batré.

5.3 Setup Kontrol Jauh

1. Install appropriate batteries (not included, typically AA) into the remote control.
2. Hurungkeun kadali jauh.
3. Turn on the RC crawler.
4. The remote control and crawler should automatically bind. If not, refer to the binding instructions usually located on the remote control or a separate quick start guide.

6. Parentah Operasi

6.1 Kadali Dasar

• Throttle pemicu: Tarik pikeun maju, dorong pikeun mundur/ngeureunkeun.
• Setir: Belok ka kénca pikeun nyetir ka kénca, belok ka katuhu pikeun nyetir ka katuhu.
• Pangaluyuan Trim: Use the trim dials on the remote to fine-tune steering and throttle for straight tracking when the controls are centered.

6.2 Two-Speed Gearbox Operation

Your FCX24M is equipped with a two-speed gearbox. A switch on the remote control (refer to your remote's specific layout) allows you to toggle between:

• Low Speed (approx. 3km/h): Ideal for technical crawling, precise maneuvers, and overcoming challenging obstacles.
• High Speed (approx. 8km/h): Suitable for faster traversal on less demanding terrain.

Switch gears only when the vehicle is stationary or moving at a very low speed to prevent damage to the gearbox.

6.3 Kontrol cahaya

The brightenable headlamps can typically be controlled via a dedicated button or switch on the remote control. Consult your remote's diagram for specific functionality.

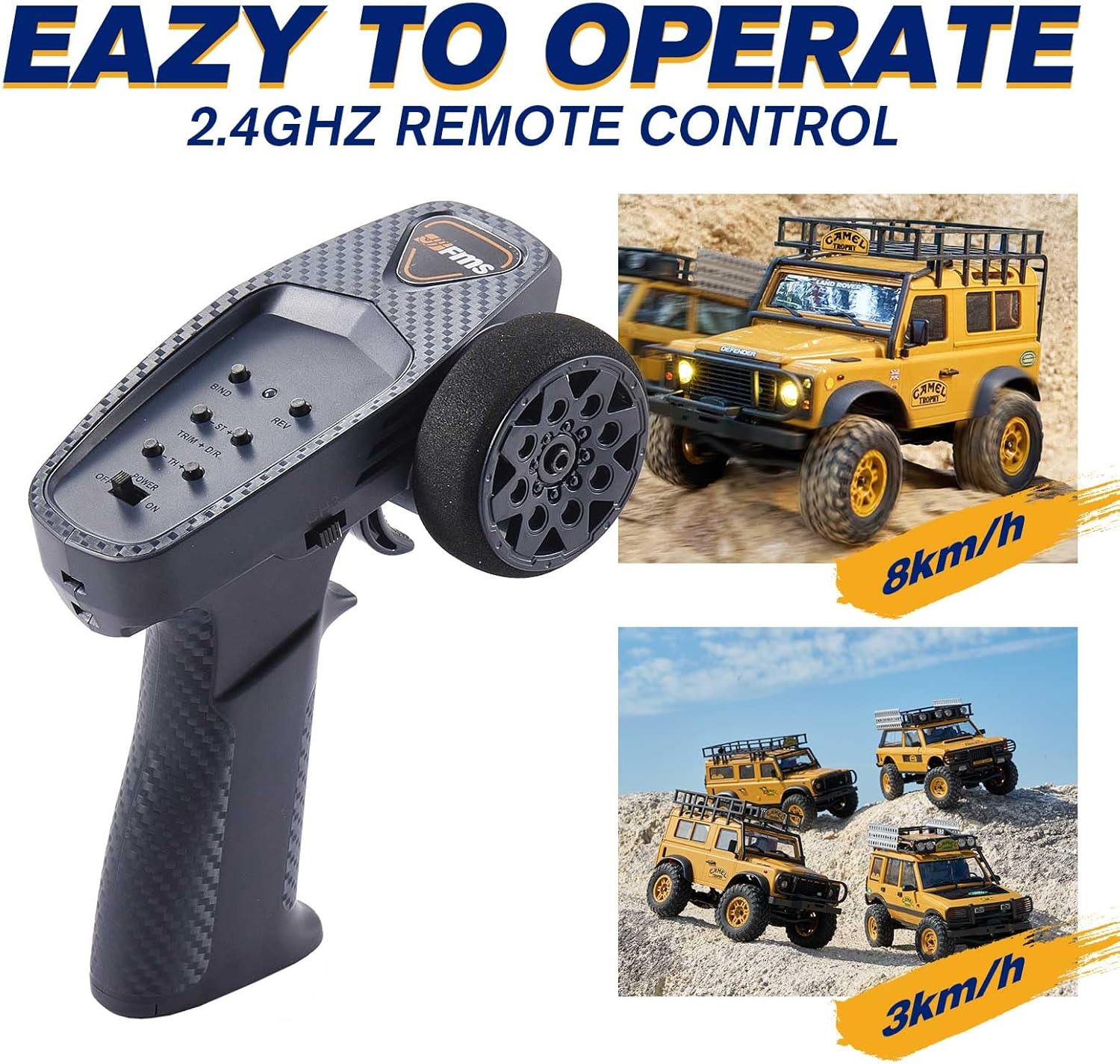

Image 6.1: The 2.4GHz remote control and speed capabilities.

Image 6.2: RC Crawlers demonstrating their capability on an indoor obstacle course.

7. Pangropéa

• beberesih: After each use, especially in dusty or dirty conditions, clean the vehicle with a soft brush or compressed air. Avoid using water directly on electronics.
• Pamariksaan: Regularly inspect all moving parts, including wheels, axles, and suspension components, for wear or damage.
• Lubrication: Apply appropriate RC-specific lubricant to gears and moving joints as needed to reduce friction and wear.
• Drive Shafts: A hex wrench is included for replacing damaged drive shafts. Ensure proper installation and alignment.
• Panyimpenan: Store the RC crawler and battery in a cool, dry place away from direct sunlight and extreme temperatures. Disconnect the battery when not in use for extended periods.

8. Cara ngungkulan

• Kendaraan Teu Ngabales: Check battery charge in both the crawler and remote. Ensure both are powered on and properly bound.
• Poor Performance/Loss of Power: Recharge the battery. Inspect for debris in moving parts or damaged gears.
• Masalah Setir: Check steering trim on the remote. Inspect the steering servo for damage or obstruction.
• Sora anu teu biasa: Immediately stop operation and inspect for loose or damaged gears, bearings, or other components.

For persistent issues, contact EAZYRC customer support.

9. Spésifikasi

Image 9.1: Product size comparison for different 1/24 scale models.

10. Garansi jeung Rojongan

EAZYRC Model Shop provides a 3-month after-sales repair guarantee for the 1/24 Land Rover Series RC Crawler. For any quality issues or support inquiries, customer service representatives aim to respond within 24 hours to provide quick resolutions.

For assistance, please refer to the contact information provided with your purchase or visit the official EAZYRC websitus.
