Buku Panduan Pangguna Pistol Pijat Mini

1. Bubuka

Thank you for choosing the Mini Massage Gun. This portable percussion muscle massager is designed to provide deep tissue relief and muscle relaxation, enhancing your recovery and overall well-being. Its compact size and powerful performance make it an ideal companion for athletes, fitness enthusiasts, or anyone seeking effective muscle care on the go. Please read this manual thoroughly before use to ensure safe and optimal operation.

2. Émbaran Kasalametan

Pitunjuk Kasalametan Penting:

• Always use the massager on the lowest speed setting when treating sensitive areas.
• Avoid using the massager on injured, inflamed, or painful areas without consulting a healthcare professional.
• Jaga alat pijet tetep garing sareng ulah dikulubkeun kana cai.
• Salawasna cabut kabel sareng pareuman alat pijet nalika teu dianggo.
• Do not use the massager while sleeping or operating a vehicle.
• Jauhkeun alat pijet tina jangkauan barudak sareng piaraan.
• Always follow the instructions provided with the massager for safe and effective use.

3. Eusi Paket

• Mini Massage Gun (LMingKun-M1)
• Multiple Massage Heads (typically 4-6, as shown in images)
• USB Charging Cable (Charging Plug Not Included)
• Mawa Kasus
• Manual pangguna (dokumén ieu)

4. Produk Langkungview

The Mini Massage Gun features a compact design with an ergonomic grip and an intelligent LED touch screen for intuitive control. It comes with various interchangeable massage heads designed for different muscle groups and massage intensities.

Image: The Mini Massage Gun with its array of interchangeable massage heads, including spherical, flat, U-shaped, and bullet heads, designed for targeted muscle relief.

Fitur konci:

• Chip Pinter AI: Controls motor speed and ensures precise impact.
• Motor anu kuat: Delivers deep tissue percussion.
• Batré awét: Nyadiakeun waktos pamakéan nambahan.
• Sababaraha Kepala Pijat: Adaptable for various muscle groups and massage types.
• Low Operation Noise: Beroperasi dina sakitar 45dB.

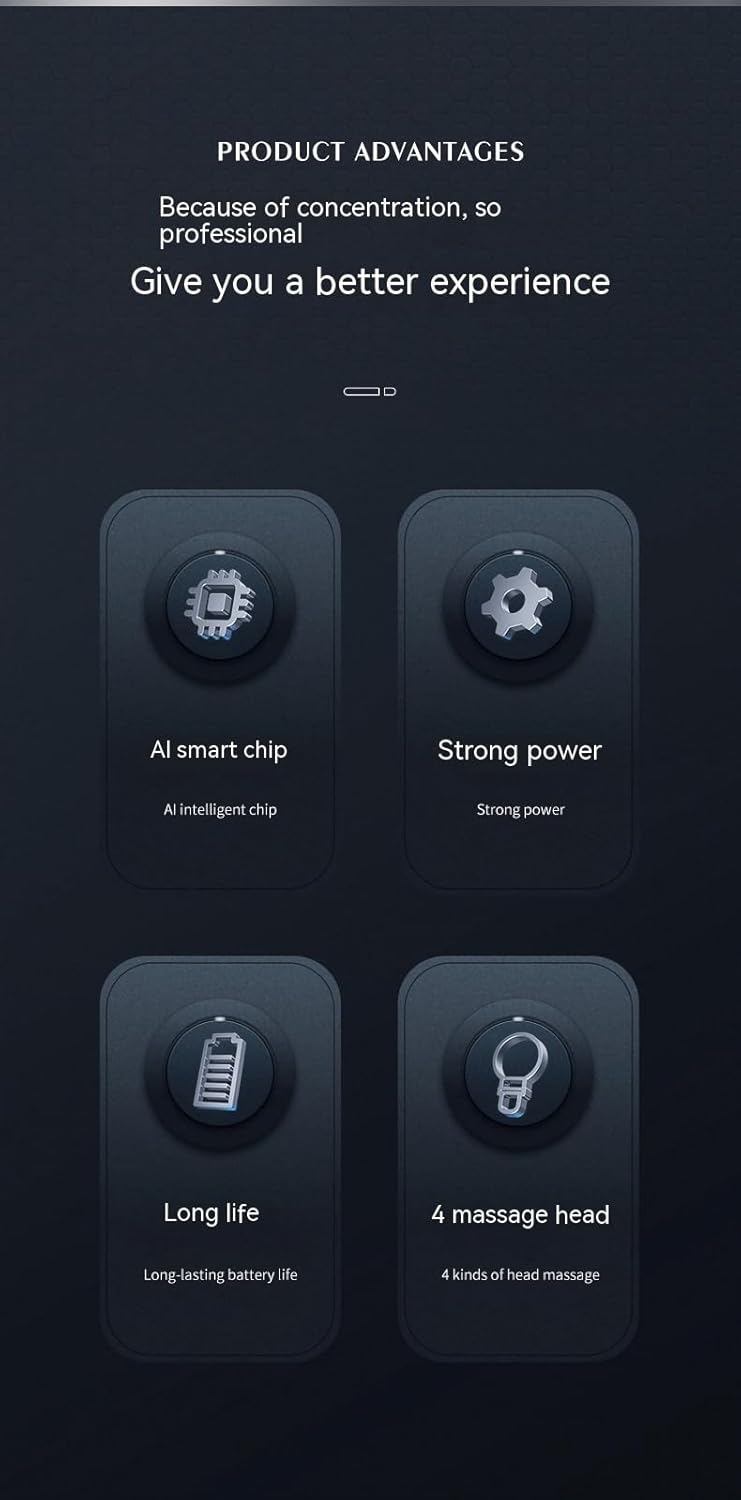

Image: Visual representation of the massage gun's core advantages: AI smart chip for intelligent control, strong power for effective massage, long-lasting battery life, and the inclusion of four distinct massage heads.

5. Setélan

5.1 Ngecas Alat

Before first use, fully charge the massage gun. Connect the provided USB charging cable to the USB-C port on the device and plug the other end into a standard 5V/2A USB adapter (not included) or a compatible USB port. The LED display will indicate the charging status and battery level. A full charge can provide up to 6 hours of use, depending on the selected speed.

5.2 Ngalampirkeun Pijat Huluna

To attach a massage head, gently push the desired head into the opening at the front of the massage gun until it is securely seated. To remove, pull the head straight out. Ensure the device is turned off before changing heads.

6. Parentah Operasi

6.1 Daya Hurung/Pareuman

Press and hold the power button on the LED touch screen to turn the device on or off. The screen will illuminate upon activation.

6.2 Nyaluyukeun tingkat Speed

The massage gun offers 6 adjustable speed levels, ranging from low to high, with percussions from 1800 to 3500 per minute. Use the '+' and '-' buttons on the LED touch screen to increase or decrease the intensity. The display will show the current speed level.

Image: Close-up of the intelligent LED touch screen, illustrating the power button and controls for adjusting the 6 gear strength levels, providing a variety of massage frequencies.

6.3 Dianjurkeun Dianggo

Apply the massage gun to the desired muscle area. Move the device slowly and gently, allowing the percussion to work on the muscle. Do not apply excessive pressure. The device is suitable for use on the back, whole body, neck, legs, and feet.

For first-time users or sensitive areas, start with the lowest gear (1-8 for soothing and relaxing). Gradually increase the intensity as your body adapts. Gears 9-16 are for muscle activation, 17-24 for tensile fascia, and 25-32 for professional massage. Non-professional athletes should avoid using excessively high gears.

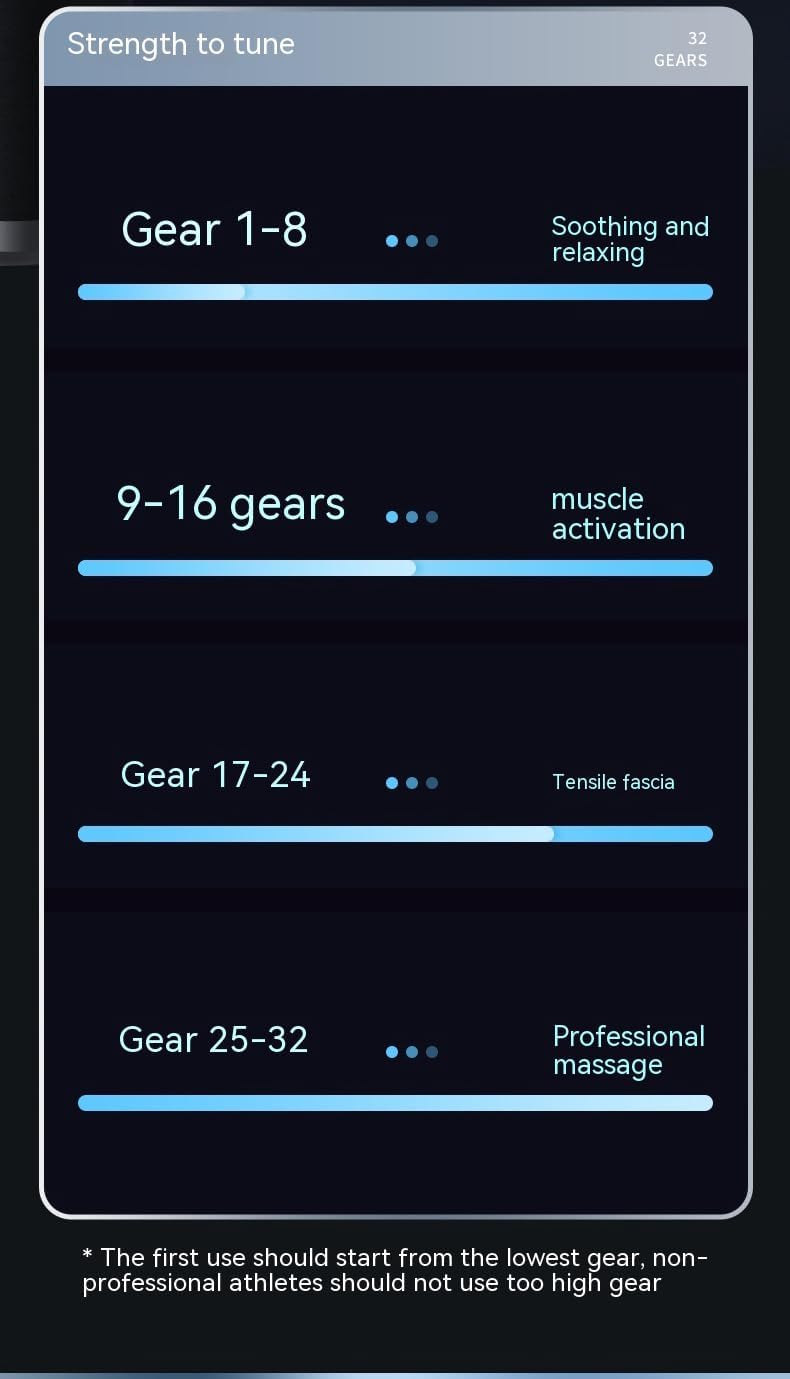

Image: A detailed chart outlining the 32 gear strength levels, categorized for different massage purposes: soothing and relaxing (1-8), muscle activation (9-16), tensile fascia (17-24), and professional massage (25-32).

6.4 Pidéo Démonstrasi Panggunaan

7. Pangropéa

7.1 beberesih

Ngusap alat ku rada damp cloth after each use. Do not use abrasive cleaners or submerge the device in water. Ensure the device is completely dry before storing.

7.2 Panyimpenan

Store the massage gun and its accessories in the provided carry case in a cool, dry place, away from direct sunlight and extreme temperatures. Keep out of reach of children.

8. Cara ngungkulan

If you encounter any issues with your Mini Massage Gun, please refer to the following common problems and solutions:

• Alat teu hurung: Pastikeun alat parantos dicas pinuh. Upami batréna lemah, sambungkeun kana carjer.
• Perkusi lemah: Check the battery level. A low battery can affect performance. Also, ensure the massage head is securely attached.
• Sora anu teu biasa: Turn off the device immediately. Check for any obstructions or damage to the massage head or device. If the noise persists, discontinue use and contact customer support.

Lamun masalah persists sanggeus nyobian solusi ieu, mangga ngahubungan rojongan customer pikeun pitulung salajengna.

9. Spésifikasi

10. Garansi jeung Rojongan

This product is designed and manufactured to the highest quality standards. For any warranty claims, technical support, or inquiries, please contact the manufacturer or seller directly through your purchase platform. Customer satisfaction is crucial, and assistance will be provided for any issues encountered during use.
