1. Bubuka
This manual provides essential information for the safe and efficient operation of your JVC TiVo LT-40VF5355 40-inch Full HD Smart TV. Please read these instructions thoroughly before using the television and retain them for future reference.
The JVC TiVo LT-40VF5355 offers a vibrant Full HD display, HDR10 support for enhanced contrast, and an integrated triple tuner for versatile reception options (DVB-C, DVB-T2, DVB-S2). Powered by the TiVo Smart TV operating system, it provides access to a wide range of streaming services and smart features.
2. Émbaran Kasalametan
Salawasna perhatikeun pancegahan kaamanan di handap ieu pikeun nyegah kejutan listrik, seuneu, atanapi tatu:
- Ulah ngalaan TV ka hujan atawa beueus.
- Ulah muka TV casing; ngarujuk sadaya jasa ka tanaga anu mumpuni.
- Pastikeun ventilasi ditangtoskeun sabudeureun TV.
- Hindarkeun nempatkeun TV dina permukaan anu teu stabil.
- Cabut colokan TV nalika badai kilat atanapi nalika henteu dianggo kanggo waktos anu lami.
- Jauhkeun bagian leutik sareng batré jauh tina jangkauan barudak.
3. Eusi Paket
Pastikeun yén sadaya barang aya dina bungkusan:
- JVC TiVo LT-40VF5355 40-inch Full HD Smart TV
- Kadali Jauh (kalebet 2 batré AAA)
- Rak TV (kaki)
- Manual pangguna (dokumén ieu)
4. Setélan
4.1 Setélan fisik
Ngalampirkeun Stand: Carefully place the TV face down on a soft, flat surface. Align the stand feet with the screw holes on the bottom of the TV and secure them with the provided screws. Ensure the stand is firmly attached before placing the TV upright.
Pamasangan témbok (Opsional): This TV supports VESA wall mounts. Refer to the wall mount manufacturer's instructions for installation. The VESA mounting pattern for this model is M4 100x100.
Gambar: Tukangeun view of the JVC TiVo LT-40VF5355 TV showing dimensions (Width 90.9 cm, Height with stand 57.9 cm, Depth with stand 23.5 cm, 40 inches / 102 cm diagonal) and VESA M4 100x100 mounting points.
4.2 Sambungan
Connect external devices to your TV using the available ports:
- HDMI (x2): For high-definition audio and video from devices like Blu-ray players, game consoles, or set-top boxes. HDMI 1 supports ARC (Audio Return Channel) for simplified audio connections to soundbars or AV receivers.
- USB (x1): Pikeun nyambungkeun alat panyimpenan USB pikeun muterkeun media files.
- Kaluaran Audio Digital: Pikeun nyambungkeun ka sistem audio éksternal.
- Antena (RF/F): For connecting a terrestrial (DVB-T2) or cable (DVB-C) antenna.
- Satellite (LNB): Pikeun nyambungkeun parabola (DVB-S2).
- Headphone: Pikeun nyambungkeun headphone.
- Slot CI: For inserting a Conditional Access Module (CAM) and smart card to access encrypted channels.
- LAN: Pikeun sambungan internét kabel.
- Wifi: Pikeun sambungan internét nirkabel.
Gambar: Deukeut view of the TV's rear panel showing various connection ports including 2x HDMI, 1x USB, Digital Audio Output, Antenna (RF/F), Headphones, Bluetooth, CI Slot, and LAN.
4.3 Instalasi Kahiji-waktos
After connecting the power cable and turning on the TV for the first time, follow the on-screen instructions to:
- Pilih basa anjeun.
- Sambungkeun ka jaringan Wi-Fi anjeun atanapi anggo sambungan LAN kabel.
- Scan for available TV channels (DVB-C, DVB-T2, DVB-S2).
- Log in to your TiVo account or create a new one to access Smart TV features.
5. Nyuping
5.1 Jauh Jauh
The included remote control allows you to navigate the TV's functions. It features dedicated buttons for popular streaming services like Netflix, YouTube, Prime Video, and Disney+ for quick access.
Image: The TV remote control, highlighting dedicated buttons for YouTube, Netflix, Prime Video, and Disney+.
5.2 Pitur TiVo Smart TV
Your JVC TV is powered by the TiVo Smart TV operating system, offering a personalized and intuitive user experience.
- Napigasi calakan: Search across streaming apps and live TV to find content.
- Rekomendasi Pribadi: TiVo learns your viewing habits to suggest content you might enjoy.
- Kontrol sora: Use voice commands to change channels, adjust volume, open apps, and more.
- Aksés Aplikasi: Enjoy a wide range of applications including Netflix, Prime Video, Disney+, YouTube, DAZN, and many others.

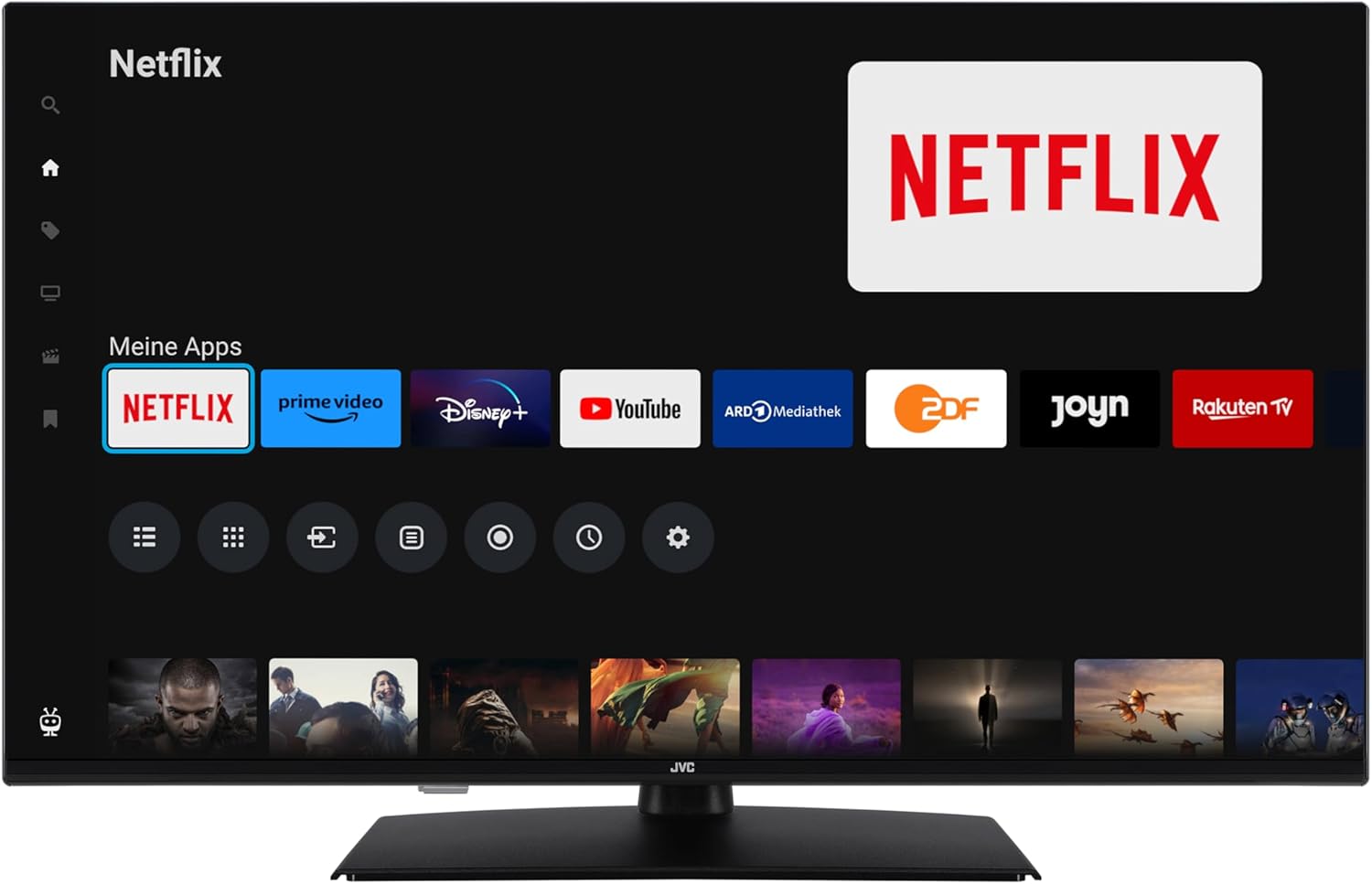

Image: The TiVo Smart TV home screen displaying various applications such as Netflix, Prime Video, Disney+, YouTube, ARD Mediathek, ZDF, Joyn, and Rakuten TV.
Image: Infographic explaining the benefits of TiVo Smart TVs, including intelligent navigation, simple user experience, intelligent recommendations, and continuous improvements.
5.3 Gambar jeung Sora Setélan
Your TV supports advanced picture technologies for an optimal viewpangalaman:
- HDR10: High Dynamic Range provides greater contrast and a wider range of colors for more realistic images.
- Resolusi Super: Ningkatkeun kajelasan sareng detil gambar.
- Micro dimming: Improves contrast by analyzing and adjusting brightness in different areas of the screen.
Image: A television screen displaying a vibrant image, illustrating the "High Dynamic Range" (HDR10) feature for more details and contrast.
Image: A television screen displaying a detailed underwater scene, highlighting "Super Resolution" and "Micro Dimming" for breathtaking picture quality.
You can select various picture modes to optimize the display for different content types:
- Bioskop: Optimized for movies.
- Olahraga: Enhanced for fast-paced sports.
- Kaulinan: Reduced input lag for gaming.
- Dinamis: Vivid and bright picture.
Image: A TV screen divided into four sections, each showing a different picture mode: Cinema, Sport, Gaming, and Dynamic.
5.4 Operasi Tuner
The integrated triple tuner allows reception via antenna (DVB-T2), cable (DVB-C), or satellite (DVB-S2) without an additional receiver. Use the TV's menu to perform channel scans and manage your channel list.
The TV also supports the HD+ TV App, which may offer additional HD channels (availability depends on region and subscription).
Image: Information about the HD+ TV App, showing features like private HD/UHD channels, restart, media libraries, and a 6-month test period.
5.5 Média Playback
Connect a USB storage device to the USB port to play compatible media files (photos, music, videos) directly on your TV using the built-in media player.
6. Pangropéa
6.1 beberesih
Salawasna cabut kabel TV sateuacan dibersihkeun. Anggo lawon anu lemes sareng garing pikeun ngusap layar sareng kabinet. Entong nganggo pembersih cair atanapi semprotan aerosol langsung kana TV.
6.2 Apdet parangkat lunak
The TV may receive regular software updates to improve performance and add new features. Ensure your TV is connected to the internet to receive these updates. You can usually check for updates in the TV's settings menu.
7. Cara ngungkulan
Upami anjeun ngalaman masalah sareng TV anjeun, tingal solusi umum ieu:
- Henteu aya kakuatan: Pastikeun kabel daya disambungkeun pageuh sareng stop kontak dina témbok tiasa dianggo.
- Taya Gambar/Sora: Check all cable connections (HDMI, antenna). Ensure the correct input source is selected.
- Remote Control Teu Gawé: Ganti batréna. Pastikeun teu aya halangan antara remote sareng TV.
- TV Shuts Down Automatically: Check the power saving settings in the TV menu. Disable any automatic shutdown timers.
- App Issues (e.g., Netflix not loading): Try restarting the TV by unplugging it from the power outlet for a few minutes, then plugging it back in. Ensure your internet connection is stable.
- "Cannot find HD channels" error: This message may appear even after successful channel installation. Ensure your tuner settings are correct and try rescanning channels. If the message persists but channels are available, it might be a minor software notification.
Pikeun masalah anu terus-terusan, mangga konsultasi ka sumber daya dukungan online atanapi hubungi layanan palanggan.
8. Spésifikasi
| merek | JVC |
| Nomer modél | LT-40VF5355 |
| Ukuran layar | 40 Inci (102 cm diagonal) |
| Téknologi tampilan | LED-LCD |
| Resolusi | 1080p (Full HD, 1920x1080 pixels) |
| Refresh Laju | 120 Hz |
| Sistem operasi | TiVo Smart TV |
| Fitur husus | HDR10, Micro Dimming, Super Resolution, 6 months HD+ included (via SAT in Germany) |
| Konektipitas | 2x HDMI (CEC + ARC), 1x USB, Wi-Fi, LAN, Digital Audio Output, Headphones, CI Slot |
| Dimensi (kalayan stand) | 23.5D x 90.9W x 57.9H cm |
| Kelas Éfisiensi Énergi (SDR) | E |
| Kelas Éfisiensi Énergi (HDR) | G |
| Konsumsi Daya (SDR) | 37.0 W |
| Konsumsi Daya (HDR) | 67.0 W |
| Kasadiaan suku cadang | 7 Taun |
Image: Table illustrating recommended viewing distances for different TV sizes (24" to 70") and resolutions (4K, Full HD, HD).

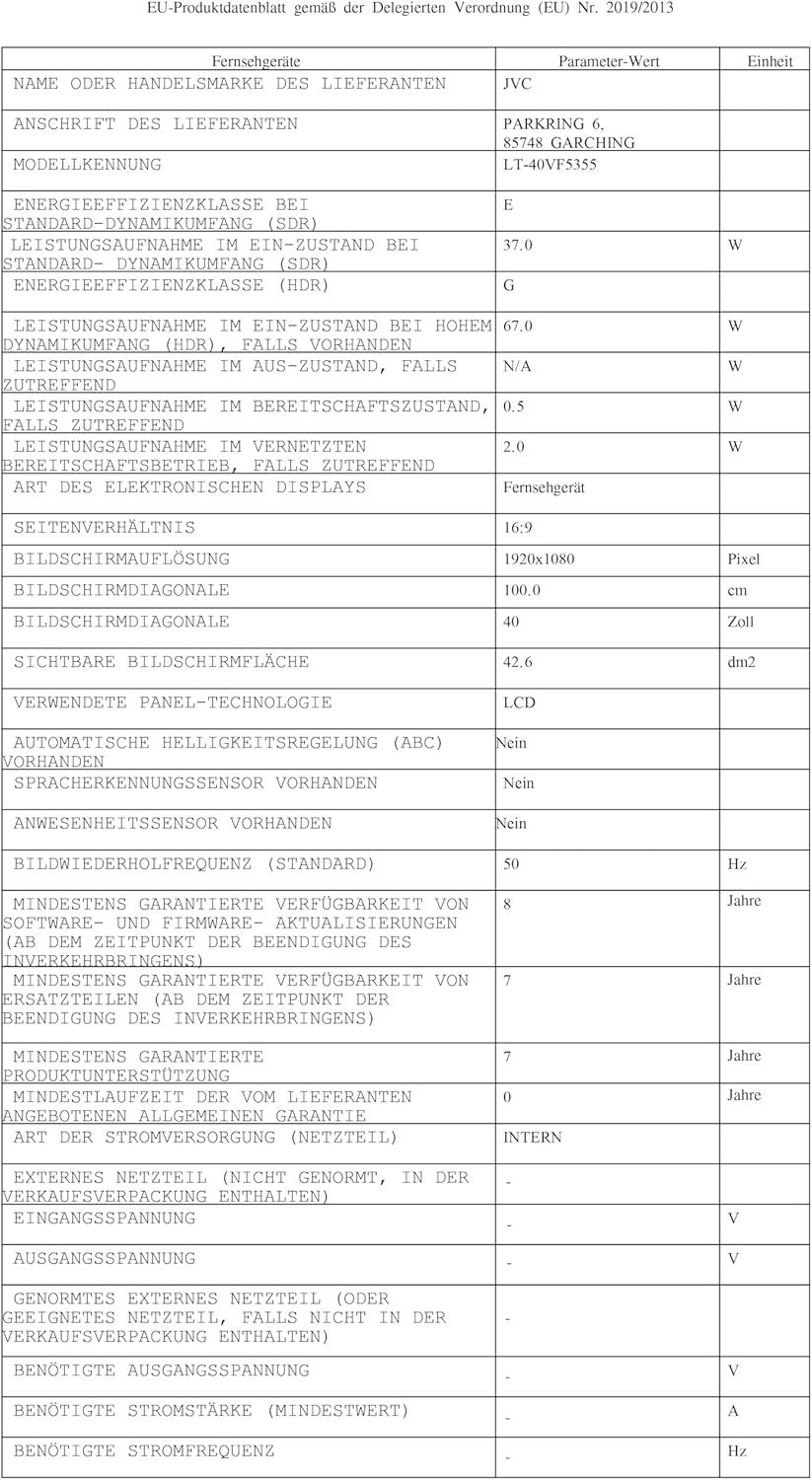

Image: EU Delegated Regulation product data sheet for the JVC LT-40VF5355, detailing technical specifications and energy consumption. For more details, visit eprel.ec.europa.eu/qr/1880376.
Image: EU Energy Label for the JVC LT-40VF5355, showing energy efficiency class E (SDR) and G (HDR), and power consumption values.
9. Garansi
JVC products are manufactured with high-quality components and are subject to rigorous quality control. For detailed warranty information, please refer to the warranty card included with your product or visit the official JVC website for your region. Spare parts are guaranteed to be available for 7 years from the date of placing the product on the market.
10. Rojongan
For further assistance, technical support, or service inquiries, please visit the official JVC support website or contact your local JVC customer service center. Keep your model number (LT-40VF5355) and serial number ready when contacting support.
Online resources may include FAQs, software downloads, and additional troubleshooting guides.
