1. Bubuka
This manual provides instructions for the ALLIMITY RG52A2-BGEF replacement remote control. This remote is designed to function as a direct replacement for various Direct and Midea AC Air Conditioner models, requiring no programming or setup beyond battery installation. Please read this manual carefully to ensure proper use and to understand all functions of your new remote control.
2. Produk Langkungview
The ALLIMITY RG52A2-BGEF remote control is a compact, white unit featuring a clear LCD display and ergonomically arranged buttons for easy operation of your air conditioner.
Gambar 2.1: Hareupeun view of the ALLIMITY RG52A2-BGEF remote control, showing the LCD screen and all control buttons.
Gambar 2.2: Angled view of the remote control, highlighting its ergonomic design.
3. Setélan
3.1 Pamasangan batré
To begin using your remote control, you must install batteries. No programming is required; simply insert the batteries, and the remote will be ready for use.
- Teangan tempat panutup kompartemen batré dina tonggong kadali jauh.
- Geser panutup ka handap atawa pencét kancing jeung angkat pikeun muka kompartemen.
- Insert two (2) 1.5V AAA alkaline batteries, ensuring the positive (+) and negative (-) terminals match the diagrams inside the compartment.
- Ganti panutup kompartemen batré ku cara ngageser deui kana tempatna nepi ka klik aman.

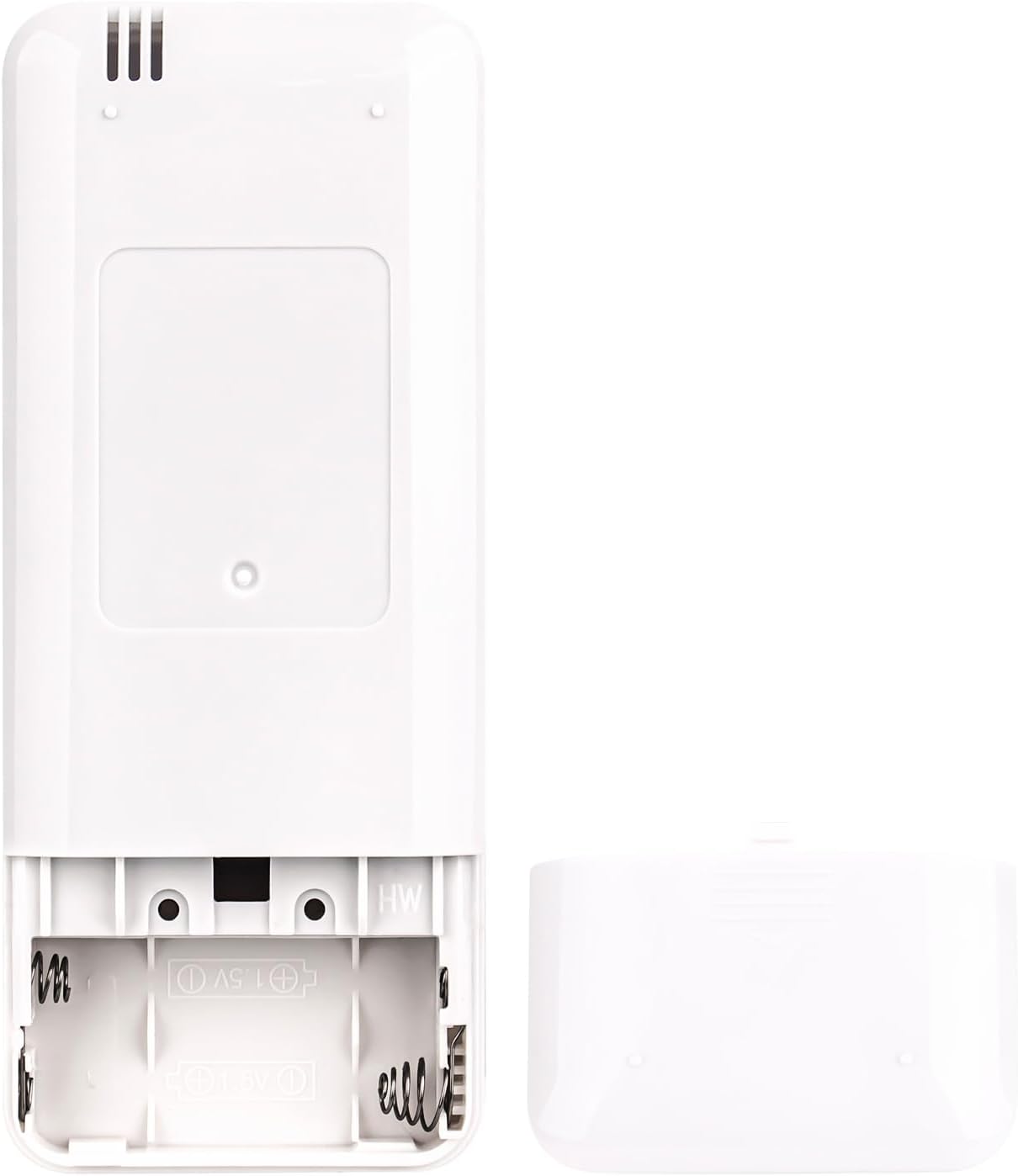

Gambar 3.1: View of the open battery compartment, showing where to insert two AAA batteries.
penting: Always use new alkaline batteries. Do not mix old and new batteries, or different types of batteries. Remove batteries if the remote will not be used for an extended period.
4. Parentah Operasi
Arah kadali jauh langsung ka panarima AC nalika operasi. Pastikeun teu aya halangan antara remote sareng unit.
4.1 Fungsi Tombol
- ON/OFF: Pencét pikeun ngaktipkeun atanapi mareuman AC.
- MODÉ: Ngaliwatan modeu operasi anu sayogi (contona, Tiis, Panas, Kipas, Garing, Otomatis).
- kipas: Saluyukeun laju kipas (contona, Lemah, Sedeng, Luhur, Otomatis).
- TEMP ▲/▼: Ngaronjatkeun atawa nurunkeun suhu set.
- TIMER ON: Nyetél timer supados AC hurung sacara otomatis.
- WAKTU MATI: Nyetél timer supados AC pareum sacara otomatis.
- SARE: Activates or deactivates the sleep mode, which adjusts temperature for comfortable sleep and energy saving.
- POTONGAN PONDOK: Recalls your preferred settings with a single press.
- TURBO SELF CLEAN: Activates the turbo mode for rapid cooling/heating or initiates the self-clean function (if supported by your AC unit).
- LED FOLLOW ME: Controls the LED display on the AC unit or activates the 'Follow Me' function (if supported), which senses temperature at the remote's location.
- ◀/▶ (Swing/Direction): Adjusts the horizontal or vertical airflow direction (functionality may vary by AC model).
5. Model cocog
This ALLIMITY RG52A2-BGEF replacement remote control is compatible with the following Direct/Midea AC Air Conditioner remote control models:
- RG52A8 / BGEF
- RG52A9 / BGEF
- RG52A2 / BGEF
- RG52A2-BGEF
- RG52A2/BG(C)EF
Please verify your original remote control model number against this list to ensure compatibility.
6. Spésifikasi
| Fitur | Spésifikasi |
|---|---|
| Dimensi produk | 6.5 x 1.38 x 0.72 inci (16.5 x 3.5 x 1.8 cm) |
| Item Beurat | 1.59 ons (45 gram) |
| Sasayogian tanaga | 2 x Batré AAA 1.5V (teu kalebet) |
| Warna | Hideung |
| Fitur husus | Wireless Infrared (IR) |
Gambar 6.1: Diagram showing the dimensions of the remote control in centimeters and inches.
7. Cara ngungkulan
7.1 Jauh Teu Ngabales
- Pariksa batré: Ensure batteries are inserted correctly with the correct polarity (+/-). Replace with fresh AAA alkaline batteries if necessary.
- Garis Panempoan: Make sure there are no obstructions between the remote control and the air conditioner's infrared receiver.
- Jarak: Operate the remote within the effective range of your air conditioner.
- AC Unit Power: Confirm that the air conditioner unit is powered on and receiving electricity.
7.2 Incorrect Functionality
- Kasaluyuan: Double-check that your air conditioner's original remote model number is listed under the compatible models in Section 5.
- AC Unit Features: Some advanced functions on the remote (e.g., Self Clean, Follow Me) may only work if your specific air conditioner model supports them.
8. Pangropéa
- beberesih: Ngusap kadali jauh ku lawon lemes, garing. Ulah make cleaners cair atawa bahan abrasive.
- Perawatan batré: Remove batteries if the remote will not be used for an extended period (e.g., one month or more) to prevent leakage and damage.
- Panyimpenan: Nyimpen remote di tempat anu tiis sareng garing jauh tina sinar panonpoé langsung sareng suhu anu ekstrim.
9. Garansi jeung Rojongan
As a replacement remote control, specific warranty terms may vary. Please refer to the seller or retailer from whom you purchased this product for information regarding their return policy or any applicable warranty. For technical support or further inquiries, please contact the seller directly.
