Bubuka
This manual provides essential information for the safe and efficient operation of your Kenmore 21 Cu. Ft. (600L) Convertible Upright Freezer/Refrigerator. Please read this manual thoroughly before installation, operation, or maintenance. Keep this manual for future reference.
Image: The Kenmore 21 Cu. Ft. Convertible Upright Freezer/Refrigerator, showcasing its sleek white design and upright form factor.
Émbaran Kasalametan
Salawasna turutan pancegahan kaamanan dasar nalika nganggo alat ieu pikeun ngirangan résiko kahuruan, kejutan listrik, atanapi tatu.
- Pastikeun alatna dibumikeun leres.
- Ulah nyimpen bahan ngabeledug sapertos kaléng aerosol kalayan propelan anu gampang kaduruk dina alat ieu.
- Tetep bukaan ventilasi jelas tina halangan.
- Ulah make alat mékanis atawa cara séjén pikeun ngagancangkeun prosés defrosting, lian ti nu dianjurkeun ku produsén.
- Ulah ngaruksak sirkuit refrigerant.
- Entong nganggo alat-alat listrik di jero kompartemen panyimpen dahareun alat éta, kecuali aranjeunna tina jinis anu disarankeun ku produsén.
- Cabut colokan alat sateuacan beberesih atanapi ngalakukeun pangropéa.
Disetél
Ngabongkar bungkusan
Carefully remove all packaging materials, including foam and adhesive tape. Inspect the appliance for any shipping damage. Retain packaging materials for potential future transport or service.
panempatan
Place the appliance on a flat, stable surface away from direct sunlight and heat sources. Ensure adequate air circulation around the unit. This unit is designed to be "Garage-Ready" in freezer mode, meaning it can operate effectively in a wider range of ambient temperatures typical of garage environments.

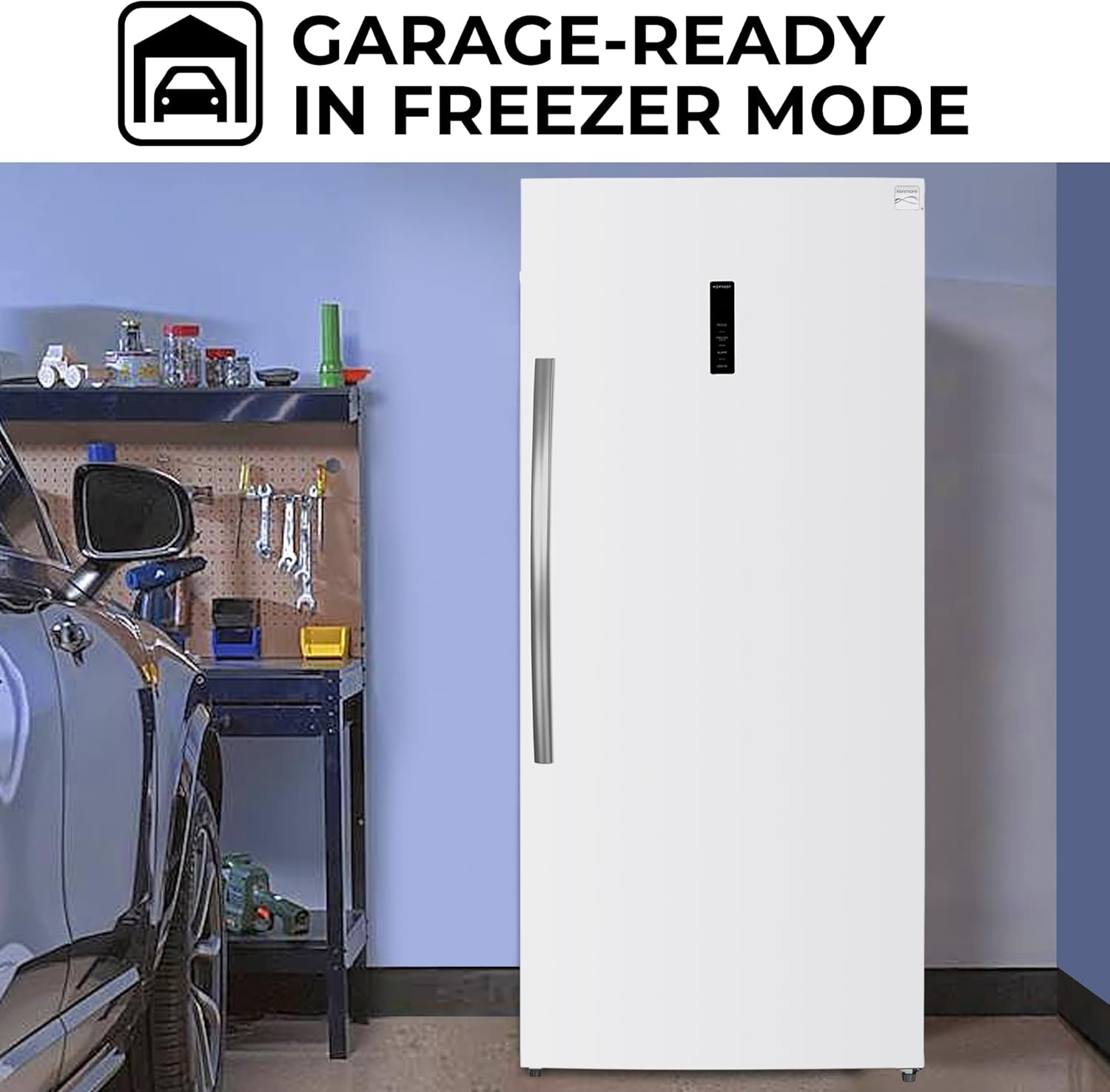

Image: The Kenmore appliance positioned in a garage, demonstrating its suitability for such environments when in freezer mode.
Leveling
Adjust the leveling feet at the bottom of the appliance to ensure it is stable and level. A level appliance operates more efficiently and prevents door alignment issues.
Sambungan Listrik
Connect the appliance to a dedicated, grounded 115 Volt AC outlet. Do not use extension cords or adapter plugs. Allow the appliance to stand upright for at least 2-4 hours before plugging it in to allow refrigerants to settle.
Parentah Operasi
Kadali Toel Digital
The appliance features an external digital touch control panel with an LED display for easy temperature management and mode switching.
Gambar: A lengkep view of the digital control panel, showing the LED temperature display and touch buttons for various functions.
- Kontrol Suhu: Use the up/down arrows to adjust the desired temperature.
- Konversi °C/°F: The display allows for easy conversion between Celsius and Fahrenheit.
- Alarm Suhu Tinggi: An audible alarm will sound if the internal temperature rises above a safe level, protecting your food from spoilage.
- Siaga Panto Buka: An alarm will activate if the door is left open for an extended period, helping to conserve energy and maintain internal temperature.
Convertible Function (Freezer/Refrigerator)
This versatile unit can be switched between freezer and refrigerator modes with a single touch on the control panel. This allows you to adapt the appliance to your specific storage needs, whether you require more frozen storage or additional refrigeration space.

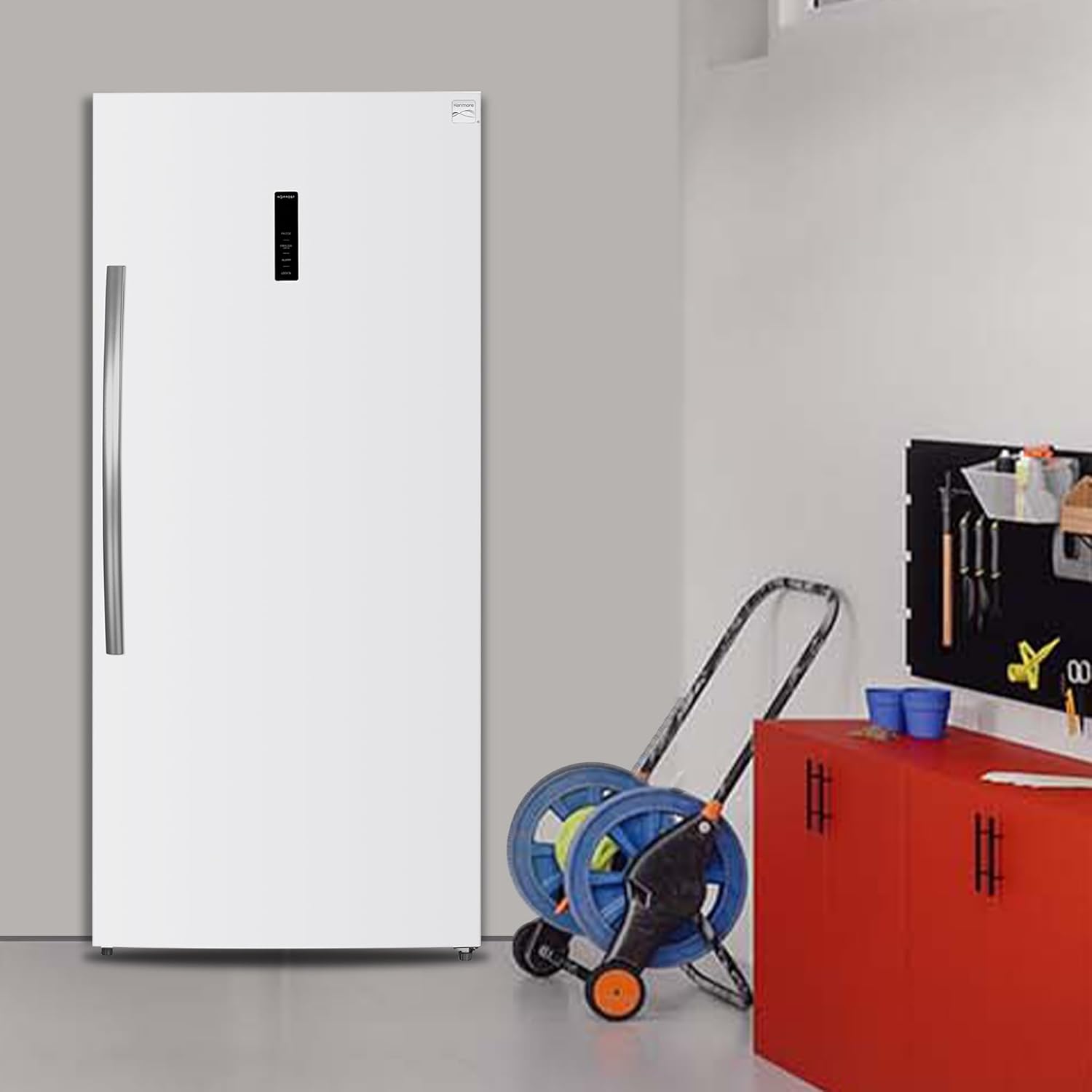

Image: A visual representation of the convertible design, illustrating the appliance's ability to function as either a refrigerator (35-47°F) or a freezer (-7 to -8°F).
Mode Freeze Gancang
Activate the Quick Freeze feature for ultra-fast cooling. This is ideal for rapidly freezing large quantities of fresh food, helping to preserve their quality and nutrients.
Fitur internal
The interior is designed for optimal organization and visibility.
- Lampu interior LED: Bright LED lights illuminate the interior, making it easy to find items.
- Repositionable Shelves: The unit includes 4 removable wire shelves that can be adjusted to accommodate items of various sizes.
- Door Storage Bins: Convenient bins on the door provide additional storage for smaller items.
- karanjang: One basket is included for organized storage of smaller or frequently accessed items.
Image: The interior of the appliance, highlighting the adjustable wire shelves and spacious design.
Pangropéa
beberesih
Regular cleaning helps maintain the efficiency and appearance of your appliance. Unplug the unit before cleaning. Use a mild detergent and warm water to clean interior and exterior surfaces. Do not use abrasive cleaners or sharp objects.
Defrost otomatis
This appliance features a Total No-Frost design with an automatic defrost function. This eliminates the need for manual defrosting, preventing ice build-up and ensuring optimal operating condition.
Kakuatan Outage Pituduh
Bisi hiji kakuatan outage, keep the appliance door closed to maintain the internal temperature for as long as possible. Food can remain frozen for several hours if the door is not opened frequently.
Pamérésan masalah
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Perkakas teu beroperasi. | Teu plugged di; circuit breaker tripped; kakuatan outage. | Check power cord connection; reset circuit breaker; check household power supply. |
| Suhu teu cukup tiis. | Panto teu ditutup kalawan bener; lawang panto kaleuleuwihi; kadaharan haneut ditambahkeun; suhu disetel teuing luhur. | Pastikeun panto ditutup pageuh; leutikan liang panto; antepkeun kadaharan haneut tiis sateuacan disimpen; sesuaikan setélan suhu ka handap. |
| Alatna ngaluarkeun sora anu teu biasa. | Alat teu rata; barang-barang ngageter ngalawan unit; sora operasi normal. | Adjust leveling feet; ensure nothing is touching the unit; some sounds (e.g., refrigerant flow, fan) are normal. |
| Alarm muka panto sering disada. | Door not fully closed; door gasket dirty or damaged. | Ensure door is completely shut; clean or inspect door gasket for damage. |
spésifikasi
| Fitur | Rincian |
|---|---|
| merek | Koolatron |
| Nomer modél | KKUF21-W |
| Kapasitas | 21 Cubic Feet (600L) |

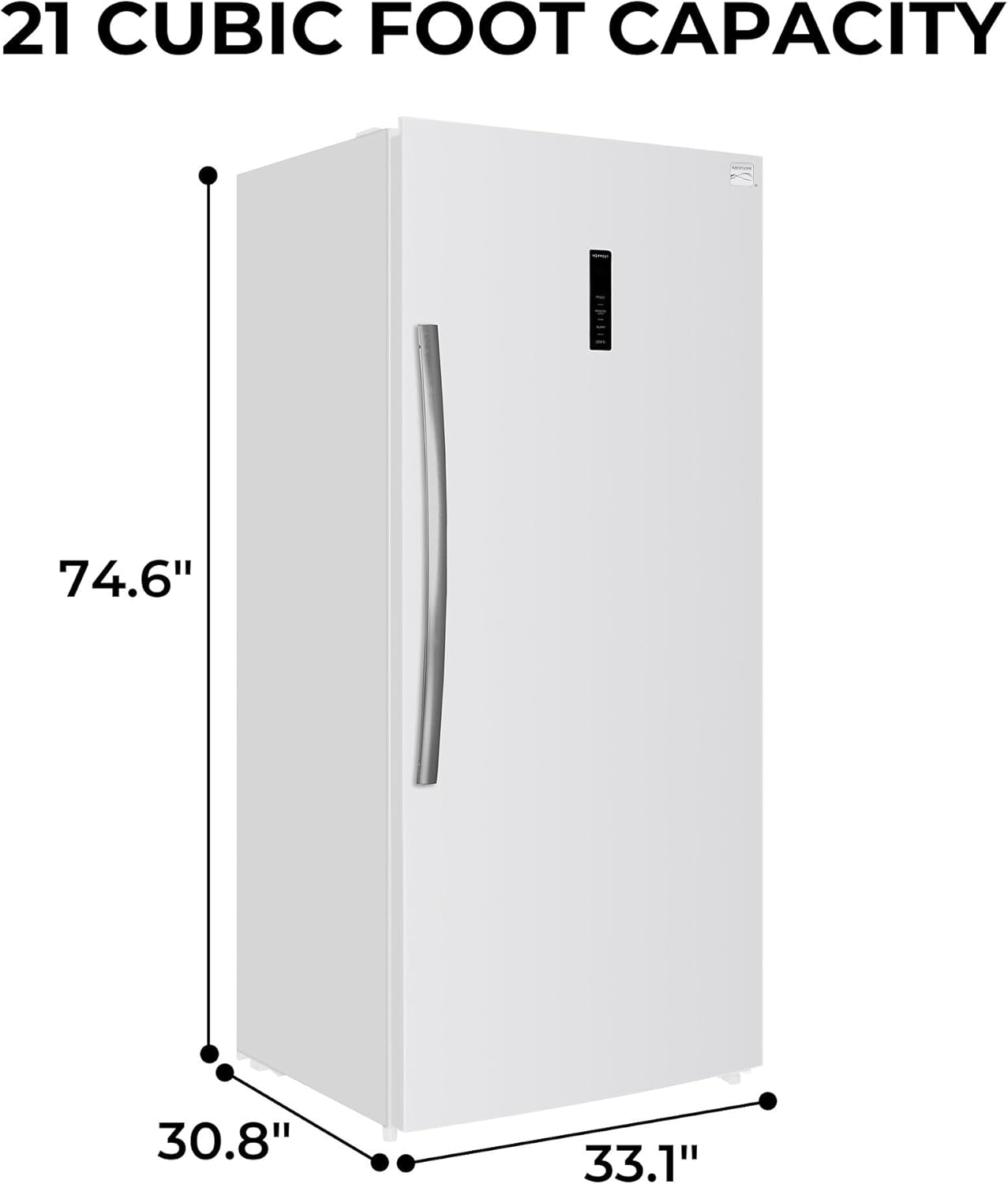

| Diménsi (D x W x H) | 33.1 x 30.8 x 74.6 inci |
| Item Beurat | 180 pon |
| Tipe Pamasangan | Jalanan |
| Sistem Defrost | Automatic (Total No-Frost) |
| Warna | Bodas Salju |
| Voltage | 115 volt |
| Konsumsi Énergi Taunan | 314 Kilowatt Jam Per Taun |
| Jumlah Rak | 5 (Wire, removable) |
| Komponén Kaasup | Convertible freezer/fridge; 4 x removable shelves; 1 x basket |
| Fitur husus | Automatic Defrost, Digital Touch Controls, Quick Freeze, LED Interior Light, Garage-Ready (Freezer Mode), Door Open Alarm, High Temperature Alarm |
| Sertifikasi | DOE, EnergyStar Certified |
Garansi
This Kenmore appliance is backed by a 2-year warranty. This warranty provides assurance and support should any issues arise with your product. Please refer to the warranty card included with your purchase for full terms and conditions, or visit the manufacturer's websitus pikeun leuwih rinci.
Ngarojong
For technical assistance, troubleshooting not covered in this manual, or to inquire about parts and service, please contact Koolatron customer support. Visit the official Koolatron websitus pikeun inpo kontak jeung sumber tambahan.
Anjeun oge bisa nganjang ka Koolatron Store on Amazon pikeun émbaran leuwih produk jeung rojongan.
